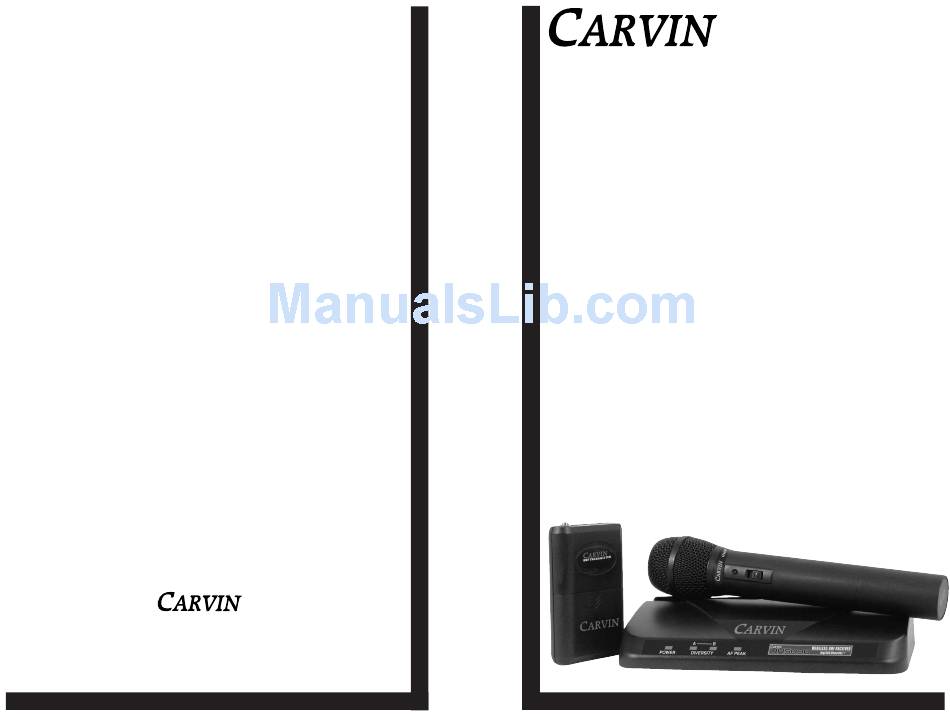

- Page 1 UH5000 UHF Wireless Microphone System 12340 World Trade Dr. San Diego, CA. 92128 800-854-2235 carvin.com...
- Page 3 INTRODUCTION ........2 od, Carvin will repair or replace the unit free of charge, subject to verifi- UHF 10 RECEIVER .
-
Page 4: Specifications
Thank you for purchasing a Carvin UHF Diversity Wireless Microphone 50 Hz - 15 KHz, +/- 3 dB Bodypack: 3.5mm locking System and congratulations on your choice. The UH5000 is the best per- Dynamic Range mini-jack 3-way select switch formance and price value available in UHF wireless systems and is loaded... - Page 5 UH5000 RECIEVER 1. Powering the Receiver Plug the 12V AC/DC ADAPTER (12) provided into the DC INPUT JACK (6) on the back of the receiver. Then plug the power supply into an AC outlet. (Note: Any DC source with 300mA capability can also be used.) Press the POWER SWITCH (5) once to turn on the receiver.
- Page 6 For optimum performance, an INPUT LEVEL CONTROL (27) is provided. Adjust the gain by turning the control with your thumb. For lavalier mic use, it is recommended that the level be set at about 2/3 maximum. For headworn mic use, it may be advisable to turn the gain down somewhat, depending on the volume levels expected.
- Page 7 The AF PEAK LED INDICATOR (3) on the receiver will light for all loud input signals. Microphone Connection (using the transmitter with either a headworn or lavalier micro- phone or the handheld microphone transmitter) Occasional flickering on and off during use is normal, however if the LED stays on con- tinuously, turn down the instrument volume or the INPUT LEVEL CONTROL (27) on the transmitter, or noticeable distortion may result.
-
Page 8: Handheld Microphone
BODYPACK TRANSMITTER HANDHELD MICROPHONE 1. Slide open the hinged BATTERY COMPARTMENT (18) and insert a fresh 9V ALKALINE 1. Unscrew the BATTERY COMPARTMENT COVER (19) and remove, exposing the BAT- BATTERY (19), observing the correct polarity. A fresh alkaline battery can last up to 10 TERY HOLDER (20).
