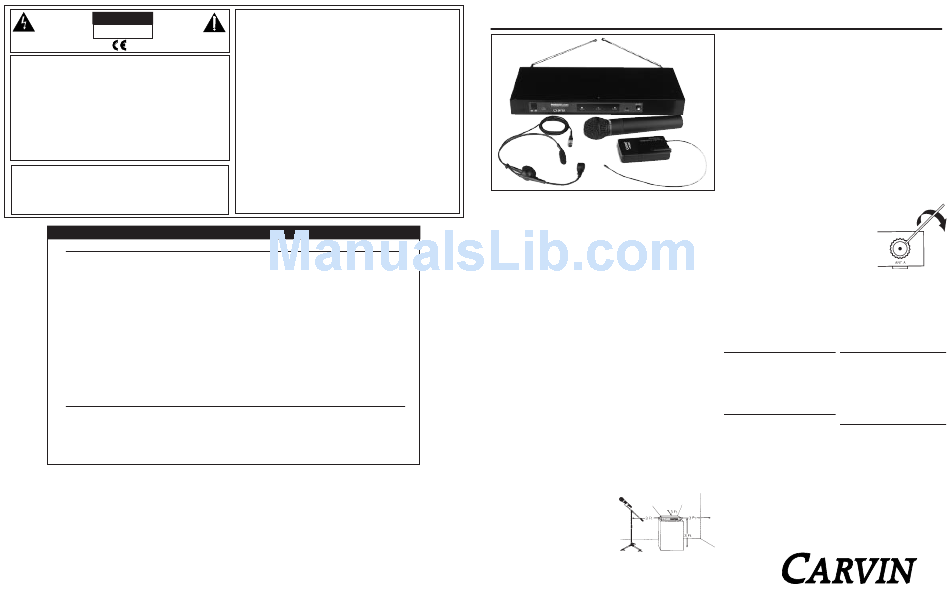

CARVIN PWS2000 Manual

This symbol is intended to This symbol is
CAUTION
alert the user to the pres- intended to alert the
ence of uninsulated "dan- user to the presence of
RISK OF ELECTRIC SHOCK
gerous voltage" within the important operating
DO NOT OPEN
product's enclosure that may be of suf- and maintenance (servicing) instruc-
ficient magnitude to constitute a risk of tions in the literature accompanying
electric shock to persons. the appliance.
IMPORTANT! FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING:
WATER AND MOISTURE: Appliance should not be used near water (near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken
so that objects do not fall and liquids are not spilled into the enclosure through openings.
POWER SOURCES: The appliance should be connected to a power supply only of the type described
in the operating instructions or as marked on the appliance.
GROUNDING OR POLARIZATION: Precautions should be taken so that the grounding or polar-
ization means of an appliance is not defeated.
POWER CORD PROTECTION: Power supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against them, paying particular attention
to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
SERVICING: The user should not attempt to service the appliance beyond that described in the
operating instructions. All other servicing should be referred to qualified service personnel.
FUSING: If your unit is equipped with a fuse receptacle, replace only with the same type fuse.
Refer to replacement text on the unit for correct fuse type.
SAFETY INSTRUCTIONS (EUROPEAN)
The conductors in the AC power cord are colored in accordance with the following code.
GREEN & YELLOW—Earth BLUE—Neutral BROWN—Live
U.K. MAIN PLUG WARNING: A molded main plug that has been cut off from the cord is
unsafe. NEVER UNDER ANY CIRCUMSTANCES SHOULD YOU INSERT A DAMAGED
OR CUT MAIN PLUG INTO A POWER SOCKET.
CARVIN WIRELESS OPERATING FREQUENCIES
Application
• Traveling frequencies
(Normally work anywhere in the U.S.A. and Canada,
but as a result tend to be crowded
• For use only where there is no channel 7:
• For use only where there is no channel 8:
• For use only where there is no channel 9:
• For use only where there is no channel 10:
• For use only where there is no channel 11:
• For use only where there is no channel 12:
• For use only where there is no channel 13:
Multi-channel Systems
Following are groupings of frequencies suggested for multi-channel wireless systems.
• For use where TV channels 7, 9, 11 and/or 13 are operating: 8D-8M-8S-10C-10J-10W-12L-12S-12V
Traveling frequencies T2, T3 and/or T8 may be used with any of the above frequencies except for: 8D, 8M and 10C.
Interference may result from the use of these frequency combinations.
• For use where TV channels 8, 10 and/or 12 are operating:
Traveling frequencies T2, T3 and/or T8 may be used with any of the above frequencies with no interference problems.
For future reference, please record your system information here (the serial numbers appear
inside the battery compartment of each transmitter, and on the bottom of each receiver):
Operating Frequency
Freq. Code____ ____ ____ Frequency____ ____ ____ • ____ ____ ____ MHz
Receiver
Model_________________ Serial Number____ ____ ____ ____ ____ ____ ____
Transmitter
Model_________________ Serial Number____ ____ ____ ____ ____ ____ ____
LIMITED WARRANTY
Your Carvin product is guaranteed against failure for ONE YEAR unless otherwise stated. Vacuum
tubes are guaranteed for 90 days. Carvin will service and supply all parts at no charge to the customer
providing the unit is under warranty. Shipping costs are the responsibility of the customer. CARVIN
DOES NOT PAY FOR PARTS OR SERVICING OTHER THAN OUR OWN. A COPY OF THE ORIGINAL
INVOICE IS REQUIRED TO VERIFY YOUR WARRANTY. Carvin assumes no responsibility for horn dri-
vers or speakers damaged by this unit. This warranty does not cover, and no liability is assumed, for
damage due to: natural disasters, accidents, abuse, loss of parts, lack of reasonable care, incorrect
use, or failure to follow instructions. This warranty is in lieu of all other warranties, expressed or implied.
No representative or person is authorized to represent or assume for Carvin any liability in connection
with the sale or servicing of Carvin products. CARVIN SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES.
When RETURNING merchandise to the factory, you may call for a return authorization number. Describe
in writing each problem. If your unit is out of warranty, you will be charged the current FLAT RATE for
parts and labor to bring your unit up to factory specifications.
HELP SECTION
RF Interference
If you encounter receiving interference (from other than an operating TV station), often it can be
eliminated by adjusting the receiver's squelch control, as described in this manual.
Please note that wireless frequencies are shared with other audio services. According to Federal
Communications Commission regulations, "Wireless microphone operations are unprotected from
interference from other licensed operations within the band. If any interference is received by any
Government or non-Government operation, the wireless microphone must cease operation..."
If you need assistance with operation or frequency selection, please contact Carvin's service
department.
Freq. Code Freq. (MHz)
T2 169.505
T3 170.245
T8 171.905
8G 175.800
7I 176.200
8D 181.200
8M 183.200
8S 184.200
9F 187.600
9Q 189.800
10C 193.000
10J 194.400
10W 196.800
11G 199.800
11S 202.200
12L 207.000
12S 208.200
12V 208.600
13B 210.800
13Q 213.800
7G-7I-9F-9Q-11G-11S-13Q or
7G-7I-9F-11G-11S-13B-13Q
ACCESSORIES
PWS-RMA Rack-mount antenna kit brings antenna inputs
to the front of receiver for ease of setup.
PWS-VPC Vinyl pouch with belt clip holds UniPak.
PWS-WSC Foam windscreen for handheld transmitter.
PWS-WRP Water-resistant pouch for UniPak transmitter.
PWS-STC Stand clamp for handheld, 5/8"-27 threads.
PWS-XLR Connecting cable for UniPak transmitter with
an XLRF-type input connector, for Lo-Z mics
with XLRM-type output terminations.
PWS-PAK UniPack™ transmitter
PWS-MIC Handheld microphone
PWS-GTR 1/4" instrument cable
PWS-HWM Headset mic
PWS-LPM Lapel condenser mic
CARVIN ENGINEERING DATA
INTRODUCTION
Thank you for choosing a Carvin professional wireless system. You have joined thousands
of other satisfied customers who have chosen our products because of their quality, per-
formance and reliability. This Carvin wireless microphone system is the successful result
of years of design and manufacturing experience.
This professional wireless system includes a receiver and either a body-pack or a hand-
held transmitter on a specific crystal-controlled frequency.
The receiver features true diversity reception. Two antennas feed two completely inde-
pendent RF sections on the same frequency; automatic logic circuitry continuously com-
pares and selects the superior received signal, providing better sound quality and reducing
the possibility of interference and dropouts. The receiver is made to be mounted in a stan-
dard 19" rack (1U).
The versatile UniPack™ body-pack transmitter has both low- and high-impedance inputs
plus a bias connection, for use with dynamic and electret condenser microphones, as well
as Hi-Z instrument pickups. Both the handheld and UniPack transmitters use internal 9-
volt batteries and have Off/Standby/On switches, battery condition indicators, and battery-
save switches.
Please note that in multiple-system applications there must be a transmitter-receiver com-
bination on a separate frequency for each input desired (only one transmitter for each receiver).
Because the wireless frequencies are in or near VHF TV frequencies, only certain wireless
frequencies are useable in a particular geographical area. Also, only certain of the available
operating frequencies may be used together. (Frequency selection information will be found
on the back cover.)
INSTALLATION AND OPERATION
This device complies with part 15 of the FCC Rules. Operation is subject to the condition
that this device does not cause harmful interference.
This device complies with INDUSTRY CANADA R.S.S. 210, en conformite ´ avec IC: RSS-
210/CNR210. Operation is subject to the following conditions: 1) This device may not cause
harmful interference and 2) this device must accept any interference received, including inter-
ference which may cause undesired operation.
CAUTION! Electrical shock can result from removal of the receiver cover. Refer servicing
to qualified service personnel. No user-serviceable parts inside. Do not expose to rain or
moisture.
The circuits inside the receiver and transmitter have been precisely adjusted for optimum
performance and compliance with federal regulations. Do not attempt to open the receiver
or transmitter. To do so will void the warranty, and may cause improper operation.
RECEIVER INSTALLATION
LOCATION
Fig. A
For best operation the receiver should be at least
3 ft. above the ground and at least 3 ft. away from
a wall or metal surface to minimize reflections. The
transmitter should also be at least 3 ft. away from
the receiver, as shown in figure A.
Keep antennas away from noise sources such as
motors, automobiles, and neon lights, as well as
large metal objects.
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date_______________
76-20012 898
PWS2001 UniPak™ Transmitter System
PWS2002 Handheld Dynamic Microphone System
RECEIVING INSPECTION—read before getting started
INSPECT YOUR WIRELESS SYSTEM FOR ANY DAMAGE which may have occurred during ship-
ping. If any damage is found, please notify the shipping company and CARVIN immediately.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship your unit,
always use the original carton and packing material. This will provide the best possible protec-
tion during shipment. CARVIN and the shipping company are not liable for any damage caused
by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped separately.
Please allow several days for the rest of your order to arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card or below on this manual for your
records. Keep your portion of the card and return the portion with your name and comments to us.
OUTPUT CONNECTIONS
There are two audio outputs on the back of the receiver: balances (220 mV) and unbal-
anced (350 mV). Use shielded audio cable for the connection between the receiver and
the mixer. If the input of the mixer is a 1/4" jack, connect a cable from the 1/4" unbal-
anced audio output on the back of the receiver to the mixer. If the input of the mixer is an
XLR-type input, connect a cable from the balanced XLR-type audio output on the back of
the receiver to the mixer.
The two isolated audio outputs permit simultaneous feeds to both unbalanced and bal-
anced inputs. For example, both a guitar amp and a mixer can be driven by the receiver.
ANTENNAS
Assemble the two whip antennas to the special connec-
tors provided. Screw the whips into the threaded side holes
at the rear of the connector (Fig. B).
Attach the antennas to the antenna input jacks. The anten-
nas are normally positioned in the shape of a "V" (45° from
vertical) for best reception.
Do not try to move the antenna rod after the connector shell
has been tightened down. Always loosen the connector shell
completely before repositioning the rod.
If there is not sufficient space above the receiver and/or if
the receiver is installed in a metal cabinet, the antennas can be mounted in the threaded
holes in the back of the connectors so the antennas will stick straight out from the back of
the receiver. Use one set of threaded holes or the other; do not attempt to bend the antenna
rods. (The optional accessory PWS-RMA rack-mount antenna kit brings antenna inputs to
the front of the receiver.)
POWER CONNECTIONS
Connect the included AD1205A AC adapter to the DC power input on the back of the receiver.
Then plug the adapter into a standard 120 volt 60 Hz AC power outlet.
OVERALL SYSTEM PWS-PAK UNIPAK™ TRANSMITTER
Operating Freq. VHF high band, 169 MHz to 216 MHz RF Power Output
Spurious Emissions
Frequency Stability ±0.005%, single-frequency
Dynamic Range
crystal-controlled
Input Connections
Modulation Mode FM
Battery
Max Deviation ±30 kHz, traveling freq. ±15 kHz
Current Consumption
Operating Range 200' minimum
Battery Life
Operating Temp 40° F (4° C) to 110° F (43° C)
Dimensions
Freq. Response 100 Hz to 15 kHz
Net Wt (no battery)
RECEIVER
Accessories Included Hi-Z input cable
Receiving System Dual independent receivers, auto-
PWS-MIC HANDHELD TRANSMITTER
matic switching diversity reception
Polar Pattern
≥60 dB
Image Rejection
RF Power Output
Signal-to-noise .80 dB at 10 kHz deviation (IEC-weighted)
Spurious Emissions
≤1% (10 kHz deviation @ 1 kHz)
THD
Dynamic Range
Sensitivity 10 µV for 60 dB S/N (IEC-weighted) Microphone Element
Audio Output PWS-DYM
Unbalanced 350 mV (at 1 kHz, ±10 kHz deviation, Battery
10k ohm load) Current Consumption
Battery Life
Balanced 220 mV (at 1 kHz, ±10 kHz deviation,
10k ohm load)
Output Conn. Dimensions
Net Wt (no battery)
Unbalanced 1/4" phone jack
Balanced XLRM-type Accessory Included
Power Supply 12-18V DC, 350 mA, with provided
AC adapter
Dimensions 16.93" (430.0 mm) W x 1.92" (48.8
mm) H x 7.28" (185.0 mm) D
Weight 5.5 lbs (2.5 kgs)
Accessories Two whip antennas, rack mount
adapters, AD1205A AC adapter
12340 World Trade Drive, San Diego, CA 92128
(619) 487-1600 (800) 854-2235
www.carvin.com
Fig. B
50 mW max
Under federal regulations
≥90 dB
High impedance, low imp, bias
9V (NEDA type 1604) alkaline
30 mA typical
Approx. 15 hours in "H" position
Approx. 20 hours in "L" position
2.56" W x 4.33" H x 1.00" D
2.8 oz (78 grams)
Unidirectional
50 mW max
Under federal regulations
≥90 dB
Audio-Technica dynamic
9V (NEDA type 1604) alkaline
30 mA typical
Approx. 15 hours in "H" position
Approx. 20 hours in "L" position
9.50" long, 2.10" dia.
12.7 oz (360 grams)
Stand clamp
