ALCO AL-61518 Assembly Instructions

Download this manual

IDENTIFY COMPONENT S TO START ASSEMBLY

CLAMP ON FOLDING FOOTREST (FF) WITH

WIRE. SCREWSTUD 1.

NOTE: A PHILLIPS SCREWDRIVER OR A CORDLESS HAND DRILL IS REQUI RED TO TIGHTEN / SECURE ALL SCREWS.

STEP 2 – CLAMP ON

AL-61518 Assembly Instructions

CLAMP FF ON

THE FRONT

CROSS BAR.

SECURE FF

WITH THE

VINYL STRAPS

AND SNAPS

PROVIDE.

STEP 1 DRILL HOLES.

MEASURE 2" FROM THE TOP OF THE FRONT

CORNER FITTINGS BEST TO MARK FRONT AND

BACK OF PIPES .

USE 5 /32 DRILL BIT , DRILL HOLES IN THE

FRONT AND THE BACK OF THE PIPES .

STEP 3 WIRE

THREAD THE WIRE

THROUGH THE HOLES

ON THE VERTICAL

PIPES .

PLACE THE METAL

FERRELS ON THE

E X POSED PART OF

THE WIRE FIRST THEN

THE CLEAR PLASTIC.

Need help?

Do you have a question about the AL-61518 and is the answer not in the manual?

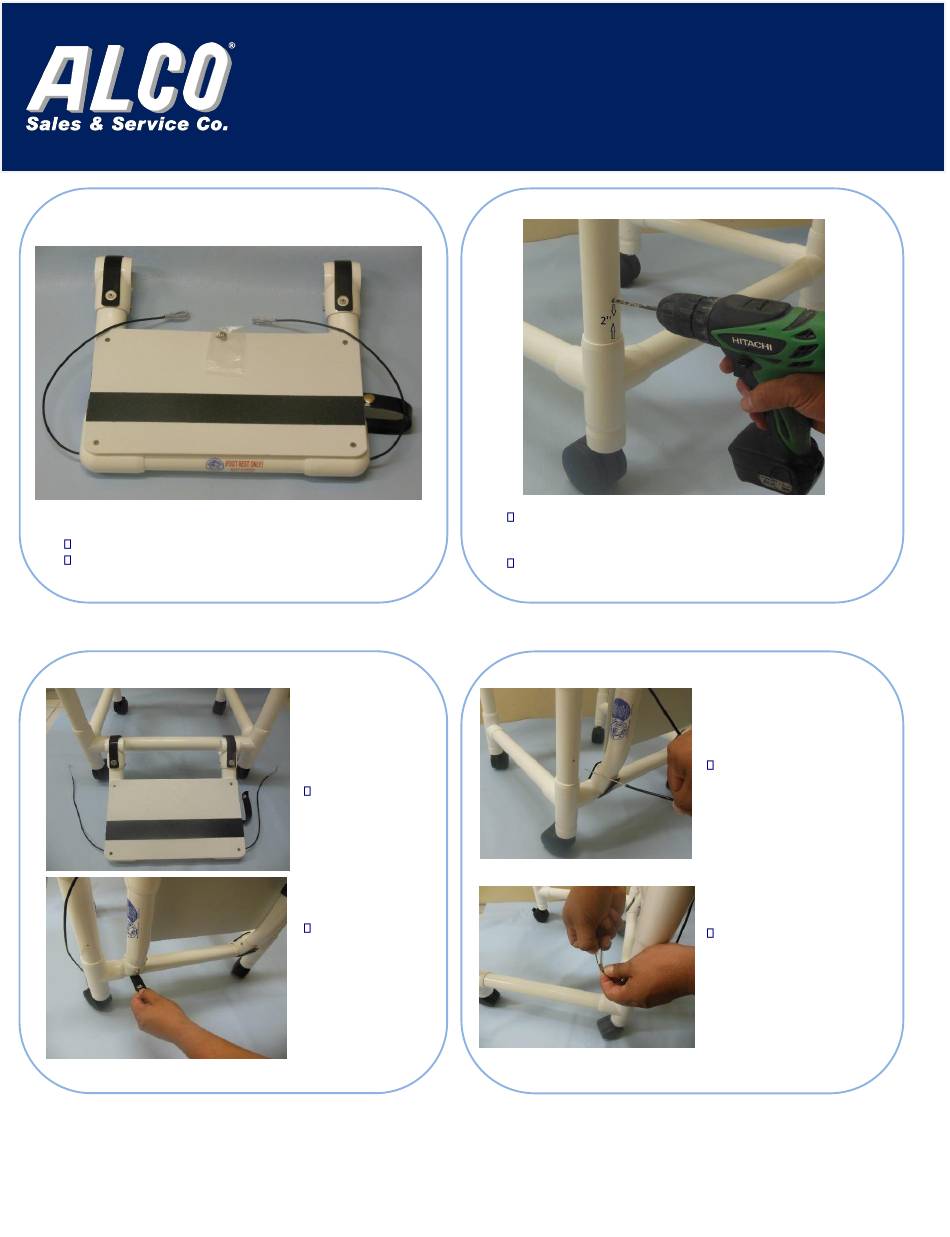

Page 1 AL-61518 Assembly Instructions STEP 1 DRILL HOLES. IDENTIFY COMPONENT S TO START ASSEMBLY MEASURE 2” FROM THE TOP OF THE FRONT CORNER FITTINGS BEST TO MARK FRONT AND CLAMP ON FOLDING FOOTREST (FF) WITH BACK OF PIPES . WIRE. SCREWSTUD 1.
Page 2 AL-61518 Assembly Instructions STEP 5 BACKREST & MESH SLING STEP 4 SLIDING FOOTREST DRILL A HOLE ON THE LEFT TOP PUSH THE CORNER OF THE EXPOSED WIRE VERTICAL PIPE THROUGH THE LEFT WHEN FERREL BEFORE SEATING) 1” FROM CRIMPING .
Page 3 AL-61518 CARE INSTRUCTIONS PVC PIPING AND CASTERS Wipe down piping with non-abrasive cleanser. DO NOT use solvents. Restore luster with Johnson’s Pledge or similar spray wax. If casters are used in wet environment, keep lubricated with white lithium paste or similar lubricant;...
