Summary of Contents for Siemens 6ES7132-6BF01-0AA0
Page 1

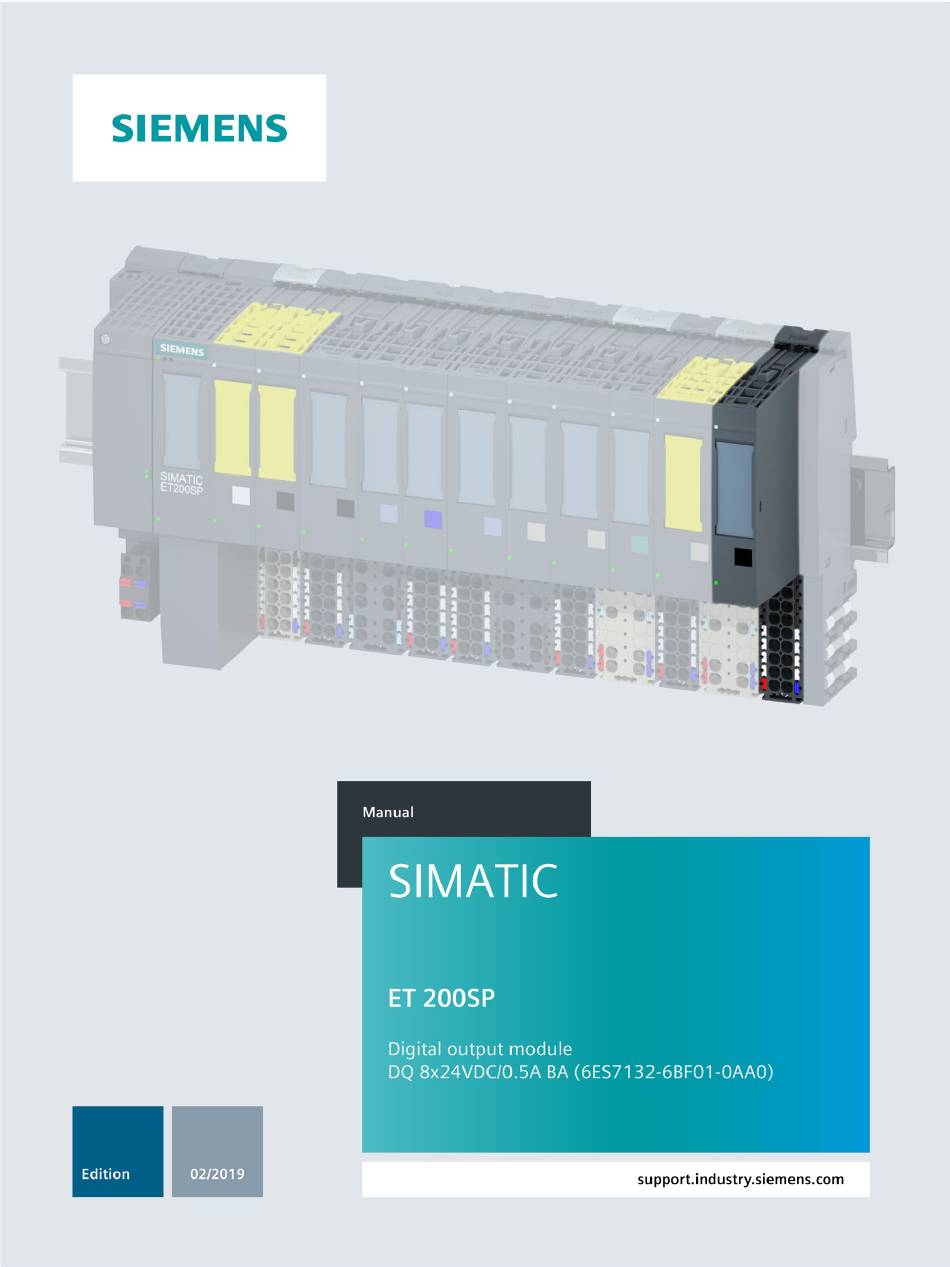

Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0)
Page 2
Preface ET 200SP Documentation Guide SIMATIC Product overview Wiring ET 200SP Digital output module Parameters/address space DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Interrupts/diagnostics alarms Manual Technical specifications Parameter data record 02/2019 A5E36107249-AB...
Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
A note contains important information on the product described in the documentation, on the handling of the product or on the section of the documentation to which particular attention should be paid. Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Siemens' products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers' exposure to cyber threats.
Interrupts ..........................19 Diagnostics alarms ........................19 Technical specifications ........................20 Technical specifications ......................20 Parameter data record .......................... 25 Parameter assignment and structure of the parameter data record ........25 Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Device information Product manuals contain a compact description of the module-specific information, such as properties, wiring diagrams, characteristics and technical specifications. Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
You need to register once to use the full functionality of "mySupport". You can find "mySupport" in the Internet (https://support.industry.siemens.com/My/ww/en). Application examples The application examples support you with various tools and examples for solving your automation tasks.
Product overview Properties Article number 6ES7132-6BF01-0AA0 (number in package unit: 1 unit) 6ES7132-6BF01-2AA0 (number in package unit: 10 units) View of the module ① ⑦ Module type and name Function class ② ⑧ LED for diagnostics Color coding module type ③...
Page 10
● Color identification labels ● Reference identification label ● Shield connector See also You can find additional information on the accessories in the system manual Distributed I/O System ET 200SP (https://support.automation.siemens.com/WW/view/en/58649293). Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
The load group of the module must begin with a light-colored BaseUnit. Keep this in mind also during the configuration. Note Cross circuit at output Be aware that voltage from a cross-circuit at the output can feed L+ to modules. Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Page 12
Channel status LED (green) tional) ⑦ Filter connection supply voltage (only when Power LED (green) light-colored BaseUnit is present) Figure 3-1 Block diagram and terminal assignment for 1- and 2-wire connection of actuators Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Page 13
Output signal, channel n Ground P1, P2, AUX Internal self-assembling voltage buses Connection to left (dark-colored BaseUnit) Connection to left interrupted (light-colored BaseUnit) Figure 3-2 Terminal assignment for 3-wire connection of actuators Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
When assigning parameters in the user program, use the "WRREC" instruction to transfer the parameters to the module by means of data records, see section Parameter assignment and structure of parameter data record (Page 25). Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Page 15
The parameter length of the I/O module is 4 bytes with PROFIBUS GSD configuration. If necessary, however, you can set these parameters via data record 128, see appendix "Parameter data record". Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
You take the potential of the self-assembling voltage buses P1, P2 and AUX from the left neighbor. A potential group ends with the dark-colored BaseUnit, which follows a light-colored BaseUnit or server module in the station configuration. See also ET 200SP distributed I/O system (https://support.automation.siemens.com/WW/view/en/58649293) Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Address space of the digital output module DQ 8x24VDC 0.5A BA The figure below shows the assignment of the address space for DQ 8x24VDC/0.5A BA Figure 4-1 Address space of DQ 8x24VDC/0.5A BA Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Interrupts/diagnostics alarms Status and error display LED display DQ 8x24VDC/0.5A BA. ① DIAG (green/red) ② Channel status (green) ③ PWR (green) Figure 5-1 LED display Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Channel activated and process signal = 1 PWR LED Table 5- 3 Status display of the PWR LED PWR LED Meaning Missing supply voltage L+ Off Supply voltage L+ present Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Incorrect parameter assignment. • Supply voltage miss- Missing or insufficient supply voltage L+ Check supply voltage L+ on the Ba- • seUnit Check BaseUnit type • Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
PROFIBUS as of GSD version/GSD revi- • sion GSDML V2.3 PROFINET as of GSD version/GSD revi- • sion Operating mode • DQ with energy-saving function • • Oversampling • • Redundancy Redundancy capability • Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Page 22
Switching capacity of the outputs 0.5 A with resistive load, max. • on lamp load, max. • Load resistance range 48 Ω lower limit • 100 kΩ upper limit • Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Page 23
1 000 m shielded, max. • 600 m unshielded, max. • Isochronous mode Isochronous operation (application synchro- nized up to terminal) Interrupts/diagnostics/status information Diagnostics function Substitute values connectable Alarms Diagnostic alarm • Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Page 24
• -30 °C vertical installation, min. • 50 °C vertical installation, max. • Dimensions Width 15 mm Height 73 mm Depth 58 mm Weights Weight, approx. 30 g Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
• SIL according to IEC 61508: 2 • Highest attainable safety class in safety mode, performance level according to EN ISO 13849-1: d Dimension drawing See the manual ET 200SP BaseUnits (https://support.automation.siemens.com/WW/view/en/59753521) Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
The STATUS output parameter contains a corresponding error code. You will find a description of the "WRREC" instruction and the error codes in the STEP 7 online help. Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Channel 0 includes the diagnostics enable for the entire module. Figure A-1 Structure of data record 128 Header information The figure below shows the structure of the header information. Figure A-2 Header information Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Page 28
The figure below shows the structure of the parameters for channels 0 to 7. You enable a parameter by setting the corresponding bit to "1". Figure A-3 Structure byte x to x+1 for the channels 0 to 7 Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
Page 29
WRREC instruction. Wrong version or error in the Correct the version, length and number of header information. parameter blocks. Invalid coding for substitute value Check the parameters of the module. behavior. Digital output module DQ 8x24VDC/0.5A BA (6ES7132-6BF01-0AA0) Manual, 02/2019, A5E36107249-AB...
