Panasonic WV-SW350 Series Operating Instructions Manual

Panasonic WV-SW350 Series Operating Instructions Manual

Hide thumbs Also See for WV-SW350 Series:

Advertisement

Quick Links

Download this manual

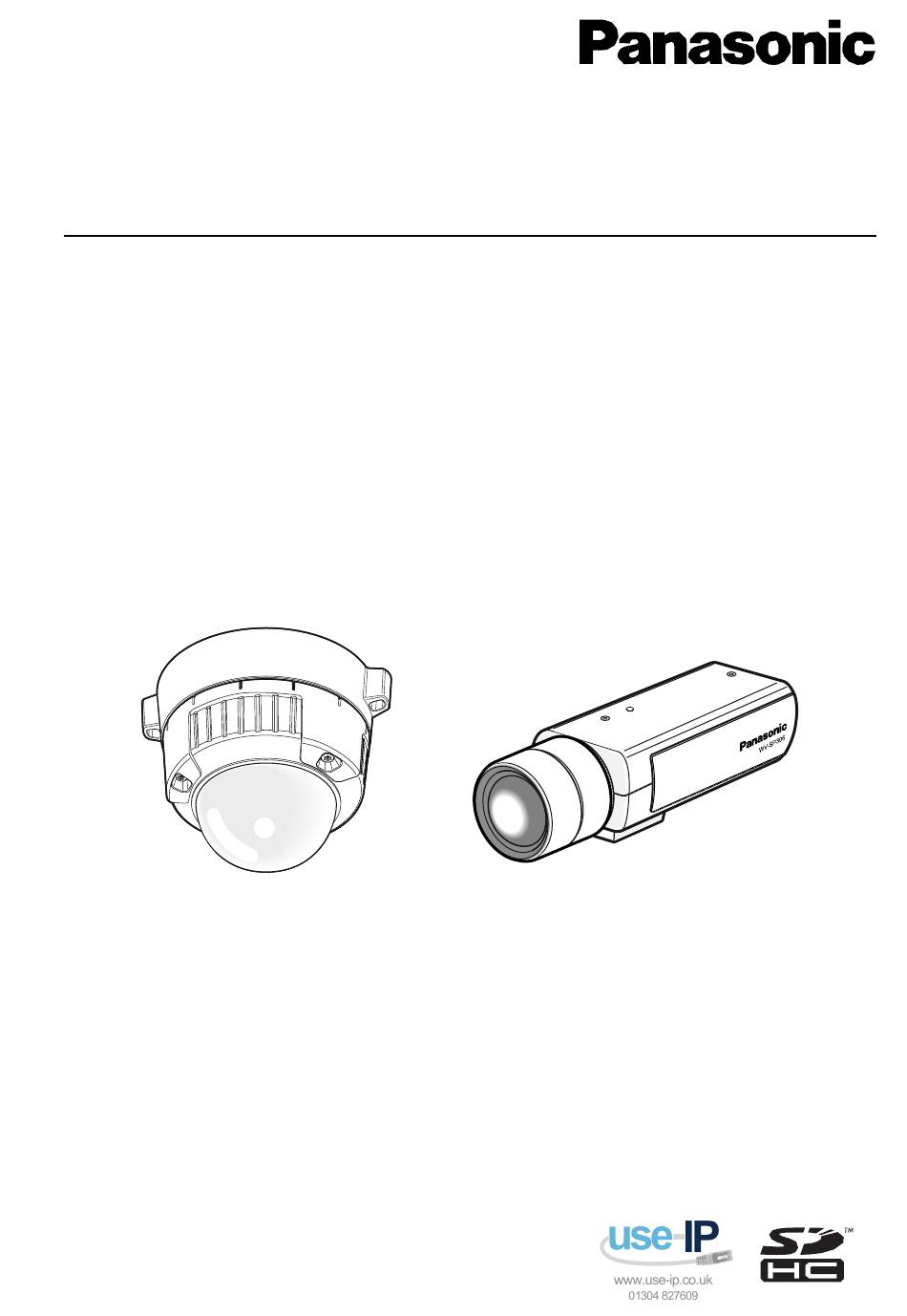

WV-SW355
This manual covers the models: WV-SW350 Series (WV-SW355, WV-SW352, WV-SW355E, WV-SW352E,
WV-SW355R, WV-SW352R, WV-SW355PJ), WV-SF340 Series (WV-SF346, WV-SF342, WV-SF346E,
WV-SF342E, WV-SF346PJ), WV-SF330 Series (WV-SF336, WV-SF335, WV-SF332, WV-SF336E, WV-SF335E,
WV-SF332E, WV-SF336PJ), WV-SW310 Series (WV-SW316L, WV-SW316, WV-SW314, WV-SW316LE,
WV-SW316E, WV-SW316LPJ), WV-SP300 Series (WV-SP306, WV-SP305, WV-SP302, WV-SP306E,
WV-SP305E, WV-SP302E, WV-SP306PJ), WV-SW150 Series (WV-SW155, WV-SW152, WV-SW155M,
WV-SW152M, WV-SW155E, WV-SW152E, WV-SW155ME, WV-SW152ME), WV-SF130 Series (WV-SF135,
WV-SF132, WV-SF135E, WV-SF132E), WV-SP100 Series (WV-SP105, WV-SP102, WV-SP105E, WV-SP102E),
and WV-NP502 Series (WV-NP502, WV-NW502S, WV-NP502E, WV-NW502SE).
Before attempting to connect or operate this product, please read these instructions carefully and save this manual
for future use.
The model number is abbreviated in some descriptions in this manual.
WV-SW355R and WV-SW352R do not support the HTTPS function.
Operating Instructions
Network Camera
WV-SW350 Series
Model No.
WV-SF340 Series
WV-SF330 Series
WV-SW310 Series
WV-SP300 Series
WV-SW150 Series
WV-SF130 Series
WV-SP100 Series
WV-NP502 Series
WV-SP306
(Lens is optional for WV-SP306.)

Advertisement

loading
Need help?

Need help?

Do you have a question about the WV-SW350 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic WV-SW350 Series

Summary of Contents for Panasonic WV-SW350 Series

  • Page 1 WV-SW355 WV-SP306 (Lens is optional for WV-SP306.) This manual covers the models: WV-SW350 Series (WV-SW355, WV-SW352, WV-SW355E, WV-SW352E, WV-SW355R, WV-SW352R, WV-SW355PJ), WV-SF340 Series (WV-SF346, WV-SF342, WV-SF346E, WV-SF342E, WV-SF346PJ), WV-SF330 Series (WV-SF336, WV-SF335, WV-SF332, WV-SF336E, WV-SF335E, WV-SF332E, WV-SF336PJ), WV-SW310 Series (WV-SW316L, WV-SW316, WV-SW314, WV-SW316LE,...
  • Page 2 Preface Preface About the user manuals There are 2 sets of operating instructions for the WV-SW355, WV-SW355PJ, WV-SW352, WV-SF346, WV-SF346PJ, WV-SF342, WV-SF336, WV-SF336PJ, WV-SF335, WV-SF332, WV-SW316L, WV-SW316LPJ, WV-SW316, WV-SW314, WV-SP306, WV-SP306PJ, WV-SP305, WV-SP302, WV-SW155, WV-SW155M, WV-SW152, WV-SW152M, WV-SF135, WV-SF132, WV-SP105, WV-SP102, WV-NP502, WV-NW502S (P model), WV-SW355E, WV-SW355R, WV-SW352E, WV-SW352R, WV-SF346E, WV-SF342E, WV-SF336E, WV-SF335E, WV-SF332E, WV-SW316LE, WV-SW316E, WV-SP306E, WV-SP305E, WV-SP302E, WV-SW155E, WV-SW155ME, WV-SW152E, WV-SW152ME, WV-SF135E, WV-SF132E, WV-SP105E,...
  • Page 3 Preface Model number Abbreviation Model number Abbreviation WV-SW355 SW355 WV-SW352 SW352 WV-SF346 SF346 WV-SF342 SF342 WV-SF336 SF336 WV-SF335 SF335 WV-SF332 SF332 WV-SW316L SW316L WV-SW316 SW316 WV-SW314 SW314 WV-SP306 SP306 WV-SP305 SP305 WV-SP302 SP302 WV-SW155 SW155 WV-SW155M WV-SW152 SW152 WV-SF135 SF135 WV-SW152M WV-SF132 SF132...
  • Page 4 Preface • iPad, iPhone, iPod touch, and QuickTime are trademarks of Apple Inc., registered in the U.S. and other countries. • Android is a trademark of Google Inc. • Firefox is a registered trademark of the Mozilla Foundation. • SDHC Logo is a trademark of SD-3C, LLC. •...
  • Page 5 Preface • When the install wizard is displayed again even after completing the installation of the ActiveX, restart the PC. • The viewer software used on each PC should be licensed individually. The number of installations of the viewer software from the camera can be checked on the [Upgrade] tab of the “Maintenance” page (®page 204).
  • Page 6 Table of Contents Table of Contents 1 Monitor images on a PC ................10 Monitor images from a single camera ................10 About the “Live” page ....................13 Monitor images from multiple cameras ................18 2 Monitor images on a cellular phone/mobile terminal ......19 Monitor images on a cellular phone ................19 Monitor images on a mobile terminal ................21 3 Record images on the SD memory card manually (SW355, SW352,...
  • Page 7 Table of Contents 10.3 Access copy images saved on the SD memory card onto the PC [SD memory card images] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) ..........62 10.4 Configure the settings relating to the logs [Log] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) ...........................70 10.4.1...
  • Page 8 Configuration of the settings relating to the E-mail notification [Notification] ..146 13.8 Configure the settings relating to Panasonic alarm protocol [Notification] ...148 14 Configure the setting relating to the image recognition [Advanced func.] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SW314, SP306, SP305, SP302, SW155, SW152, SF135, SF132, NP502, NW502S) ...................150...
  • Page 9 Table of Contents 17.7 Configure the schedule settings of the FTP periodic image transmission [FTP img. trans.] ..........................197 17.7.1 How to set the schedules .....................198 17.7.2 How to delete the set schedule ..................199 18 Configure the settings relating to the schedules [Schedule] ..200 19 Maintenance of the camera [Maintenance] ........203 19.1 Check the system log [System log] ................203...
  • Page 10 • SW155, SW152, SF135, SF132, SP105, and SP102 do not support MPEG-4. Start up the web browser. Enter the IP address designated using the Panasonic “IP Setting Software” in the address box of the browser. • Example when entering an IPv4 address: http://URL registered using IPv4 address http://192.168.0.10/...
  • Page 11 1 Monitor images on a PC Press the [Enter] key on the keyboard. → The “Live” page will be displayed. Refer to page 13 for further information about the “Live” page. When “On” is selected for “User auth.”, the authentication window will be displayed before displaying live images for the user name and password entries.
  • Page 12 1 Monitor images on a PC SW355 SW355 SW352 SW352 SF346 SF346 SF342 SF342 SF335 SF335 SW316L SW316L SW316 SW316 SW314 SW314 SP306 SP306 SP305 SP305 SP302 SP302 SW155 SW155 SW152 SW152 SF135 SF135 SF132 SF132 SP105 SP105 SP102 SP102 5 fps NP502 NP502...
  • Page 13 1 Monitor images on a PC 1.2 About the “Live” page Note • SW155, SW152, SF135, SF132, SP105, and SP102 do not support MPEG-4. [select language] pull-down-menu The camera’s display language can be selected. The default language can be set in the [Language] in the [Basic] settings.
  • Page 14 1 Monitor images on a PC • [1] button: The letter “1” will turn green and images in the main area will be displayed in accordance with the setting of “H.264(1)” (or “MPEG-4(1)”). (®page 82, page 89) • [2] button: The letter “2” will turn green and images in the main area will be displayed in accordance with the setting of “H.264(2)”...
  • Page 15 1 Monitor images on a PC [Image quality] buttons These buttons will be displayed only when a JPEG image is displayed. • [1] button: Images in the main area will be displayed in accordance with the setting for “Quality1” of “Image quality setting”.
  • Page 16 1 Monitor images on a PC Refer to page 33 for further information about the log list and for how to play images on the SD memory card. Camera title The camera title entered for “Camera title” on the [Basic] tab will be displayed. (®page 49) Alarm occurrence indication button This button will be displayed and will blink when an alarm has occurred.
  • Page 17 1 Monitor images on a PC SD recording status indicator SW355 SW355 SW352 SW352 SF346 SF346 SF342 SF342 SF335 SF335 SW316L SW316L SW316 SW316 SP306 SP306 SP305 SP305 SP302 SP302 SW155 SW155 SW152 SW152 NP502 NP502 The status of the SD recording can be checked with this indicator. When the SD recording starts, the SD recording status indicator will light red.
  • Page 18 • When displaying images on a 4-screen, panning, tilting and zooming operations become available only for images from cameras with Pan/Tilt/Zoom functions. Refer to our website (http://panasonic.net/pss/security/support/info.html) for further information about the compatible cameras and their versions. • Only JPEG images can be displayed on a multi-screen. Audio will not be heard.
  • Page 19 2 Monitor images on a cellular phone/mobile terminal 2 Monitor images on a cellular phone/mobile terminal 2.1 Monitor images on a cellular phone It is possible to connect to the camera using a cellular phone via the Internet and monitor images (JPEG only) from the camera on the screen of the cellular phone.
  • Page 20 2 Monitor images on a cellular phone/mobile terminal Functions Outline of functions A Refresh Refreshes the camera images by pressing the dial key “5”. B Resolution control Changes the image capture size by pressing the dial key “0”. Aspect ratio SW355 SW355 SW352...
  • Page 21 JPEG ® format image is displayed by the standard browser. For further information about compatible devices, refer to our website (http://panasonic.net/pss/security/support/info.html). IMPORTANT • When the authentication window is displayed, enter the user name and password. The default user name and password are as follows.
  • Page 22 2 Monitor images on a cellular phone/mobile terminal Access to “http://IP address/cam” or “http://Host name registered in the DDNS server/cam” using a mobile terminal. → Images from the camera will be displayed. Live images area Displays images from the camera. Operation buttons area When functions are selected in the function selection area C, buttons to operate those functions are displayed.
  • Page 23 2 Monitor images on a cellular phone/mobile terminal Click the button of the function that you want to operate. Resolution control AUX control Each function is explained below. Resolution control Press the button to display the buttons used to select the resolution on the screen. The resolution can be changed by selecting a resolution setting from the buttons.
  • Page 24 2 Monitor images on a cellular phone/mobile terminal 1.3 mega pixel [16:9] 320x180/640x360 (default)/1280x720 3 mega pixel [4:3] 640x480 (default)/1280x960 3 mega pixel [16:9] 320x180/640x360 (default) AUX control SW355 SW355 SW352 SW352 SF346 SF346 SF342 SF342 SF335 SF335 SW316L SW316L SW316 SW316 SP306...
  • Page 25 2 Monitor images on a cellular phone/mobile terminal This function is only displayed when [Terminal 3] is set to [AUX output] on the settings menu. (®page 136) Note • You can change the image size displayed on the mobile terminal by accessing the following addresses. –...
  • Page 26 2 Monitor images on a cellular phone/mobile terminal • Depending on the mobile terminal in use or its contract plan, it may be impossible to access. IP address is the global WAN IP address of the router that can be accessed via the Internet. However, when accessing the same LAN as the camera with a wireless compatible mobile terminal, the IP address is the local IP address.
  • Page 27 3 Record images on the SD memory card manually (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) 3 Record images on the SD memory card manually (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) Images displayed on the “Live”...
  • Page 28 3 Record images on the SD memory card manually (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) Click the [Start] button to start recording images on the SD memory card. The SD recording status indicator will light red (®page 13) while images are being recorded on the SD memory card.
  • Page 29 VMD alarm: When motion is detected in the set VMD area, the alarm action will be performed. *VMD stands for “Video Motion Detection”. • Command alarm: When a Panasonic alarm protocol is received from the connected device via a network, the alarm action will be performed. 4.2 Action at an alarm occurrence Display the alarm occurrence indication button on the “Live”...
  • Page 30 When “On” is selected for “Panasonic alarm protocol notification”, the connected Panasonic device will be notified that the camera is in the alarm state. The settings for Panasonic alarm protocol can be configured in the Panasonic alarm protocol section of the [Notification] tab of the [Alarm] page. (®page 148)
  • Page 31 5 Transmit images onto an FTP server 5 Transmit images onto an FTP server Images can be transmitted to an FTP server. By configuring the following settings, transmission of images captured at an alarm occurrence or captured at a designated interval to an FTP server will become available. IMPORTANT •...
  • Page 32 SD memory card. It is possible to select a trigger to save images on the SD memory card on the [SD memory card] tab of the “Basic” page. (®page 54) To use the SD memory recording function featured in Panasonic network disk recorder, select “Off” for “FTP periodic image transmission” (®page 196) and “FTP error” for “Save trigger” (®page 57).
  • Page 33 6 Display the log list (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) 6 Display the log list (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) The setting items of the cameras will be displayed in list form.
  • Page 34 6 Display the log list (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) Click the [List] button. → The log list will be displayed in a newly opened window (log list window). Number of the listed logs IMPORTANT •...
  • Page 35 6 Display the log list (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) About the log list window Number of the listed logs Total number of the logs of the selected log type and a number of the log being displayed on the top of the log list will be displayed.
  • Page 36 6 Display the log list (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) SW355 SW355 SW352 SW352 SW316L SW316L SW316 SW316 NP502 NP502 • TRM1: Alarm by alarm input to Terminal 1 •...
  • Page 37 7 Playback of images on the SD memory card (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) 7 Playback of images on the SD memory card (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) When clicking a time and date listed on the log list window, the “Live”...
  • Page 38 7 Playback of images on the SD memory card (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) 7.1 About the playback page Number of images When clicking a time and date listed on the log list window, total number of images associated with the clicked time and date, and the number of the currently displayed image will be displayed.
  • Page 39 7 Playback of images on the SD memory card (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) When the mouse button is released, the increment of the image number will stop and the image number displayed at the moment when the mouse button is released will be displayed.
  • Page 40 7 Playback of images on the SD memory card (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) 7.2 Download the images (When “H.264” is selected for “Recording format” of the SD memory card) IMPORTANT •...
  • Page 41 7 Playback of images on the SD memory card (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) Select the image to be downloaded, and then click the [OK] button. → Image saved at the clicked time and date will be downloaded. Note •...
  • Page 42 8 About the network security 8 About the network security 8.1 Equipped security functions The following security functions are featured in this camera. Access restrictions by the host authentication and the user authentication It is possible to restrict users from accessing the camera by setting the host authentication and/or the user authentication to “On”.
  • Page 43 9 Display the setup menu from a PC 9 Display the setup menu from a PC The settings of the camera can be configured on the setup menu. IMPORTANT • The setup menu is only operable by users whose access level is “1. Administrator”. Refer to page 154 for how to configure the access level.
  • Page 44 9 Display the setup menu from a PC → The setup menu will be displayed. Refer to page 47 for further information about this menu. Operating Instructions...
  • Page 45 9 Display the setup menu from a PC 9.2 How to operate the setup menu Menu buttons Setup page Click the desired button in the frame on the left of the window to display the respective setup menu. When there are tabs at the top of the “Setup” page displayed in the frame on the right of the window, click the desired tab to display and configure the setting items relating to the name of the tab.
  • Page 46 9 Display the setup menu from a PC <Example> When completing the setting items in field A, click the [Set] button (B) below field (A). The edited settings in field A will not be applied unless the [Set] button (B) below field (A) is clicked. In the same manner as above, click the [Set] button (D) below field C when completing the setting items in field C.
  • Page 47 9 Display the setup menu from a PC 9.3 About the setup menu window Note • SW155, SW152, SF135, SF132, SP105, and SP102 do not support MPEG-4. [Setup] button Display the “Setup” page. [Live] button Display the “Live” page. [Basic] button Displays the “Basic”...
  • Page 48 9 Display the setup menu from a PC [Advanced func.] button SW355 SW355 SW352 SW352 SF346 SF346 SF342 SF342 SF335 SF335 SW316L SW316L SW316 SW316 SW314 SW314 SP306 SP306 SP305 SP305 SP302 SP302 SW155 SW155 SW152 SW152 SF135 SF135 SF132 SF132 NP502 NP502...
  • Page 49 10 Configure the basic settings of the camera [Basic] 10 Configure the basic settings of the camera [Basic] The basic settings such as camera title, time and date, SD memory card and the logs can be configured on the “Basic” page. The “Basic” page has 3 tabs; the [Basic] tab, the [SD memory card] tab and the [Log] SW355 SW355...
  • Page 50 10 Configure the basic settings of the camera [Basic] • Available number of characters: 0 - 20 characters • Unavailable characters: " & • Default: Varies as follows depending on the model in use. – : WV-SW355 SW355 SW355 – : WV-SW352 SW352 SW352...
  • Page 51 10 Configure the basic settings of the camera [Basic] • Out: Does not apply summer time. • Auto: Applies summer time in accordance with the settings for “Start time & date” and “End time & date” (month, week, day of the week, time). •...
  • Page 52 10 Configure the basic settings of the camera [Basic] • Default: Off [Indicator] Determine whether or not to use the following indicators. Select “On” to use the following indicators to check the operational status by lighting them. Select “Off” to turn off the indicators at all times. –...
  • Page 53 10 Configure the basic settings of the camera [Basic] [Automatic installation of viewer software] Determine whether or not to install the viewer software from this camera. • On: Installs the viewer software from the camera automatically. • Off: The viewer software cannot be installed from the camera. •...
  • Page 54 10 Configure the basic settings of the camera [Basic] 10.2 Configure the settings relating to the SD memory card [SD memory card] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) Click the [SD memory card] tab on the “Basic” page. (®page 43, page 45) Operating Instructions...
  • Page 55 10 Configure the basic settings of the camera [Basic] The settings relating to the SD memory card can be configured on this page. SD memory card [SD memory card] Select “Use” or “Not use” to determine whether or not to use the SD memory card. •...
  • Page 56 When “H.264” is selected, the priority band may not be maintained if “H.264/MPEG-4(2)” is selected for “Priority stream” - “Stream type” on the [System] tab of the “User mng.” page. • When using the SD memory recording function of a Panasonic network disk recorder, select “JPEG” for “Recording format”. •...
  • Page 57 Common [Remaining capacity notification] When the E-mail notification function or the Panasonic alarm protocol function is used to provide notification of the remaining capacity of the SD memory card, select a level to be notified at from the following. 50%/ 20%/ 10%/ 5%/ 2% •...
  • Page 58 10 Configure the basic settings of the camera [Basic] • File name: [“Entered file name” + “Time and date (year/ month/ day/ hour/ minute/ second)”] + “Serial number” • Available number of characters: 1 - 8 characters • Unavailable characters: " & * / : ; < > ? \ | Note •...
  • Page 59 10 Configure the basic settings of the camera [Basic] • When “H.264” is selected for “Recording format”, select the image capture size for “H.264 recording” - “Image capture size” on the [SD memory card] tab. • When “Alarm input” is selected for “Save trigger”, images will be saved with the image capture size selected on the [Alarm] tab of the “Alarm”...
  • Page 60 10 Configure the basic settings of the camera [Basic] 64kbps/ 128kbps/ 256kbps/ 384kbps/ 512kbps/ 768kbps/ 1024kbps/ 1536kbps/ 2048kbps/ 3072kbps/ 4096kbps • Default: 1536kbps [Image quality] Select the quality for H.264 images to be recorded from the following. Low(Motion priority)/ Normal/ Fine(Image quality priority) •...
  • Page 61 10 Configure the basic settings of the camera [Basic] – Save/obtain images recorded using the SD memory recording function of Panasonic network disk recorder – Play/download images on the SD memory card • When an SD memory card is formatted while another user is in operation, the operation will be canceled.
  • Page 62 10 Configure the basic settings of the camera [Basic] 10.3 Access copy images saved on the SD memory card onto the PC [SD memory card images] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) Click the [SD memory card] tab on the “Basic”...
  • Page 63 10 Configure the basic settings of the camera [Basic] Possible number of JPEG images that can be saved on the SD memory card (as indications) IMPORTANT • The numbers on the following table are just indications. They are not actual numbers of images that can be saved on the SD memory card.
  • Page 64 10 Configure the basic settings of the camera [Basic] Image capture size: 1280x720 Image quality Capacity of SD memory card 0 Super fine 1 Fine 32 GB 76,800 102,400 128,000 140,800 166,400 16 GB 38,400 51,200 64,000 70,400 83,200 8 GB 19,200 25,600 32,000...
  • Page 65 10 Configure the basic settings of the camera [Basic] Image capture size: 800x600 Image quality Capacity of SD memory card 0 Super fine 1 Fine 32 GB 102,400 160,000 192,000 243,200 281,600 16 GB 51,200 80,000 96,000 121,600 140,800 8 GB 25,600 40,000 48,000...
  • Page 66 10 Configure the basic settings of the camera [Basic] Image capture size: VGA Image quality Capacity of SD memory card 0 Super fine 1 Fine 32 GB 160,000 224,000 256,000 288,000 320,000 16 GB 80,000 112,000 128,000 144,000 160,000 8 GB 40,000 56,000 64,000...
  • Page 67 10 Configure the basic settings of the camera [Basic] Image capture size: 640x360 Image quality Capacity of SD memory card 0 Super fine 1 Fine 32 GB 192,000 281,600 332,800 358,400 409,600 16 GB 96,000 140,800 166,400 179,200 204,800 8 GB 48,000 70,400 83,200...
  • Page 68 10 Configure the basic settings of the camera [Basic] Image capture size: QVGA Image quality Capacity of SD memory card 0 Super fine 1 Fine 32 GB 384,000 416,000 432,000 448,000 480,000 16 GB 192,000 208,000 216,000 224,000 240,000 8 GB 96,000 104,000 108,000...
  • Page 69 10 Configure the basic settings of the camera [Basic] Image capture size: 320x180 Image quality Capacity of SD memory card 0 Super fine 1 Fine 32 GB 460,800 524,800 563,200 576,000 614,400 16 GB 230,400 262,400 281,600 288,000 307,200 8 GB 115,200 131,200 140,800...
  • Page 70 10 Configure the basic settings of the camera [Basic] 10.4 Configure the settings relating to the logs [Log] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, SW155, SW152, NP502, NW502S) Click the [Log] tab on the “Basic” page. (®page 43, page 45) The settings relating to the log list can be configured in this section.
  • Page 71 10 Configure the basic settings of the camera [Basic] Select “On” or “Off” and designate the destination folder in the same manner as for “Alarm”. Note • When “Recording format” is set to “H.264”, “Save logs” is set to “On” or “Off” depending on the setting of “Save trigger”.
  • Page 72 10 Configure the basic settings of the camera [Basic] 10.4.1 How the logs and images are saved depending on the settings for “Alarm” [Log] tab [SD memory card] tab Logs and associated images Alarm: Save SD memory Save trigger logs card Alarm input •...
  • Page 73 10 Configure the basic settings of the camera [Basic] 10.4.2 How the logs and images are saved depending on the settings for “Manual/Schedule” [Log] tab [SD memory card] tab Manual/ Logs and associated images SD memory Schedule: Save trigger Overwrite card Save logs Manual/...
  • Page 74 10 Configure the basic settings of the camera [Basic] [Log] tab [SD memory card] tab Manual/ Logs and associated images SD memory Schedule: Save trigger Overwrite card Save logs Manual/ • Logs: Will not be saved. Schedule • Images: Will be saved. When the remaining capacity of the SD memory card becomes insufficient, the older images will be overwritten by the newer images.
  • Page 75 10 Configure the basic settings of the camera [Basic] 10.4.3 How the logs and images are saved depending on the settings for “FTP error” [Log] tab [SD memory card] tab Logs and associated images FTP error: SD memory Save trigger Save logs card FTP error...
  • Page 76 11 Configure the settings relating to images and audio [Image/Audio] 11 Configure the settings relating to images and audio [Image/Audio] Note • SW155, SW152, SF135, SF132, SP105, and SP102 do not support MPEG-4. SW314 SW314 SW155 SW155 SW152 SW152 SF135 SF135 SF132 SF132...
  • Page 77 11 Configure the settings relating to images and audio [Image/Audio] – “On” is not selected for “Activation” of “Priority stream”, and “JPEG” is not selected for “Stream type”. (®page 158) • Check the following before changing the picture (camera) mode setting from a 3 mega pixel setting to a 1.3 mega pixel setting.
  • Page 78 11 Configure the settings relating to images and audio [Image/Audio] 11.3 Configure the settings relating to JPEG images [JPEG/H.264] (or [JPEG/MPEG-4]) Note • SW155, SW152, SF135, SF132, SP105, and SP102 do not support MPEG-4. Click the [JPEG/H.264] tab (or [JPEG/MPEG-4] tab) on the “Image/Audio” page. (®page 43, page 45) JPEG Configure the settings such as “Refresh interval (JPEG)*”, “Image capture size”...
  • Page 79 11 Configure the settings relating to images and audio [Image/Audio] [Image capture size] Select the image capture size to display the JPEG image on the “Live” page for the first time. Aspect ratio SW355 SW355 SW352 SW352 SF346 SF346 SF342 SF342 SF335 SF335...
  • Page 80 11 Configure the settings relating to images and audio [Image/Audio] 11.4 Configure the settings relating to H.264 images [JPEG/H.264] Note • SW155, SW152, SF135, SF132, SP105, and SP102 do not support MPEG-4. Click the [JPEG/H.264] tab on the “Image/Audio” page. (®page 43, page 45) [JPEG/H.264] tab will be displayed when “H.264”...
  • Page 81 11 Configure the settings relating to images and audio [Image/Audio] Configure the settings relating to H.264 image such as “Max bit rate (per client)”, “Image capture size”, “Image quality”, etc. in this section. Refer to page 87 and page 78 for the settings relating to MPEG-4 images and JPEG images respectively.
  • Page 82 11 Configure the settings relating to images and audio [Image/Audio] [Video encoding format] SW355 SW355 SW352 SW352 SF346 SF346 SF342 SF342 SF335 SF335 SW316L SW316L SW316 SW316 SW314 SW314 SP306 SP306 SP305 SP305 SP302 SP302 NP502 NP502 Select H.264 for the video encoding format. •...
  • Page 83 11 Configure the settings relating to images and audio [Image/Audio] Aspect ratio 4:3 H.264(1) QVGA/VGA/800x600 /1280x960 H.264(2) QVGA/VGA Aspect ratio 16:9 H.264(1) 320x180/640x360/1280x720 H.264(2) 320x180/640x360 Picture (Camera) mode NP502 NP502 1.3 mega pixel (VGA) [4:3] H.264(1) QVGA/VGA/1280x960 H.264(2) QVGA/VGA 1.3 mega pixel (800x600) [4:3] H.264(1) QVGA/800x600/1280x960 H.264(2)
  • Page 84 11 Configure the settings relating to images and audio [Image/Audio] [Max bit rate (per client)*] Select a H.264 bit rate per a client from the following. When “Best effort” is selected for “Transmission priority”, set the maximum and minimum bit rates. 64kbps/ 128kbps*/ 256kbps*/ 384kbps*/ 512kbps*/ 768kbps*/ 1024kbps*/ 1536kbps*/ 2048kbps*/ 3072kbps*/ 4096kbps*/ 8192kbps* / Unlimited*...
  • Page 85 11 Configure the settings relating to images and audio [Image/Audio] [Unicast port1(Image)] SW355 SW355 SW352 SW352 SF346 SF346 SF342 SF342 SF335 SF335 SW316L SW316L SW316 SW316 SP306 SP306 /[Unicast port] SP305 SP305 SP302 SP302 NP502 NP502 SW314 SW314 SW155 SW155 SW152 SW152 SF135...
  • Page 86 11 Configure the settings relating to images and audio [Image/Audio] • Off: Images are displayed in real-time and are not stored on the computer. • Default: On IMPORTANT • If it appears that there is a delay in the images being displayed, select “Off”. SW352 SW352 SF342...
  • Page 87 11 Configure the settings relating to images and audio [Image/Audio] 11.5 Configure the settings relating to MPEG-4 images [JPEG/MPEG-4] Note • SW155, SW152, SF135, SF132, SP105, and SP102 do not support MPEG-4. Click the [JPEG/MPEG-4] tab on the “Image/Audio” page. (®page 43, page 45) The “JPEG/MPEG-4”...
  • Page 88 11 Configure the settings relating to images and audio [Image/Audio] Configure the settings relating to MPEG-4 image such as “Max bit rate (per client)*”, “Image capture size”, “Image quality”, etc. in this section. Refer to page 78 and page 80 for the settings relating to JPEG images and H.264 images respectively.
  • Page 89 11 Configure the settings relating to images and audio [Image/Audio] [Video encoding format] SW355 SW355 SW352 SW352 SF346 SF346 SF342 SF342 SF335 SF335 SW316L SW316L SW316 SW316 SW314 SW314 SP306 SP306 SP305 SP305 SP302 SP302 NP502 NP502 Select MPEG-4 for a video format. •...
  • Page 90 11 Configure the settings relating to images and audio [Image/Audio] [Transmission priority] Select a transmission priority for MPEG-4 images from the following. • Constant bit rate: MPEG-4 images will be transmitted with the bit rate selected for “Max bit rate (per client)*”.
  • Page 91 11 Configure the settings relating to images and audio [Image/Audio] 0.2s/ 0.25s/ 0.33s/ 0.5s/ 1s/ 2s/ 3s/ 4s/ 5s • Default: 1s [Transmission type] Select the transmission type of MPEG-4 images from the following. • Unicast port (AUTO): Up to 14 users can access a single camera concurrently. “Unicast port1(Image)” and “Unicast port2(Audio)”...
  • Page 92 11 Configure the settings relating to images and audio [Image/Audio] Note • When audio is transmitted from the camera, the port number to be used will be the multicast port number plus “1000”. [Multicast TTL/HOPLimit] Enter the multicast TTL/HOPLimit value. •...
  • Page 93 11 Configure the settings relating to images and audio [Image/Audio] 11.6 Configure the settings relating to image adjust, zoom, extra optical zoom, extra zoom, focus, back focus, privacy zone and VIQS [Image quality] Click the [Image quality] tab on the “Image/Audio” page. (®page 43, page 45) When the [Setup>>] button of each setting item is clicked, the detailed settings menu will be displayed in a newly opened window.
  • Page 94 11 Configure the settings relating to images and audio [Image/Audio] [Extra optical zoom] SW355 SW355 SW352 SW352 SF335 SF335 SW314 SW314 SP305 SP305 Click the [Setup>>] button to display the setup menu that can configure the settings relating to extra optical zoom.
  • Page 95 11 Configure the settings relating to images and audio [Image/Audio] IMPORTANT • Image adjustment functions are activated for the angle of view in the aspect ratio of 4:3 even while “16:9” is being selected for “Aspect ratio”. [Super Dynamic(SD)] Select “On” or “Off” to determine whether or not to activate the super dynamic function. Refer to the description “Super Dynamic function”...
  • Page 96 11 Configure the settings relating to images and audio [Image/Audio] • On: The super dynamic function will work. • Off: The super dynamic function will not work. • Default: On Note • When the following are observed depending on the light condition, select “Off” for “Super Dynamic(SD)”.
  • Page 97 11 Configure the settings relating to images and audio [Image/Audio] Note • When “Off” is selected for “Super Dynamic(SD)”, the interactive control with face detection is deactivated. [Adaptive black stretch] Select “On” or “Off” to determine whether or not to activate the darkness compensation function. When “On” is selected for “Super Dynamic(SD)”, this setting is unavailable.
  • Page 98 11 Configure the settings relating to images and audio [Image/Audio] • When a faster shutter speed is selected, the sensitivity will become lower. • When “On” is selected for “Super Dynamic(SD)”, “Fix shutter” is not available. To configure “Fix shutter”, set “Super Dynamic(SD)” to “Off”. SW155 SW155 SW152...
  • Page 99 11 Configure the settings relating to images and audio [Image/Audio] • On: The black & white mode is selected. • Auto1(Normal): The camera automatically switches between the color mode and the black & white mode in accordance with picture brightness (luminance). The black & white mode will automatically be selected when the lighting condition becomes darker, while the color mode will automatically be selected when it becomes brighter.
  • Page 100 11 Configure the settings relating to images and audio [Image/Audio] [White balance] Select a method of white balance adjustment from the following. White color can be adjusted by “Red gain” and “Blue gain”. • ATW1: Selects the automatic tracing white balance mode. The camera will constantly check the color temperature of the light source and adjust the white balance automatically.
  • Page 101 11 Configure the settings relating to images and audio [Image/Audio] When the cursor is moved to the “+” direction, images will become brighter. When the cursor is moved to the “-” direction, images will be darker. Click the [Reset] button to reset the color to the default. •...
  • Page 102 11 Configure the settings relating to images and audio [Image/Audio] IMPORTANT • Image adjustment functions are activated for the angle of view in the aspect ratio of 4:3 even while “16:9” is being selected for “Aspect ratio”. [Wide dynamic range (WDR)] Select “On”...
  • Page 103 11 Configure the settings relating to images and audio [Image/Audio] IMPORTANT • When the wide dynamic range function is activated, noise may be increased in the dark area of the object. • The setting is available only when “Outdoor scene”, “Indoor scene (50 Hz)” or “Indoor scene (60 Hz)” is selected for “Light control mode”.
  • Page 104 11 Configure the settings relating to images and audio [Image/Audio] • Outdoor scene: Depending on the brightness level (illuminance), the iris will automatically be controlled together with the shutter speed adjustment to control light. When shooting a bright subject such as outdoor, etc., select this parameter.
  • Page 105 11 Configure the settings relating to images and audio [Image/Audio] • Auto1(Normal): The camera automatically switches between the color mode and the black & white mode in accordance with picture brightness (luminance). The black & white mode will automatically be selected when the lighting condition becomes darker, while the color mode will automatically be selected when it becomes brighter.
  • Page 106 11 Configure the settings relating to images and audio [Image/Audio] When the cursor is moved in the “+” direction, the blue color will become thicker. When the cursor is moved in the “-” direction, the blue color will be thinner. Click the [Reset] button to reset the color to the default. •...
  • Page 107 11 Configure the settings relating to images and audio [Image/Audio] Image in the aspect ratio of “4:3” Areas where the image is not displayed when “16:9” is selected for the aspect ratio Image in the aspect ratio of “16:9” (Being cut out from the aspect ratio of 4:3) Operating Instructions...
  • Page 108 11 Configure the settings relating to images and audio [Image/Audio] IMPORTANT • Image adjustment functions are activated for the angle of view in the aspect ratio of 4:3 even while “16:9” is being selected for “Aspect ratio”. [Adaptive black stretch] Select “On”...
  • Page 109 11 Configure the settings relating to images and audio [Image/Audio] [Back light compensation (BLC)] Select “On” or “Off” to determine whether or not to activate the back light compensation (BLC) function. The back light compensation function can compensate back light by setting mask areas on brighter parts of images.
  • Page 110 11 Configure the settings relating to images and audio [Image/Audio] [Auto slow shutter] The electronic sensitivity enhancement (sensitivity up) can be carried out by adjusting the storage time of MOS. The following are available for the recording duration. : Off(1/30s), Max.2/30s, Max.4/30s, Max.6/30s, Max.10/30s, Max.16/30s SF135 SF135 SP105...
  • Page 111 11 Configure the settings relating to images and audio [Image/Audio] [Blue gain] Adjust the blue color of images. When the cursor is moved in the “+” direction, the blue color will become thicker. When the cursor is moved in the “-” direction, the blue color will be thinner. Click the [Reset] button to reset the color to the default. •...
  • Page 112 11 Configure the settings relating to images and audio [Image/Audio] IMPORTANT • Image adjustment functions are activated for the angle of view in the aspect ratio of 4:3 even while “16:9” is being selected for “Aspect ratio”. Operating Instructions...
  • Page 113 11 Configure the settings relating to images and audio [Image/Audio] [Super Dynamic(SD)] Select “On” or “Off” to determine whether or not to activate the super dynamic function. Refer to the description “Super Dynamic function” about the super dynamic function. • On: The super dynamic function will work.
  • Page 114 11 Configure the settings relating to images and audio [Image/Audio] [Face SD] With the “Face SD” setting, if a person's face is dark and difficult to see, by combining the face detection and Super Dynamic functions, the area with the face in the image can be corrected to become brighter and easier to see.
  • Page 115 11 Configure the settings relating to images and audio [Image/Audio] Note • When a faster shutter speed is selected (up to 1/10000), it is possible to capture a fast moving object with less blur. • When a faster shutter speed is selected, the sensitivity will become lower. Smear also may appear under bright light condition.
  • Page 116 11 Configure the settings relating to images and audio [Image/Audio] • Since the color compensation technology is used for Auto3(Super Chrome Compensation(SCC)), some colors may look different from the actual objects depending on the light condition. [Level] Select the threshold illuminance level (brightness) to switch between the color mode and the black & white mode.
  • Page 117 11 Configure the settings relating to images and audio [Image/Audio] • Default: 128 [Blue gain] Adjust the blue color of images. When the cursor is moved in the “+” direction, the blue color will become thicker. When the cursor is moved in the “-”...
  • Page 118 11 Configure the settings relating to images and audio [Image/Audio] 11.6.5 Set mask areas When “Off” is selected for “Super Dynamic(SD)” SW355 SW355 SW352 SW352 SW316L SW316L SW316 SW316 SW314 SW314 SW155 SW155 /“Wide dynamic range (WDR)” SW152 SW152 NP502 NP502 SF346 SF346...
  • Page 119 11 Configure the settings relating to images and audio [Image/Audio] Click the [Start] button of “Mask area”. → Borders will appear and the image displayed on the [Image quality] tab will be divided into 48 (6x8) SW355 SW355 SW352 SW352 SF346 SF346 SF342...
  • Page 120 11 Configure the settings relating to images and audio [Image/Audio] • When “16:9” is selected for the aspect ratio of JPEG/H.264, the image will be displayed clipped from the image of “4:3”. Therefore even when “16:9” is set, the brightness of the masked area will affect the image.
  • Page 121 11 Configure the settings relating to images and audio [Image/Audio] 11.7 Configure the focus setting (Focus setup menu) (SW355, SW352, SF346, SF336, SP306) Click the [Setup>>] button of “Focus” on the [Image quality] tab of the “Image/Audio” page. (®page 93) Adjust the focus setting by moving the lens focus to the appropriate position.
  • Page 122 11 Configure the settings relating to images and audio [Image/Audio] 11.8 Adjust the zoom and focus (SW316L, SW316) Click the [Setup>>] button of “Zoom/Focus adjustment” on the [Image quality] tab of the “Image/Audio” page. (®page 93) It is possible to adjust the angular field of view and the focus of the lens using the zoom/focus function. Zoom/Focus adjustments It is possible to adjust the angular field of view using the zoom and the extra optical zoom.
  • Page 123 11 Configure the settings relating to images and audio [Image/Audio] Note • The red area of the slider and angular field of view adjustment outline represents optical zoom (x1.0 - x3.2), and the yellow area represents extra optical zoom (x3.5 - x6.4). In the extra optical zoom area the zoom ratio changes in x0.32 increments.
  • Page 124 11 Configure the settings relating to images and audio [Image/Audio] 11.9 Back focus setting (Back focus setup menu) (NP502, NW502S) Click the [Setup>>] button of “Back focus” on the [Image quality] tab of the “Image/Audio” page. (®page 93) Adjust the back focus by moving the CCD of the camera to the appropriate position. Manual and auto adjustment are available.
  • Page 125 11 Configure the settings relating to images and audio [Image/Audio] 11.10 Adjust the angular field of view using the extra optical zoom function (SW355, SW352, SF335, SW314, SP305) Click the [Setup>>] button of “Extra optical zoom” on the [Image quality] tab of the “Image/Audio” page. (®page 93) It is possible to adjust the angular field of view using the extra optical zoom function.
  • Page 126 11 Configure the settings relating to images and audio [Image/Audio] 11.11 Adjust the angular field of view using the extra zoom function (SW155, SW152, SF135, SP105) Click the [Setup>>] button of “Extra zoom” on the [Image quality] tab of the “Image” page. (®page 93) It is possible to adjust the angular field of view using the extra zoom function.
  • Page 127 11 Configure the settings relating to images and audio [Image/Audio] 11.12 Configure the settings relating to the privacy zone (Privacy zone setup menu) Click the [Setup>>] button of “Privacy zone” on the [Image quality] tab of the “Image/Audio” page. (®page 93) When there is a zone that you do not want to display, set the zone as a privacy zone not to be displayed.
  • Page 128 11 Configure the settings relating to images and audio [Image/Audio] 11.13 Configure the VIQS setting Click the [Setup>>] button of “VIQS” on the [Image quality] tab of the “Image/Audio” page. (®page 93) VIQS is an abbreviation of Variable Image Quality on Specified area and is a feature that enables you to change the images of a specified area.
  • Page 129 11 Configure the settings relating to images and audio [Image/Audio] Note • Refer to page 130 for setting procedure of the VIQS area. Operating Instructions...
  • Page 130 11 Configure the settings relating to images and audio [Image/Audio] 11.14 Configure the VIQS area The VIQS area is specified by following the steps below. Drag the mouse on the screen to specify the area. → The specified area is displayed with a white frame. Note •...
  • Page 131 11 Configure the settings relating to images and audio [Image/Audio] 11.15 Configure the settings relating to audio [Audio] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, NP502, NW502S) Click the [Audio] tab on the “Image/Audio” page. (®page 43, page 45) The settings relating to audio can be configured on this page.
  • Page 132 11 Configure the settings relating to images and audio [Image/Audio] [Audio encoding format] Select the audio encoding format from G.726 and G.711. • Default: G.726 Note • G.711 is available only when “Mic input” is selected for “Audio transmission/reception”. [Audio bit rate] Select “16kbps”...
  • Page 133 11 Configure the settings relating to images and audio [Image/Audio] Note • When a shorter interval is selected, the delay time will be shorter. When a longer interval is selected, audio interruption may be diminished even though the delay time will be longer. Select the interval according to the network environment.
  • Page 134 12 Configure the multi-screen settings [Multi-screen] 12 Configure the multi-screen settings [Multi-screen] The cameras from which images are to be displayed on a multi-screen can be registered on the “Multi-screen” page. (®page 43, page 45) [IP address] Enter the IP address or the host name of the camera to be used for the multi-screen. 4 cameras can be registered as a group and up to 4 groups (16 cameras) can be registered.
  • Page 135 To access the cameras using the HTTPS protocol, enter as follows: Example of entry: https://192.168.0.10/ IMPORTANT • “Network Camera Recorder with Viewer Software Lite” which supports live monitoring and recording images from multiple cameras is available. For further information, refer to our website (http://panasonic.net/pss/security/support/info.html). SW355 SW355 SW352 SW352 SW316L...
  • Page 136 13 Configure the alarm settings [Alarm] 13 Configure the alarm settings [Alarm] The settings relating to alarm occurrences such as settings for the alarm action at an alarm occurrence, the VMD area settings, and the alarm occurrence notification can be configured on this page. The “Alarm”...
  • Page 137 Select “On” or “Off” to determine whether or not to receive the command alarm. The command alarm is the function that provides notification of a Panasonic protocol alarm from the other cameras. When “On” is selected, alarm actions will be performed between multiple cameras.
  • Page 138 13 Configure the alarm settings [Alarm] 13.2 Configure the settings relating to the alarm image [Alarm] Click the [Alarm] tab on the “Alarm” page. (®page 43, page 45) The settings relating to the alarm image to be transmitted to an FTP server can be configured in this section. The alarm image will be transmitted to an FTP server.
  • Page 139 13 Configure the alarm settings [Alarm] • Available number of characters: 1 - 32 characters • Unavailable characters: " & * / : ; < > ? \ | • Default: None (blank) [Post alarm] • Transmission interval Select the transmission interval for the alarm image transmission to the FTP server from the following. 0.1fps/ 0.2fps/ 0.33fps/ 0.5fps/ 1fps •...
  • Page 140 13 Configure the alarm settings [Alarm] • Default: 5 Normal SW352 SW352 SF342 SF342 SP302 SP302 SW152 SW152 SW355 SW355 SF346 SF346 SF335 SF335 SW316L SW316L SW316 SW316 SW314 SW314 SP306 SP306 SP305 SP305 SW155 SW155 SF135 SF135 SP105 SP105 NP502 NP502 13.3 Configure the settings relating to H.264...
  • Page 141 13 Configure the alarm settings [Alarm] 13.4 Configure the settings relating to the alarm output terminal [Alarm] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, NP502, NW502S) Click the [Alarm] tab on the “Alarm” page. (®page 43, page 45) The settings relating to the alarm output terminal can be configured in this section.
  • Page 142 13 Configure the alarm settings [Alarm] 13.5 Change the AUX name [Alarm] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SP306, SP305, SP302, NP502, NW502S) Click the [Alarm] tab on the “Alarm” page. (®page 43, page 45) The names of “AUX”, “Open” and “Close” on the “Live” page can be changed. AUX title [AUX (Up to 10 characters)] Enter the name for “AUX”...
  • Page 143 13 Configure the alarm settings [Alarm] • Depending on the network environment, notification may be delayed even when “Real time” is selected for “Alarm status update mode” on the [Basic] tab of the “Basic” page (®page 49). • The motion detection function is not the dedicated function to prevent thefts, fires, etc. We are not responsible for any accidents or damages occurring in case.
  • Page 144 When “On” is selected for “Light detection control”, the video motion detection may not be performed even when detecting a subject moving over the whole screen. [Area No. notification] When “Panasonic alarm protocol notification >>” is clicked, the [Notification] tab of the “Alarm” page will be displayed. (®page 148) VMD information addition [Information addition] Select “On”...
  • Page 145 13 Configure the alarm settings [Alarm] Set the video motion detection area by dragging the mouse on the screen. → The designated area will become the VMD area “1(White)” and the outline will be displayed. When 2 - 4 VMD areas are set, each area will be numbered in order. The areas will be identified by the respective outline colors.
  • Page 146 13 Configure the alarm settings [Alarm] Click the [Set] button after completing the settings. IMPORTANT • The setting will not be applied unless the [Set] button is clicked. To invalidate the VMD area, click the [Set] button after selecting “Off” for “Status” of the VMD area to be invalidated.
  • Page 147 13 Configure the alarm settings [Alarm] [E-mail notification] Select “On” or “Off” to determine whether or not to provide notification by E-mail according to the settings for the “Alarm” and “Diag.” checkboxes of “Destination of notification” below. – When an alarm is detected (“Alarm”) SW355 SW355 SW352...
  • Page 148 The settings relating to Panasonic alarm protocol can be configured in this section. Panasonic alarm protocol notification [Panasonic alarm protocol] Select “On” or “Off” to determine whether or not to provide notification by Panasonic alarm protocol according to the settings for the “Alarm” and “Diag.” checkboxes of “Destination of notification” below. –...
  • Page 149 (to IP address 1 first, to IP address 8 last). [Additional alarm area data(VMD)] Determine whether or not to send notifications for the alarm area number of VMD alarm with the Panasonic alarm protocol by selecting On/Off.
  • Page 150 14 Configure the setting relating to the image recognition [Advanced func.] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SW314, SP306, SP305, SP302, SW155, SW152, SF135, SF132, NP502, NW502S) 14 Configure the setting relating to the image recognition [Advanced func.] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SW314, SP306, SP305, SP302, SW155, SW152, SF135, SF132, NP502, NW502S)
  • Page 151 14 Configure the setting relating to the image recognition [Advanced func.] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SW314, SP306, SP305, SP302, SW155, SW152, SF135, SF132, NP502, NW502S) The XML notification notifies the server of face detection information in XML format. XML notification [XML notification] Select “On”...
  • Page 152 14 Configure the setting relating to the image recognition [Advanced func.] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SW314, SP306, SP305, SP302, SW155, SW152, SF135, SF132, NP502, NW502S) Note • When [Notification data] is set to “Detection info.(Original)”, the [Notification interval] can only be set to “1s”...
  • Page 153 14 Configure the setting relating to the image recognition [Advanced func.] (SW355, SW352, SF346, SF342, SF336, SF335, SF332, SW316L, SW316, SW314, SP306, SP305, SP302, SW155, SW152, SF135, SF132, NP502, NW502S) IMPORTANT • The face detection function shall not guarantee the detection of faces in an image. The face detection accuracy varies with imaging conditions.
  • Page 154 15 Configure the settings relating to the authentication [User mng.] 15 Configure the settings relating to the authentication [User mng.] The settings relating to the authentication such as users and PCs restrictions for accessing the camera with a PC or cellular phone/mobile terminal can be configured on the “User mng.” page. The “User mng.”...
  • Page 155 15 Configure the settings relating to the authentication [User mng.] • For other devices such as network disk recorders, unless otherwise stated, Digest authentication is not supported. (As of June, 2012) [User name] Enter a user name. • Available number of characters: 1 - 32 characters •...
  • Page 156 15 Configure the settings relating to the authentication [User mng.] The restriction settings of PCs (IP address) from accessing the camera can be configured on this page. [Host auth.] Select “On” or “Off” to determine whether or not to authenticate the host. •...
  • Page 157 15 Configure the settings relating to the authentication [User mng.] The description below is the configuration of the priority stream that can transmit images without deteriorating the image quality and refresh interval even when multiple users access concurrently. Priority stream [Activation] Select “On”...
  • Page 158 15 Configure the settings relating to the authentication [User mng.] [Refresh interval*] Select the refresh interval from the following. This setting is validated only when “JPEG” is selected for “Stream type”. SW355 SW355 SW352 SW352 SF346 SF346 SF342 SF342 SF335 SF335 SW316L SW316L...
  • Page 159 16 Configure the settings of the servers [Server] 16 Configure the settings of the servers [Server] The settings relating to the E-mail server, the FTP server and the NTP server can be configured on this page. The “Server” page has 3 tabs; the [E-mail] tab, the [FTP] tab and the [NTP] tab. 16.1 Configure the settings relating to the E-mail server [E-mail] Click the [E-mail] tab on the “Server”...
  • Page 160 16 Configure the settings of the servers [Server] • Default: None (blank) IMPORTANT • When entering the host name for “SMTP server address” or “POP server address”, it is necessary to configure the DNS settings on the [Network] tab of the “Network” page. (®page 164) [Authentication] •...
  • Page 161 16 Configure the settings of the servers [Server] The settings relating to the FTP server used to transmit the alarm images can be configured on this page. [FTP server address] Enter the IP address or the host name of the FTP server. •...
  • Page 162 16 Configure the settings of the servers [Server] 16.3 Configure the settings relating to the NTP server [NTP] Click the [NTP] tab on the “Server” page. (®page 43, page 45) The settings relating to the NTP server such as the NTP server address, port number, etc. can be configured on this page.
  • Page 163 16 Configure the settings of the servers [Server] IMPORTANT • When entering the host name for “NTP server address”, it is necessary to configure the DNS settings on the [Network] tab of the “Network” page. (®page 164) [NTP port] Enter a port number of the NTP server. •...
  • Page 164 17 Configuring the network settings [Network] 17 Configuring the network settings [Network] The network settings and the settings relating to DDNS (Dynamic DNS), SNMP (Simple Network management Protocol), and FTP image transfer can be configured on the “Network” page. The “Network” page has 4 tabs; the [Network] tab, the [DDNS] tab, the [SNMP] tab and the [FTP img. trans.] tab.
  • Page 165 17 Configuring the network settings [Network] IPv4 network [Network Settings] Select the method of how to configure the IP address from the following. • Static: The IP address is configured by entering manually on “IP address(IPv4)”. • DHCP: The IP address is configured using the DHCP function. •...
  • Page 166 17 Configuring the network settings [Network] Note • When “Auto(AutoIP)” is selected and the IP address cannot be obtained from the DHCP server, an IP address not used in the same network will be searched within 169.254.1.0 - 169.254.254.255. [IP address(IPv4)] When not using the DHCP function, enter the IP address of the camera.
  • Page 167 17 Configuring the network settings [Network] Note • When connecting to the manually configured IPv6 address beyond the router, use an IPv6 compatible router and turn on the automatic IPv6 address assignment function. In this case, it is necessary to configure IPv6 address including prefix information provided from the IPv6 compatible router.
  • Page 168 17 Configuring the network settings [Network] UPnP This camera support UPnP (Universal Plug and Play). By using the UPnP function, it becomes possible to configure the following automatically. • Configuration of the port forwarding function of the router (However, a router supporting UPnP is required.) This configuration is useful when accessing the camera via the Internet, or from a cellular phone/mobile terminal.
  • Page 169 17 Configuring the network settings [Network] HTTPS (SW355, SW352, SW316L, SW316, SW314, SW155, SW152, SF135, SF132) It is possible to enhance the network security by encrypting the access to cameras using the HTTPS function. Refer to page 172 for how to configure the HTTPS settings. [CRT key generate] CRT key (SSL encryption key) used for the HTTPS protocol is generated.
  • Page 170 “JPEG” on the [JPEG/H.264] (or [JPEG/MPEG-4]) tab or set “Image quality setting” of “JPEG” lower. [Easy IP Setup accommodate period] Select “20min” or “Unlimited” to determine how long the network setting operation using the Panasonic “IP Setting Software” can be allowed since the camera starts up.
  • Page 171 17 Configuring the network settings [Network] • The port forwarding function changes a global IP address to a private IP address, and “Static IP masquerade” and “Network Address Translation (NAT)” have this function. This function is to be set in a router.
  • Page 172 17 Configuring the network settings [Network] 17.2 Configure the HTTPS settings (SW355, SW352, SW316L, SW316, SW314, SW155, SW152, SF135, SF132) Note • WV-SW355R and WV-SW352R do not support the HTTPS function. Click the [Network] tab on the “Network” page. (®page 43, page 45) The settings relating to the HTTPS protocol that can enhance the network security by encrypting the access to cameras on this page.
  • Page 173 17 Configuring the network settings [Network] Generation of the CRT key (SSL encryption key) (®page 173) Generation of the self-signed certificate (®page 174) Generation of CSR (Certificate Signing Request) (®page 176) Installation of the server certificate (®page 177) Configuration of the connection protocol (®page 178) Note •...
  • Page 174 17 Configuring the network settings [Network] • When the CRT key is updated, the log of the previous CRT key is saved. When the [History] button of “Current CRT key” on the “CRT key generate” dialog box is clicked, the “Previous CRT key” dialog box will be displayed, and it is possible to check the key size and generation time &...
  • Page 175 17 Configuring the network settings [Network] Item Description Available number of characters [Organization] Enter the organization name. (Omission is OK.) 64 characters [Organizational Enter the unit name of the organization. 64 characters Unit] (Omission is OK.) [CRT key] Displays the key size and generation time & date of the current key.
  • Page 176 17 Configuring the network settings [Network] • When the [Delete] button is clicked, the generated self-signed certificate (security certificate) will be deleted. • When “HTTPS” is selected for “Connection”, it is impossible to delete the self-signed certificate. 17.2.3 Generation of CSR (Certificate Signing Request) IMPORTANT •...
  • Page 177 17 Configuring the network settings [Network] Item Description Available number of characters [CRT key] Displays the key size and generation time & date of the current key. Note • To use the server certificate, follow the requests from the CA about the information to be entered. •...
  • Page 178 17 Configuring the network settings [Network] • When the [Confirm] button is clicked, the registered information of the installed server certificate will be displayed in the “CA Certificate - Confirm” dialog box. (Only “Organizational Unit” will be displayed with an asterisk (*).) •...
  • Page 179 17 Configuring the network settings [Network] In advance, install the root certificate and intermediate certificate on the browser in use. Follow the instructions of CA for how to obtain and install these certificates. • When the camera is accessed using the HTTPS protocol, the refresh interval and frame rate of images may be lower.
  • Page 180 17 Configuring the network settings [Network] for the camera access. If the certificate is not the same, the security alert window will be displayed each time the camera is accessed. • When the address or host name of the camera is changed, the security alert window will be displayed each time the camera is accessed even if the security certificate is installed.
  • Page 181 17 Configuring the network settings [Network] Click “Certificate Error” over the URL, and click “View certificates”. Operating Instructions...
  • Page 182 17 Configuring the network settings [Network] Click “Install Certificate...”. Note • If [Install Certificate...] is not displayed, close Internet Explorer once, and select [Run as Administrator] to launch Internet Explorer again. Click [Start] ® [All Programs] ® right click [Internet Explorer] ®...
  • Page 183 17 Configuring the network settings [Network] Click “Next” displayed on “Certificate Import Wizard”. Select “Place all certificates in the following store”, and click “Browse...”. Operating Instructions...
  • Page 184 17 Configuring the network settings [Network] Select “Trusted Root Certificate Authorities”, and click “OK”. Click “Next”. Operating Instructions...
  • Page 185 17 Configuring the network settings [Network] Click “Finish”. Click “Yes”. → When the import is successfully completed, the screen “The import was successful.” will be displayed. Operating Instructions...
  • Page 186 17 Configuring the network settings [Network] Click “OK”. → When the browser is restarted after the certificate is imported, “Certificate Error” will not be displayed. OS: Windows XP, Web browser: When using Internet Explorer 6 Access the camera using the HTTPS protocol. Click “View Certificate”.
  • Page 187 17 Configuring the network settings [Network] Click “Install Certificate...”. Click “Next” according to the procedures displayed on the displayed on “Certificate Import Wizard”. Operating Instructions...
  • Page 188 17 Configuring the network settings [Network] Click “Finish”. Operating Instructions...
  • Page 189 Refer to the DDNS service providers for the selection and configuration of the DDNS services other than the “Viewnetcam.com” service. Note • “Viewnetcam.com” is a Dynamic DNS service designed for use with Panasonic Network Cameras. Refer to the “Viewnetcam.com” website (http://www.viewnetcam.com/) for further information about the service. About DDNS services (IPv4/IPv6) By using a DDNS service, it becomes possible to view camera images via the Internet.
  • Page 190 17 Configuring the network settings [Network] It is possible to configure the settings for the “Viewnetcam.com” or Dynamic DNS Update (RFC2136 compliant). In most of the DNS services offered by providers, global addresses are not static but dynamic. Therefore, access to the camera via an old global address may be invalidated after a certain period of time. Either of the following services is required when accessing a camera whose global address is not static via the Internet.
  • Page 191 17 Configuring the network settings [Network] Global address is obtained via the URL (domain name). By entering the URL (including the domain name) on the web browser when accessing the camera via the Internet, the DNS server identifies the registered global address of router (or camera). Access using the current global address The identified global address is used for accessing the router (or camera) to monitor images.
  • Page 192 17 Configuring the network settings [Network] [Access interval] Select the interval to access the “Viewnetcam.com” service server to check the IP address and the host name from the following. 10min/ 20min/ 30min/ 40min/ 50min/ 1h • Default: 1h 17.4.3 Procedure to register information for the “Viewnetcam.com”...
  • Page 193 17 Configuring the network settings [Network] • When “Expired” is displayed in the URL of “Viewnetcam.com” in the viewnetcam settings page or the status page, restart the camera after registering the “Viewnetcam.com” service. After restarting the camera, check that the registered URL is displayed in the URL of “Viewnetcam.com” of [Status] - [Viewnetcam.com] on the “Maintenance”...
  • Page 194 17 Configuring the network settings [Network] 17.4.6 When using “Dynamic DNS Update(DHCP)” [Host name] Enter the host name to be used for the Dynamic DNS Update service. • Available number of characters: 3 - 250 characters Enter in the form of “(host name). (domain name)”. •...
  • Page 195 17 Configuring the network settings [Network] • Default: None (blank) [Location] Enter the name of the location where the camera is installed. • Available number of characters: 0 - 32 characters • Default: None (blank) [Contact] Enter the E-mail address or the phone number of the SNMP manager. •...
  • Page 196 17 Configuring the network settings [Network] • When “FTP error” is selected for “Save trigger” on the [SD memory card] tab, images that have failed to transmit using the FTP periodic image transmission can be saved automatically on the SD memory card.
  • Page 197 17 Configuring the network settings [Network] 1s/ 2s/ 3s/ 4s/ 5s/ 6s/ 10s/ 15s/ 20s/ 30s/ 1min/ 2min/ 3min/ 4min/ 5min/ 6min/ 10min/ 15min/ 20min/ 30min/ 1h/ 1.5h/ 2h/ 3h/ 4h/ 6h/ 12h/ 24h • Default: 1s [Image capture size] Select the capture size of images to be transmitted from the following.
  • Page 198 17 Configuring the network settings [Network] 17.7.1 How to set the schedules Check the check box of the desired day of the week of “FTP image transmission schedule”. → The selected day of the week will be validated for the schedule. To designate time, select the desired “hour”...
  • Page 199 17 Configuring the network settings [Network] 17.7.2 How to delete the set schedule Uncheck the check box of the set day of the week. Click the [Set] button after completing the settings. → The schedule of the selected day of the week is deleted. Operating Instructions...
  • Page 200 18 Configure the settings relating to the schedules [Schedule] 18 Configure the settings relating to the schedules [Schedule] On the “Schedule” page, it is possible to configure the settings relating to schedules as follows. • Alarm permission (Alarm input will be received only in the specified schedule.) •...
  • Page 201 18 Configure the settings relating to the schedules [Schedule] Up to 5 schedules can be set. Select an action to be assigned to the schedule from “Schedule mode”. “Off” is selected at the default. • Off: No action will be taken for the respective schedule. Operating Instructions...
  • Page 202 18 Configure the settings relating to the schedules [Schedule] • Alarm permission SW355 SW355 SW352 SW352 SF346 SF346 SF342 SF342 SF335 SF335 SW316L SW316L SW316 SW316 SP306 SP306 : Alarm input (terminal alarm) will be received during the period of the SP305 SP305 SP302...
  • Page 203 19 Maintenance of the camera [Maintenance] 19 Maintenance of the camera [Maintenance] System log check, firmware upgrade, status check and initialization of the setup menu can be performed on this page. The “Maintenance” page has 4 tabs; the [System log] tab, the [Upgrade] tab, [Status] tab and the [Default reset] tab.
  • Page 204 19 Maintenance of the camera [Maintenance] [Description] The descriptions about the system log will be displayed. Refer to page 208 for further information about the system logs. 19.2 Upgrade the firmware [Upgrade] Click the [Upgrade] tab of the “Maintenance” page. (®page 43, page 45) The current firmware can be checked and upgraded to the latest version on this page.
  • Page 205 19 Maintenance of the camera [Maintenance] Click the radio button respective to the desired option to determine whether or not to initialize the settings after completing the firmware upgrade. Note • Note that the settings cannot be restored after an initialization is operated. Click the [Execute] button.
  • Page 206 The self check result of the hardware will be displayed. Note • Refer to our website (http://panasonic.net/pss/security/support/info.html) for further information about the contents of the displayed statuses (relating to the “Viewnetcam.com” service, the UPnP function, or the self check). •...
  • Page 207 19 Maintenance of the camera [Maintenance] The settings and the HTML data of the camera can be initialized and reboot of the camera can be performed on this page. [Reset to the default (Except the network settings)] Click the [Execute] button to reset the settings to the default. Note that the network settings will not be reset. It is impossible to operate the camera for about 3 minutes after the initialization.
  • Page 208 20 About the displayed system log 20 About the displayed system log Error indications relating to SMTP Category Indication Description POP3 server error Authentication error. • Entered user name or password may be incorrect. Check if the E-mail settings are configured correctly.
  • Page 209 20 About the displayed system log Category Indication Description Internal error Undefined error. • An error occurred in the FTP function. Check if the FTP settings are configured correctly. Error indications relating to “Viewnetcam.com” Category Indication Description Viewnetcam.com Failed to resolve the •...
  • Page 210 20 About the displayed system log Error indications relating to NTP Category Indication Description Connection error No response from the NTP server. • The IP address of the server may be incorrect. Check if the IP address of the server is configured correctly. •...
  • Page 211 20 About the displayed system log Error indications relating to Panasonic alarm protocol notification Category Indication Description Panasonic alarm Failed to find destination of • The IP address of the destination of protocol notification notification notification may be incorrect. Check if the...
  • Page 212 If not, proceed either of the following. – Reboot the camera and change the IP address by using the Panasonic “IP Setting Software” within 20 minutes after the restart. Installation Guide – Reboot the camera while holding the [INITIAL SET] button on the camera.
  • Page 213 21 Troubleshooting Symptom Cause/solution Reference pages Cannot access from the web • Is the same IP address provided to other devices? browser. Are there contradictions between the address and the network subnet to be accessed? When the camera and the PC are connected in the same subnet: Are the IP addresses of the camera and the PC set in a common subnet? Or is “Use Proxy Server”...
  • Page 214 21 Troubleshooting Symptom Cause/solution Reference pages • Is the setting of port forwarding configured for the router? To enable the access to the camera via the Internet, it is necessary to perform the port forwarding setting when the router in use does not support the UPnP function.
  • Page 215 21 Troubleshooting Symptom Cause/solution Reference pages It takes time to display the SW355 SW355 SW352 SW352 SW316L SW316L SW316 SW316 SW314 SW314 screen. SW155 SW155 SW152 SW152 SF135 SF135 SF132 SF132 • Are you accessing the camera in the HTTPS mode? In this mode, the refresh interval becomes slower due to decode procession.
  • Page 216 21 Troubleshooting Symptom Cause/solution Reference pages SW355 SW355 SW352 SW352 SW316L SW316L SW316 SW316 SW314 SW314 SW155 SW155 SW152 SW152 SF135 SF135 SF132 SF132 • Did you access “http://” while using the HTTPS function? To use the HTTPS function, access “https://”. It is also necessary to enter the port number.
  • Page 217 21 Troubleshooting Symptom Cause/solution Reference pages No image is displayed. / Older • When [Every time I visit the webpage] is not selected images or logs are displayed. for [Check for newer versions of stored pages:] in the [Temporary Internet Files] section, images sometimes may not be displayed on the “Live”...
  • Page 218 [SD memory card] tab? Format the SD memory card. • Is any recognition error received when the “Diag.” of “E-mail notification” or “Panasonic alarm protocol notification” is used? Format the SD memory card. • Isn’t the SD memory card out of order? There are limited times to overwrite on an SD memory card.
  • Page 219 21 Troubleshooting Symptom Cause/solution Reference pages The alarm occurrence • Is the viewer software installed on the PC? indication button, the [AUX] Confirm that the viewer software “Network Camera buttons* and the SD View 4S” is installed. recording status indicator* •...
  • Page 220 21 Troubleshooting Symptom Cause/solution Reference pages H.264 (or MPEG-4*) images • When “Network Camera View 4S” is deleted from a are not displayed. PC on which both the viewer software “Network Camera View 3” and “Network Camera View 4” are * SW155, SW152, SF135, installed, H.264 (or MPEG-4) images may not be SF132, SP105, and SP102...
  • Page 221 Select [Allow]. displayed on the information bar. “This webpage wants to run the following add-on: `WebVideo Module' from `Panasonic System Networks Co.,Ltd.`.” (Internet Explorer The following message is • Click the information bar and select “Install displayed on the information ActiveX Control”.
  • Page 222 “Security Warning” window. “This webpage wants to install the following add-on: `nwcv4Ssetup.exe' from `Panasonic System Networks Co.,Ltd.`.” (Internet Explorer An unnecessary status bar or • Click “Internet Options...” under “Tools” of the scroll bar is displayed on the menu bar of Internet Explorer, and then click the pop-up window.
  • Page 223 (Ex.img_1001010123000001.jpg) 10010112.02 Destination where images are to be saved by the SD memory PULL recording function of Panasonic network disk recorder Destination where log files are to be saved (for the system administration) 10000001 M_ALARM Video saved at the alarm occurrence (Approx. 2 MB per file) (Ex.10000001_101224193826_A.mp4)
