CARVIN CG200 Instructions

CARVIN ENGINEERING DATA

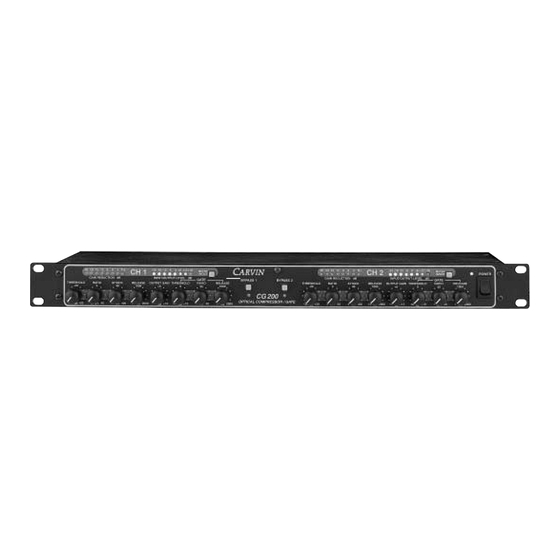

Congratulations on your purchase of the CARVIN CG200 two
channel Optical Compressor/Gate. The CG200 was designed with
the professional in mind. Your unit has been engineered and
assembled in the U.S.A., using only high quality electronic
components and uncompromising workmanship. The CG200 was
designed around hand matched analog optoisolators. Unlike many
compressor/gates which use higher noise VCA's, the CG200 is
based on classic optical compressors from the 60's that had that
warmth and softness that cannot be recreated with VCA's.
Optoisolators are also known for their extremely low distortion.
RECEIVING INSPECTION
INSPECT YOUR ITEM FOR ANY DAMAGE which may have occurred during shipping.
If any damage is found, please notify the shipping company & CARVIN.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship
your unit, always use the original carton and packing material. This will provide the
best possible protection during shipment. CARVIN and the shipping company are not
liable for any damage caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped
separately. Please allow several days for the rest of your order to arrive before
inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card or below on this
manual for your records. Keep your portion of the card and return the portion with
your name and comments to us.
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date______
CG200 SPECIFICATIONS
FREQUENCY RESPONSE: 20Hz TO 20kHz +/- 1dB
DYNAMIC RANGE: 115dB
MAX INPUT LEVEL: +20dBu
THD+N: LESS THAN 0.002% 20Hz TO 20kHz,
NO COMPRESSION/GATING, 0dB INPUT
LESS THAN 0.05%, ANY AMOUNT OF
COMPRESSION, 0dB INPUT
ATTACK AND RELEASE TIMES NOMINAL
INPUT IMPEDANCE: 20K BALANCED XLR
CROSSTALK: <-90dB 20Hz TO 20kHz
OUTPUT GAIN:
COMPRESSOR
THRESHOLD RANGE: -30bB to +20dB
RATIO: 2:1 TO 20:1
ATTACK TIME: 4mS TO 400mS
RELEASE TIME: 10mS TO 2 SEC
GATE
THRESHOLD RANGE: OFF(OPEN GATE) TO +10dB
RATIO: 1:1(OFF) TO 30:1
RELEASE TIME: 1mS TO 2 SEC
INPUTS AND OUTPUTS: XLR BALANCED AND 1/4" UNBALANCED
SIDECHAIN INPUT: 1/4" UNBALANCED
INPUT LEVEL SELECTION: 0dBu or +6dBu
POWER REQUIREMENTS: 4VA 90-250VAC, 50/60Hz SWITCHING SUPPLY
FUSE: INTERNAL 1.5A FAST BLOW
DIMENSIONS: 1 3/4"H x 19"W x 6"D
SHIPPING WEIGHT: 7 LBS
76-00120 0403
_________
-∞ TO +12dB
CG200 Optical Compressor/Gate INSTRUCTIONS
CONNECTING UP

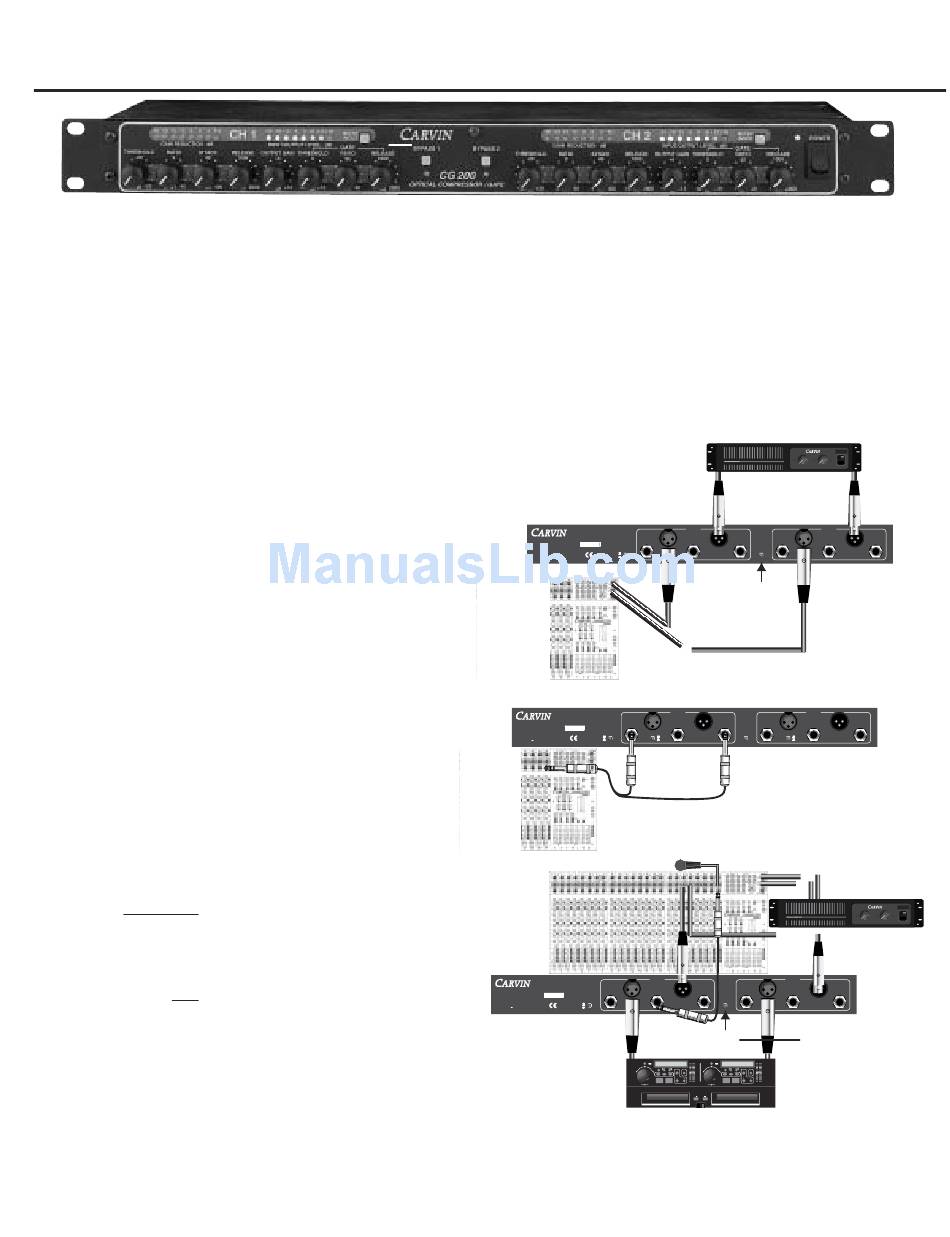

The CG200 can be used in various applications that require different
configuration within a sound system. Fig. 1 shows the CG200
connected between the stereo output of a mixer and the inputs of a
power amp. This is best for compressing or gating an entire main
mix of program material. Fig. 2 depicts a channel insert
connection. This is done with a TRS (tip send, ring return) Y-cable.
The signal is sent out of the channel, compressed/gated and
returned into the channel. This is a typical set-up on most vocal or
drum microphone channels. Fig. 3 depicts a mic channel direct out
to the SIDE CHAIN INPUT. The mic signal triggers the
compressor/gate .
FIG. 1
CG200
OPTICAL COMPRESSOR/GATE
1-800-854-2235
www.carvin.com
SERIAL NUMBER
INTERNAL FUSE
MADE IN THE
90-250 VAC
US A
10 VA 50-60Hz
L-R OUTPUT
FIG. 2
CG200
1-800-854-2235 OPTICAL COMPRESSOR/GATE
www.carvin.com
SERIAL NUMBER
INTERNAL FUSE
90-250 VAC MADE IN THE GND
US A
10 VA 50-60Hz LIFT
FIG. 3
CG200
OPTICAL COMPRESSOR/GATE
1-800-854-2235
www.carvin.com
SERIAL NUMBER
INTERNAL FUSE
MADE IN THE GND
90-250 VAC US A
LIFT
10 VA 50-60Hz
Connect the CG200 between the CD
player and the mixer. Use a
standard unbalanced 1/4" cable and
"half insert" into the INSERT jack on
the mixer and connect the other end
to the SIDE CHAIN INPUT on the
CG200. Connect a vocal mic to the
same channel as the insert cable on
the mixer. The CG200 will
compress the CD audio whenever
someone speaks into the mic.
11 10 9
12 8 12
13 7 13
15 6 15
17 5 17
19 4 19
22 3 22
30 2 30
50 ∞ 1 50 ∞
0 dB
POWER AMP
13
15
17
19
22
30
50
CH1
INPUTS OUTPUTS INPUTS
SIDE CHAIN
UNBAL INPUT UNBAL UNBAL
STEREO
LINK
GND 0 dBu
UNBAL
LIFT +6 dBu
Enable the STEREO
LINK switch so both
channels are controlled
by the settings on
Channel 1.
CH1
INPUTS OUTPUTS INPUTS
SIDE CHAIN
UNBAL INPUT UNBAL UNBAL
STEREO
LINK
0 dBu
UNBAL
+6 dBu
L-R OUTPUT
CH1
INPUTS OUTPUTS INPUTS
SIDE CHAIN
UNBAL INPUT UNBAL UNBAL
STEREO
LINK
0 dBu 0 dBu
UNBAL
+6 dBu +6 dBu
CD Player
OPEN/CLOSE 8%,12%,16% OPEN/CLOSE 8%,12%,16%
CD1 - CD1 -
RELAY RELAY
REV FWD REV FWD
TRACK SKIP TRACK SKIP
0 0
-SEAMLESS LOOP- -SEAMLESS LOOP-
DUAL CD PLAYER + +
PITCH CONTROL PITCH CONTROL
JOG SHUTTLE PLAY/PAUSE JOG SHUTTLE PLAY/PAUSE
OPEN/CLOSE
CD 1 CD 2
DUAL CD PLAYER
c
12340 World Trade Drive, San Diego, CA 92128
(800) 854-2235 www.carvin.com
11 10 9
8
7
6
5
4
3
2
1
0 dB
DCM1000
1000 Watt Power Amp
12 12 11 11 10 10 9 8 12 12 11 11 10 10 9 8
13 13 7 13 13 7
15 15 6 15 15 6
17 17 5 17 17 5
19 19 4 19 19 4
CLIP CLIP PROTECT
SIGNAL 22 22 3 SIGNAL 22 22 3 POWER
11 10 9 30 30 11 10 9 2 30 30 2
12 8 13 12 1 8 7 1
7 50 50 ∞ 50 50 ∞ 0 dB 0 dB
6 15 0 dB 0 dB 6
5 CHANNEL ONE 17 5 CHANNEL TWO
4 19 4
3 22 3
2 30 2
1
∞ 1 50 ∞
0 dB 0 dB
CH2
OUTPUTS
SIDE CHAIN
INPUT UNBAL
0 dBu
+6 dBu
CH2
OUTPUTS
SIDE CHAIN
INPUT UNBAL
0 dBu
+6 dBu
POWER AMP
DCM1000
11 11 10 10 9 11 11 10 10 9 1000 Watt Power Amp
12 12 8 12 12 8
13 13 7 13 13 7
15 15 6 15 15 6
17 17 5 17 17 5
19 19 4
CLIP 19 19 4 CLIP
22 22 3 22 22 3 PROTECT
SIGNAL SIGNAL POWER
30 30 2 30 30 2
50 50 ∞ 1 50 50 ∞ 1
0 dB 0 dB 0 dB 0 dB
CHANNEL ONE CHANNEL TWO
11 10 9 12 11 10 9 8
12 8 13 7
13 7
15 6 15 6
17 5 17 5
19 4 19 4
22 3 22 3
11 10 9 30 11 10 9 2 30 2
12 8 12 8 1
13 7 50 ∞ 13 1 7 50 ∞
15 6 15 0 dB 6 0 dB
17 5 17 5
19 4 19 4
22 3 22 3
30 2 30 2
50 ∞ 1 50 ∞ 1
0 dB 0 dB
CH2
OUTPUTS
SIDE CHAIN
INPUT UNBAL
Enable the STEREO
LINK switch so both
channels are controlled
by the settings on
Channel 1.
