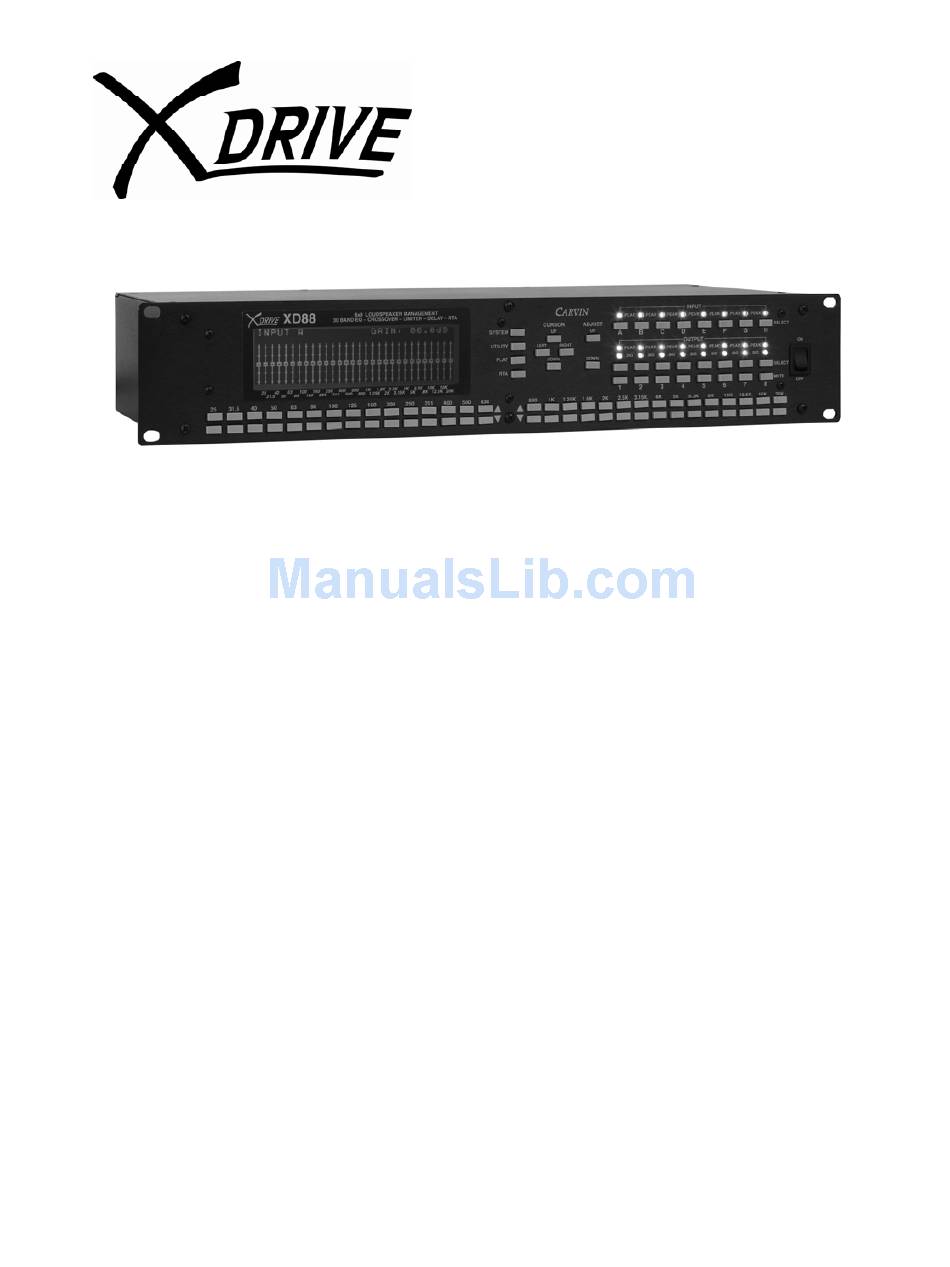

XD88 Operation Manual
The XD88 Extreme Drive is designed to provide incredible flexibility, sonic excellence
and intuitive controls for loudspeaker and EQ management. The XD™ software with its
USB PC connectivity offers total control of your system with all the processing flexibility
necessary for both installation and live use. The XD88 is the next generation tool for
sound processing that is needed between the mixer and power amp.
Eight analog inputs and outputs make the XD88 one of the most powerful management
tools on the market today. The flexible matrix routing allows any of the 8 inputs to be
assigned to any of the 8 outputs, plus any multi-channel combination. As a primary
loudspeaker management system, the XD88 can control systems from 8 mono full-range
channels to stereo 4-way and everything in between. Other useful features include: 30
Band Graphic equalizers on each input with 60 instant access buttons for up/down of
each fader band. Each output has 4 parametric EQ's, high and low crossover filters
(Bessel, Butterworth, Linkwitz-Riley, 6-48dB/oct.), limiters with Threshold and Release,
speaker delays up to 456ms (500 feet) on each output, and a RTA real time analyzer with
a pink noise generator.
The XD88 provides a large 64x240 graphic display for easy programming. For remote
setting, use the easy to use USB PC interface – go to carvin.com/XD88 for the online
demonstration. Large memory capacity has enough storage to contain up to sixteen
complete 8x8 configurations or unlimited configurations on your PC allowing you to
keep settings for multiple loudspeakers, multi-room installs and line-arrays. Processing
offers extremely low latency, low noise with full 20-20Khz bandwidth from premium 24
BIT AD and DA converters.
The XD88 offers all the serious tools needed for a comprehensive loudspeaker
management system. Combined with 8 inputs/8 outputs, first-rate components, high order
AD DA converters, easy to use interface and a price that everyone can afford, the XD is a
product that everyone would dream of having in their rack.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XDrive XD88 and is the answer not in the manual?

Questions and answers

Related Manuals for CARVIN XDrive XD88

Summary of Contents for CARVIN XDrive XD88

  • Page 1: Introduction

    The XD88 provides a large 64x240 graphic display for easy programming. For remote setting, use the easy to use USB PC interface – go to carvin.com/XD88 for the online demonstration. Large memory capacity has enough storage to contain up to sixteen complete 8x8 configurations or unlimited configurations on your PC allowing you to keep settings for multiple loudspeakers, multi-room installs and line-arrays.

  • Page 2: Table Of Contents

    Table of Contents: Introduction……………………………………………………1 Table of Contents……………………………………………...2 Safety Warning………………………………………………...3 Front Panel Controls………………………………………...3-4 Rear Panel Connections……………………………………….4 Input Channels……………..………………………………….5 Graphic EQs…………………………………………...5 Output Channels……………………………………………….5 Gain……………………………………………………6 Phase…………………………………………………..6 Parametric EQs……………………………………...6-7 Low/High Cut Filters (Crossover)…………………….7 Limiter……………………………………………..8 Delay…………………………………………………..8 System Menu………………………………………………….9 Router (Matrix Mixer)………………………………...9 Saving/Copying/Re-Naming Channels…………...10-12 Saving/Loading/Re-Naming Systems……..………..13 Utility Menu………………………………………………….13 Pink Noise Generator………………………………...13 Delay Units (ft,m)…………………………………..14...

  • Page 3: Safety Warning

    SAFETY Before using, read these instructions. WARNING – TO REDUCE THE RISK OF FIRE OR SHOCK DO NOT EXPOSE TO RAIN OR MOISTURE. DO NOT REMOVE COVER – NO USER SERVICEABLE PARTS INSIDE Do not defeat the safety ground on the AC plug Protect the power cord from being walked upon or pinched at the plug Unplug when not in use for a long time This equipment has been tested and found to comply with international safety...

  • Page 4: Rear Panel Connections

    System controls: SYSTEM, UTILITY, FLAT, RTA (These also act as software buttons when in SYSTEM and UTILITY menus.) CURSOR controls: UP, DOWN, LEFT, RIGHT ADJUST controls: UP, DOWN Rear Panel Connections: The XD88 X-Drive has 8 XLR inputs and 8 XLR outputs. There are also 8 ¼” Unbalanced inputs, that with the press of a switch, can be used to connect straight to the Inserts (Input/Output un-balanced) in one jack.

  • Page 5: Input Channels

    INPUTS: When the unit is first turned on, the Input A EQ screen will display. To adjust the Gain (volume) of the selected input use the Adjust UP/DOWN buttons. The range is 0db at maximum to -32db at minimum. To adjust the ‘faders’ press any of the 60 fader up/down buttons to adjust that frequency from +12.0dB to -12.0dB.

  • Page 6: Gain

    wish to change. The values can then be changed with the Adjust UP/DOWN buttons. Pressing an OUTPUT select button from any screen, except when in SYSTEM or UTILITY menus, will bring up that channels screen. When you change from one OUTPUT to another, all the changes are saved in memory.

  • Page 7: Low/High Cut Filters (Crossover)

    Figure 1 above is a +12dB boost, 1kHz filter of varying bandwidth/oct. In the center (1) is the 0.04 minimum setting. Next are settings of 0.32oct (2), 0.64oct (3), 1.00oct (4), 2.00oct (5) and 3.00oct (6). 0.04oct has a narrow slope for picking out specific frequencies.

  • Page 8: Limiter

    LIMITER: The Limiter has a maximum threshold level of +18.0dB, which is the maximum output, down to -14.0dB with a Release Time from 0.02 Seconds to 5.0 Seconds. The Limiter is used to control peaks to protect amplifiers and speakers, to maintain an average level which prevents distortion and clipping.

  • Page 9: System Menu

    SYSTEM MENU: Pressing the SYSTEM button will open up the SYSTEM menu. Pressing EXIT (RTA button) will exit back out to the INTPUT/OUTPUT screens. Use the CURSOR UP/DOWN buttons to move through the menu. ROUTER (MATRIX MIXING): The stock Routing configuration of the Inputs to Outputs is Input A to Output 1, Input B to Output 2, etc.

  • Page 10: Saving/Copying/Re-Naming Channels

    Saving/Copying/Re-Naming channels: The channels on the local system are always saved when changing from one channel to the next or when entering the SYSTEM or UTILITY menus. The channel names can be changed when in the COPY/NAME screen. Press NAME (FLAT button) and an asterisk will appear next to the channel you are modifying.
  • Page 11 Select the new location you wish to PASTE the copied channel to and press the PASTE (SYSTEM button). An alternative is to copy a channel from a saved system in memory. To do this, press SYSTEMS (UTILITY button), from the copy screen to open up a system from memory. Select the system that contains the channel you want to copy by pressing OPEN (SYSTEM button).
  • Page 12 Once the system from memory is opened the copy procedure is the same as copying a local channel. Press COPY (SYSTEM button) to select the channel to copy and it will be marked with the ‘*’. Select the channel you wish to copy into and press PASTE (SYSTEM button). The procedure for copying the Output channels is the same as the Inputs.

  • Page 13: Saving/Loading/Re-Naming Systems

    SAVE/LOAD SYSTEMS: To Save, Load or Re-Name a system ENTER (SYSTEM button) in this menu. Pressing the LOAD (SYSTEM button) or SAVE (UTILITY button) will either load the selected system into the local memory or save the local memory into the selected system. The local system is what is in memory when the unit is turned on.

  • Page 14: Delay Units (Ft,M)

    The last entry on the Utility menu enters the Serial Control mode. This is used when connected through the USB cable to a PC running the Carvin XD88 control software. Once the XD88 is connected to a PC via the USB cable, press ENTER (UTILITY button) to set the unit in remote control mode.

  • Page 15: Real Time Analyzer (Rta)

    RTA: The RTA is selected by the RTA button when not in the SYSTEM or UTILITY menus. To freeze the screen temporarily, press and hold the RTA button. To select one of the 8 Outputs or the RTA MIC, move the cursor with the LEFT/RIGHT buttons until the channel is selected.
  • Page 16 Mono 3-way mains and 5 full range monitors. Router: OUTPUT1: Highs – LF= BUT12 1.03kHz HF = OFF OUTPUT2: Mids – LF= BUT12 311.2 Hz HF = BUT12 1.03kHz OUTPUT3: Lows – LF= OFF HF = BUT12 311.2 Hz 2-way Stereo Mains with Mono Sub and 3 full range monitors. Router: OUTPUT1: Highs –...

  • Page 17: Specifications

    SPECIFICATIONS: INPUTS: Connector Female XLR & ¼” TRS 10kOhm electronically balanced Maximum Input +18 dBu Digital Controls: Gain 0dB to -32dB in 0.2dB steps 30 Band Graphic 25Hz to 20kHz, +/- 12dB in 0.1dB steps OUTPUTS: Connector Male XLR 150 Ohms electronically balanced Maximum Output +18 dBu Dynamic Range...
