UBL G3 Instructions

M OUN T IN G SP E C IF IC AT IO N S:
1) Place module against the desired mounting location. Mark the outer
holes for where the screws will attach.
2) Drill two 1/16" holes for mounting the light. Be sure to check behind mounting surface for clearance.
3) Using the included foam gasket as a template, drill one 1/2" hole for the wires to exit. Deburr thoroughly to avoid
damaging the wires.
4) Pass wires through the hole and mount using the included hardware.
FLASH PATTERNS:
Single
Double
Quad
Quint
Strobe
Single + Quad
Single + Strobe
Single Slow
Single + Single Slow
Random
Steady On
SYNC INSTRUCTIONS:
1) To sync the modules, momentarily apply the yellow wire to +12V for one second until the steady burn pattern is selected
for each module.
2) For the lights to alternate, one module must be designated Sync A and the other Sync B. Connect the white wires from
the modules you designated Sync A to +12V power.
3) Disregard any white wires from the modules you designated Sync B. Tape and secure these extra wires to prevent a
short circuit.
4) Connect the yellow wires from all of the modules together.
5) The modules are now in sync and will alternate. To change the flash patterns of the synced modules, simultaneously
touch all of the yellow wires to +12V for one second.
G3 SURFACE MOUNT
SKU: UBL-G3-SM
W IR IN G IN S T R U C T IO N S:
1) To power the unit, extend the red (+) wire to a 12V+ post and extend the black (-) wire to
the ground post of the vehicle's battery.
2) Wire in a 12V switch or controller. Include a 3 AMP fuse within 12" of your power source
to protect your circuit.

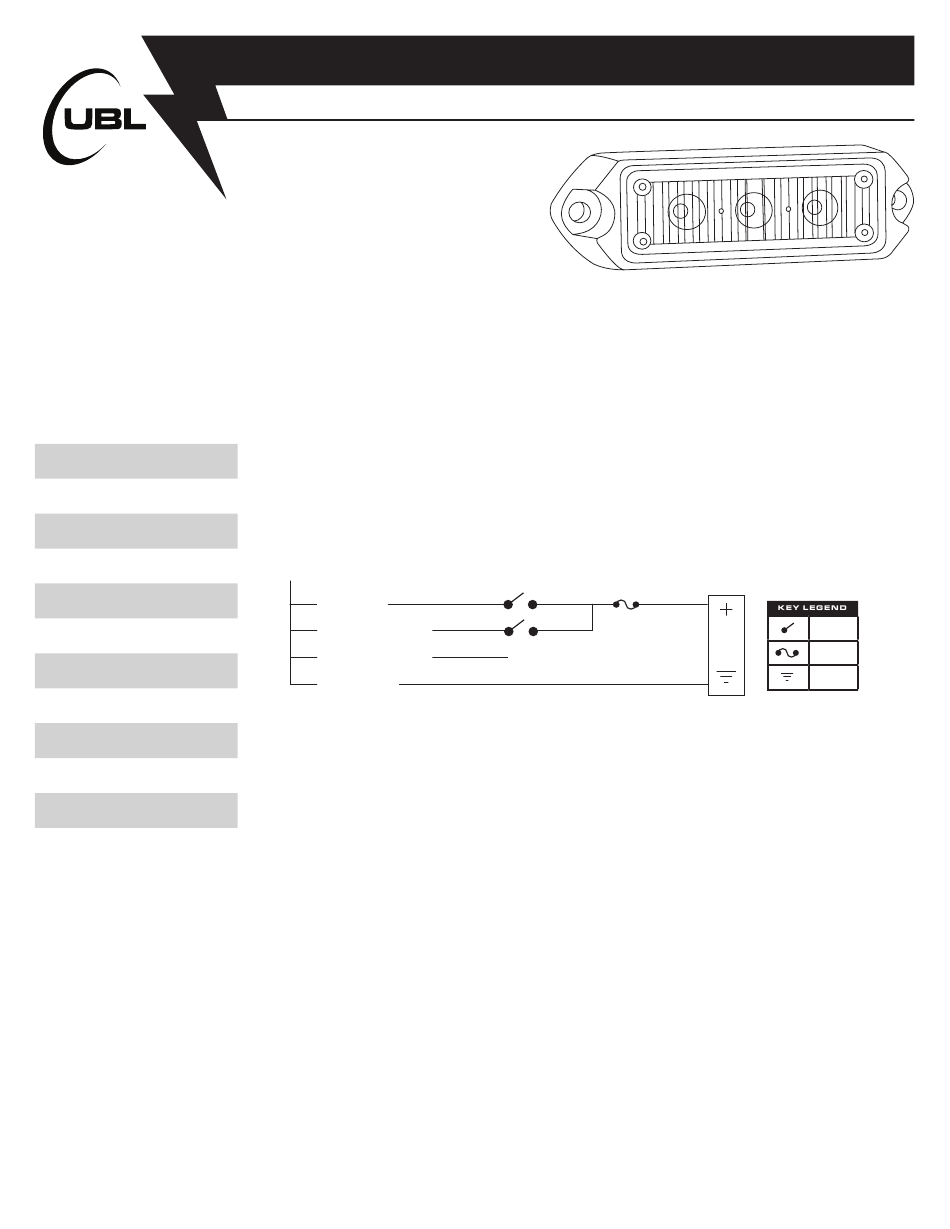

3) Follow wiring diagram below:
|
Red Power
|
Yellow Pattern/Sync
|
White Sync Alternate
|
Black Ground
PATTERN CHANGING INSTRUCTIONS:
Advance Pattern: Hold the yellow wire to +12V for one second.
Reset to Default Pattern: Hold the yellow wire to +12V for 5 seconds.
I N S T R U C T I O N S
(PROFESSIONAL INSTALLATION RECOMMENDED)
1 ft Wire
12V
Switch
Fuse
Ground
Version: A.1
