UBL U-LITE Instruction Manual

FLA SH
PATTER NS
Flash - All
Accelerate - All
Flash - Single
Center In - Single
Right Arrow - Single
Left Arrow - Single
Right Arrow - All
Left Arrow - All
Center Out - Single
Center In All - Single
Quad - All
Pulse - Right
Pulse - Left
Double - All
Single - All
Note: When attaching the rubber
gasket if you find it is falling off, a
few spots of super glue will help
it stay on.
HA RDWIRIN G
Red | Power
Yellow | Pattern Changer
Black | Ground
Ver sio n : A. 2

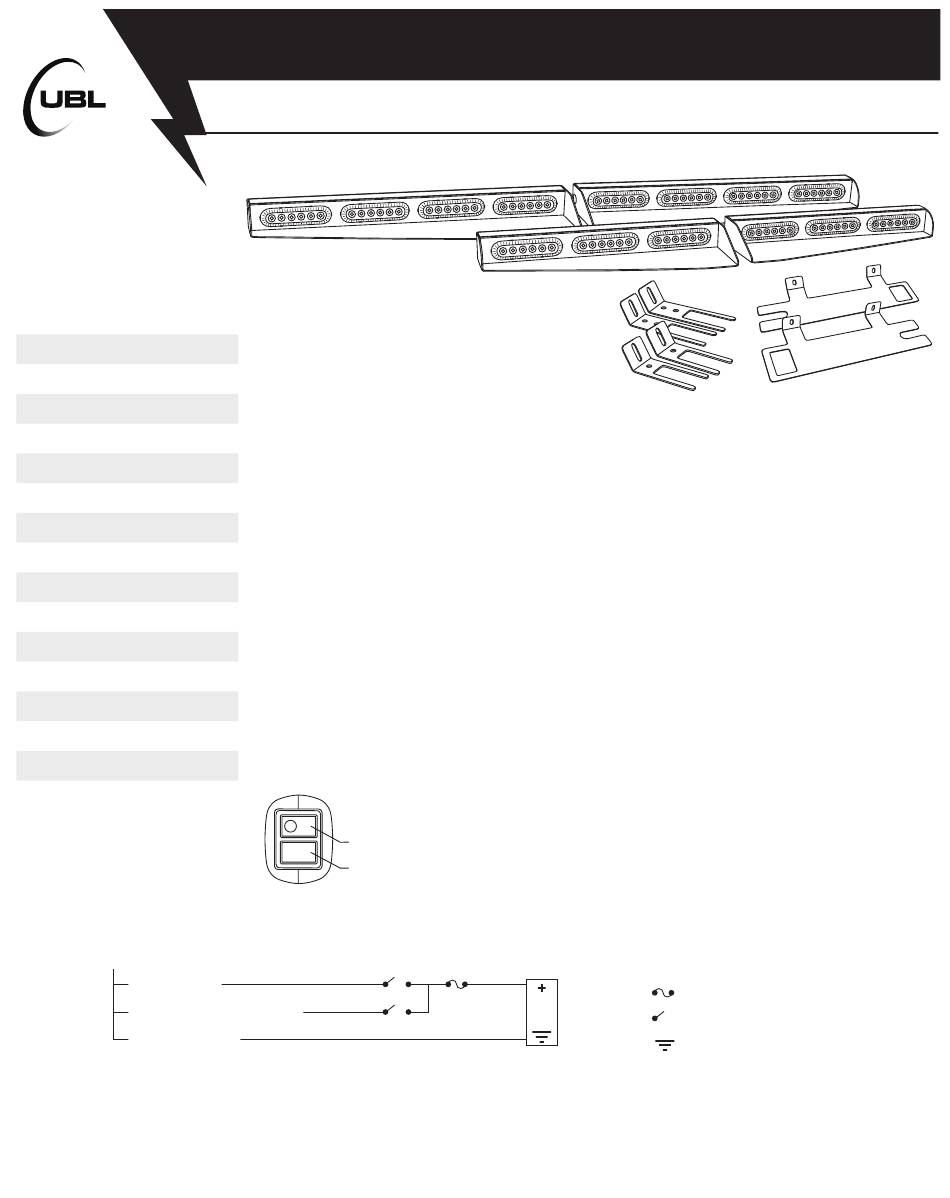

U - LITE V ISO R B AR
SKU: UBL-UL-VM, UBL-UL-VB
Bar includes two styles of brackets.
The "U-Brackets" and "Sheet Brackets. "
Depending upon your vehicle one bracket
type will work better than the other.
M O UN TIN G SP E CIFIC ATIONS
1) Use the sliding bolts to find the optimal position for your vehicle's sun visor posts.
2) Mount the bars around the post between the headliner and the sun visor.
3) If your vehicle has a removable clip around the post, remove it before inserting
the bracket.
4) Be sure to keep the light bars towards the outside of the vehicle to avoid
interfering with the rear view mirror.
5) Once your bar is installed, connect the wires between the two bars. There is an
arrow on each plug to indicate proper placement.
6) After your bars are installed and connected, run the cigarette lighter plug down
the A post. Avoid running the wires along any air bags or obstructing the view
out of the vehicle.
C I GAR E TTE P L UG
Power: Light will indicate when the light has power and is activated.
Pattern Changer: Hold for 1-2 seconds to change the pattern.
— A ll Co ntent P rop ert y of U BL E l ect roni c s
I N S T R U C T I O N M A N U A L
L EGEN D K EY
1ft Wire
12V
— U B L E l ec t ron ics .co m | info @ U B LE l ec t ro n ic s.com
F use
Swit c h
Gr o und
