15A MPPT charge controller 12V/24V DC (STCC15M)
Important: please read before first use.
®
User manual
Technical helpline
01684 774 000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPPT Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for PV logic MPPT Pro

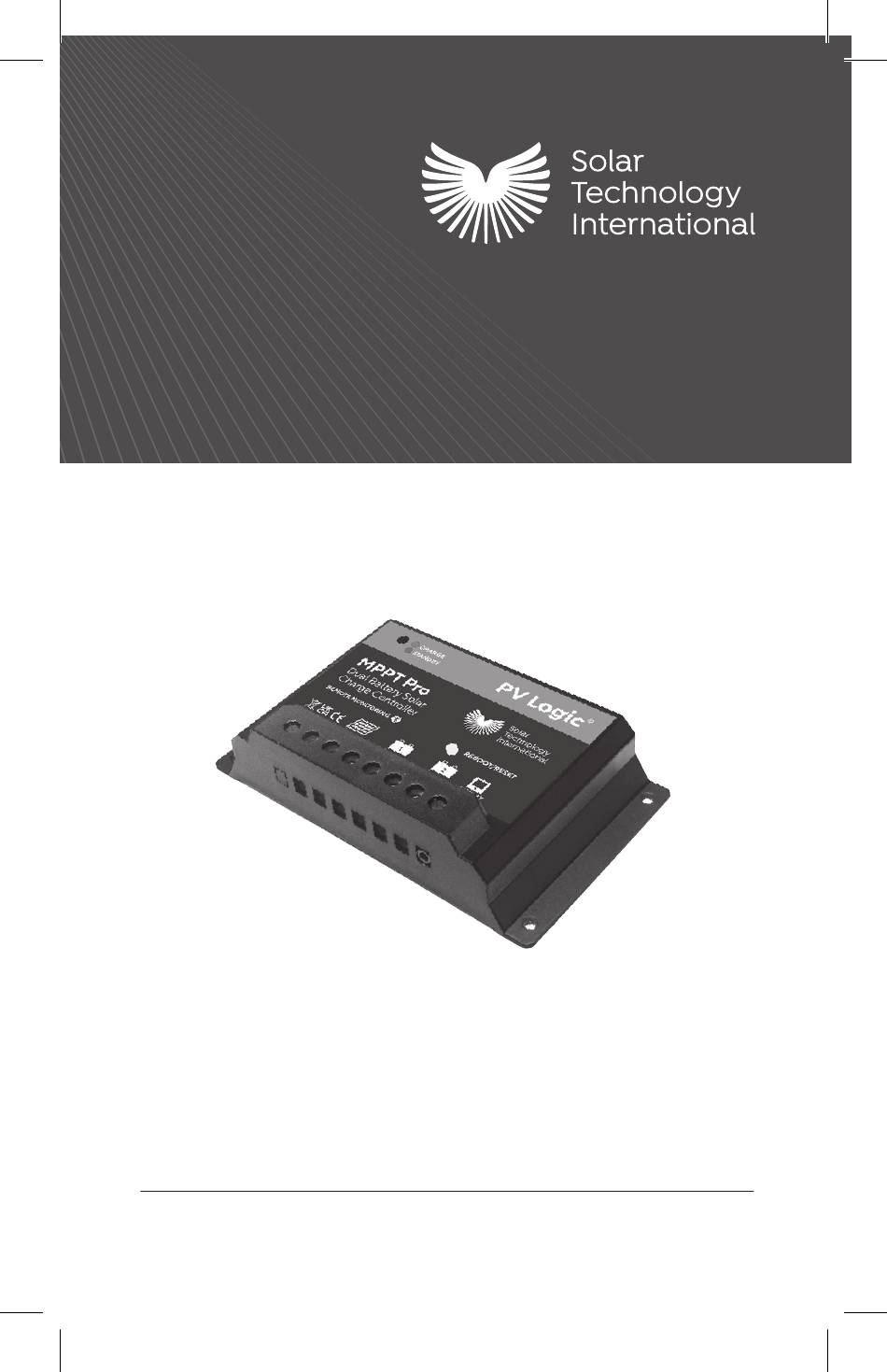

  • Page 1 PV Logic ® User manual MPPT Pro Solar Charge Controller Covering 15A MPPT charge controller 12V/24V DC (STCC15M) Technical helpline Important: please read before first use. 01684 774 000...
  • Page 2: Specification Summary

    Installation and operation manual Specification Summary • Nominal system voltage: 12/24VDC* • Maximum PV input voltage: 68VDC *The controller will recognise the system rated voltage upon first connection. If the battery voltage is lower than 16V, it will recognise the system as 12V. If the battery voltage is greater than 16V, it will recognise the system as 24V.
  • Page 3: Product Features

    (back plate). There should be at least 6 inches (150mm) of clearance above and below the CHARGE controller and 3 inches (75mm) each STANDBY MPPT Pro Dual Battery Solar side to allow for cooling. If mounted Charge Controller REMOTE MONITORING REBOOT/RESET...
  • Page 4: Solar Connection

    Solar connection SOLAR PANEL Connect the + and – from the CHARGE CONTROLLER solar panel to the solar inputs on the charge controller. CHARGE STANDBY MPPT Pro Dual Battery Solar Charge Controller CHARGE CONTROLLER REMOTE MONITORING REBOOT/RESET DISPLAY CHARGE STANDBY...
  • Page 5: Operation

    The controller will automatically enter normal working mode if the firmware upgrade is not performed within 30 seconds. If you need further assistance with this process, please visit the support section of our website. Connecting the MPPT Pro to MPPT Pro your Bluetooth enabled device App Icon 1.
  • Page 6 Fig 4 Fig 3 Fig 5 Fig 5a 3. Your App will now connect to the controller and display the screen in Fig 3. 4. Clicking on the ‘Activity Monitor’ will give you the screen shown in Fig 4. This screen gives you information on what your solar system is doing as well as the charge in the batteries.
  • Page 7: Troubleshooting

    8. Clicking the ‘Dashboard’ button will display the screen depicted in Fig 7. This screen provides a clear graphical representation of the solar input and battery status. The arrow next to the central solar dial indicates which battery is currently Fig 7 being charged.
  • Page 8: Warranty

    MPPT Pro remote display (STCC15DIS) Remote back lit LCD display showing the current solar charging status, battery status (both batteries) and charging current. Includes a 5m cable that simply plugs into the bottom of the MPPT Pro controller. CHARGE CONTROLLER REMOTE DISPLAY...
