INSTALLATION &
OPERATING MANUAL
Thank you for purchasing Mechline's BioCeptor biological drain maintenance system.
CONTENTS:
Chapter
Description
1.
........................................................................
2.
3.
4.
5.
6.
7.
8.
9.
10.
Chapter 1. INTRODUCTION
The Mechline BioCeptor is a combined system designed to retain and break down Fats, Oils and Grease (FOGs) to prevent them
from entering the drainage system.
The BioCeptor FOG Intercept and Treatment (F.I.T) unit works in conjunction with the GreasePak bio-fluid dosing module, which
doses highly effective microorganisms into the F.I.T unit once a day. The GreasePak bio-fluid formula breaks down the FOGs into
irreversible compounds that can easily pass through drainage and, most importantly, do not reform down the line (more on how
the bio-fluid works in Section 6.2.3).
The F.I.T unit will need to be maintained and cleaned professionally periodically, so that any organic loads can be removed, but
the frequency of servicing is greatly reduced as long as the dosing module is properly and correctly maintained. It is also highly
recommended that a food waste strainer is installed upsteam of the BioCeptor to minimise the amount of food waste particles
entering the F.I.T unit.
The GreasePak bio-fluid dosing module is the only product of its kind in the UK to be approved by
the British Board of Agrément (BBA) as a recognised form of effective grease removal.
The F.I.T unit has been independently tested and certified to ASME A112.14.3 and PDI G-101.

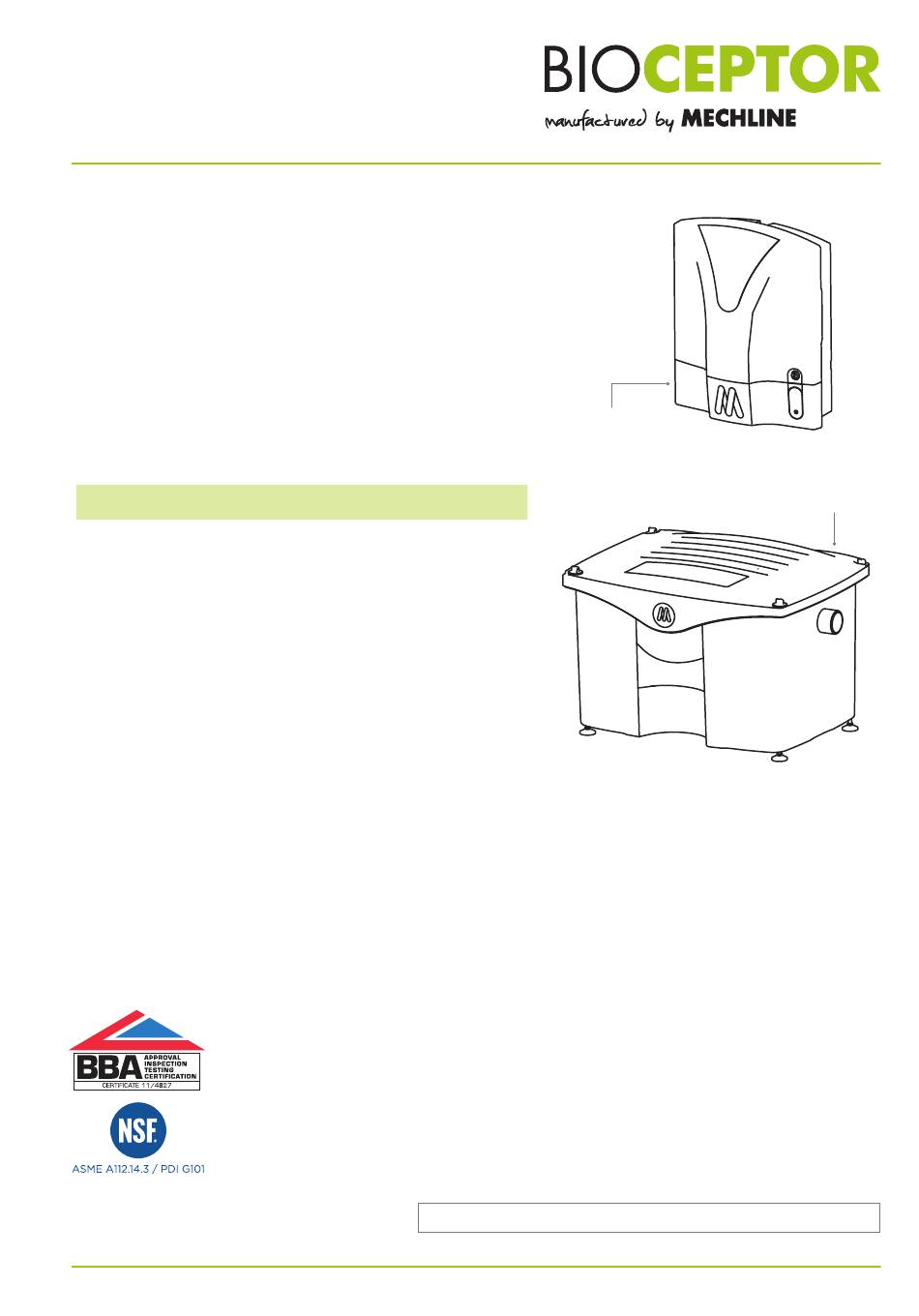

installation and operator manual
.............................................
..................................................................
...............................................................
...........................
..................................................
....................................
.................................................................
.............................................
...........................
LEAVE THIS MANUAL WITH THE OPERATOR AFTER INSTALLATION
Page
1
2
GreasePak
3
dosing module
4
6
10
15
18
19
19
FOG Intercept
and Treatment
(F.I.T) unit
REVISION: 06/2019 | page 1 of 20
Advertisement
Table of Contents
Related Manuals for MECHLINE BioCeptor BIO-1001U
Summary of Contents for MECHLINE BioCeptor BIO-1001U
-
Page 1: Table Of Contents
......Chapter 1. INTRODUCTION The Mechline BioCeptor is a combined system designed to retain and break down Fats, Oils and Grease (FOGs) to prevent them from entering the drainage system. The BioCeptor FOG Intercept and Treatment (F.I.T) unit works in conjunction with the GreasePak bio-fluid dosing module, which doses highly effective microorganisms into the F.I.T unit once a day. -
Page 2: Chapter 2. Ratings And Specifications
60 Kg / 132.3lbs PRODUCT CONFORMITY Mechline’s BioCeptor system conforms to the essential safety requirements of the Low Voltage Directive (LVD) 2014/35/EU, and Electromagnetic Compatibility Directive (EMC) 2014/30/EU and is manufactured in accordance with the harmonised standards EN 61000-6-3 Generic Emissions and EN 6100-6-1 Generic Immunity. -
Page 3: Chapter 3. Product Safety
Oxidising: No data available. for odour control and breaking down organic matter in waste systems. Solubility in water: Soluble 1.3 Distributor details: Mechline Developments Ltd, ONE Brudenell Drive, Viscosity: No data available. Brinklow, Milton Keynes, England MK10 0DE Boiling point/range°C: >100 T: +44 (0)1908 261 511 E: info@mechline.com... -
Page 4: Chapter 4. Location Advice
BioCeptor - Biological Drain Maintenance System Chapter 4. LOCATION ADVICE Failure to install the BioCeptor in accordance with these instructions could affect the performance of the product and could void the warranty. The BioCeptor F.I.T unit is designed to be installed internally, on a level surface that is capable of accepting the F.I.T unit weight of approximately 60kg when full. -
Page 5: Installation Example
BioCeptor - Biological Drain Maintenance System Install the GreasePak dosing module above the F.I.T unit. Between 1200-1500mm (4-5 feet) AFFL is recommended. The dosing MODULE should be a minimum of 1 metre (3.25 ft) and the drain dosing POINT a minimum of 2 metres (6.5 ft) away from sources of excessive heat or harsh chemicals in the drain such as... -
Page 6: Chapter 5. Installation Instructions
Refer to Chapter 4 of this manual, relating to LOCATION ADVICE INSTALLATION REQUIREMENTS Mechline’s BioCeptor biological drain maintenance system works by regularly dosing highly active bio-fluid into the F.I.T unit, it is not a drain unblocking system. Existing drains must be cleaned and pressure washed prior to installation. - Page 7 BioCeptor - Biological Drain Maintenance System 5.2.4 FIGURE 4 - LEFT to RIGHT hand flow: 5.2.5 Use the RUBBER CONNECTORS supplied to connect the pipework to the inlet and outlet ports - 50mm dia. (2 inch). 5.2.6 Leave the PLUGS hanging from the RUBBER CONNECTORS (as shown in fig. 5 below). These are for later use during future maintenance and cleaning proceedures carried out by your appointed service company.
- Page 8 BioCeptor - Biological Drain Maintenance System Chapter 5. INSTALLATION INSTRUCTIONS continued... 5.2.12 The GreasePak dosing module now needs to be fixed securely to the wall in the chosen location above the BioCeptor F.I.T unit. NOTE: An installation example is shown on page 5 (section 4.9). 5.2.13 Remove the bio-fluid box from the module and set aside in a safe place ready to be connected later.
- Page 9 Follow the box instructions to connect. 5.2.21 Check if you have more bio-fluid in stock. If not, please contact Mechline or your dealer. Bio-fluid is sold in master boxes of 3x 5-Litre (part number GP-MSGD5). Please have the serial number of your dosing module ready when you call.
-
Page 10: Chapter 6. Operating Instructions
BioCeptor - Biological Drain Maintenance System Chapter 6. OPERATING INSTRUCTIONS GENERAL ADVICE The following advice is a general guideline for the operator. If any questions arise, please do not hesitate to contact Mechline gpservice@mechline.com or your dealer. 6.1.1 Be sure the dosing module is left on once it has been put into operation. There is no on/off switch to operate. - Page 11 6.2.7 Are there special storage or handling requirements for the bio-fluid? Does it have a shelf life? Mechline’s bio-fluid is a perfectly safe class 1 fluid, and there are no special handling requirements. It should be stored in a cool, dry place away from direct sunlight and ideally at a temperature between 10°C and 30°C so the effective performance of the product is not compromised.
- Page 12 It will only flash between the hours of 07:00 - 20:00 when someone is likely to be around to see it, in order to preserve power. Contact Mechline or your dealer for a replacement battery pack (part number GP-BP) as soon as you see the ‘Low Battery’...
- Page 13 6.4.14 Run clean water through the F.I.T unit and check for leaks. 6.4.15 The BioCeptor F.I.T unit is now ready for use. Mechline advise that a certified and qualified service company undertake this work. You must ensure your waste contractor is an Environment Agency licensed waste carrier and that they give you a copy of the waste transfer note.
- Page 14 BioCeptor - Biological Drain Maintenance System Chapter 6. OPERATING INSTRUCTIONS continued... BIOCEPTOR F.I.T UNIT - TROUBLE SHOOTING GUIDE If you experience slow drainage flow from the appliance(s) connected to your BioCeptor, the F.I.T unit could need servicing and cleaning as detailed above. If you experience any leakage or odours from your BioCeptor F.I.T unit, check the tightness of the 4 x lid screws.
-
Page 15: Chapter 7. Bioceptor F.i.t Unit Sizing Guide
BioCeptor - Biological Drain Maintenance System Chapter 7. BIOCEPTOR F.I.T UNIT SIZING GUIDE The Mechline BioCeptor F.I.T unit has been designed to be as compact as possible by using flow control technology, which allows the product to be much smaller than a standard grease trap. - Page 16 BioCeptor - Biological Drain Maintenance System Chapter 7. BIOCEPTOR F.I.T UNIT SIZING GUIDE continued... FOOD WASTE DISPOSERS Food Waste Disposers should not be connected to the BioCeptor under any circumstances, as the sludge they discharge could cause blockages. OTHER APPLIANCES The BioCeptor is designed to accept the discharge from appliances such as combination ovens or dishwashers if required.
- Page 17 FOG trapping devices. If the dishwasher is not to be connected to the BioCeptor, it is recommended to connect a Mechline GreasePak biological dosing system. Contact Mechline for advice.
-
Page 18: Chapter 8. Bba Approved
Chapter 8. BBA APPROVED Mechline’s GreasePak bio-fluid dosing module has been through rigorous testing, providing customers with the utmost confidence in its effectiveness and quality. We are proud to say that it is the only product of its kind in the UK to be approved by the British Board of Agrément (BBA) as a recognised form of effective grease removal. -
Page 19: Chapter 9. On-Going Requirements
• NEVER pour floor washing or cleaning water into the drainage system and avoid using cleaning products containing biocide, limonene and terpenes in your day-to-day kitchen cleaning program. Mechline’s bio-fluid is a completely safe, Class 1 non-hazardous fluid. No harm will come from touching it, but if in doubt wear gloves when cleaning up any fluid spills. - Page 20 Commercial use of this material may only be made with the express, prior, written permission of Mechline. This includes material provided by any third party, including material obtained through links to other sites from Mechline’s pages or its affiliates and commercial associates. Material and information included are correct at time of print. Intending buyers and users must satisfy themselves as to the suitability and safety of the products for their particular purposes and duties.
