Dyna-Glo DGN576SNC, DGN576SNC-D Manual

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m. CST, Monday – Friday, or email customerservice@ghpgroupinc.com.

PACKAGE CONTENTS

HARDWARE CONTENTS (shown actual size)

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 50 minutes with two people

Tools Required for Assembly (not included): Phillips screwdriver, adjustable wrench.

ASSEMBLY INSTRUCTIONS

1. Insert axle (P) into left leg assembly (R). Attach one wheel (Q) to each side of axle (P) using one wheel axle sleeve (GG), one M8 washer (DD), and one M8 nut (EE).

   Hardware Used


2. Attach two casters (N) to right leg assembly (M) and secure with wrench (KK).

   Hardware Used

3. Attach two cart braces (L) to left leg assembly (R) using two M6x12 bolts (AA) on each side.

   Hardware Used

4. Attach two cart braces (L) to right leg assembly (M) using two M6x12 bolts (AA) on each side.

   Hardware Used

5. Attach storage basket (O) to cart braces (L).


NOTE: Make sure four hooks on storage basket (O) are fully inserted into holes on cart braces (L).

6. With the help of a second person, set lid and firebox assembly (B) on top of left leg assembly (R) and right leg assembly (M).

7. Secure lid and firebox assembly (B) on top of left leg assembly (R) and right leg assembly (M) using six M6x20 bolts (BB).

   Hardware Used

8. Attach damper (H) to inside of lid and firebox assembly (B) using four M5 shoulder bolts (CC) and four M5 lock nuts (II). Repeat for remaining damper (H).

   NOTE: For clarity, illustration is shown with front of lid and firebox assembly (B) removed.
   Hardware Used

9. Insert damper handle – right (G) into the two holes on right side damper (H). Secure with two cotter pins (FF). Repeat for damper handle – left (V).

   Hardware Used

10. With shelf upside down, attach side shelf support – left rear/right front (W) and side shelf support – left front/right rear (I) to side shelf (A) using four M6x12 bolts (AA) on each side. Repeat for remaining shelf (A).

    Hardware Used

11. Attach left charcoal access door (E) to lid and firebox assembly (B). Insert two hinge bolts (HH) into hinges on charcoal access door (E) and secure with two cotter pins (FF). Repeat for right charcoal access door (S).

    Hardware Used

12. Attach right side shelf (A) to lid and firebox assembly (B) using four M6x20 bolts (BB). Repeat on left side with remaining side shelf (A).

    NOTE: First secure two upper M6x20 bolts (BB), then lower M6x20 bolts (BB).
    Hardware Used

13. Attach ash tray handle (K) to ash tray (J) using two M6x12 bolts (AA).

    Hardware Used

14. Insert ash tray (J) into lid and firebox assembly (B).

15. Attach smoke stack assembly (D) to lid and firebox assembly (B) using three M6x12 bolts (AA).

    NOTE: Make sure the smoke stack damper adjustment handle faces the front of the grill.
    Hardware Used

16. Attach temperature gauge (Z) and temperature gauge nut bezel (A1) to lid and firebox assembly (B) using pre-assembled nut.

17. Attach lid handle assembly (C) to lid and firebox assembly (B) using two M6x12 bolts (AA).

    Hardware Used

18. Thread crank handle (F) into lid and firebox assembly (B). Secure with one cotter pin (FF). Repeat for remaining crank handle (F).

    Hardware Used

19. Attach two charcoal trays (X) to inside of lid and firebox assembly (B) using four M6x12 bolts (AA) each.

    Hardware Used

20. Insert the divider panel (Y) into the inside of the lid and firebox assembly (B).

21. Place four grates (T) on lid and firebox assembly (B).

22. Attach one M6x30 bolt (JJ) on each side of lid and firebox assembly (B). DO NOT fully tighten.

    Hardware Used

23. Insert one end of warming rack (U) onto M6x30 bolt (JJ) and into the hole on lid and firebox assembly (B). Repeat for other side.

24. Fully tighten M6x30 bolts (JJ) on each side of lid and firebox assembly (B).


OPERATING INSTRUCTIONS

Removing divider panel from grill

1. Remove four grates (T) in lid and firebox assembly (B).

2. Remove warming rack supports (U), from the firebox, by pressing both bars in towards the center of the grill. Swing the warming rack (U) up, to make clearance for the divider panel (Y).

3. Remove divider panel (Y) from firebox assembly (B). Return grates and warming rack to their original positions.


NOTE: When placing the divider panel into the firebox assembly (B), please make sure the bottom of the divider fits between the support brackets located on the front and back sides of the firebox.

• CARBON MONOXIDE HAZARD. Burning charcoal inside can kill you. It gives off carbon monoxide, which has no odor. NEVER burn charcoal inside homes, vehicles or tents.

This grill has an adjustable charcoal tray. By turning the crank handle, the charcoal tray can be raised or lowered to desired height. This allows for different heat settings depending on the food you are cooking and the temperature at which you want to cook. It also allows easy cleaning of the interior of the firebox after the unit has cooled down completely. It is not recommended to raise a fully loaded charcoal tray higher than the middle height setting.

NOTE: The grate is coated with porcelain which is a fragile coating. Handle with care to avoid damage. DO NOT cool the grate in cold water while it is still hot or the coating may crack. Let the grate cool off by itself.

Charcoal Lighting Instructions

• Open grill top.
• Remove cooking grates.
• Adjust the preffered charcoal tray(s) to the center position, and place one even row of charcoal briquettes in the tray.
• Make sure that charcoal does not go above the top of the tray.
• Light briquettes.
• Move charcoal tray(s) to the bottom position.
• With the top open, allow the briquettes to fully ignite (to the point where there is no further flame).
• Once the briquettes are lit, put the grates back in the grill using heat resistant gloves.
• Adjust charcoal tray as required to achieve the proper temperature.

Adjusting Temperature

• For maximum heat/temperature, open both side air vents located on the side of the main body as required. To reduce the heat/temperature, close the air vents on the side of the main body.

NOTE: The temperature should not go above 500ºF(260°C). If the temperature goes above 500ºF (260°C), you should open the lid and allow the briquettes to cool. The proper cooking temperature should not exceed 500ºF (260°C).

Seasoning Unit

1. Before your first cooking you should season the unit to enhance the cooking and to provide better overall durability. Failure to properly follow these steps may damage the finish and/or impart metallic flavors to foods.
2. Remove all retail hangtags that are on the unit, making sure NOT to remove safety markings from the unit.
3. Place one even row of charcoal briquettes in both charcoal trays. Make sure that charcoal does not go above the top of the trays.
4. Coat interior surfaces with vegetable cooking oil.
5. Light briquettes and set charcoal tray at medium height by cranking the crank handle.
6. Sustain burn for about two hours with lid closed and all dampers to 1/4 of the way open. Allow the unit to cool down properly.
7. Once this is completed, the unit is ready for use.

Rust can appear on the inside of your grill. Maintaining a light coating of vegetable oil on interior surfaces will aid in the protection of your grill. Exterior surfaces of the grill may need occasional touch up. We recommend the use of commercially available black high temperature spray paint. NEVER PAINT THE INTERIOR OF THE UNIT!

Operating The Front Door, Dampers, And Smoke Stack

These metal parts could be very hot while grilling. Always operate these parts while wearing a heat-resistant glove.

1. To open the door, lift the door slighty and pull.
2. To close the door, lift the door slightly and push the door to the door frame catch.
3. To adjust the side dampers, pull or push damper handle until desired air flow is achieved.
4. To adjust the smoke stack, move the smoke stack adjustment handle away from the smoke stack and raise or lower the adjustment handle until the desired air flow is achieved.

Grilling

Charcoal is recommended, however wood or a combination of both may be used as the fuel source for grilling if the fuel source is placed and ignited on the charcoal pan. Do not build too large a fire. We recommend starting a fire with no more than 2 lbs of charcoal per tray (approximately 30 briquettes per tray) and adding more as needed during cooking. After allowing the fire to burn down, place the cooking grates in the unit. Failure to read and follow instructions for lighting charcoal may result in serious personal injury and or property damage.

1. Most surfaces on this unit are hot when in use. Use extreme caution. Keep others away from unit.
2. Always wear protective clothing to prevent injury.
3. Keep children and pets away.
4. DO NOT move this unit during operation.
5. Never substitute gasoline, kerosene or alcohol for charcoal starter. In some states, the use of charcoal starter is prohibited by law. In this case, paraffin-based starter cubes can be substituted for charcoal starter. Never use charcoal starter fluid with an electric starter.

CARE AND MAINTENANCE

Grill Maintenance
Frequency of cleaning is determined by how often the grill is used. Make sure coals are completely extinguished and the grates are cooled down before cleaning inside of the unit. To remove the stains on the lid and front panel caused by fumigation while grilling, use of a cleaning pad is recommended.

Wipe out the interior of unit with a cloth or paper towel. Clean the grates with warm water and pat dry. The coating is fragile. Do not knock, hit or drop the grates.

WARRANTY
1-Year Limited Warranty

All warranty claims apply only to the original purchaser and require a proof of purchase verifying purchase date. This service is available by calling toll free 1-877-447-4768, 8:00 a.m. – 4:30 p.m. CST, Monday – Friday.

Manufactured by:
GHP Group Inc.
6440 W. Howard St.
Niles, IL, USA
60714-3302

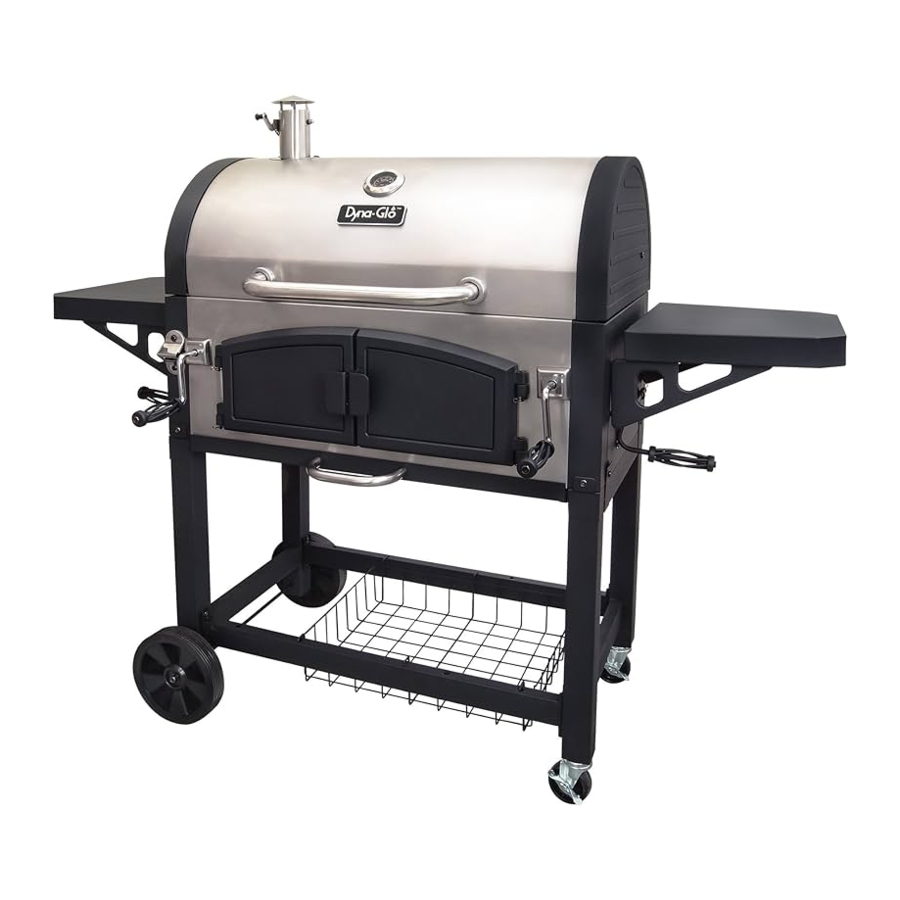

Item Name: Dual Chamber Charcoal Grill
Model #: DGN576SNC/DGN576SNC-D

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m. CST, Monday – Friday.

PART/ DESCRIPTION/ PART #

n/a Hardware pack 404-03025-00

n/a Owner's/instruction manual 70-10-022

1. Smoke stack-stainless steel 404-01002-05
2. Lid assembly–WITHOUT handle, temperature gauge, temperature bezel, smoke stack, badge 404-03003-03
3. DynaGlo badge 213-02002
4. Temperature gauge – with nut 213-02005
5. Lid bumper 403-01002-07
6. Lid pin with cotter pin 404-03002-03
7. Lid handle with hardware 403-01002-02
8. Warming rack with supports 403-03007-00
9. Cooking grate – 1 piece 403-03006-00
10. Charcoal tray (left or right) 404-03003-02
11. Charcoal tray adjustment arm assembly (left or right) 403-03003-04
12. Firebox bottom assembly ONLY, WITHOUT – side damper, charcoal pan/tray, arm assembly to charcoal pan/tray, crank arm assembly, front access door, and bottle opener 414-03003-01
13. Threaded mount for charcoal tray adjustment crank 404-02003-10
14. Charcoal tray adjustment crank handle bezel-with screws (left or right) 403-03003-05
15. Charcoal tray adjustment crank only (left or right) 403-02003-02
16. Charcoal tray adjustment crank handle or side damper adjustment crank handle (same) 403-02003-05
17. Side shelf 414-03004-01
18. Side damper adjustment plate – left or right 403-02003-08
19. Side shelf support-left front or right rear (same) 403-01004-01
20. Side shelf support-left rear or right front (same) 403-01004-02
21. Bottle opener 403-01003-05
22. Charcoal access door frame only – left 404-03014-02
23. Charcoal access door insert with hardware – left 404-03015-01
24. Charcoal access door hinge pin with cotter pin 401-01013-03
25. Side damper adjustment bar – left (without wire grip) 404-02003-06
26. Side damper adjustment bar-right (without wire grip) 404-02003-07
27. Ash pan without handle 403-03005-01
28. Ash pan handle with hardware 403-01005-02
29. Left leg assembly 403-03001-01
30. Right leg assembly 403-03001-02
31. Upper lid hinge 404-03002-04
32. Lower lid hinge 404-03002-02
33. Axle rod for wheels 403-01018-00
34. Wheel 403-01019-00
35. Sleeve for wheel axle 403-01021-00
36. Caster (includes wrench) 403-01014-02
37. Bottom brace-front or rear (same) 403-03016-00
38. Storage basket 403-01015-00
39. Charcoal access door latch 403-03017-00
40. Charcoal access door hinge for firebox – with hardware 404-03016-00
41. Divider panel 404-03006-01
42. Temperature gauge nut bezel 213-02006
43. Charcoal access door frame only – right 404-03014-01
44. Charcoal access door insert with hardware – right 404-03015-02
45. Charcoal access door handle (left or right) 404-03017-01
