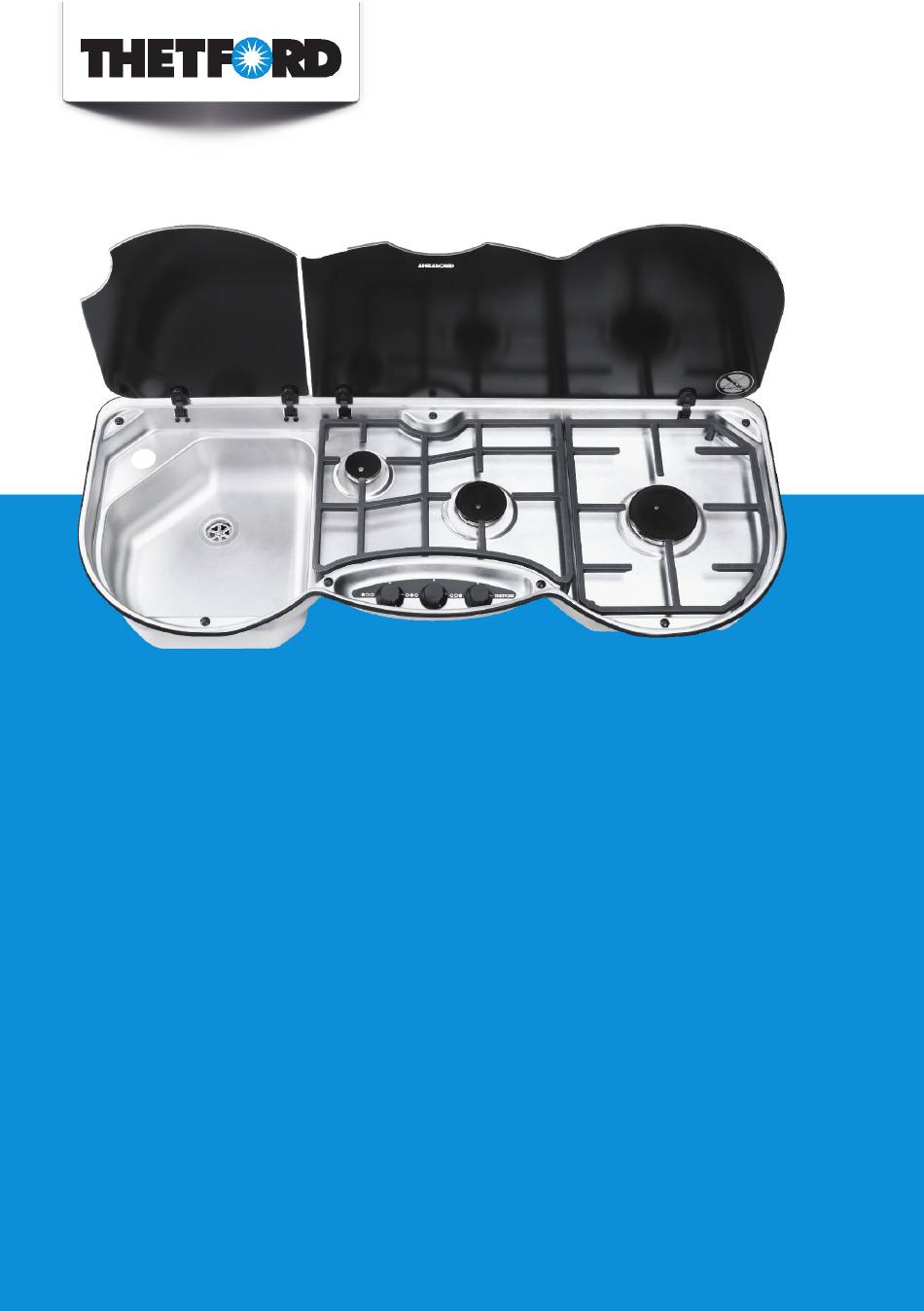

- Page 1 USER MANUAL HOB-SINK COMBINATION 353 series...
-
Page 2: Table Of Contents
10 Disposal........................14 1. Introduction General This is the user manual for your Thetford hob & sink combination unit and supports the following model: SCU353 series. Read the safety instructions and information on use and maintenance of the appliance carefully before continuing. This will enable you to use the appliance safely and efficiently. -
Page 3: Gas Leaks
Caution Risk of moderate injury and/or damage. Attention. Important information. Note. Additional information. Video. Additional instruction video available. 2. Gas leaks As soon as you smell gas: ■ Ensure that all burners are TURNED OFF. ■ Extinguish all naked lights and DO NOT smoke. ■... - Page 4 ■ Use the appliance for cooking only and not for anything else, for example room heating. This can lead to carbon monoxide poisoning and overheating. The manufacturer cannot be held liable for damage resulting from improper use or incorrect setting of the controls. ■...
-
Page 5: Safe Cooking
■ The appliance and accessible parts become HOT, when in use. Young children should be kept away! Gas hob burners Risk of serious injury through burning, explosion, clamping, electrocution, suffocation and poisoning or damage to the product. ■ Although the appliance is fitted with a Flame Safety/Flame Failure Device (FSD/FFD), DO turn off the burner gas supply when not in use. - Page 6 ■ The manufacturer cannot be held liable for damage resulting from improper use or incorrect setting of the controls. DO NOT allow cooking vessels to overlap the edges of the appliance - use the correct ■ sizes of pans and position them centrally over the burners. ■...
-
Page 7: Overview
4. Overview SCU353 series 1. Glass lids 2. Gas burners 3. Pan supports 4. Control panel 5. Sink The types of burners may vary. Refer to Technical specifications for further details. 5. Before use Read the applicable instructions in chapter Safety first. Before using the appliance: ■... -
Page 8: Use
6. Use Read the applicable instructions in the Safety chapter first. Use of the gas burners For the exact location of the control knobs, refer to the Overview chapter. Turning on: Indications and settings may differ per model. ■ Push and turn the control knob. ■... - Page 9 Use of the sink ■ Open the glass lid. ■ Turn on the tap for water. ■ Turn off the tap to turn the water off. Beware that burners do not get wet by water from the tap or sink. Wet burners burn irregularly and can go out.
-
Page 10: Cleaning And Maintenance
7. Cleaning and maintenance Read the applicable instructions in chapter Safety first. Thetford recommends an annual inspection service by an approved service centre. Between annual servicing, clean the appliance after use. ■ Before cleaning or maintenance work the appliance MUST be left to cool and be disconnected from the gas and electrical supplies. -
Page 11: Technical Specifications
8. Technical specifications Table 1: Burner specifications SCU353 series Gas input Injector g/hr Gas burners 1 x 2.22 1 x 160 0.77 1 x 1.45 1 x 104 0.61 1 x 0.96 1 x 69 0.52 Total 4.63 Electrical 12V DC supply Table 2: Dimensions and weight SCU353 series... - Page 12 Table 3: Gas category Class 3 Appliance Gas category & Pressure CAT I CAT I 3 + (28-30/37) 3 B/P (30) BUTANE (G30) 28 – 30mbar BUTANE (G30) 30mbar PROPANE (G31) 37mbar PROPANE (G31) 30mbar For installation in BE, CH, CY, CZ, ES, FR, GB, AT, BE*, CH, CY, CZ, DE, DK, GR, IE, IT, LT, PT, SI, TR EE, FI, FR, GB*, GR, HR, HU,...
-
Page 13: Service & Questions
For more troubleshooting check the website www.thetford.com. If you cannot solve a problem, contact your delaler, an authorised local Service Centre or Thetford Customer Service in your country. Service Before any service work is started, the appliance should have been left to cool and be disconnected from both the gas and electrical supplies. -
Page 14: Warranty
Thetford hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the applicable Regulations, Directives and Standards. A copy of the Declaration of Conformity can be found at www.thetford.com. 10. Disposal Your product has been designed and manufactured with high quality ma- terials and components, which can be recycled and reused. - Page 15 T +61 3 9358 0700 T +86 755 8627 1393 T +46 31 336 35 80 F not available F +86 755 8627 1673 F not available E infoaus@thetford.com.au E info@thetford.cn E infos@thetford.eu www.thetford.com.au www.thetford.cn Copyright 2015-2025 Thetford B.V. All rights reserved. SINS2002/0325-V04...
