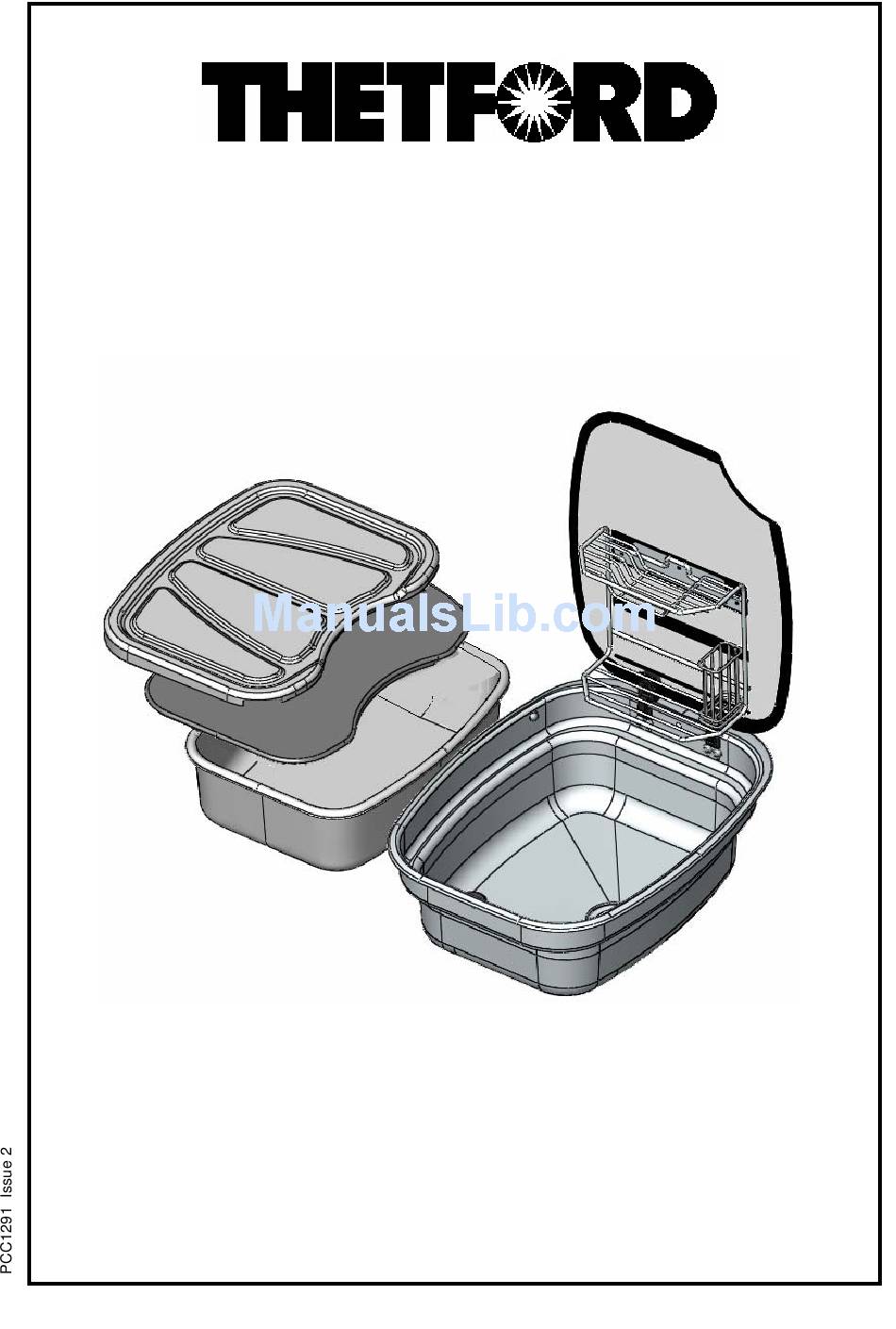

Page 1
BUILD IN APPLIANCES KITCHEN CENTRE USER AND INSTALLATION INSTRUCTIONS READ AND RETAIN FOR FUTURE REFERENCE FOR USE IN GB, IE, FR, NL, BE, LU, ES, IT, NO, DE, DK, SE, CY, CZ, EE, GR, LT LV, PT, RO, SK, CH, BG, FI SPINFLO LIMITED, 19 Oakham Drive, Parkwood Industrial Estate Rutland Road, Sheffield S3 9QY, ENGLAND.
INSTALLATION Decide on the location of the Kitchen Centre taking into account the services required, and prepare the worktop for installation as shown in Fig. 2. Supplied with the bowl is a silicone rubber seal, which should be fitted to the bowl prior to fitting into the aperture.
Page 3
Fig. 2 Worktop Cutout R1 Corner radius 83mm R2 Side Radius 696mm Front APPLIANCE CARE INSTRUCTIONS After use always remove any plastic bowl or mat, clean the surface with soap and hot water followed by a clean water rinse and drying with a soft cloth to prevent spotting. For more stubborn dirt or grease a non-abrasive multi-purpose cream cleaner, such as CIF, may be used.
Page 4
BUILD IN APPLIANCES KITCHEN CENTRE INSTRUCTIONS D’UTILISATION & INSTALLATION A LIRE ATTENTIVEMENTET A CONSERVER POUR UTILISATION AUX GB, IE, FR, NL, BE, LU, ES, IT, NO, DE, DK, SE, CY, CZ, EE, GR, LT LV, PT, RO, SK, CH, BG, FI SPINFLO LIMITED, 19 Oakham Drive, Parkwood Industrial Estate Rutland Road, Sheffield S3 9QY, ENGLAND.
Page 5
Instructions d’installation Kitchen Centre Décider de l’emplacement où vous allez installer votre ‘Kitchen Centre’ en prenant en compte les paramètres de service requis et préparer le plan de travail à l’installation comme indiqué sur le schéma 2. Un joint silicone caoutchouc est fourni avec l’évier. Ce joint doit être mis en place sur le l’évier avant toute insertion dans la découpe effectuée.
Page 6
Schéma 2. Decoupe plan de travail Rayon d'angle 83mm Rayon Side 696mm Avant Entretien Appliance Après usage, enlever toute bol en plastique ou mat, toujours nettoyer la surface avec du savon et de l’eau chaude et bien rincer à l’eau claire ensuite. Passer ensuite un chiffon sec et non abrasif pour bien essuyer et empêcher la formation de traces.
