Table of Contents

METEOROLOGICAL INSTRUMENTS
INSTRUCTIONS

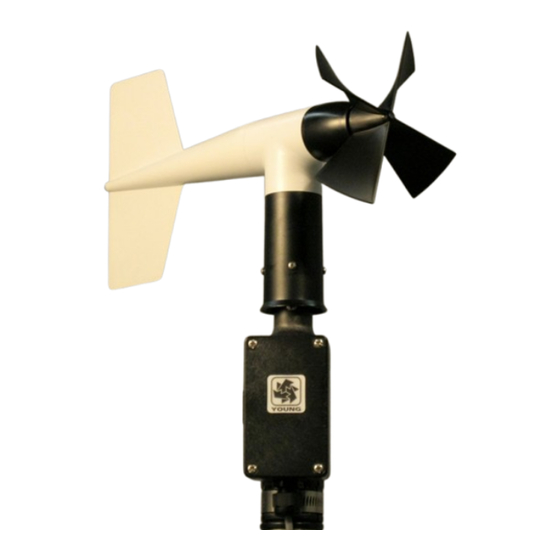

WIND MONITOR - JR
MODEL 04101-5
R.M. YOUNG COMPANY
2801 AERO PARK DRIVE, TRAVERSE CITY, MICHIGAN 49686, USA
TEL: (231) 946-3980
FAX: (231) 946-4772
WEB: www.youngusa.com
PN: 04101-5-90
REV: H062819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JR and is the answer not in the manual?

Questions and answers

Related Manuals for Young JR

Summary of Contents for Young JR

  • Page 1 METEOROLOGICAL INSTRUMENTS INSTRUCTIONS WIND MONITOR - JR MODEL 04101-5 R.M. YOUNG COMPANY 2801 AERO PARK DRIVE, TRAVERSE CITY, MICHIGAN 49686, USA TEL: (231) 946-3980 FAX: (231) 946-4772 WEB: www.youngusa.com PN: 04101-5-90 REV: H062819...

  • Page 2: Initial Checkout

    To prevent false readings, (0.0980 m/s per Hz) signal conditioning electronics should clamp the signal to WIND DIRECTION (AZIMUTH) SPECIFICATION SUMMARY excitation or reference level when this occurs. Note: Young signal conditioning devices clamp the signal to excitation Range 360° mechanical, 352° electrical (8°...

  • Page 3: Installation

    Place Wind Monitor on mounting post. Do Not tighten band clamp yet. Model 04101 Wind Monitor - JR 2. CONNECT SENSOR CABLE WIND SPEED vs PROPELLER RPM a) Refer to wiring diagram located at back of manual.

  • Page 4: Maintenance

    MAINTENANCE 6. REPLACE MAIN HOUSING a) Place main housing over vertical shaft bearing rotor. Be Given proper care, the Wind Monitor should provide years of careful to align indexing key and channel in these two service. The only components likely to need replacement due assemblies.

  • Page 5: Emc Compliance

    12 months from date of initial purchase. Liability is limited to repair or replacement of defective item. A copy of the warranty policy may be obtained from R. M. Young Company. CE COMPLIANCE This product has been tested and complies with European CE requirements for the EMC Directive.

  • Page 6: Cable & Wiring Diagram

    CABLE & WIRING DIAGRAM MODEL 04101-5 WIND MONITOR - JR MODIFICATIONS TO STANDARD 04101: 1. 05178A-5 MAIN CIRCUIT BOARD. 1 MEG PULL DOWN RESISTOR R2 ON WIND DIRECTION CIRCUIT. SEPERATE WIND SPEED/WIND DIRECTION REFERENCE. 04101-5-90(H) Page 5...
  • Page 7 BEARING REPLACEMENT & POTENTIOMETER ADJUSTMENT 04101-5-90(H) Page 6...
  • Page 8 DIRECTION CIRCUIT. SEPERATE WIND DIRECTION CIRCUIT. SEPERATE WIND SPEED/WIND DIRECTION REFERENCE. SPEED/WIND DIRECTION REFERENCE. 18500 FERRITE CHOKE 04101-5-90(H) R. M. YOUNG COMPANY 2801 Aero Park Drive , Traverse City, Michigan 49686 U.S.A. TEL (231) 946-3980 FAX (231) 946-4772 Page 7...

This manual is also suitable for:

04101-5

Table of Contents
