DELL P2219HCB

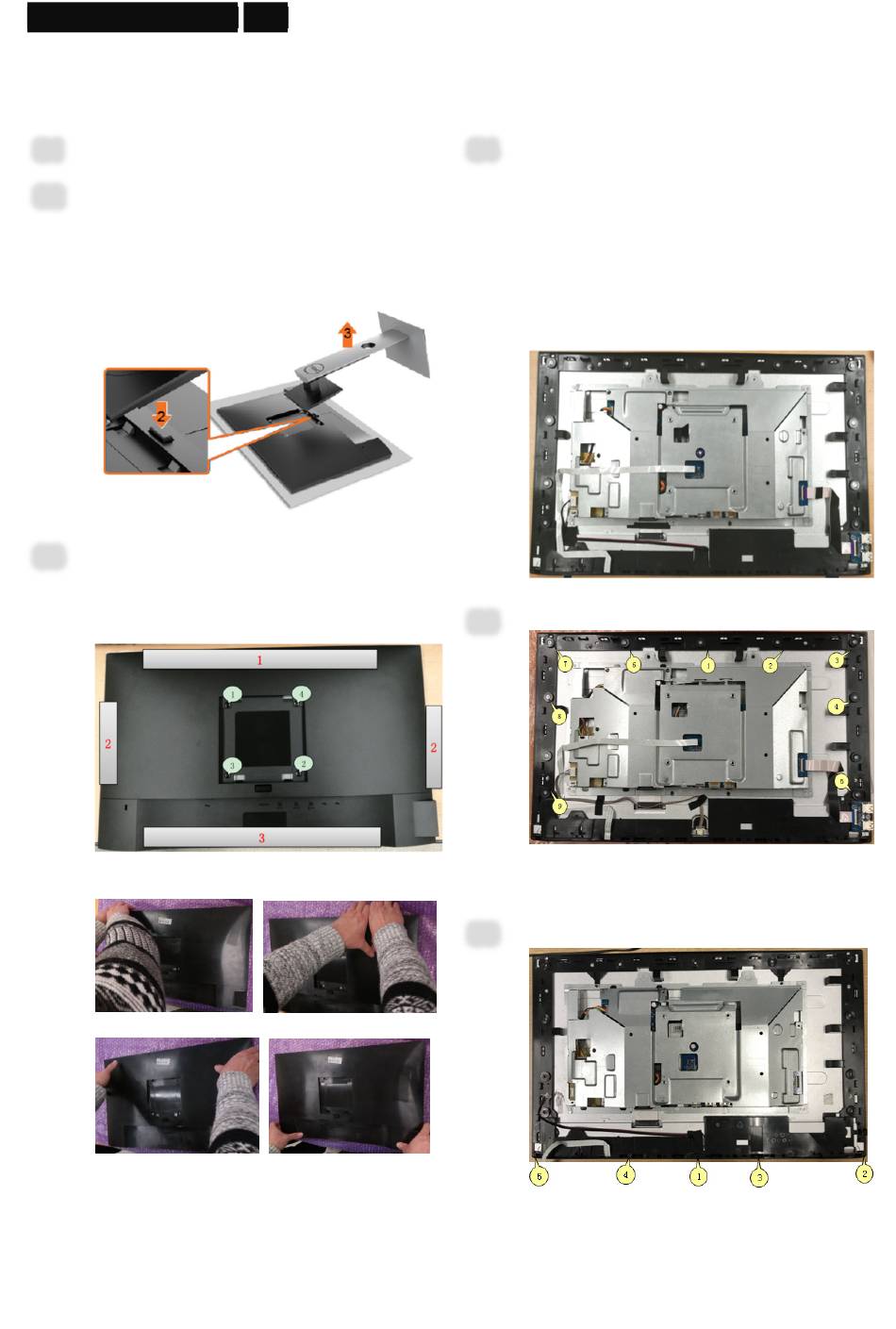

1. Disassembly Procedures

Turn off power

Place the monitor on a soft cloth or

cushion.

Press and hold the stand-release

button.

Lift the stand up and away from the

monitor.

Unlock 4 Rear Cover screws.

Disassemble Rear Cover and Middle

Frame according to the sequence as

the picture showed

(Screw Torque:9±1Kgf)

Tear off the AL foil

Pull out Control Board Cable, wire &

USB Board Cable

Take off Main Shielding from middle

frame

Tear off adhesive tape from LVDS

cable. Pull out LVDS cable and take off

Main Shielding from panel

Unlock 9 screws on Middle Frame

(Screw Torque: 3.5~~4.0Kgf)

Unlock 5 screws on Bezel

(Screw Torque: 1.25-1.3kgf)

Need help?

Do you have a question about the P2219HCB and is the answer not in the manual?

Page 1 DELL P2219HCB 1. Disassembly Procedures Tear off the AL foil Turn off power Pull out Control Board Cable, wire & Place the monitor on a soft cloth or USB Board Cable cushion. Press and hold the stand-release Take off Main Shielding from middle button.
Page 2 DELL P2219HCB Disassemble Middle Frame and Bezel Take out I/F Board, SPS Board and LED Driver BD from Main Shielding Pull out LVDS cable and I/F board cable from I/F board Disassemble Mylar from Main Shielding Pull out I/F board cable and LED Driver...
Page 3 DELL P2219HCB Remove electrolyte capacitors (red mark) from printed circuit boards S13-1 Cut the glue between bulk cap. and PCB with a knife S13-2 Ensure cutting path within the glue, don’t touch bulk cap. or PCB...
Page 4 DELL P2219HCB S13-3 Take out bulk cap. pin solder with soldering iron and absorber S13-4 Lift the bulk cap. up and away from the PCB...
Page 5 DELL P2219HCB 2. Product material information The following substances, preparations, or components should be disposed of or recovered separately from other WEEE in compliance with Article 4 of EU Council Directive 75/442/EEC. Capacitors / condensers (containing No used PCB/PCT) Mercury containing components...
