www.Komatsu.com
CEN00130-03
Printed in Japan 200901 IP.As(10)
Materials and specifications are subject to change without notice.
is a trademark of Komatsu Ltd. Japan.

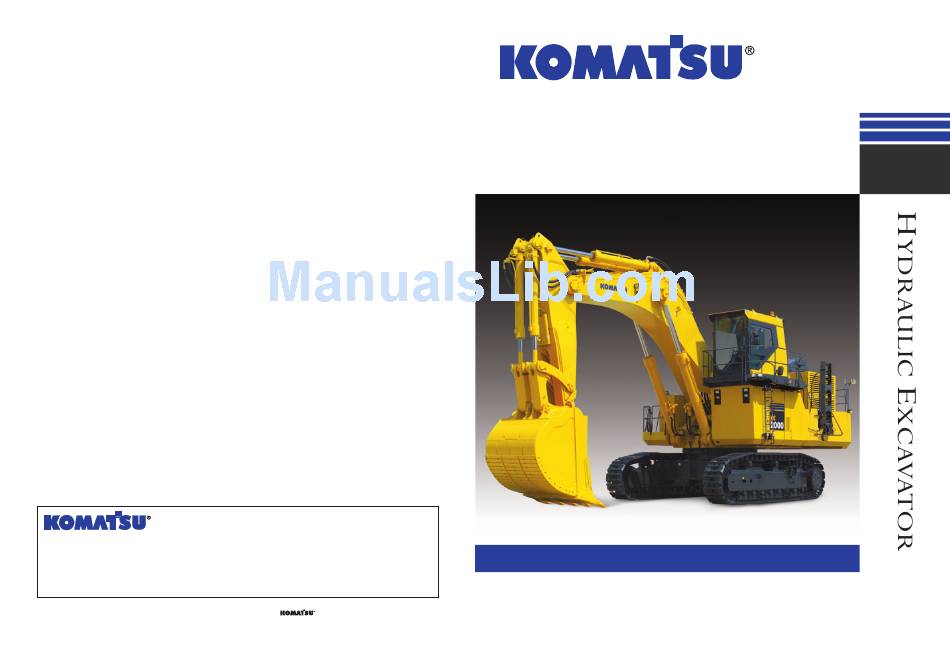

PC2000
BACKHOE
-8
PC2000
LOADING SHOVEL
-8
HORSEPOWER
Gross: 728 kW 976 HP @ 1800 rpm
Net: 713 kW 956 HP @ 1800 rpm
OPERATING WEIGHT
Backhoe: 200000–204120 kg
440,920–450,000 lb
Loading shovel: 195000 kg
429,900 lb
PC
2000
Photo may include optional equipment.
Advertisement
Related Manuals for Komatsu PC2000-8 BACKHOE
Summary of Contents for Komatsu PC2000-8 BACKHOE
- Page 1 HORSEPOWER Gross: 728 kW 976 HP @ 1800 rpm Net: 713 kW 956 HP @ 1800 rpm OPERATING WEIGHT Backhoe: 200000–204120 kg 440,920–450,000 lb Loading shovel: 195000 kg 429,900 lb PC2000 BACKHOE PC2000 LOADING SHOVEL 2000 www.Komatsu.com Printed in Japan 200901 IP.As(10) Photo may include optional equipment.
-
Page 2: Operating Weight
PC2000 PC2000 HYDRAULIC EXCAVATOR Y D R A U L I C X C A V A T O R HORSEPOWER ALK- ROUND Gross: 728 kW 976 HP @ 1800 rpm Net: 713 kW 956 HP @ 1800 rpm Operator Comfort OPERATING WEIGHT ●... - Page 3 PC2000 PC2000 HYDRAULIC EXCAVATOR Y D R A U L I C X C A V A T O R RODUCTIVITY, CONOMY & COLOGY In complete pursuit of total cost reduction and eco-friendliness High Power Komatsu Engine Selectable Working Modes Advanced Environmentally 713 kW (956 HP) Friendly Features...
-
Page 4: Power Module
PC2000 PC2000 HYDRAULIC EXCAVATOR Y D R A U L I C X C A V A T O R EPAIR & AINTENANCE Designed and built for total cost reduction Heavy-duty Rock Bucket (optional) Packaged wear-resistant reinforcement plates are available. The repair cost of the bucket can be considerably reduced with The evolution of reliability and durability the new design. - Page 5 PC2000 PC2000 HYDRAULIC EXCAVATOR Y D R A U L I C X C A V A T O R EPAIR & AINTENANCE Sustained high level performance Service Center (optional) Jump Start Receptacle (optional) Battery Isolator and Starting Motor Isolator (optional) Collective arrangement of drain and filler Jump start receptacle allows starting An achievement in the evolution of maintenance...
-
Page 6: Working Environment
PC2000 PC2000 HYDRAULIC EXCAVATOR Y D R A U L I C X C A V A T O R OMFORT ORKING NVIRONMENT Operator first concept in every corner of the machine Emergency Stop Device & Fuel Stepladder for Dual Rearview Mirror Cut-off Lever Emergency Mirrors offer... - Page 7 PC2000 PC2000 HYDRAULIC EXCAVATOR Y D R A U L I C X C A V A T O R OMFORT ORKING NVIRONMENT Equipment designed to minimize operator fatigue Easy-to-see and Easy-to-use 7-inch TFT-LCD Large Monitor An achievement in the evolution of comfort performance The machine is equipped with 7-inch TFT-LCD large monitor for secure, and smooth operation.
-
Page 8: Specifications
PC2000 PC2000 HYDRAULIC EXCAVATOR Y D R A U L I C X C A V A T O R PECIFICATIONS BACKHOE DIMENSIONS Unit: mm ft in ENGINE DRIVE SYSTEM 55'11" 24'7" 17030 7490 19'4" 5880 Model ......Komatsu SAA12V140E-3 Travel gear. - Page 9 LOADING SHOVEL DIMENSIONS LIFTING CAPACITY Unit: mm ft in PC2000-8 Equipment: A: Reach from swing center ● Boom: 8.7 m 28'7" 42'11" 24'7" B: Bucket hook height 13075 7490 ● Arm: 3.9 m 12'10" 19'4" C: Lifting capacity 5880 R=19'7" 12.2"...
- Page 10 TRANSPORTATION GUIDE STANDARD EQUIPMENT ENGINE AND RELATED ITEMS: HYDRAULIC SYSTEM: Specifications shown include the following equipment: ● Air cleaner, double element dry (Inside mounted) ● E-OLSS (Electronic Open Center Load Sensing System) Backhoe: boom 8700 mm 28'7", arm 3900 mm 12'10", bucket 12.0 m 15.7 yd , shoes 810 mm 32"...
