Installation Instructions
Introduction

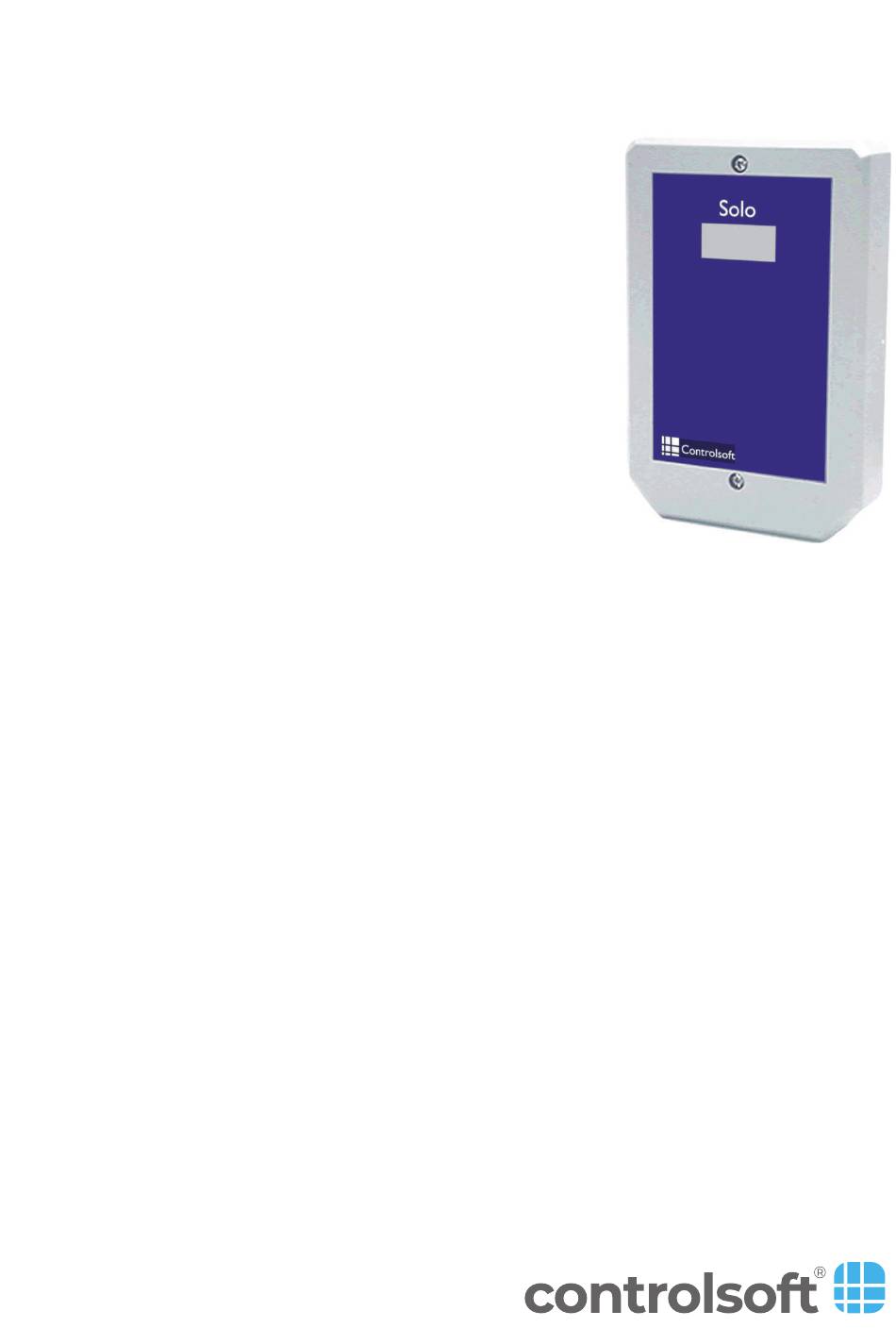

The Controlsoft® SOLO™ is a complete standalone single
door access control system for use with Controlsoft
Proximity Cards or Fobs. This low cost controller has a
three digit LED display and two internal push buttons which
are used to program the system.
The SOLO is supplied with one reader head, suitable for
indoor and outdoor use. An optional second reader head
can be connected to provide IN and OUT readers.
Three versions are available:
AC-3210 = Controller with Oval Mullion reader
AC-3210-V = Controller with Vandal Resistant reader
AC-3210-P = Controller with Panel Mount reader
Technical Specifications
Power:
12V to 24V (ac or dc).
Current: 100mA @ 12V with 1 reader head.
Readers: One additional reader head can be added:
AC-3212 Vandal Resistant Reader
AC-3213 Panel Mount Reader
AC-3214 Oval Mullion Reader
Inputs:
Normally Open Door Contact / Normally Open Request to Exit (REX)
button, Normally Open Fire Alarm.
Outputs: Lock, Siren.
Display: Three digit display to indicate the status of the controller for programming.
Buttons: Two internal buttons (SWPB1 and SWPB2) to program the door controller.
Jumper: One internal jumper to configure the controller for One or Two readers.
Users:
Up to 999
Step 1. Install the Controller
Separate the cover from the base.
Using the base as a template, mark the 3 mounting points top right, top left and
bottom centre and any cable entry holes. Drill and plug the holes (if required) and
mount the base.
Install the reader according to the instructions supplied with the reader.
9010-0011 Issue 5
SOLO™ Access Control System
Part Code: AC-3210
www.controlsoft.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLO AC-3210 and is the answer not in the manual?

Questions and answers

Related Manuals for Controlsoft SOLO AC-3210

Summary of Contents for Controlsoft SOLO AC-3210

  • Page 1 SOLO™ Access Control System Part Code: AC-3210 Introduction The Controlsoft® SOLO™ is a complete standalone single door access control system for use with Controlsoft Proximity Cards or Fobs. This low cost controller has a three digit LED display and two internal push buttons which are used to program the system.

  • Page 2: Step 3: Connect A Power Supply

    SOLO - Connecting Readers / Power Step 2: Connect Reader Heads The reader heads connect to the terminal block positions 9 to 13, as shown in the diagram below. If wiring 2 reader heads, simply wire them in parallel as shown: Connection Position Colour...

  • Page 3: Step 4: Connect Inputs

    SOLO - Connecting Inputs / Outputs Step 4: Connect Inputs The SOLO has two inputs used for: • A Normally Open Door Contact / Normally Open Request to Exit (REX) button. • A Normally Open relay from a Fire Alarm panel. The Door Contact and REX are wired in parallel between terminal block 1 and terminal block 2 NOTE: The door contacts and Request to Exit button...
  • Page 4 SOLO - Connecting Outputs Door Strike: A ‘door strike’ is normally de-energised to keep the door locked. Use the ‘Common’ (terminal block 7 marked Com) and ‘Normally Open’ (terminal block 5 marked N/O) contacts to connect to the door strike. Activation of the Normally Open Breakglass applies power to the door strike to ensure that the door is...
  • Page 5 SOLO - Programming Step 6: Program the SOLO NOTE: All programming other than enrolling users MUST be performed with the front cover removed using button SWPB1 (left hand button) and SWPB2 (right hand button). ENROL MASTER CARD The Master Card is used to access all the programming functions of the SOLO. Warning: When enrolling the Master Card, the controller will be reset to its factory default condition and ALL USERS WILL BE PERMANENTLY REMOVED FROM MEMORY.
  • Page 6 SOLO - Programming REMOVE USERS To remove one or more users, present the Master Card to a reader until the controller beeps once and then three times. Press and hold button SWPB1 and the display will show the user number Repeatedly press button SWPB1 to step up through the user numbers, or hold it down to scroll faster.

  • Page 7: Programming Summary

    SOLO - Programming Guide Programming Summary Enrol Master Card Press and hold the SWPB2 button, then press and hold Enrolling a Master Card SWPB1 at the same time. resets the controller to Beep beep beep Factory Defaults and Release both buttons and the display will show: deletes ALL users Present Master Card to reader.
  • Page 8 SOLO - User List User No Name User No Name Please feel free to photocopy this page to record further users...
