Installation Instructions
Introduction

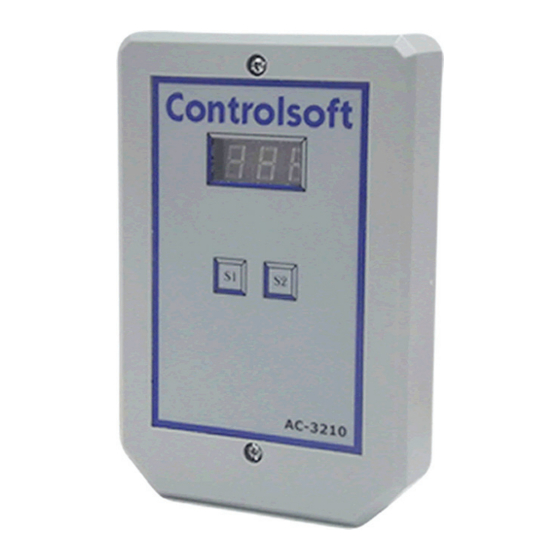

The Controlsoft® SOLO™ is a complete standalone single
door access control system for use with Controlsoft
Proximity Cards or Fobs. This low cost controller has a
three digit LED display and two push buttons which are
used to program the system.
The SOLO is supplied with one reader head, suitable for
indoor and outdoor use. An optional second reader head
can be connected to provide IN and OUT readers.
Three versions are available:
CS-AC-3210 = Controller with Mullion reader
CS-AC-3210-V = Controller with Vandal Resistant reader
CS-AC-3210-P = Controller with Panel Mount reader
Technical Specifications
Power:
12V to 24V (ac or dc).
Current: 100mA @ 12V with 1 reader head.
Readers: One or two compatible reader heads:
CS-AC-3211 Mullion
CS-AC-3212 Vandal Resistant or
CS-AC-3213 Panel Mount.
Inputs:
Normally Open Door Contact / Normally Open Fire Alarm / Normally Open
Request to Exit (REX) button.
Outputs: Lock / Siren.
Display: Indicates the status of the controller for programming.
Buttons: Used to program the door controller.
Jumper: Configures the controller for One or Two readers.
Users:
Up to 999
Step 1. Install the Controller
Separate the cover from the base.
Using the base as a template, mark the 3 mounting points top right, top left and
bottom centre and any cable entry holes. Drill and plug the holes (if required) and
mount the base.
Install the reader according to the instructions supplied with the reader.
9010-0011 Issue 3
SOLO™ Access Control System
Part Code: CS-AC-3210
www.controlsoft.com
Advertisement
Table of Contents
Related Manuals for Controlsoft SOLO CS-AC-3210
Summary of Contents for Controlsoft SOLO CS-AC-3210
- Page 1 SOLO™ Access Control System Part Code: CS-AC-3210 Introduction The Controlsoft® SOLO™ is a complete standalone single door access control system for use with Controlsoft Proximity Cards or Fobs. This low cost controller has a three digit LED display and two push buttons which are used to program the system.
- Page 2 SOLO - Connecting Readers / Power Step 2: Connect Reader Heads The reader heads connect to the terminal block positions 9 to 13, as shown in the diagram below. If wiring 2 reader heads, simply wire them in parallel as shown: Connection Position Colour...
- Page 3 SOLO - Connecting Inputs / Outputs Step 4: Connect Inputs The SOLO has two inputs used for: • A Normally Open Door Contact / Normally Open Request to Exit (REX) button. • A Normally Open relay from a Fire Alarm panel. The Door Contact and REX are wired in parallel between terminal block 1 and terminal block 2 NOTE: The door contacts and Request to Exit button...
- Page 4 SOLO - Connecting Outputs Door Strike: A ‘door strike’ is normally de-energised to keep the door locked. Use the ‘Common’ (terminal block 7 marked Com) and ‘Normally Open’ (terminal block 5 marked N/O) contacts to connect to the door strike. Activation of the Normally Open Breakglass applies power to the door strike to ensure that the door is...
- Page 5 SOLO - Programming Step 6: Program the SOLO ENROL MASTER CARD The Master Card is used to access all the programming functions of the SOLO. Warning: When enrolling the Master Card, the controller will be reset to its factory default condition and ALL USERS WILL BE PERMANENTLY REMOVED FROM MEMORY.
- Page 6 SOLO - Programming REMOVE USERS To remove one or more users, present the Master Card to a reader until the controller beeps once and then three times. 0 0 1 Press and hold button S1 and the display will show the user number Repeatedly press button S1 to step up through the user numbers, or hold it down to scroll faster.
- Page 7 SOLO - Programming Guide Programming Summary Enrol Master Card Press and hold the S2 button, then press Enrolling a Master Card resets the and hold the S1 button at the same time. controller back to Factory Defaults Beep beep beep and deletes all users Release both buttons and display will show:...
- Page 8 SOLO - User List User No Name User No Name Please feel free to photocopy this page to record further users Controlsoft UK +44 (0)1451 844896 support@controlsoft.com controlsoft.uk.support Information on all our products can be found on our website www.controlsoft.com...
