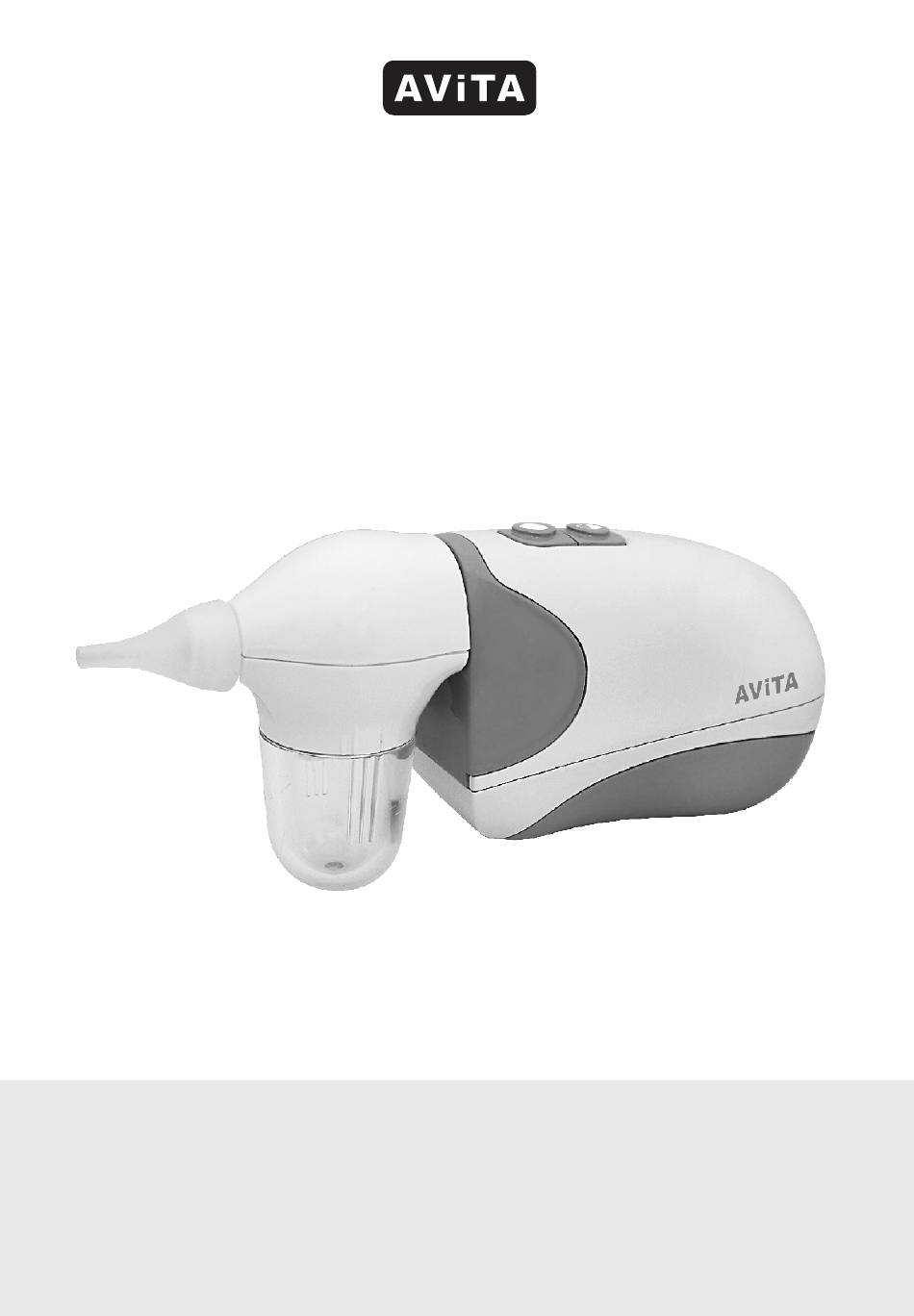

- Page 1 Nasal Aspirator Model No.: NS18 INSTRUCTION MANUAL PLEASE READ THIS INSTRUCTION MANUAL COMPLETELY BEFORE OPERATING THIS UNIT.
-
Page 2: Table Of Contents
Index Introduction Important Information Before Using Product Identification Battery Installation Instructions For Use Care and Maintenance Technical Specifications... -
Page 3: Introduction
Introduction 1. Two levels of suction design. Put aspiration tip into nostril, then you may use this device to remove nasal secretions continuously or intermittently. 2. Unique Soft Silicone Tip Design The soft aspiration tip has a comfortable design to prevent the possibility for injury during operation. -
Page 4: Important Information Before Using
Important Information Before Using The device is designed for using intermittent suction to remove nasal secretion and mucus in Children (age 0~12 years old) at home environment. 1. WARNING – Do not modify this equipment without authorization of the manufacturer. 2. - Page 5 Manual carefully. Wrong use of the device may cause the following hazards/complications: ˙Mechanical trauma ˙Nasal irritation/bleeding ˙Mucosal hemorrhage ˙Discomfort and pain ： Note This Nasal Aspirator must only be used with AViTA NS series Tip. Please contact the retailer to buy those accessories.
-
Page 6: Product Identification
Product Identification Head Module Silicone Battery Collection compartment " " Strong Power Button " " Weak Power Button... -
Page 7: Battery Installation
Battery Installation Replacing the Battery: 1. Slide the battery cover off. 2. Insert or replace 2 x 1.5V “AA” alkaline batteries into the battery compartment, ensuring to match the indicated polarity symbols. Always use new batteries. 3. Replace the battery cover. Battery-operated 1. -
Page 8: Instructions For Use
Instructions For Use 1. Choose the correct size included tip based on the anticipated use: Wider opening tip: Narrow opening tip: recommended for recommended for use use when the mucus when the mucus is more is more solid. liquid or thin. 2. - Page 9 Instructions For Use 4. Hold the baby or child upright, the aspirator should not be used while the patient is reclined. Be careful not to place the tip too far into the nostril or press against the inside wall of the nostril. Keep the tip of the aspirator at a 90°...
-
Page 10: Care And Maintenance
Care and Maintenance The following cleaning procedures should be performed daily or as needed when the device is being used regularly; failure to properly clean your unit may result in clogging and shortened product life. 1. Carefully separate the tip and head from the device housing. - Page 11 Care and Maintenance 4. It is recommended at the that the silicone tip and collection cup be at minimum rinsed well with hot water between uses to prevent mucus from drying and clogging the unit. To Clean (at the end of the day / as needed)- Wash the collection cup and tip with mild, non-abrasive soap and water.
- Page 12 Care and Maintenance 6. Do now wash or immerse the housing body of the aspirator. Use a soft, dry cloth to clean nasal aspirator. Never use abrasive cleaning agents, thinners or benzene for cleaning. Do not expose the nasal aspirator to extreme temperatures, humidity, direct sunlight, or shock.
-
Page 13: Technical Specifications
Technical Specifications • Effective Suction Pressure: Strong suction ≧350 mmHg(46.66kpa) Weak suction ≧200 mmHg(26.66kpa) • Sound Pressure Level: <75dB • Motor: 3V/DC • Aspiration Tip: Soft Silicone • Operating environment: 16 C~35 C (60.8 F~95 F) with relative humidity up to 85% (non condensing) •... - Page 16 Manufacturer: AViTA Corporation 9F, No.78, Sec.1, Kwang-Fu Rd., San-Chung District, 24158 New Taipei City, Taiwan No.858, Jiao Tong Road, Wujiang Economic Development Zone Jiangsu Province, P.R.C. Postcode: 215200 Made in P.R.C. 72-NS8MN02-AV11 2019-12/26...
