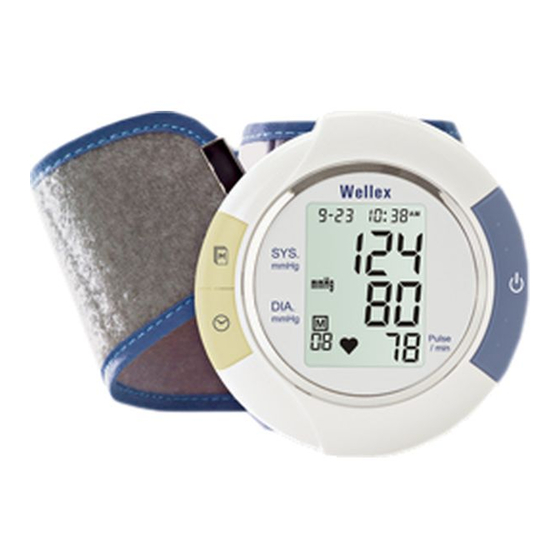

- Page 1 AViTA Wrist Type Blood Pressure Monitor Model: BPM13B INSTRUCTION MANUAL PLEASE READ THIS INSTRUCTION MANUAL COMPLETELY BEFORE OPERATING THIS UNIT RoHS REACH...
- Page 2 9F., No. 78, Sec. 1, Kwang Fu Rd., San Chung Dist., New Taipei City 24158, Taiwan (R.O.C) Made in China Importer Distributor...
-
Page 3: Table Of Contents
INSTRUCTION MANUAL Contents 1. Introduction ....................1 2. Important Information Before Use ............ 2 3. Blood Pressure Monitor Features ............5 4. Description of LCD Display ..............6 5. Battery Installation ................... 8 6. Setting the Date and Time ..............10 7. - Page 4 14. Data Transferring ................. 26 15. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT ..............29 16. Care and Maintenance ..............32 17. Technical Specification ..............33 18. EMC Tables ..................... 35 19. Explanation of Symbols ..............39...
-
Page 5: Introduction
1. Introduction BPM13B Series Blood Pressure Monitor applies the Oscillometric method to measure human systolic / diastolic blood pressure and heart rate. This device is designed only for adults. CAUTION: - No modification of this equipment is allowed. - Keep your equipment out of the reach of children, pets and pest. -
Page 6: Important Information Before Use
2. Important Information Before Use When using this product, please be sure to follow all the notes listed below. Any action against these notices may cause injury or affect the accuracy. WARNING Do not modify this equipment without authorization of the manufacturer. - Page 7 physical activity 30 minutes prior to taking a reading. If you are exhibiting signs of stress, Avoid taking your measurement until the feeling subsides. Rest 15 minutes prior to taking a reading. Remove any constrictive clothing or jewelry that may interfere with the cuff placement.
- Page 8 measurement. If abnormal variations are noticed, consult with your physician or trained healthcare professional. This device is intended for adult use. While taking a measurement, you can stop the inflation or deflation process of the cuff at any time by pressing the POWER button. It is recommended that the accuracy should be checked by the manufacturer every two years.
-
Page 9: Blood Pressure Monitor Features
3. Blood Pressure Monitor Features... -
Page 10: Description Of Lcd Display
4. Description of LCD Display Memory sets Memory Symbol Average Measurement Symbol Low Battery Symbol Inflation Symbol Deflation Symbol Date... - Page 11 Time Digital Display Pulse Rate Heartbeat Symbol Hypertension Indicator Irregular Heart Beat Symbol...
-
Page 12: Battery Installation
5. Battery Installation Low battery warning: It is necessary to replace the batteries when the Low Battery symbol appears on the display, or when the display does not turn on after the POWER button is pressed. Replacing the Battery: - Open the battery cover on the bottom of the monitor. - Insert or replace 2 x 1.5 V AAA batteries into the battery compartment, ensuring to match the indicated polarity symbols. - Page 13 - Do not use rechargeable batteries; rechargeable batteries can vary greatly in quality and strength. Use of rechargeable batteries may affect the performance of this device. - Please properly dispose of the batteries away from small children and heat. - It is recommended to remove the batteries if the unit will not be used for an extended period of time.
-
Page 14: Setting The Date And Time
6. Setting the Date and Time It is recommended to set the date and time for the unit every time batteries are initially installed or replaced. When the unit is off (a blank display screen) or after replacing batteries, press and release the “Date and Time” button; the “Year”... -
Page 15: Applying Your Cuff
7. Applying Your Cuff It is important to avoid smoking, eating, taking medication, alcohol consumption or physical activity 30 minutes prior to taking a reading. If for any reason you are unable to or should not use your left wrist, please modify the instructions for cuff application to your right wrist. - Page 16 Applying Your Cuff - Remove any constrictive clothing or jewelry that may interfere with cuff placement. - Be seated at a table or desk with your feet flat on the floor. - Hold your wrist in front of you with your palm facing upward. - Apply the preformed cuff to your wrist so that the digital display face is positioned on the inside area of your wrist facing you.
-
Page 17: Taking A Blood Pressure Measurement
8. Taking a blood pressure measurement Please read the preceding portions of this manual prior to taking your first reading. Rest your elbow on a solid surface with your palm facing upward. Elevate your wrist so that the cuff is at the same level as your heart. - Page 18 decrease. To detect the heartbeat, the heartbeat symbol will appear and continuous flashes on the LCD display. Your blood pressure measurement and pulse will display simultaneously on the screen. The Hypertension Indicator will indicate your reading range on the display separately. The reading will automatically be stored in memory.
-
Page 19: Heartbeat Remind
9. Heartbeat Remind Your digital blood pressure monitor features an Irregular Heartbeat Detector. Irregular Heartbeats may influence the results of the measurement. If the monitor detects the Irregular Heartbeats during measurement, the symbol will appear on the display with the measurement values. - Page 20 INPORTANT INFORMATION: This blood pressure monitor is not designed for use by people with arrhythmias nor for diagnosing or treating an arrhythmia problem. As a safeguard, we recommend that if you have arrhythmias such as atrial or ventricular premature beats and atrial fibrillation or any other special conditions you should check with your physician before using your blood pressure monitor.
-
Page 21: Hypertension Indicator
10. Hypertension Indicator This monitor comes equipped with a Hypertension Indicator that automatically compares each reading to defined levels established by the World Health Organization and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. -
Page 23: Memory Function
11. Memory Function Recalling Measurements in Memory: Press and release the “MEMORY” button. The unit will first display the average of the last 3 stored measurements. Continue to press the “MEMORY” button to successively view the next previously stored measurements. Measurements will appear on the display from most current to oldest;... - Page 24 Clearing Measurements from Memory: From power display off, press and hold down the “MEMORY” button until the display shows CLr. This indicates that all measurements have been erased.
-
Page 25: Troubleshooting
12. Troubleshooting Problem Cause Remedy The reading The wrist cuff is not at Measure while in the correct is extremely heart level. posture. low (or The cuff is not wrapped Wrap the cuff correctly. high). snugly around the wrist. The arms and Relax and try taking the shoulders are tense. - Page 26 Problem Cause Remedy The blood pressure is different each Blood pressure readings time. The reading is extremely low (or constantly vary with time of high). day and how relaxed you are. Take several deep breaths and try to remain relaxed before taking a measurement.
- Page 27 Problem Cause Remedy Errors with The machine must be wrist positional adjusted according to the instruction manual and with professional...
-
Page 28: Error Codes
13. Error Codes Error Code Cause Corrective Action Err 00 No pulse or detect Take off heavy clothes and retry again. pulses not enough. Err 01 Leakage in Cuff The wrist cuff is not fastened properly. Pressure/Inflation too Reapply the cuff, and take a low. - Page 29 Error Code Cause Corrective Action Low batteries Replace all batteries with new ones.
-
Page 30: Data Transferring
14. Data Transferring Bluetooth function What You Need An Android device with Android version 4.3 or above and hardware support for Bluetooth 4.2. An iOS device with iOS version 5 or above and hardware support for Bluetooth 4.2. All devices Apple released since the iPhone do, the older ones don’t. - Page 31 Enable Bluetooth on your mobile device. Open the app and activate the function. Turn on the BPM13B. The app should automatically detect your BPM13B. Tap the BPM13B that is showed in the device list. Your BPM13B is now successfully connected to your mobile device.
- Page 32 recall button to display the memory result on LCD. Each result showed on LCD, the result will be transmitted by Bluetooth immediately.
-
Page 33: Federal Communications Commission Interference Statement
15. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 34 - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.
- Page 35 The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.
-
Page 36: Care And Maintenance
16. Care and Maintenance - Clean the device and wrist cuff carefully only with a slightly moistened cloth. - Do not immerse the device in water. It may cause damage if water enters. - Do not use any gas, strong detergent, or solvents to clean the device, including the wrist cuff. -
Page 37: Technical Specification
17. Technical Specification • Measuring range : Blood Pressure : 30~280 mmHg Pulse Rate : 40~199 beats/min • Calibration Accuracy : Pressure : ± 3 mmHg Pulse rate : ± 4% of reading • Operating environment : 10℃~40℃ (50℉~104℉) with relative humidity up to 85% (non condensing) Atmospheric Pressure: 700~1060 hPa •... - Page 38 • Weight : approx. 115g (exclude batteries) • Dimensions : approx. 80mm × 84mm × 33mm (W×H×D) • Cuff circumference : approx. 12.5~21 cm...
-
Page 39: Emc Tables
18. EMC Tables BPM13B is intended for use in the electromagnetic environment specified below. The customer or the user of BPM13B must make sure that it is used in such an environment. Guidance and manufacturer’s declaration - Electromagnetic emissions Professional healthcare... - Page 40 respiratory treatment facilities in hospital or clinics. The more restrictive acceptance limits of Group 1 Class B (CISPR 11) have been considered and applied. The equipment is suitable for use in the mentioned environments when directly connected to the Public Mains Network.
- Page 41 RF communications equipment (transmitters) and the BPM13B can be requested from supplier using the contact information provided in this manual. However, it is advisable to keep the equipment at an adequate distance of, at least, 0.5 m from...
- Page 42 Professional Health Care Environments limited to patient rooms and respiratory treatment facilities in hospital or clinics. The more restrictive IMMUNITY acceptance limits have been considered and applied. b) Before modulation is applied. c) This test level assumes a minimum distance of at least 15 cm between the ME EQUIPMENT or ME SYSTEM and sources of power frequency magnetic fields.
-
Page 43: Explanation Of Symbols
19. Explanation of Symbols Symbol Definition Medical Device Manufacturer Date of manufacture (YYYY-MM-DD or YYYY-MM or YYYY) - Page 44 Batch code LOT WWWXXXXX LOT: Lot Number; WWW: working sheet; XXXXX: serial no. Serial number SN YYMWWWXXXXX YY: year; M:month; WWW: working sheet; XXXXX: serial no. Keep dry Temperature limit...
- Page 45 Humidity limitation Atmospheric pressure limitation Caution...
- Page 46 Consult the instruction for use Disposal information: Should you wish to dispose of the article, do so in accordance with current regulations. Details are available from your local authority. WEEE 2012/19/EU Directives This product fulfilling the requirements of the RoHS Directive RoHS 2011/65/EU.
- Page 47 the concentration of 0.1 % weight by weight. Stand-by Device classification type BF This product meets the basic safety and essential performance against solid foreign objects of 12.5mm ∅ and greater and requirements indicated in the IP22 conditioning test (protection against vertically falling water drops when enclosure tiled up to 15°)
- Page 48 The empty, completely flat batteries must be disposed of through specially designated collection boxes, recycling points or electronics retailers. You are legally required to dispose of the batteries. Importer Distributor Model Number...
- Page 49 Country of Manufacturer Unique Device Identifier 72-B13BMN-AV11 2022/1/6...
