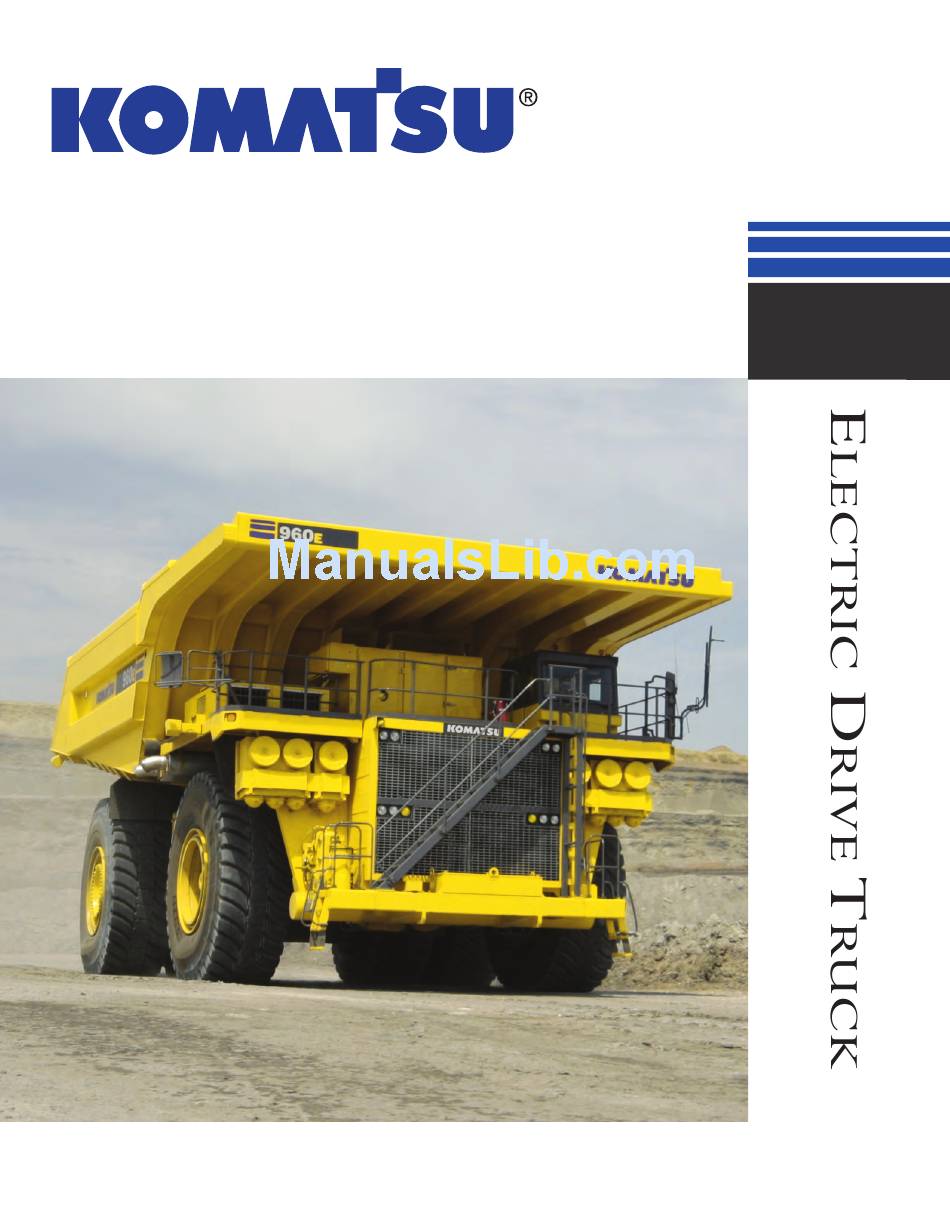

- Page 1 GROSS HORSEPOWER 2610 kW 3,500 HP NOMINAL GVW 576072 kg 1,270,000 lb 960E-1 960E Photos may include optional equipment...
-
Page 2: Productivity Features
960E-1 L E C T R I C R I V E R U C K ROUND Environmentally Friendly Productivity Features Komatsu SSDA18V170 engine is compliant High performance Komatsu SSDA18V170 engine with US EPA emissions regulations Gross horsepower 2610 kW 3,500 HP Lead-free radiator design GE dual IGBT AC electric drive system Fuel efficient engine with 2-stage... -
Page 3: Easy Maintenance
960E-1 L E C T R I C R I V E R U C K GROSS HORSEPOWER 2610 kW 3,500 HP @ 1900 rpm NOMINAL GVW 576072 kg 1,270,000 lb Operator Environment Ergonomically designed spacious cab with excellent visibility Ideal driving position settings Hydropneumatic suspensions designed for all terrain... - Page 4 960E-1 L E C T R I C R I V E R U C K RODUCTIVITY EATURES Komatsu SSDA18V170 High Horsepower Engine Komatsu’s new SSDA18V170 engine was designed and developed by the Industrial Power Alliance (IPA) technical ® joint venture between Komatsu and Cummins .
- Page 5 960E-1 L E C T R I C R I V E R U C K Traction (Spin-Slide) Control Application Specific Body During slippery events caused by inclement weather For all trucks, Komatsu goes through the Body Application conditions and/or application severity, the 960E wheel Spin- Worksheet (BAW) process to ensure that each body is Slide prevention technology will detect and correct any designed to meet the requirements for each specific...
- Page 6 960E-1 L E C T R I C R I V E R U C K Tight Turning Radius Payload Meter III By using double acting hydraulic PLM III is an electronic system that monitors and records steering cylinders with a six- payload information for Komatsu’s family of Off-Highway point articulation linkage, Mining Trucks.
- Page 7 960E-1 L E C T R I C R I V E R U C K PERATOR NVIRONMENT Ergonomically Designed Cab Ideal Driving Position Settings The Komatsu 960E-1 cab design ensures that the operator The 5-way adjustable operator seat and the tilt-telescopic is comfortable and confident during routine operation, thus steering column provide an optimum driving posture for providing a productive environment to meet the needs of...
- Page 8 960E-1 L E C T R I C R I V E R U C K ELIABILITY EATURES Steering and Brake Accumulators Structurally Enhanced Frame Design In the event that the hydraulic pressure in the steering or By using advanced computer-aided design, finite element braking system drops below an acceptable minimum, analysis, and full-scale dynamic and static testing, the nitrogen-charged accumulators will automatically apply the...
- Page 9 960E-1 L E C T R I C R I V E R U C K Fully Hydraulic Controlled Multiple-Disc Wet Brakes Although the dynamic retarding system is the primary braking force, the 960E-1 comes standard with four-wheel, hydraulically actuated, oil cooled service brakes. In the event that the truck’s hydraulic system pressure drops below an acceptable level, accumulator tanks will automatically apply all wheel brakes to bring the truck to a complete stop.
-
Page 10: Maintenance
960E-1 L E C T R I C R I V E R U C K AINTENANCE ® Advanced Monitoring System – On-board Vehicle Health Monitoring System (VHMS ) with ® Diagnostics ORBCOMM ® The Komatsu advanced monitoring system identifies The VHMS controller monitors the health conditions of all maintenance items to the operator, reduces diagnostic... - Page 11 960E-1 L E C T R I C R I V E R U C K DDITIONAL EATURES Environmentally Friendly Komatsu SSDA18V170 Engine Selectable Stairway Direction The Komatsu SSDA18V170 is compliant with the U.S. EPA emissions regulations. Lead-Free Radiator In addition to compliance with emission regulations, a lead- free aluminum core is used for the radiator to meet global environmental requirements.
-
Page 12: Specifications
960E-1 L E C T R I C R I V E R U C K PECIFICATIONS ENGINE FRAME Make and model ..... . Komatsu SSDA18V170 Advanced technology, full butt-welded box sectional ladder-type Fuel . -
Page 13: Hydraulic System
960E-1 L E C T R I C R I V E R U C K DIMENSIONS All dimensions are with standard body. Capacity Loading Height* Body Struck 2:1 Heap Standard 149 m 195 yd 214 m 280 yd 7.14 m 23'5'' *Exact load height may vary due to tire make, type, and inflation pressure. -
Page 14: Performance Chart
960E-1 L E C T R I C R I V E R U C K PERFORMANCE CHART Gross Vehicle Weight 1,000 kgs 1,000 lbs 1,050 1,150 1,250 1,350 1,000 lbs 1,000 kgs Continuous Retarding Short Time Retarding Propulsion Speed Short Time Retarding - While thermal conditions permit, short time retarding performance will be utilized. - Page 15 960E-1 L E C T R I C R I V E R U C K Empty Vehicle Weight Front Axle Distribution 123490 kg 272,250 lbs 49.5% Rear Axle Distribution 125985 kg 277,750 lbs 50.5% Total EVW 249475 kg 550,000 lbs Gross Vehicle Weight Front Axle Distribution 190104 kg...
-
Page 16: Standard Equipment
STANDARD EQUIPMENT ® • Air cleaners, Donaldson • Horns (electric–front and back-up) • Horn (center of steering wheel) • Alternator (24 volt/140A) • Integral ROPS/FOPS Cab Level 2 • Indicator lights (blue) • Auto lubrication system w/ground level fill • Maintenance and power lockout - Engine service ®...
