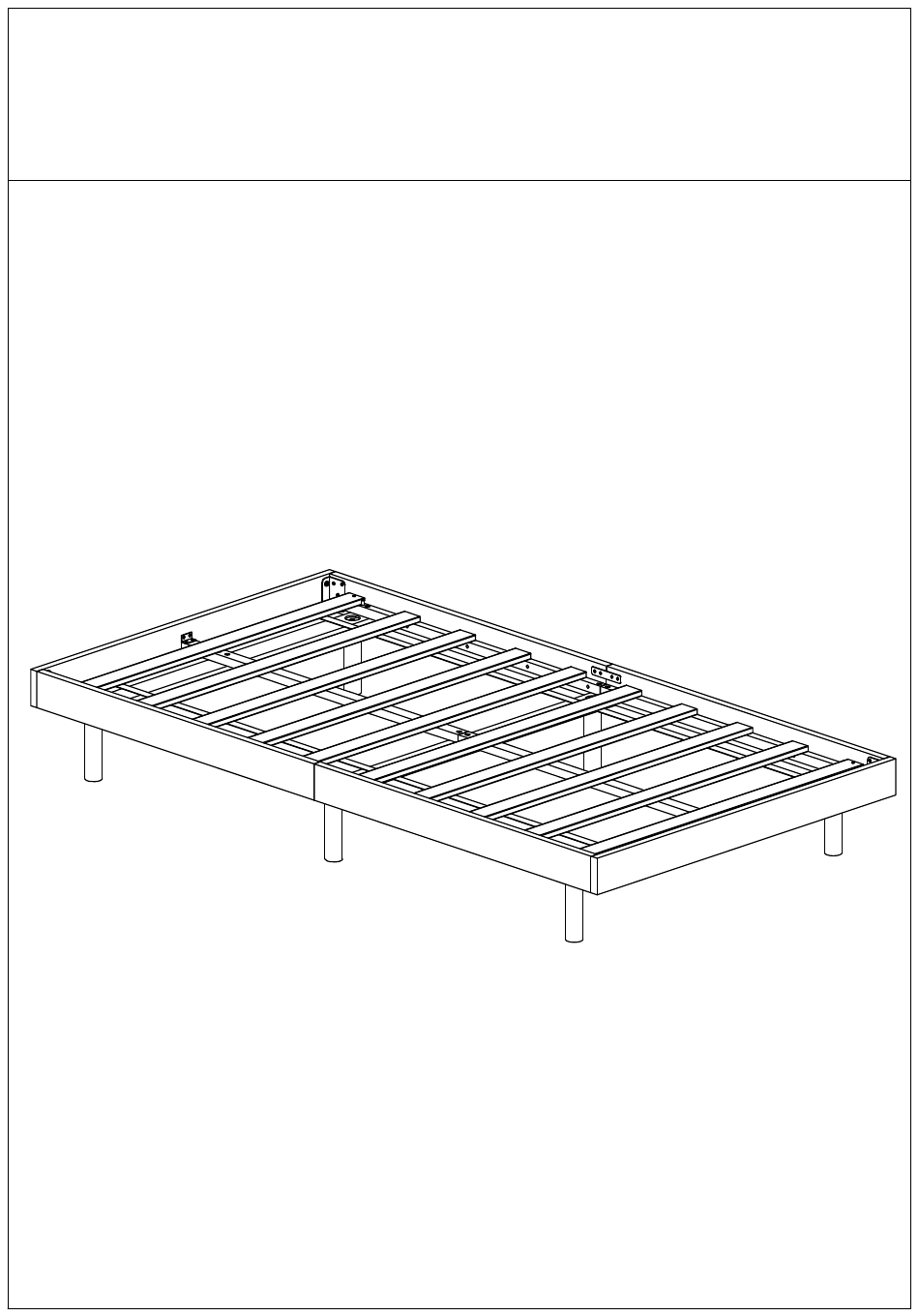

- Page 1 ASSEMBLY INSTRUCTIONS YX7105...
-
Page 2: Detail View
Detail View... - Page 3 Part List Side rail(1/2) - 2pcs Side rail(2/2) - 2pcs Horizontal bar HB&FB - 2pcs Legs - 6pcs Support legs - 3pcs Support rail - 2pcs Slats - 10pcs Hardware List ( Spare Hardware ) 1pc ( Spare Hardware ) 2pcs 8*25mm Ø4*16mm 100*20*2mm...
- Page 4 STEP 1: 6PCS STEP 2: 6PCS...
- Page 5 STEP 3: 4PCS 12PCS STEP 4: 8PCS...
- Page 6 STEP 5: 16PCS 2PCS 2PCS Make sure to tighten all the Hex-Head bolts, screws of the bed STEP 6: 4PCS 4PCS Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break.
