Summary of Contents for Shintenchi Q-BS-005

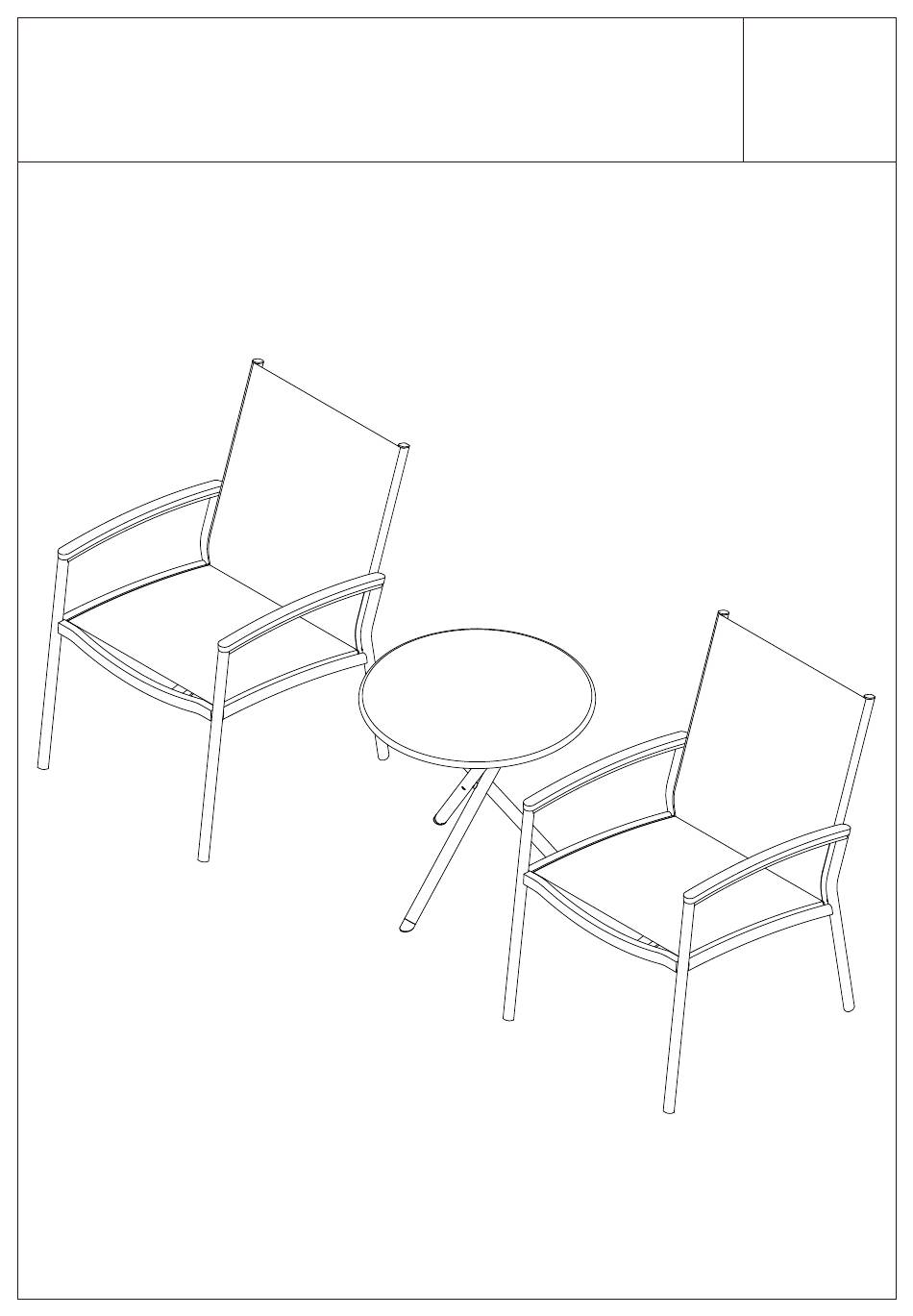

- Page 1 Outdoor Chair 1/11...
- Page 2 Thank you for shopping with us! We appreciate your purchase and are ready to be at your service! If you find parts missing, broken, or hard to put together or when you are not satisfied or have any valuable suggestions, please do not hesitate to contact us first! We will definitely give you a satisfactory solution or answer then! CSsince1987@hotmail.com Contact us at our after-sales service email:...
- Page 3 Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size x 20 M6 x 3 mm M6 x 15 mm M6 x 3/11...
- Page 4 2PCS 2PCS 2PCS 2PCS LEFT RIGHT SEAT BACK 3PCS TABLE TOP TABLE LEG 4/11...
- Page 5 5/11...
- Page 6 STEP 1 x 30 m Fix part A with part C with three M6x30mm Screws (2) and (5) F at Washers.Use (7) A llen key. DO NOT YET TIGHTEN. Fix part A with part D with two M6x30mm Screws (2) and (5) F at Washers.Use (7) A llen key.
- Page 7 STEP 2 x 30 m Fix part C with part B with three M6x30mm Screws (2) and (5) F at Washers.Use (7) A llen key. DO NOT YET TIGHTEN. Fix part D with part B with two M6x30mm Screws (2) and (5) Fl at Washers.Use (7) A llen key.
- Page 8 STEP 3 Adjust alignments and NOW TIGNTEN ALL SCREWS with Allen key. Install on all Screws. 8/11...
- Page 9 STEP 4 M6 x 15 mm Put the table legs right. Fix leg J J J J with part H H with three M6x15mm Screws (3) and (5) F at Washers.Use (7) A llen key. DO NOT YET TIGHTEN. 9/11...
- Page 10 STEP 5 M6 x Fix leg J with three M6x15mm Screws (4) and (5) F at Washers.Use (7) A llen key. 10/11...
- Page 11 STEP 6 Adjust alignments and NOW TIGNTEN ALL SCREWS wi th (7 7 7 ) A llen key. Install on all Screws. 11/11...
