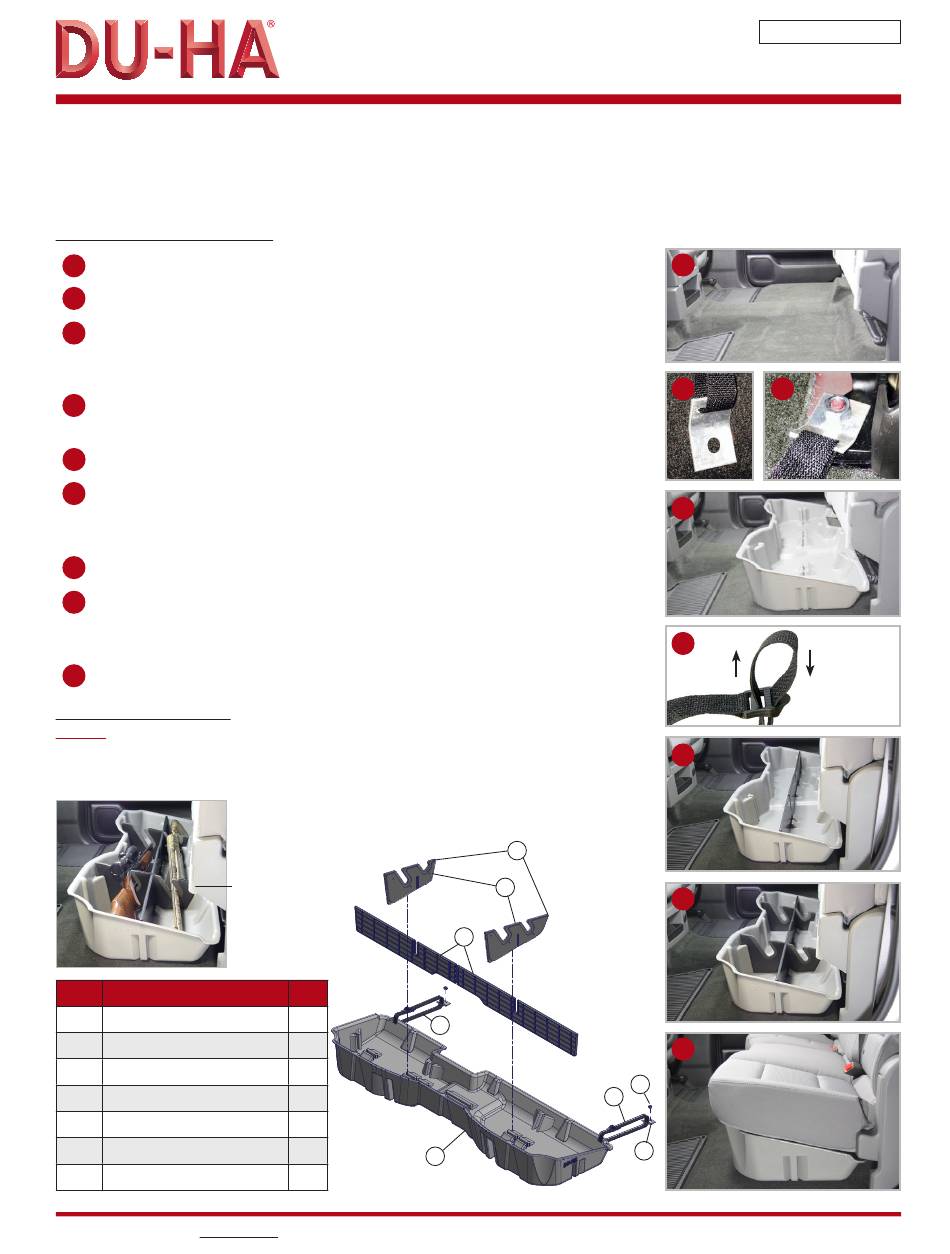

DU-HA 10300 Installation Instructions

2014-2017 Chevrolet & GMC Silverado/Sierra Light Duty
Crew Cab and 2015-2017 Silverado/Sierra Heavy Duty Crew Cab
Underseat Storage
Installation Instructions:
Lift up the bottoms of both sides of the back seat.
1
Thread the Nylon Straps (E) through the Metal Strap Clip (G), as pictured.
2
Underneath the back seat, on both the passenger side and drivers side, set the
3
Metal Strap Clip (G) on the threaded stud behind the seat and secure with the
1/2" Nut – 10300 (F) nut, as pictured.
Position the DU-HA (A) under the back seat, with the cut out slots facing
4
towards the truck bed.
Thread the Nylon Straps (E) through the slots in the back of the DU-HA.
5
Secure each Nylon Strap (E) by threading the strap up through the bottom of
6
the back slot of the buckle and down through the front slot of the buckle.
Tighten. The Nylon Straps help secure the DU-HA in the truck.
Install the Dividers (B) by sliding them into the channel slots inside the DU-HA.
7
Install the Foam Organizer / Gun Rack (C) and Plastic Stiffeners (D) by sliding
8
them into the pre-cut slots in the Dividers (B) and the channel slots inside the
DU-HA, making sure the high side of each piece faces towards the front.
Lower the bottoms of both sides of the back seat to their original position.
9
Safety Instructions:
Warning: Seat bottom must be down at all times while vehicle is moving. Make sure the DU-HA is
secured in the vehicle according to installation instructions. Do not store explosives or hazardous
materials in the DU-HA. Do not place loaded guns in the DU-HA. For further instructions refer to truck
owners manual or contact DU-HA, Inc.
Part Description
A DU-HA Storage Unit
B Dividers
C Foam Organizer / Gun Rack
D Plastic Stiffener
E Nylon Strap with Buckle
F 1/2" Nut – 10300
G Metal Strap Clip
DU-HA, Inc. // website: www.du-ha.com
2 shotguns or
rifles, 1 with
scopes, will fit
in the gun rack,
as pictured.
Qty
1
2
2
4
2
2
2
// phone: 1.866.306.DUHA (3842)
C
D
B
E
E
A
// fax: 1.218.998.4013 // 306 Saint Andrews Street South, Fergus Falls, MN 56537
DIVIDER – 10300
Installation Instructions
Fits DU-HA Part Numbers
1
2 3
4
6
7
8
9
F
G
10300
10301
10302
10303
Ribs on buckle
should face up.
Thread strap
through buckle.
