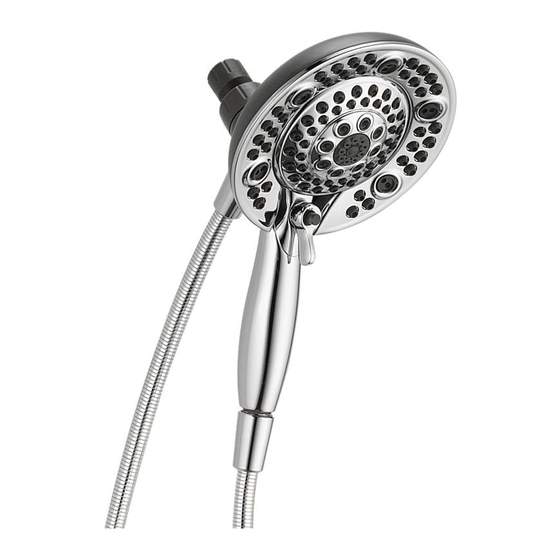

Delta In2ition 75588 Installation Instructions

Parts Included
Shower Head
Hand Shower Flexible Hose
Hose Washer
(2)
Cleaning of Parts
Only clean with a mild non-
abrasive detergent and soft
cloth.
Note: Any other cleaning
product not specifically
designed for cleaning plastic
or metal surfaces may damage
the finish.
Limited Lifetime Warranty
All parts and finishes of the Delta faucet
®
are warranted to the original consumer pur-
chaser
to be free from def ects in material &
wor kmanship for as long as the or i ginal consu-
mer purchaser owns their home. Delta Faucet
Company recommends using a professional
plumber for all installation & repair.
Delta will replace, FREE OF CHARGE, during
the warranty period, any part or finish that proves
defective in material and/or workmanship under
normal installation, use & service. Replacement
parts may be obtained by calling 1-800-345-DELTA
(in the U.S. and Canada) or by writing to:
In the United States:
Delta Faucet Company
Product Service
55 E. 111th Street
Indianapolis, IN 46280
In Canada:
Masco Canada Limited, Plumbing Group
350 South Edgeware Road,
ST. Thomas, Ontairo, Canada N5P 4L1
This warranty is extensive in that it covers replac-
ement of all defective parts and even finish, but
these are the only two things that are covered.
LABOR CHARGES AND/OR DAMAGE INCURRED
IN INSTALLATION,REPAIR, OR REPLACEMENT AS
WELL AS ANY OTHER KIND OF LOSS OR DAMAG-
ARE EXCLUDED. Proof of purchase (original sales
ES
from the original consumer purchaser must
receipt)
be made available to Delta for all warranty claims.
THIS IS THE EXCLUSIVE WARRANTY BY DELTA
FAUCET COMPANY, WHICH DOES NOT MAKE
ANY OTHER WARRANTY OF ANY KIND, INCLUDING
THE IMPLIED WARRANTY OF MERCHANTABILITY.
© 2011 Masco Corporation of Indiana
www.deltafaucet.com
WARNING: Plumbing Codes require that shower heads and hand showers provide a small but continuous flow of water (trickle) when in "PAUSE" mode. Because of this continuous flow, in certain circumstances
pressure variations in the water line and/or changes in the position of shower temperature control handle while in "PAUSE" mode could result in dramatic changes to the temperature of the water when the shower
head or hand shower is returned to the "ON" position.
ALWAYS point the shower head away from yourself when returning to the "ON" position and feel the water with your hand before resuming your shower to ensure the water flow is not too hot or too cold. DO NOT
allow children or others who might not understand this warning to use the "PAUSE" function.
In2ition ® Installation Instructions
1. Install the shower head.
2. Install hand shower.
Confirm the hose washers are installed in the hose
a.
nuts at each end of the hose.
Connect one end of the Flexible Hose to the Shower
b.
Head. Connect the other end of the Flexible Hose to
the Hand Shower. All connections should be made
by hand tightening.
4. Removing the Hand Shower from the Shower Head.
a.
Pull the lower
part of the
Hand Shower
Handle away
from the
Shower Head.
Make sure to turn off water supply before installing
a.
the Shower Head.
Remove existing Shower Head from Shower Arm.
b.
Apply
c. Plumber
necessary, to ensure leak-free connection.
Hand tighten the Ball Connector of the Shower Head to
d.
the Shower Arm. (Use a wrench if necessary for firm
installation.)
3. Insert hand shower into shower head.
a.
Insert Hand
Shower at an
Angle into the
Shower Head.
b.
Hand
Shower
snaps into
place.
The Hand Shower
a.
b.
should be removed
at an angle to
release from the
Shower Head.
Pull the Hand
Shower down,
away from
the slot in the
Shower Head.
tape (not provided) to Shower Arm if
The Hand Shower
a.
should be inserted
at an angle so the
tab on the top of
the Hand Shower
fits into the slot in
the Shower Head.
Gently push the
b.
Hand Shower into
the Shower Head.
• If the Shower Head
moves when
removing the Hand
Shower, tighten the
connection between
the Shower Head
and the Shower Arm.
Once the Hand
b.
Shower is released
from the lower clips
of the Shower Head,
gently pull the Hand
Shower away from
the slot in the upper
portion of the
Shower Head.
67503 Rev. A
