Gatco 1460 General Installation Instructions

Preparation
Tools Required for Assembly: (Not included)
• Pencil
• Electrical drill
Items Included in the Package
Mounting Kit
2 Mounting Screws 2 Tile Anchors
Installation Instructions
CAUTION: Tile anchors are for tile, granite, marble, cement surfaces only.
1. Hold the shelf up against desired position on wall.
Outline the end of the posts. (Fig.1) Use a level for accuracy.
2. Using the enclosed Allen Wrench, loosen two set screws at the end.
Remove two mounting pins from the posts. (Fig.2)
DO NOT loosen the other set screws.
Position the mounting pins inside the outlines drawn in Step 1.
Mark the holes as accurate as possible into the center. (Fig. 3)
3. Drill pilot holes into the tiles where the tile anchors will be inserted.
Use ¼" Masonry drill bit. Insert tile anchors into the holes.
CAUTION: Accuracy is an essential part of a successful installation.
Make sure the holes are drilled straight as marked.
4. Place the mounting pins over the tile anchors.
Insert the enclosed screws over the mounting pins and tighten. (Fig.4)
5. Place the shelf over the mounting pins.
Use enclosed Allen Wrench to tighten the set screw. (Fig.2)
Care and Maintenance
To maintain the beautiful luster finish, please use soft damp cloths
when cleaning and never use any cleaning solvents.
The manufacturer reserves the right to, and do time to time, make changes and improvements in designs and dimensions.
GENERAL INSTALLATION INSTRUCTIONS
• ¼" Masonry drill bit (for tile anchor)
• Level
1 Shelf
1 Allen Wrench
Updated on May 12, 2015
Elegant Shower Shelf 1460, 1461, 1467 & 1468
• Safety glasses
2 Mounting pins
2 Set screws

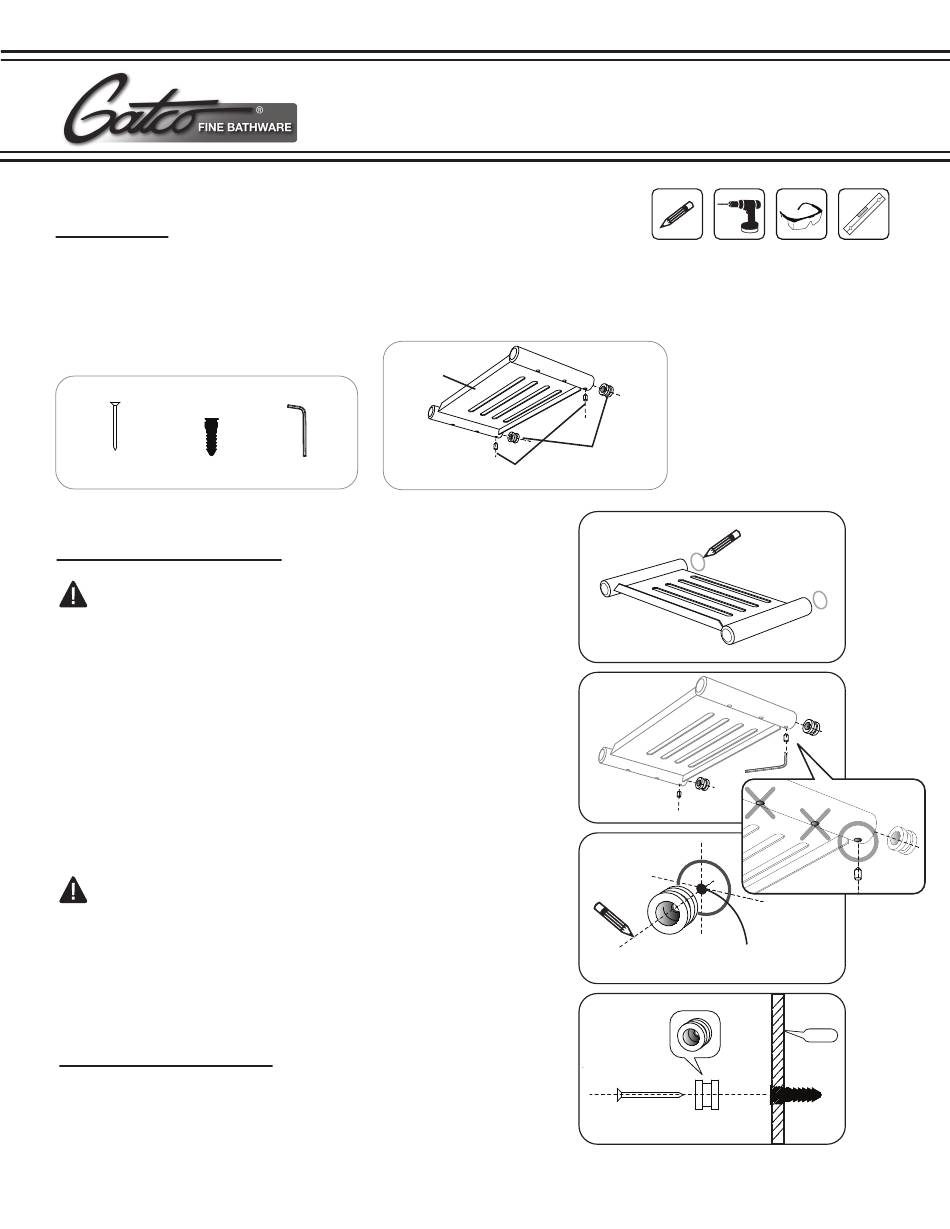

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Mark the center
as accurately as possible
Tiles
Side View
