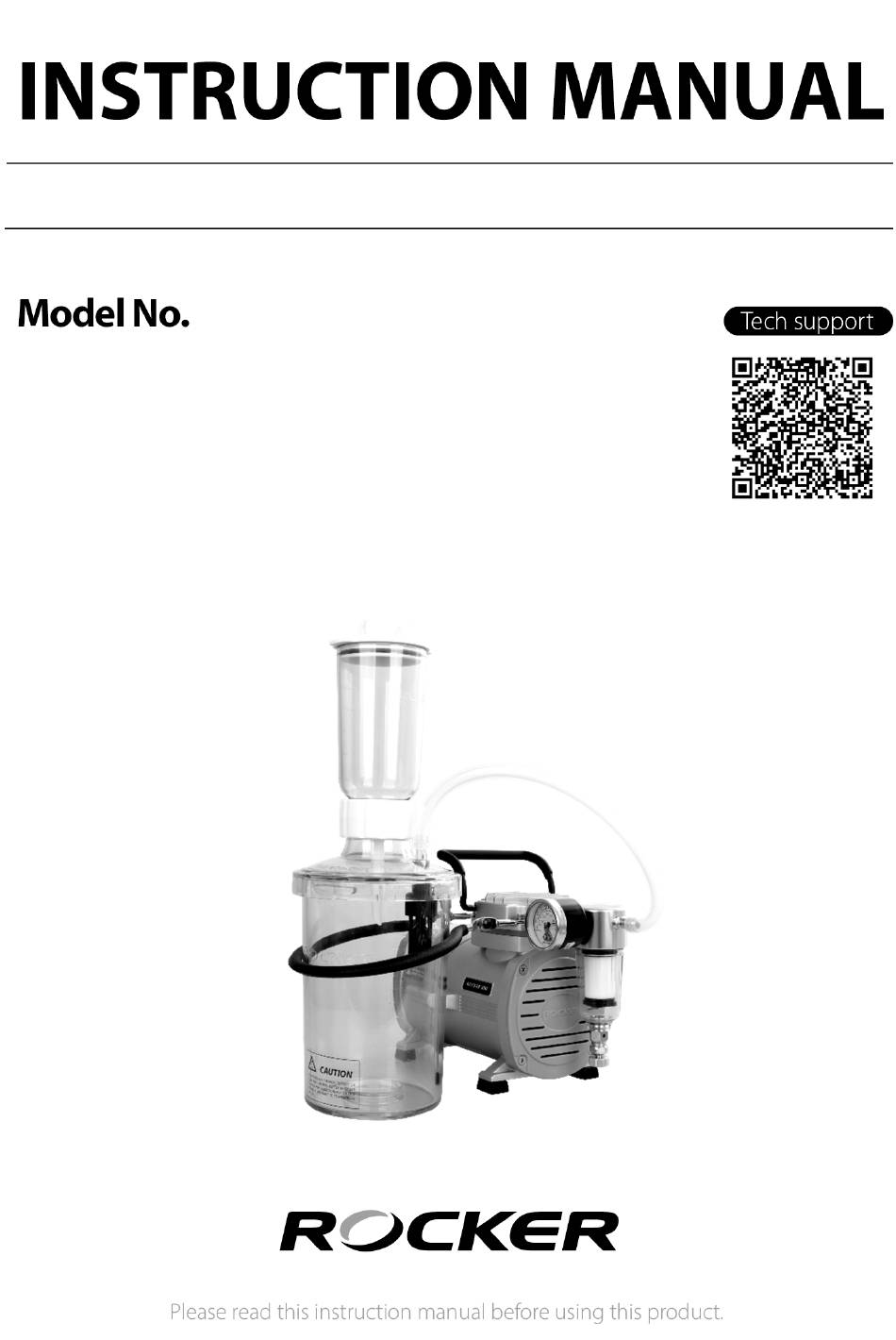

- Page 1 Vacuum Filtration System Rocker 300 - LF 30 / LF 31 / LF 30 - SS Rocker 300 - MF 31 / SF 10 / SF 30 Rocker 300C - VF 12 Chemker 300 - VF 12...
-
Page 3: Table Of Contents
Important Notice ..............................1 Unpacking ................................3 Rocker 300 Series: Vacuum Filtration System ..................3 Rocker 300C / Chemker 300 Series: Vacuum Filtration System ..........6 Main Part Diagram .............................. 7 Vacuum Pump ................................. 7 Parts Material List ..............................8 Installation and Operation .......................... -
Page 4: Important Notice
Never use the pump with any flammable or toxic material. - Do NOT use Rocker 300 with any chemicals and corrosives. - Rocker 300C, the PTFE coated diaphragm and chamber, offers good resistance to wide range of chemicals except strong acid and alkali. - Page 5 Do not use any lubricant, which may damage the pump. 10. Filtration accessories, including overflow protection, are compatible with most low- concentration acids, alkalis, and organic solutions but not all. Refer to the chemical compatibility chart before using. 11. For any issues with instrument, please contact the manufacturer or service agent for assistance.
-
Page 6: Unpacking
Rocker 300 Series: Vacuum Filtration System Rocker 300 - LF 30 Rocker 300 - LF 30 - SS Model Standard Package Includes: Rocker 300, Oil Free Vacuum Pump (with Hoop holder) LF 30, Filtration Set Rocker 300 - LF 30 Silicone Tube Instruction Manual Rocker 300 - LF 30 - SS Glass Fiber Membrane Filter, 47 mm, 1 μm, 100/PK... - Page 7 Rocker 300 - LF 31 Rocker 300 - MF 31 Model Standard Package Includes: Rocker 300, Oil Free Vacuum Pump LF 31, Filtration Set Rocker 300 - LF 31 Silicone Tube Instruction Manual Model Standard Package Includes: Rocker 300, Oil Free Vacuum Pump...
- Page 8 Rocker 300 - SF 10 Rocker 300 - SF 30 Model Standard Package Includes: Rocker 300, Oil Free Vacuum Pump (with Hoop holder) SF 10, Stainless Steel Filtration Set Dragon 100, Torch Burner Rocker 300 - SF 10 MCE Membrane, 47 mm, 0.45 μm, 200 pcs...
-
Page 9: Rocker 300C / Chemker 300 Series: Vacuum Filtration System
Rocker 300C / Chemker 300 Series: Vacuum Filtration System Rocker 300C - VF 12 Chemker 300 - VF 12 Model Standard Package Includes: Rocker 300C, PTFE Coated Chemical Resistant Vacuum Pump (with Hoop holder) VF 12, Glass Filtration Set Rocker 300C - VF12... -
Page 10: Main Part Diagram
Vacuum Pump Rocker 300 Item Designation Item Designation Power Switch Moisture Trap Air Outlet Vacuum Regulator Air Inlet Prote Filter Cartridge Vacuum Gauge Rocker 300 vacuum pumps is equipped with copper muffler at the air outlet. Rocker 300C Chemker 300... -
Page 11: Parts Material List
Parts Material List Vacuum Pump Material Model Pump head Valve plates Piston seal Diaphragm Rocker 300 PTFE complex Aluminum alloy Rocker 300C PTFE coated PTFE coated Chemker 300 PTFE FFKM PTFE coated Filtration Apparatus Material contacts with filtrates... -
Page 12: Installation And Operation
4. Installation and Operation Installation Assemble the filtration apparatus as shown below. Filtration Apparatus Installation LF 30 LF 31 MF 31 SF 10 / SF 30 VF 12 Overflow Protection Included in Filtration Apparatus: LF 30, SF 10, SF 30... -
Page 13: Operation
Operation A. Turn on the pump, block the inlet (3), and regulate the desired vacuum by vacuum regulator (6). A trap bottle is recommended to connect before pump when handling moisture-rich samples. An optional glass vapor trap / vacuum regulator (169311-06) is available for Chemker 300 pump. B. -
Page 14: Maintenance
2. Disassemble the filter cartridge (7) to ensure the buoy is not closed. 3. Reinstall all components, filter cartridge and moisture trap back. • How to replace cartridge (Rocker 300) 1. Please replace the cartridge when it becomes dirty or color-changing. -
Page 15: Troubleshooting
6. Troubleshooting Problem Reason and Solution Loose plug Reconnect plug to power supply. Wrong voltage Reconnect to power specified on name plate. Failed to start Vacuum or pressure exists Release vacuum / pressure and restart. ... -
Page 16: Ordering Information
Ordering information 197010-30/31 LF 30 / LF 31, Filtration Set 200320-31 MF 31, Filtration Set 197010-32/33 SF 10 / SF 30, Stainless Steel Filtration Set 167200-12 VF 12, Glass Filtration Set 197000-01 LF 3, Spin-Lock Filter Holder (300 mL) 197000-06 LF 5, Spin-Lock Filter Holder (500 mL) 200300-01(-P) MF 3 (Pro), Magnetic Filter Holder (300 mL) - Page 17 189300-37 Hoop holder for Rocker 300C - VF 12 / VFC 47 167300-37 Hoop Holder for Rocker 300 - LF 30 / LF 30 - SS / SF 10 / SF 30 • Pump Repair Kit 167300-62-2 Rocker 300 repair kit...
