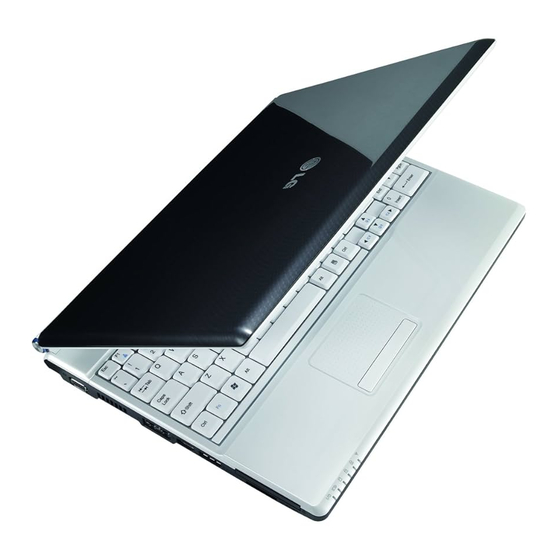

LG RD510 Series Service Manual

LG RD510 Series Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P/N :MFL57483402
REV.10
Service Manual
Model : R510, RB510, RV510, RD510 Series
2011. 07. 25
Copy Rightⓒ2011 LG Electronic inc, DigitalMate Co,.Ltd.
(LGE Internal use only)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RD510 Series and is the answer not in the manual?

Questions and answers

Related Manuals for LG RD510 Series

Summary of Contents for LG RD510 Series

  • Page 1 P/N :MFL57483402 REV.10 Service Manual Model : R510, RB510, RV510, RD510 Series 2011. 07. 25 Copy Rightⓒ2011 LG Electronic inc, DigitalMate Co,.Ltd. (LGE Internal use only)

  • Page 2: Table Of Contents

    Contents Ch 1. Service information Ch 2. Locations Ch 3. System information · Specification · Model configuration System Block Diagram · Fn key combinations · Status indicators · BIOS Flash · BIOS Setup · Ch 4. Symptom-to-part index Power system checkout ·...

  • Page 3: Ch1. Service Information

    Ch1. Service information Chapter 1. Service information 1-1. Important service information Strategy for replacing parts (FRU-Field Replaceable Units) Before replacing parts Make sure that latest BIOS and drivers are installed before replacing any parts (FRUs) listed in this Use the following strategy to prevent unnecessary expense for replacing and servicing parts 1.

  • Page 4: Safety Notices

    Ch1. Service information 1-2. Safety notices Warning Before the computer is powered-on after part (FRU) replacement, make sure all screws, springs, and other small parts are in place and are not left loose inside the computer. Verify this by shaking the computer and listening for rattling sounds. Metallic parts or metal flakes can cause electrical shorts.

  • Page 5: Safety Information

    Ch1. Service information 1-3. Safety information General safety Follow these rules to ensure general safety · Observe good housekeeping in the area of the machines during and after maintenance. · When lifting any heavy object 1. Ensure you can stand safely without slipping. 2.

  • Page 6: Electrical Safety

    Ch1. Service information Electrical safety Observe the following rules when working on electrical equipment. Important Use only approved tools and test equipment. Some hand tools have handles covered with a soft material that does not insulate you when working with live electrical currents. Many customers have, near their equipment, rubber floor mats that contain small conductive fibers to decrease electrostatic discharges.
  • Page 7 Ch1. Service information · Stand on suitable rubber mats (obtained locally, if necessary) to insulate you from grounds such as metal floor strips and machine frames. · Observe the special safety precautions when you work with very high voltages. These instructions are in the safety sections of maintenance information.

  • Page 8: Safety Inspection Guide

    Insulation must not be frayed or worn. 4. Remove the cover. 5. Check for any obvious non-LG alterations. Use good judgment as to the safety of any non-LG alterations. 6. Check inside the unit for any obvious unsafe conditions, such as metal filings, contamination, water or other liquids, or signs of fire or smoke damage.

  • Page 9: Handling Devices That Are Sensitive To Electrostatic Discharge

    Ch1. Service information Handling devices that are sensitive to electrostatic discharge Any computer part containing transistors or integrated circuits (ICs) should be considered sensitive to electrostatic discharge (ESD). ESD damage can occur when there is a difference in charge between objects.

  • Page 10: Laser Compliance Statement

    Ch1. Service information 1-4. Laser compliance statement When a CD-ROM drive, DVD drive or the other laser product is installed, note the following : Caution Use of controls or adjustments or performance of procedures other than those specified here in might result in hazardous radiation exposure.

  • Page 11: Read This First

    1-6. Read this first Before you go to the checkout guide, be sure to read this section. Important Notes Only trained personnel certified by LG should service the computer. · Read the entire FRU removal and replacement page before replacing any FRU.
  • Page 12 Ch1. Service information The followings are not covered under warranty : CD panel cracked from the application of excessive force or from being dropped · Scratched (cosmetic) parts · Distortion, deformation, or discoloration of the cosmetic parts · Cracked or broken plastic parts, broken latches, broken pins, or broken connectors caused by excessive ·...

  • Page 13: Ch2. Locations

    Ch2. Locations Chapter 2. Locations ■ Left View 1. VGA Port 2. Fan louvers 3. LAN Port 4. Modem Port (May vary depending on model.) 5. HDMI Port 6. e-SATA Port (USB-combo) 7. Express Card Slot 8. 6-in-1 Card Slot (xD/SD/MMC/MMCplus/MS/MS Pro) ■...

  • Page 14: Rear View

    ■ Rear View ④ ② ① ③ 16. Fan louvers ■ Front View 17. Built-in Microphone (May vary depending on model.) 18. LG Smart Cam (May vary depending on model.) 19. Power Button 20. Keyboard 21. Touchpad 22. Stereo speaker...

  • Page 15: Ch3. System Information

    Ch3. System information Chapter 3. System information Specification - Processors • Intel Core2 Duo/Solo/Mobile Intel Celeron Processor™(L2 Cache Size: 1MB/2MB/4MB/6MB/8MB, FSB:533/800MHZ are supported.) The user must not replace or expand the CPU capacity arbitrarily. The CPU capacity differs depends on model type.
  • Page 16 Chapter 3. System information Specification - External I/O Interface · Microphone Input Port (Mic in): 1 · Headphone Port: 1 · HDMI Port: 1 · e-SATA (USB Combo) Port: 1 · USB 2.0 Ports: 2 · Multi-card Slot: 1 · Express Card Slot: 1 ·...

  • Page 17: System Block Diagram

    Chapter 3. System information ■ System Block Diagram...

  • Page 18: Fn Key Combinations

    Chapter 3. System information Fn key combinations The following table shows the function of each combination of Fn with a function key. Function of Fn keys has nothing to do with Operating System. Fn + F1 Customizable hot keys. (Configurable through OSD settings) Fn + F2 Customizable hot keys.

  • Page 19: Status Indicators

    Ch3. System information Status indicators The system status indicators show the status of the computer 1 . Power Lamp: • Blinking: System Standby • On: The system is running on the AC power or battery. • Off: The system is turned off or in Hibernates. 2.
  • Page 20 Ch3. System information 6 . Wireless LAN/Bluetooth lamp • Off: Wireless LAN/Bluetooth is not in use. • Blinking (short interval): Wireless LAN/Bluetooth is connected and data are being transmitted. • Blinking (every 2 ~ 3 seconds): Wireless LAN/Bluetooth is not connected but Wireless Radio is on. •...

  • Page 21: Bios Flash

    2. Copy BIOS Flash software to the flash update USB Device (FDD/USB Memory). 3. Connect the USB Device for USB Port. 4. Press F12 Key while the "LG LOGO" appears. 5. A while later, the system setup home screen appears.

  • Page 22: Ch3. System Information

    Ch3. System information 10. Press [F2] Key, then you can see the BIOS SETUP UTILITY screen as below. 11. It selects the :” Load Optimal Dafault” and it summons a BIOS settings at initial value.
  • Page 23 Ch3. System information 12. It selects the “Exit & Saving Change” and it stores system a settings and the reboot...
  • Page 24 Ch3. System information BIOS Release Process and Making Bootable CD 1. LGE(Korea) will upload BIOS Image(*.iso) to GCSC(Global Cyber Service Center:http://biz.lgservice.com) when BIOS should be updated. 2. BIOS will include both System BIOS and EC(Embedded Controller) BIOS. 3. Service center can download BIOS file from GCSC and update BIOS according to below procedure. 4.
  • Page 25 Ch3. System information c. Select “Disc Image or Saved Project” d. Select File Format as "Image Files(*.iso)".
  • Page 26 Ch3. System information e. Open Image File(*.iso) which is sent from LGE f. Tab Burn then burning will be started...
  • Page 27 Ch3. System information g. Burn process completed as below, and tab “OK...
  • Page 28 Ch3. System information BIOS/EC Flash Process 1. Insert Bootable CD in PC, and Turn it on, then PC will boot by DOS mode as below (If the EC is not correct or old version, then automatically update EC first and reboot again) 2.
  • Page 29 Ch3. System information 4. Type in Mode Name at the “WIP ID :” then press Enter key (You must use Capital Letter) (You can see the Model Name in ID Label at the bottom Case of PC: “M/N: LMXX-XXXX”) 5. Type in Serial No at the “WIP ID :” then press Enter key (You must use Capital Letter) (You can see the Serial No in ID Label at the bottom Case of PC: “S/N: 412KIXXXXXXXX”(13digits)) 6.
  • Page 30 Ch3. System information 5. After flashing is completed, you can see the “PASS” on your screen, and reboot your PC...

  • Page 31: Bios Setup

    2. to replace the backup battery 3. system configuration error occurs 4. to change the boot order 5. to set/change a password Press the power button. When the LG logo appears on the screen, press and enter the BIOS Setup Utility.

  • Page 32: Using The Keys

    Ch3. System information Using the keys The keys used in the BIOS Setup Utility and their functions are described at the bottom. · : General Help Display the descriptions of the keys used in the setup utility. · : Select Item Navigate and select items in the setup utility.
  • Page 33 Ch3. System information Main menu · System Time Current time. To change the value, press <+> or <−> key. · System Date Current date. To change the value, press <+> or <−> key. · SATA Hard Drive This shows the description of the drive connected to the SATA port. To change the settings of the connected drive, click <Enter>...

  • Page 34: Advanced Menu

    Ch3. System information Advanced menu · USB BIOS Legacy Support This enables to use the USB devices in the MS-DOS environment. · HDC Configure as This configures the compatibility settings for the SATA controller. · VT Support Set whether or not to support the Intel virtualization technology. ·...

  • Page 35: Security Menu

    Ch3. System information Security menu Supervisor Password · The password setting prevents not allowed users from using the notebook computer. The password is not set when starting the system for the first time. When the system is turned on, any other user cannot change the BIOS settings without entering the specified password.
  • Page 36 Ch3. System information Boot menu · Quick Boot Set whether or not to use Quiet Boot. · PXE Boot to LAN Set whether or not to use the HDD password. · Boot Device Priority Select the desired device drive by using the arrow buttons and change its booting sequence by using the [+] or [-] key.
  • Page 37 Ch3. System information Info menu · BIOS Version This shows the Version of BIOS. · KBC Version This shows the Version of KBD firm ware. · Serial Number This shows the serial number of the product. · CPU Type This shows the type of the CPU installed in the system. ·...
  • Page 38 Ch3. System information Exit menu Exit & Save Change · Save the changes you have made and exit the utility. Exit & Discard Changes · Exit the utility without saving the changes you have made. Load Optimal Defaults · This changes the parameters in the Setup menu to the factory default settings. When it is selected or [F9] key is pressed, the confirmation message appears.
  • Page 39 Ch3. System information ■ Backup and Restore Security Platform Data Security Platform Backup includes all data required in case of emergency. After a hardware or storage media failure or a Trusted Platform Module failure, Security Platform Restoration reestablishes access to Security Platform Features for all users.
  • Page 40 Ch3. System information Personal Secure Drive Backup Contents A copy of the PSD encrypted data and configuration settings. Purpose Restoration of PSD encrypted data and configuration settings after a hardware or storage media failure. Otherwise users could not decrypt their PSD data anymore. Notes: In contrast to the PSD Backup, standard hard disk backup tools •...
  • Page 41 Ch3. System information ■ How to Backup and Restore How to configure automatic backups Software Component to use ("System Backup") Administrative Task: Configure automatic If Security Platform is not yet initialized: backups for all users (including Security Initialization Wizard Platform Credentials and Settings, If Security Platform is already initialized: Settings Emergency Recovery and PSD configuration Tool - Backup - Configure...
  • Page 42 Ch3. System information ■ Infineon Platform Security Backup With this page you can backup and restore Security Platform credentials, Security Platform settings and Personal Secure Drives. If Enhanced Authentication is enabled, you can also create backups of your authentication device. Availability of page: This page is only available on an initialized Security Platform, if one of the following conditions is fulfilled: •...

  • Page 43: Ch4. Symptom-To-Part Index

    Ch4. Symptom-to-part index Chapter 4. Symptom-to-part index The symptom-to-part index in this section lists symptoms and errors and their possible causes. The most likely cause is listed first. Note If replacing a part (FRU) does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.

  • Page 44: Ch4. Symptom-To-Part Index

    Ch4. Symptom-to-part index To check the AC adapter, do the following : 1. Unplug the AC adapter cable from the computer. Voltage (V dc) 2. Measure the output voltage at the plug of the +18.05 ~ +19.95 AC adapter cable. See the following figure : Ground 3.
  • Page 45 Ch4. Symptom-to-part index · If the voltage is not correct, replace the AC adapter. · If the voltage is acceptable, do the following : 1. Replace the system board. 2. If the problem persists, check the AC adapter whether it is correct product or not. Note Noise from the AC adapter does not always indicate a defect.
  • Page 46 Ch4. Symptom-to-part index · The Characteristics of the battery pack 1. Self-discharge The battery gradually loses its power over time without ever being used. 2. Periodic full discharge / charge Frequent recharge of the battery pack can reduce the capacity of the battery pack. When this happens, you can perform the full discharge / charge to improve the capacity.
  • Page 47 Ch4. Symptom-to-part index · To check the battery pack, do the following : 1. Power off the computer. 2. Remove the battery pack and measure the voltage between battery terminals 1(-) and 5(+). See the following figure : Terminal Voltage (V dc) Ground(-) +0V ~ +12.6V 5(+)

  • Page 48: Numeric Error Codes

    Ch4. Symptom-to-part index Numeric error codes Symptom / Error FRU or action, in sequence 0200 1.Reset the hard-disk drive. Fixed disk failure 2.Load Setup Defaults in BIOS Setup Utility. (The hard disk is not working) 3.Hard-disk drive. 4.System board. 0210 1.Check the keyboard if it is pressed.
  • Page 49 Ch4. Symptom-to-part index Symptom / Error FRU or action, in sequence 0251 Replace the backup battery and run BIOS Setup System CMOS checksum bad Utility – System CMOS checksum is not correct. to reset the time and date. – Default configuration used. 0252 Reset the password by running BIOS Setup Utility.
  • Page 50 Ch4. Symptom-to-part index Symptom / Error FRU or action, in sequence 02F7 1. DIMM Fail – Safe timer NMI failed 2. System board 0611 1. Load Setup Defaults in BIOS Setup Utility. IDE configuration changed 2. System board. 0612 1. Load Setup Defaults in BIOS Setup Utility. IDE configuration error 2.

  • Page 51: Error Messages

    Ch4. Symptom-to-part index Error message Symptom / Error FRU or action, in sequence Device address conflict. 1. Load Setup Defaults in BIOS Setup Utility. 2. Backup battery. 3. System board. Allocation error for device. 1. Load Setup Defaults in BIOS Setup Utility. 2.

  • Page 52: Lcd-Related Symptoms

    Ch4. Symptom-to-part index LCD-related symptoms Note Before removing or disassembling LCD, power off the computer, unplug all power cords from electrical outlets, remove the battery pack also. Symptom / Error FRU or action, in sequence LCD screen becomes dark suddenly. Check out Battery Miser.

  • Page 53: Indeterminate Problems

    1. Power off the computer 2. Visually check each FRU for damage. Replace any damaged FRU. 3. Remove or disconnected all of the following devices : a. Non-LG devices. b. Printer, mouse, and other external devices. c. Battery pack. d. PC cards.

  • Page 54: Chapter 5. Removing And Replacing A Part (Fru)

    Ch5. Removing and replacing a part Chapter 5. Removing and replacing a part (FRU) Danger Before removing any FRU, power off the computer, unplug all power cords from electrical outlets, remove the battery pack, and then disconnect any interconnecting cables. Caution Before the computer is powered on after FRU replacement, make sure that all screws, springs, and other small parts are in place and are not loose inside the computer.

  • Page 55: 1010 Battery Pack

    Ch5. Removing and replacing a part ■ 1010 Battery Pack 1. Push the battery latch in the direction shown below; then slide the battery pack out of the slot.
  • Page 56 Ch5. Removing and replacing a part ■ 1020 System Door ※ Remove the following parts in order before replacing this part a. Battery Pack(1010) 1. Remove the 3 screw. 2. Remove the System Door.
  • Page 57 Ch5. Removing and replacing a part ■ 1030 WI FI ※ Remove the following parts in order before replacing this part a. Battery Pack(1010) 1. Remove 2 screws. 2. Remove the WI FI Cover.
  • Page 58 Ch5. Removing and replacing a part ■ 1040 ODD ※ Remove the following parts in order before replacing this part a. Battery Pack(1010) 1. Remove 1 screws. FRU No. Specification FH + 2.5MM 6.5MM FAB30248901 SWRCH BZN 2. Remove the ODD.
  • Page 59 Ch5. Removing and replacing a part ■ 1050 HDD ※ Remove the following parts in order before replacing this part a. Battery Pack(1010) 1. Remove 2 screws. 2. Remove the HDD Cover.
  • Page 60 Ch5. Removing and replacing a part 3. Remove the HDD. 4. Remove 2 screws. FRU No. Specification FH + 3MM 3.5MM FAB30249001 SWRCH SILVER...
  • Page 61 Ch5. Removing and replacing a part 3. Remove the HDD Shield.
  • Page 62 Ch5. Removing and replacing a part ■ 1060 Bluetooth Module ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. HDD(1050) 1. Remove the Bluetooth Module.
  • Page 63 Ch5. Removing and replacing a part ■ 1070 DIMM ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. System Door(1020) 1. Remove 2 Hooks than remove the DIMM. Hook Hook...
  • Page 64 Ch5. Removing and replacing a part ■ 1080 WLAN Module ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. System Door(1020) 1. Remove 3 Antenna Cables. 2. Remove the WLAN Module.
  • Page 65 Ch5. Removing and replacing a part...
  • Page 66 Ch5. Removing and replacing a part ■ 1090 CPU/GPU Fan Assembly ※ Remove the following parts in order before replacing this part a. Battery Pack(1010) 1. Remove 3 screws. Connector 2. Remove the CPU/GPU Fan Assembly.
  • Page 67 Ch5. Removing and replacing a part ■ 1100 Heatsync ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. System Door(1020) 1. Remove 3 screws. 2. Remove the Heatsync.
  • Page 68 Ch5. Removing and replacing a part ■ 1110 CPU ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. System Door(1020) 1. Remove the CPU.
  • Page 69 Ch5. Removing and replacing a part ■ 1120 Retainer ※ Remove the following parts in order before replacing this part a. Battery Pack(1010) 1. Remove 3 screws. FRU No. Specification FAB30255101 M2.5*3.0-I(BZN) 2. It uses JIG and it removes the Hooks.
  • Page 70 Ch5. Removing and replacing a part 3. Remove the Retainer.
  • Page 71 Ch5. Removing and replacing a part ■ 1130 Keyboard ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1120) 1. Remove 1 screws. FRU No. Specification FH + 2.5MM 6.5MM FAB30248901 SWRCH BZN 2. Remove 2 screws. FRU No.
  • Page 72 Ch5. Removing and replacing a part 3. Remove the Keyboard Connector. Connector 4. Remove the Retainer Keyboard.
  • Page 73 Ch5. Removing and replacing a part ■ 1140 Button Sub Board ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), c. Keyboard(1130 ) 1. Remove the Cable. Cable 2. Remove the Button Sub Board.
  • Page 74 Ch5. Removing and replacing a part ■ 1150 Display Module ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), c. Keyboard(1130 ) 1. Remove 2 screws. FRU No. Specification FH + 2.5MM 6.5MM FAB30248901 SWRCH BZN 2.
  • Page 75 3. Remove the 2 Cable. Connector Connector 4. Remove the Display Module.
  • Page 76 Ch5. Removing and replacing a part ■ 1160 Keyboard deck ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), c. Keyboard(1130 ) d. (1140), e. Display Module(1150) 1. Remove 12 screws. FRU No. Specification FH + 2.5MM 6.5MM FAB30248901...
  • Page 77 Ch5. Removing and replacing a part 3. Remove the Keyboard deck.
  • Page 78 Ch5. Removing and replacing a part ■ 1170 USB(R) Sub Board ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), c. Keyboard(1130 ) d. Button Sub Board(1140), e. Display Module(1150) f. Keyboard deck(1160) 1.
  • Page 79 Ch5. Removing and replacing a part ■ 1180 Mainboard ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), c. Keyboard(1130 ) d. Button Sub Board(1140), e. Display Module(1150) f. Keyboard deck(1160) g. USB(R) Sub Board(1170) 1.
  • Page 80 Ch5. Removing and replacing a part 3. Remove the Mainboard.
  • Page 81 Ch5. Removing and replacing a part ■ 1190 Modem Module ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), c. Keyboard(1130 ) d. Button Sub Board(1140), e. Display Module(1150) f. Keyboard deck(1160) g. Mainboard(1180) 1.
  • Page 82 Ch5. Removing and replacing a part ■ 1200 AC Connector ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), c. Keyboard(1130 ) d. Button Sub Board(1140), e. Display Module(1150) f. Keyboard deck(1160) g. Mainboard(1180) 1.
  • Page 83 Ch5. Removing and replacing a part ■ 1210 Speaker ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), c. Keyboard(1130 ) d. Button Sub Board(1140), e. Display Module(1150) f. Keyboard deck(1160) g. Mainboard(1180) 1.
  • Page 84 Ch5. Removing and replacing a part ■ 1220 Battery Latch ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), c. Keyboard(1130 ) d. Button Sub Board(1140), e. Display Module(1150) f. Keyboard deck(1160) g. Mainboard(1180) 1.
  • Page 85 Ch5. Removing and replacing a part ■ 1230 LCD Front Case ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. WLAN Module(1060), c. Retainer(1070), d. Button Sub Board(1080) e. Keyboard(1090) 1. Remove 2 cables. FRU No.
  • Page 86 Ch5. Removing and replacing a part...
  • Page 87 Ch5. Removing and replacing a part ■ 1240 LCD Assembly ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), d. Button Sub Board(1140), e. Display Module(1150) F. LCD Front Case(1230) 1. Remove 2 cables. FRU No.
  • Page 88 Ch5. Removing and replacing a part ■ 1250 LCD Panel ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), d. Button Sub Board(1140), e. Display Module(1150) F. LCD Front Case(1230) 1. Remove 2 screws. FRU No.
  • Page 89 Ch5. Removing and replacing a part 4. Remove the inverter cable. Cable...
  • Page 90 Ch5. Removing and replacing a part ■ 1260 Inverter ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), d. Button Sub Board(1140), e. Display Module(1150) F. LCD Front Case(1230) g. LCD Assembly(1240) 1. Remove 2 screws. Cable Cable 2.
  • Page 91 Ch5. Removing and replacing a part ■ 1270 Web Cam Module ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Retainer(1070), d. Button Sub Board(1140), e. Display Module(1150) F. LCD Front Case(1230) g. LCD Assembly(1240) 1.

  • Page 92: Ch 6. Part List

    EAJ50624801 LG PHILIPS LCD LP154WX7-TLB3 WXGA 15.4INCH 1280X800 200CD COLOR 45% 16/10 500:1 NLCD04 EAJ58548901 LED TYPE LG Display Co. Ltd. LP154WE2-TLA3 WSXGA 15.4INCH 1680X1050 200CD COLOR 45% 16/9 500 - NLCD02 EAJ37180101 LGPHILIPS-LCD AS023216102 7VTO20V 1.65KV 6.5MA 1 YES AS023216102 / 10117.310-LF /...
  • Page 93 XNOTE/SILVER/STANDARD Rear Case Assy (Red_LG_HSDPA) Quanta 3HQL8LC0000 QL8 LCD COVER NLCD07 ABQ67039905 ASSY-HSPDA NLCD07 ABQ67039906 Rear Case Assy (Gray_LG_HSDPA) Quanta 3HQL8LC0030 LG/SILVER/HSDPA NLCD08 EAD56808001 LCD Cable (WXGA) NLCD09 EAD56808002 LCD Cable (WSXGA) Bracket COMPLEX NTP02 SUS HINGE Moonstone L FBQL8006010 HINGE L...
  • Page 94 Ch6. Part lists Location Item LG P/N Part Description NCPU01 EAN51675701 CPU(478P) T9400 2.53G SLB46(PGA)ROK B/S CPU(478P) T9600 2.80GHz 1066MHz/6M (35W) NCPU01 EAN51675601 LF80537GF0481M QGFM SLB3P T3400 M-0 1.075V TO 1.175V 35A 2.16GHZ NCPU01 EAN56930301 FCPGA TR 468P INTEL LF80537GF0411M QBNT SLAVG T3200 M-0 1.075V TO 1.175V 35A 2GHZ...
  • Page 95 Ch6. Part lists Location Item LG P/N Part Description NBAT01 EAC34785410 BATT LI,916C7450F,3S2P,4.8A Simplo NBAT01 EAC34785411 BATT LI,916C7340F,3S2P,4.4A Simplo BATT NBAT01 EAC34785412 BATT LI,3UR18650-2-T0145,3S2P,4.8A Sanyo NBAT01 EAC34785413 BATT LI,3UR18650-2-T0144,3S2P,4.4A Sanyo NADA01 EAY44205002 ADP 19V3.42A 65W(100-240V)SADP-65KB AFJ ADAP NADA01 EAY52814002 ADP 19V4.74A 90W(100-240V)PA-1900-08KI for India...
  • Page 96 Ch6. Part lists Location Item LG P/N Part Description NKBD01 AEW57431805 K/B(GERMAN)QL8(AEQL8G00,REV3A)CNY AEW57431806 K/B(TURKIS)QL8(AEQL8A00,REV3A)CNY NKBD01 NKBD01 AEW57431807 K/B(SPANISH)QL8(AEQL8P00,REV3A)CNY NKBD01 AEW57431809 K/B(FR CANADA)QL8(AEQL8K00,REV3A)CNY NKBD01 AEW57431802 K/B(USA)QL8(AEQL8U00,REV3A)CNY KEYB NKBD01 AEW57431803 K/B(ARABIC)QL8(AEQL8Q00,REV3A)CNY OARD NKBD01 AEW57431810 K/B(HEBREW)QL8(AEQL8V00,REV3A)CNY NKBD01 AEW57431811 K/B(PORTUGUESE)QL8(AEQL8T00,REV3A)CNY NKBD01 AEW57431813 K/B(BRAZILIAN)QL8(AEQL8600,REV3A)CNY NKBD01...
  • Page 97 Ch6. Part lists Location Item LG P/N Part Description NCHA09 MDP57698901 Foot rubber NCHA10 MHY57697801 Battery Release knob spring CHAS NCHA11 MEY57697501 Battery Loker knob(좌) SIS, NCHA12 MCQ57697901 CPU thermal pad MISC NCHA13 EAD57551101 CABLE FFC QL8 PB-MB(P0.5,8P,169MM,1A)60V NCHA14 EAD57551201...
  • Page 98 Ch6. Part lists Location Item LG P/N Part Description NLAB04 MEZ37690801 COMPLEX CPU LABEL NT ALL INTEL PENTIUM DUAL-CORE PROCESSOR COMPLEX CPU LABEL NT ALL INTEL PENTIUM PROCESSOR (from NLAB04 MEZ37690802 09.01.01)*09.4.1 cut in LABE NLAB05 MEZ37782601 PRINTING VISTA LABEL NT DT ALL MODEL PRIMIUM...
  • Page 99 NLCD13 A : NLCD15 NLCD13 B : NLCD16 NLCD13 NLCD13 NLCD13 NLCD13 NLCD14 NLCD10 NLCD06 NLCD04 NLCD01 NLCD08 NLCD11 NLCD017 NLCD03 NLCD05 NLCD12 NLCD07...
  • Page 100 XNOTE/SILVER/STANDARD Rear Case Assy (Red_LG_HSDPA) Quanta 3HQL8LC0000 QL8 LCD COVER NLCD07 ABQ67039905 ASSY-HSPDA NLCD07 ABQ67039906 Rear Case Assy (Gray_LG_HSDPA) Quanta 3HQL8LC0030 LG/SILVER/HSDPA NLCD08 EAD56808001 LCD Cable (WXGA) NLCD09 EAD56808002 LCD Cable (WSXGA) Bracket COMPLEX NTP02 SUS HINGE Moonstone L FBQL8006010 HINGE L...
  • Page 101 Location Item LG P/N Part Description NLCD14 MEZ54084804 Name Label RV510 Global Commercial NLCD15 FAB30208501 Screw Screw,Customized MS25065I007 FH + 2.5MM 6.5MM SWRCH BZN COMPUTER NLCD16 FAB30248901 INC. TBD543NR 11VTO19V 26.3V 21MA 1 YES For QL8 LED Dirver Inverter /TDK/...
  • Page 102 NMEM01 NWLA01 NFAN01 NMEM01 NHDD01 NCPU01 NBLU01 NFAN02 NBOT01...
  • Page 103 R510 FRU_SBOM MASTER Location Item LG P/N Part Description NSUB01 EBR55692401 4 LAYERS Moonstone QL8 PW_BUTTON/B ASSY REV 0.1 NSUB02 EBR55692501 4 LAYERS Moonstone QL8 USB AUDIO/B ASSY REV 0.1 NKBD01 AEW57431801 K/B(KOREA)QL8(AEQL8Y00,REV3A)CNY NKBD01 AEW57431808 K/B(NORDIC)QL8(AEQL8N00,REV3A)CNY NKBD01 AEW57431804 K/B(RUSSIAN)QL8(AEQL8700,REV3A)CNY NKBD01...
  • Page 104 Location Item LG P/N Part Description NLAB02 MEZ51448102 Caution Label for English NLAB02 MEZ51448103 Caution Label for Spanish NLAB02 MEZ51448104 Caution Label for China NLAB03 MEZ55252201 PRINTING 1 Moonstone PRINTING POP LABEL KOREA MARKET NLAB03 MEZ55252202 PRINTING 1 Moonstone PRINTING POP LABEL GLOBAL & Au MARKET...
  • Page 105 NMLB01 NMOD01 NCHA14 NCHA07 NSUB02 NCHA08...
  • Page 106 R510 FRU_SBOM MASTER Location Item LG P/N Part Description NMLB01 EBR55691501 QL8 MB ASSY (INTEL,UMA) W/O CPU NMLB01 EBR55691511 QL8 MB (INTEL,9M,HYN 256M) W/O CPU,MODEM NMLB01 EBR55691521 QL8 MB ASSY (INTEL,NB9P,QIM 512M) W/O CPU NMLB01 EBR55691531 QL8 MB (INTEL,UMA) W/O CPU,MODEM...
  • Page 107 Location Item LG P/N Part Description NCHA07 ACQ68582301 Speaker+cable assy NCHA08 EAD60684401 DC Jack+ cable assy NCHA09 MDP57698901 Foot rubber NCHA10 MHY57697801 Battery Release knob spring SSIS, NCHA11 MEY57697501 Battery Loker knob(좌) MISC NCHA12 MCQ57697901 CPU thermal pad NCHA13 EAD57551101 CABLE FFC QL8 PB-MB(P0.5,8P,169MM,1A)60V...
  • Page 108 NCHA15 NCHA01 NCHA02 NHDD01 NHDD02 NHDD02 NCHA04 NBAT01 NCHA09 NLAB01 NCHA09 NCHA09 NODD01 NCHA09 NCHA16 NCHA03...
  • Page 109 R510 FRU_SBOM MASTER Location Item LG P/N Part Description NODD01 EAZ56130601 QL8 ODD SUPER MULTI MODULE S.P. NODD01 EAZ59229901 QL8 ODD Moonstone BD read only NODD02 MAZ56929101 QL8 ODD BRACKET NODD03 ACQ67041901 QL8 ODD BEZEL ASSY NODD03 ACQ67041902 QL8 ODD BEZEL ASSY (BLU-RAY)
  • Page 110 Location Item LG P/N Part Description NCHA10 MHY57697801 Battery Release knob spring NCHA11 MEY57697501 Battery Loker knob(좌) SSIS, NCHA12 MCQ57697901 CPU thermal pad MISC NCHA13 EAD57551101 CABLE FFC QL8 PB-MB(P0.5,8P,169MM,1A)60V NCHA14 EAD57551201 CABLE FFC QL8 USB(142MM,REV2A)60V NSCR01 FAB30248901 SCREW M2.5*6.5-I(BZN(NYLOK-RED)D4.4 T0.8...
  • Page 111 Location Item LG P/N Part Description NLAB05 MEZ37782601 PRINTING VISTA LABEL NT DT ALL MODEL PRIMIUM LABE NLAB05 MEZ37782501 PRINTING VISTA LABEL NT DT ALL BASIC MODEL NLAB06 3858BZ9833C Nvidia...
