- Page 1 2810-2822 UNITS FOR HAZARDOUS (EX) AREAS Fire alarm solutions technical description www.panasonic-fire-security.com...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ABBREVIATIONS GENERAL DESCRIPTION 3.1. IS PHOTOELECTRIC SMOKE DETECTOR 2810 3.2. IS HEAT DETECTOR 2811 3.3. IS MOUNTING BASE 2812 3.3.1. EXTERNAL LED OUTPUT 3.4. IS MANUAL CALL POINT 2814 3.4.1. PROTECTIVE COVER 3.4.2. ROUTINE TESTING 3.4.3. -
Page 3: Introduction
2810-2822 UNITES FOR HAZARDOUS (EX) AREAS - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 1. INTRODUCTION This document describes the units for Hazardous Ex areas. The document contains information about the products and instructions on how to mount and connect them. Product / designation... -
Page 4: Abbreviations
2. ABBREVIATIONS Intrinsically safe Input/Output Light Emitting Diode... -
Page 5: General Description

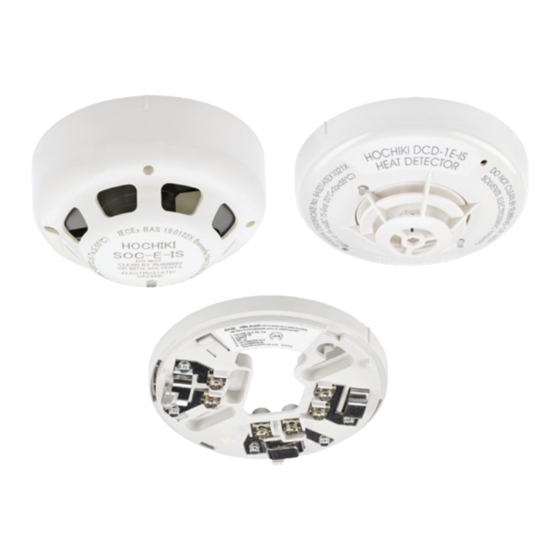

2810-2822 UNITES FOR HAZARDOUS (EX) AREAS - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 3. GENERAL DESCRIPTION In Hazardous (Ex) areas, Intrinsically Safe (IS) and approved products are required. The IS alarm points are connected to an inter- face outside the Ex area. -
Page 6: Is Manual Call Point 2814
3.4. IS MANUAL CALL POINT 2814 The call point is a conventional manual call point with a 470Ω alarm resistor. It has terminals for the zone line (in/out). To operate the manual call point the glass element is pressed until it is broken. This will generate a fire alarm in the CIE. Routine testing is done with a test key (supplied), without breaking the glass element. -
Page 7: Galvanic Isolator 2820
2810-2822 UNITES FOR HAZARDOUS (EX) AREAS - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 3.5. GALVANIC ISOLATOR 2820 The galvanic isolator is mounted in a waterproof box (IP66/67). Up to five IS detectors and manual call points can be connected to the galvanic isolator. An end-of-line resistor has to be connected in the last IS unit. The isolator has two zone line inputs and outputs (Channel 1 &... -
Page 8: Mounting
4. MOUNTING PHOTOELECTRIC SMOKE DETECTOR Mount the detector in the base. Maximum 20 units in total per zone. HEAT DETECTOR Mount the detector in the base. Maximum 20 units in total per zone. MOUNTING BASE Mount the base in the ceiling. MANUAL CALL POINT The call point is surface mounted with a Back-box 2814BB. -
Page 9: Installation And Wiring
2810-2822 UNITES FOR HAZARDOUS (EX) AREAS - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 5. INSTALLATION AND WIRING Screen wire termination is not provided. Alternative A 4580 2820 (In a waterproof box) 2812 2814 Zone 1 Channel 1 ZONE End-of-line resistor Zone 2... - Page 10 Continued, see the connection previous page Alternative B:2 4461 2822 COM loop Alternative B:2 The conventional IS detectors are connected via a galvanic isolator 2820 to an addressable isolated zone interface 2822 that is connected to an I/O unit 4461. End-of-line resistor 8K2 is supplied with 2822.
-
Page 11: Technical Data 2810
2810-2822 UNITES FOR HAZARDOUS (EX) AREAS - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 6. TECHNICAL DATA 2810 All current consumptions are valid by nominal voltage and by 25 °C. Voltage: Allowed 12 – 30V DC Normal 24V DC Current: Quiescent 35 µA... -
Page 12: Technical Data 2811
7. TECHNICAL DATA 2811 All current consumptions are valid by nominal voltage and by 25 °C. Voltage: Allowed 15 – 30V DC Normal 24V DC Current: Quiescent 35 µA Active: Maximum 40 mA Short circuit isolator Internal battery Material Polycarbonate Ambient temperature: Operating -10 to +55 °C... -
Page 13: Technical Data 2812
2810-2822 UNITES FOR HAZARDOUS (EX) AREAS - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 8. TECHNICAL DATA 2812 All current consumptions are valid by nominal voltage and by 25 °C. Voltage: Allowed 15 – 30V DC Normal 24V DC Current: Quiescent Active:... -
Page 14: Technical Data 2814
9. TECHNICAL DATA 2814 All current consumptions are valid by nominal voltage and by 25 °C. Voltage: Allowed ≤ 30V DC Normal 24V DC Current: Quiescent Active: Maximum 500 mA Short circuit isolator Internal battery Material FR ABS and polycarbonate Ambient temperature: Operating -30 to +70 °C... -
Page 15: Technical Data 2820
2810-2822 UNITES FOR HAZARDOUS (EX) AREAS - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 10. TECHNICAL DATA 2820 All current consumptions are valid by nominal voltage and by 25 °C. Voltage: Allowed 6 – 35V DC Normal 24V DC Current: Quiescent <400 µA... -
Page 16: Technical Data 2822
11. TECHNICAL DATA 2822 All current consumptions are valid by nominal voltage and by 25 °C. Voltage: 12 – 30V DC Allowed 24V DC Normal Current: Quiescent 3 µA Active: 6 mA (from the COM loop) Short circuit isolator Internal battery Material Polycarbonate Ambient temperature:... -
Page 17: Approvals
2810-2822 UNITES FOR HAZARDOUS (EX) AREAS - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 12. APPROVALS 2810 Applicable directive/ Approval Applicable standards Notified body BRE Global Limited EN 54-7 No. 2831-CPR-F4344 EN 54-7 VdS 2344 No. G220019 VdS 2503 EN60079-0 SGS Fimko Oy... - Page 18 DOCUMENT NAME: TECHNICAL DESCRIPTION 2810-2822 DOCUMENT NUMBER: MEW01995 EN DATE OF ISSUE: 2016-07-06 REV: 3 DATE OF REVISION: 2023-05-17 Panasonic Fire & Security Europe AB Jungmansgatan 12 SE-211 11 Malmö Tel: +46 (0)40 697 70 00 www.panasonic-fire-security.com...
