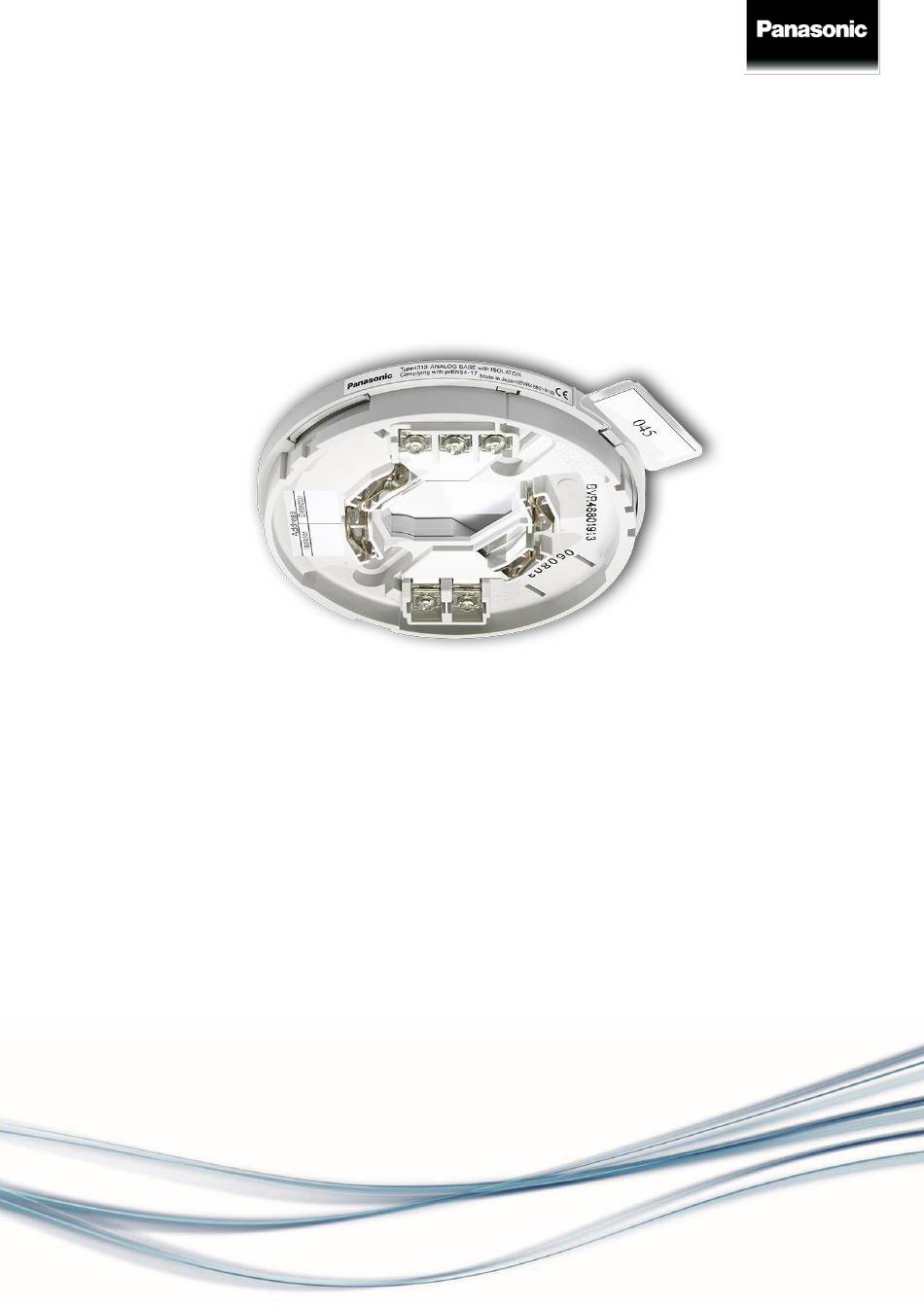

- Page 1 PANASONIC FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 4313 ANALOG BASE WITH ISOLATOR...
-
Page 2: Document Information
MEW01904 DATE OF ISSUE: 2015-11-09 REV: DATE OF REVISION: 2021-02-02 Panasonic Fire & Security Europe AB Jungmansgatan 12 SE-211 11 Malmö Sweden Tel: +46 (0)40 697 70 00 Internet: www.panasonic-fire-security.com TECHNICAL DESCRIPTION 4313 • DOCUMENT NUMBER: MEW01904 • REVISION: 4... -
Page 3: Table Of Contents
5. SET THE MODE ......................5 COMPATIBILITY TABLE ........................5 7. MOUNTING ........................6 COVER .............................. 6 9. INSTALLATION AND WIRING ..................7 TECHNICAL DATA ..................... 8 APPROVALS ......................9 TECHNICAL DESCRIPTION 4313 • DOCUMENT NUMBER: MEW01904 • REVISION: 4... -
Page 4: Introduction
1. INTRODUCTION This document describes the analog base with isolator, type number 4313. The document contains information about the product and instructions on how to mount and connect it. 2. ABBREVIATIONS C.i.e. Control and indicating equipment Light Emitting Diode TECHNICAL DESCRIPTION 4313 • DOCUMENT NUMBER: MEW01904 • REVISION: 4... -
Page 5: General Description
3.1.1. SHORT CIRCUIT ISOLATOR The analog base 4313 also has a built-in short circuit isolator, which will divide the COM loop into segments. A segment is the part of a loop between two isolators or between one isolator and the c.i.e. -
Page 6: External Led
Not used All versions Not used Not used EBL128 Not used All versions Not used Not used EBL512 Not used Not used All versions Not used (V = Software version) TECHNICAL DESCRIPTION 4313 • DOCUMENT NUMBER: MEW01904 • REVISION: 4... -
Page 7: Mounting
(Measures in mm) 8. COVER The analog base can be used without a detector. Cover 3313 can then be used for base protection. TECHNICAL DESCRIPTION 4313 • DOCUMENT NUMBER: MEW01904 • REVISION: 4... -
Page 8: Installation And Wiring
9. INSTALLATION AND WIRING NOTE! Screen wire termination is not provided. External LED DATA Wire size (Min) Ø 0.6 mm (0.3 mm²) Wire size (Max) Ø 1.6 mm (2 mm²) TECHNICAL DESCRIPTION 4313 • DOCUMENT NUMBER: MEW01904 • REVISION: 4... -
Page 9: Technical Data
Ingress protection rating IP 54 Size: Ø x H 102 x 15 mm Weight 80 g Available colours 4313 Grey (N8, Munsell colour code) 4313W White (10Y9/0.5, Munsell colour code) TECHNICAL DESCRIPTION 4313 • DOCUMENT NUMBER: MEW01904 • REVISION: 4... -
Page 10: Approvals
11. APPROVALS Applicable directive Applicable standards Notified body EN54-17 No. 0786-CPR-21199 EN61000-6-3 (Emission) Self declaration EN50130-4 (Immunity) RoHS EN50581 Self declaration TECHNICAL DESCRIPTION 4313 • DOCUMENT NUMBER: MEW01904 • REVISION: 4...
