EAE RC1600 Product Manual

Knx room control unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

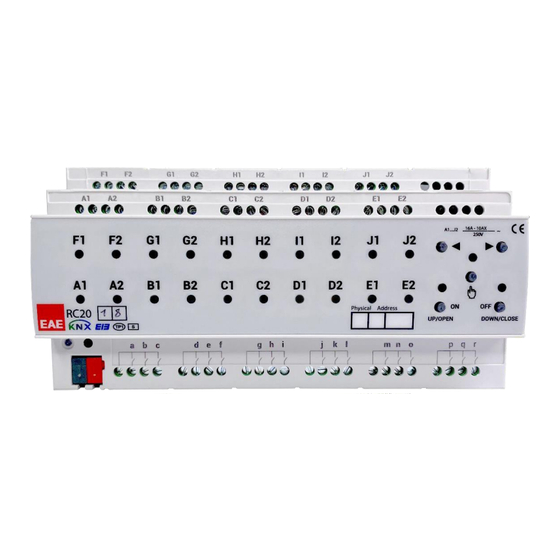

EAE KNX Room Control Unit
Product Manual RCXXYY
Note:
RC2018
RC2000
RC1616
RC1600
RC1212
RC1200
RC0808
RC0800
RCXXYY where XX denotes the number of outputs and YY number of inputs.
Input and Output numbers are as in the table.
20 Output, 18 Input
20 Output, No Input
16 Output, 16 Input
16 Output, No Input
12 Output, 12 Input
12 Output, No Input
8 Output, 8 Input
8 Output, No Input

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC1600 and is the answer not in the manual?

Questions and answers

Related Manuals for EAE RC1600

Summary of Contents for EAE RC1600

  • Page 1 EAE KNX Room Control Unit Product Manual RCXXYY RC2018 20 Output, 18 Input RC2000 20 Output, No Input RC1616 16 Output, 16 Input RC1600 16 Output, No Input RC1212 12 Output, 12 Input RC1200 12 Output, No Input RC0808 8 Output, 8 Input...

  • Page 2: Table Of Contents

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Index 1 General ............................. 3 1.1 Device Description .......................... 3 1.2 Technical Data ..........................4 1.3 Connection Example ........................6 1.4 Scale Drawings ..........................10 2 Communication Object Table ......................13 3 Parameters .............................

  • Page 3: General

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Valve Control .......................... 55 3.8.1 A/B – Control Input ......................55 3.8.2 A – Valve General ........................ 57 3.8.3 A – Function ........................59 3.8.4 A – Limit ..........................61 Fan Coil ...........................

  • Page 4: Device Description

    1 General 1.1 Device Description • Room Control Unit RC Series are designed as an all in one product for different room layouts such as apartments, hotel rooms, hospitals and residences. • Room Control Unit covers all requirements of the electrical installation of room applications and offers following functions in one product.

  • Page 5: Technical Data

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 1.2 Technical Data RCXXYY Series Type of protection IP 20 EN 60 529 Safety class EN 61 140 Power supply : - Voltage 21V… 30V DC, SELV - Current consumption <15 mA...

  • Page 6: Connection Example

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 1.3 Connection Example RC2018 Connection Example 1 RC20 Connection Example 2 ©EAE Technology www.eaetechnology.com Page 5 / 80...
  • Page 7 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 RC0808 Connection Example 3 Connection Example 4 ©EAE Technology www.eaetechnology.com Page 6 / 80...
  • Page 8 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Connection Diagram 5 Connection Diagram 6 ©EAE Technology www.eaetechnology.com Page 7 / 80...
  • Page 9 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 RC1616 A1..H2 16A - 10AX 250V RC16 1 6 Connection Diagram 7 16A - 10AX A1..H2 250V RC16 1 6 Connection Diagram 8 ©EAE Technology www.eaetechnology.com Page 8 / 80...

  • Page 10: Scale Drawings

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 1.3 Scale Drawings RCXXYY RC2018 RC20 RC1616 16A - 10AX A1..H2 250V RC16 1 6 ©EAE Technology www.eaetechnology.com Page 9 / 80...
  • Page 11 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 RC1212 RC0808 ©EAE Technology www.eaetechnology.com Page 10 / 80...
  • Page 12 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Scale Dimensions RCXXYY ©EAE Technology www.eaetechnology.com Page 11 / 80...

  • Page 13: Communication Object Table

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 2 Communication Object Table The device has 254 communication objects. Overview of all communication objects of the device can be seen on the following table. Object names will be changed according to channel function as follows.
  • Page 14 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Output A1 Status Switch 1.001 1 bit Output A Slat adjustment/stop up-down 1.007 1 bit Output A/B Fan A/B1 Switch speed 1 1.001 1 bit Control input Control value COOLING 5.001...

  • Page 15: Parameters

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Output A/B Forced operation 2 bit 2.002 2 bit Fan A/B1 Automatic ON/OFF 1.003 1 bit Valve COOLING Trigger valve purge 1.017 1 bit Output A2 Permanent ON 1.001...
  • Page 16 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 This parameter can be used to enable/disable manual control. If manual operation is enabled, connected load can be controlled via the corresponding channel button on the device. ▪ Set the parameter to “enable”...

  • Page 17: Weather Alarms

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Activate scene If parameter is selected “yes”, “Scenes” section will be visible in parameter titles. Weather alarm function enable *disable If the parameter is selected “yes”, “Weather Alarm” section will be visible in parameter titles. You can find weather alarm information under the “Weather Alarm”...

  • Page 18: Scene

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Monitoring period for wind alarm in s *0…1000 [0…1000] The telegram of the active weather station is monitored cyclically. The actuator waits for a telegram from the weather station within the cycle time. If the telegram is not received within this monitoring period time, actuator assumes that the weather station is broken or bus line is damaged and the blind moves into the parameterized position.
  • Page 19 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 When the actuator receives a telegram that retrieves a scene address; The output group is configured as a blind, the drive is moved into the saved position and slats are turned.

  • Page 20: Enable Input A

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 in %[100] … … Value *OFF These parameters are the common of the blind and switch. ▪ If the “Output group A” is selected “2 x switch”, scene parameters mean the switch state ON/OFF.
  • Page 21 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Distinction between short/long operation and cyclical sending. ▪ This parameter is selected “switch dim sensor” Start-stop dimming and stepwise dimming are possible. ▪ This parameter is selected “shutter sensor”...

  • Page 22: A - Switch Sensor

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.2.1 a - Switch Sensor This function is used, for binary inputs to which a switch or a push button is attached, to send a switching telegram (ON, OFF or TOGGLE) as a reaction to a rising and / or falling signal edge at this input.
  • Page 23 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Short/Long Press: Distinguishing short from long presses is about measuring the pulse length. The event is no longer emitted upon pressing the button, but upon releasing it. This can affect the feeling of responsiveness.
  • Page 24 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Telegram is repeated every(transmission 100ms cycle time): base 1min 10min This parameter determines the desired cycle time. Period time: Base x Factor Factor 2…*30…255 Select time factor, between [2…255]...

  • Page 25: A - Switch Dim Sensor

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.2.2 a - Switch Dim Sensor You can use the corresponding input to switch the light on or off or dim it. When dimming, dimming up or dimming down is carried out via the 4 bit dimming object; the parameters for the dimming steps can be set.

  • Page 26: A - Blind Sensor

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Dim BRIGHTER/DARKER With the long push button action, the light becomes brighter or darker depending on the object value and the last controlled dimming direction. A long operation changes the value of the object “Dimming”.
  • Page 27 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 The dual surface shutter function triggers shutter actuators, which can adjustment shutter and blind. You can rise the shutter/adjust the lamella using a single key and lower the shutter/adjust the lamella using a second key surface blind operation.
  • Page 28 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 With below functions, you must set the parameters for a second key (second input) with the corresponding settings for the shutter movement in the opposite direction. ▪ 2 button, standard...

  • Page 29: A - Value/Forced Operation

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Long operation after 0,3s…*0,4s…10s Distinction between short and long; Long press time period is select here. Telegr. STOP/lamella adj. is 0,3sn…*0,4s…10sn repeated every Only visible 1 push-button, short=moving, This parameter we choose each sending stop/lamella telegram-sending period. Lamella adjustment cyclically.
  • Page 30 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Yes is selected. There is a delay after opening/closing the contact to determine whether there is a short or long operation. Reaction on operation no reaction bit value bit value (forced operation) *1 byte value [0…255]...
  • Page 31 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Short press value or on operation value is enter here. Long operation after: *250ms Time base 1min 10min This parameter is visible distinction short/long operation; This parameter determines the desired long press time.

  • Page 32: Enable Output A

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.3 Enable Output A…J Output group A and B *no function shutter/blind DC fan coil valve control individually Both output group can be combined into one DC blind. In DC blind operation the four relay contacts of the device can be used to control electrically AC blind, shutter, awning, and venetian blind.
  • Page 33 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 retained over an extended period. If the valve does not move, no voltage is applied to the motor. 2-point valve drives are controlled via the telegrams OPEN and CLOSE. The valve can only be completely open or completely closed.

  • Page 34: Switch

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.4 Switch 4.4.1 A1 - General Contact type *normally open normally closed The relays of a switching output can be parameterized as normally closed or normally open. This feature offers the possibility of inversion the switching state. Important: This state is only valid for switch communication object.
  • Page 35 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Create status object “Status Switch” *yes If this parameter select ‘yes’, ETS create another communication object for use only status switch. The status object can be used to display the current output switching status on a display.

  • Page 36: A1 - Function

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.4.2 A1 - Function Above function can be set for each channel. This function; Staircase function External logic III. Forced position Sweep function Below you can find this functions description.

  • Page 37: A1 - Staircase Function

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.4.2.1 A1 - Staircase Function If you want to use staircase function, you must have been enabled ‘Staircase’ on the function windows. Than required parameters and communication, objects are visible. The staircase function can be parameterized for each channel.
  • Page 38 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Reaction to OFF telegram *switch off ignore After this parameter selected ‘switching off’, ignored ‘Enable staircase function’ communication object ‘disable’ command. Staircase time can be changed by object ‘Staircase lighting duration’ communication object is visible if a ‘Staircase time can be changed by object’...

  • Page 39: A1 - External Logic

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.4.2.2 A1 - External logic Logic function can be used independently for each output. With this function, the ‘Switch’ object can be logically linked with the ‘External logic input’. Channel relay switch a result of the logic operation.

  • Page 40: A1 - Sweep

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.4.2.3 A1 - Sweep Sweep function only starts to operate if the relay is switched ON. It’s an alternative way for turning off the relay with pre-warning. The sweep function is desired to warn a person that lights will go out shortly.

  • Page 41: A1 - Scene

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.4.2.4 A1 - Scene For more information please look scene, page 12. ©EAE Technology www.eaetechnology.com Page 40 / 80...

  • Page 42: Blind

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.5 Blind 4.5.1 A/B – General In this parameter page, general settings for blinds (AC blind or DC blind) are explained. Parameters for both types is the same. Mode of operation...
  • Page 43 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 The output group switch remain in their current state. ▪ Set the parameter to “up”; After the ETS programming, the actuator raises the blind. ▪ Set the parameter to “down”;...

  • Page 44: A/B - Drive Blind

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.5.2 A/B – Drive Blind The blind actuator calculates the current position of a blind from the running time. This calculation has to be performed because the drive cannot provide any feedback on its position.
  • Page 45 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 end position + %2 overflow end position + %5 overflow end position + %10 overflow end position + %20 overflow total travel time + %10 overflow When the blind has been reached the end position (this means top or bottom position), the blind is switched off its relay.

  • Page 46: A/B - Drive Slat

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 and start-up delay in ms[-128…127] If the blind is closed lower end position, the used blind experiences dead time between the times when the blind is started the movement. You can compensate this time with this parameter.

  • Page 47: A/B - Functions

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 This parameter defines the limit step adjustment command. If it selected “no”, the slat adjustment step count is unlimited. Position of slat after arriving on lower end 0…*100 position (100% = disable) The blind will set the slat according to the parameterized value, after the end position is reached.

  • Page 48: A/B - Position/Presets

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.5.4.1 A/B – Position/Presets This function allows you set a height position or slat position, directly using with communication object. Enable communication objects “Move to pos. Height/Move slat 0…255”...
  • Page 49 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 The original ETS parameter values can be reload into the device during ETS download operation. Position 1: Height in % [0…100] 0…*20…100 (0% = top; 100% = bottom) Position 1: Slat in % [0…100] 0…*20…100...

  • Page 50: A/B - Weather Alarm

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.5.4.2 A/B – Weather alarm The weather functions must first be globally enabled before they can be parameterized and used. After general weather function is enabled, the weather alarm can be enabled or disabled independently of one other.
  • Page 51 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 The devices raises the blind at the beginning of the wind alarm or wind alarms then the outputs are locked. ▪ Set the parameter to “down”; The devices lowers the blind at the beginning of the wind alarm or wind alarms then the outputs are locked.

  • Page 52: A/B - Forced Position

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.5.4.3 A/B – Forced position The forced position function can be used for each output. The forced position function has a 1 bit or 2 bit optional communication object. The blind can be moved up or down via forced operation telegram (1bit or 2 bit).

  • Page 53: A/B - Feedbacks

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 (0% = top; 100% = button). This parameters are configured the blind height and slat position. If the “Forced operation (1bit/2bit)” is selected “activated (1bit)”, “Position height/slat in [0…100]” parameters are visible.

  • Page 54: A/B - Scene

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Height and slat position status The blind position of the output can be reported to the KNX bus. The communication object value is 0 to upper (%0) position of blind. The communication object value is 255 to lower (%100) position of blind.

  • Page 55: Valve Control

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.6 Valve Control 4.6.1 A/B – Control Input HVAC system *one control four pipe with switch two control two pipe two control two pipe with switch two control four pipe This parameter is used to select the fan coil pipe system for valve operations.
  • Page 56 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Operation HEATING/COOLING after *unchanged bus return bus voltage recovery heating cooling This parameter is used to select reaction after bus voltage recovery. Object value for HEATING the object “Toggle HEATING/COOLING”...

  • Page 57: A - Valve General

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.6.2 A – Valve General Valve control *two point on/off three point open/close This parameter can be used to select the properties of valve type. Valve contact type *normally open normally closed The valves of a switching output can be parameterized as normally closed or normally open.
  • Page 58 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 This parameters are configured the blind height and slat position. Value control duration from 0…100% 0…*180…6000 in s[10…6000] With this parameter, a time is set in seconds that the connected valve requires to move from position 0 % (valve closed) to position 100 % (valve fully open).

  • Page 59: A - Function

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.6.3 A – Function Enable communication object “Block” 1 bit A channel can be blocked for further operations by its blocking object. While valve is moving, block object is activated the valve finished its move.
  • Page 60 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 This parameter determines the valve position after forced operation activates. Enable communication object “Valve position status” 1 bit 1 byte This parameter is select sends/responds the actual value of the valve percentage. The valve status object is sent as soon as possible after the control value is received.

  • Page 61: A - Limit

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.6.4 A – Limit Min. limit of control value *0…100 % [0…100] The parameter adjust the minimum limit of the control value. Min. limit of valve position *0…100 % [0…100] The parameter adjust the minimum limit of the valve position.

  • Page 62: Fan Coil

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 4.7 Fan Coil 4.7.1 Select valve with working *valve A/B valve C/D valve E/F valve G/H valve I/J This parameter is used to select valve channel working with automatic mode. Selected valve channel control value input object also used for fan level in the automatic mode.
  • Page 63 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 step switch This parameter can be used to select the properties of fan. Please look the fan technical data. ▪ Set the parameter to “changeover switch”; In this mode delay between two fan speeds. This delay time can be configured via delay between fan speed switching in ms [50…5000] parameter.

  • Page 64: A/B1 - Status Message

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 This parameter can be enabled the direct control. Direct control meaning is control via direct communication object. Starting characteristic of fan This parameter enables the fan to start from the OFF state with a defined fan speed. The fan can be switched on temporarily to a defined switch-on level.
  • Page 65 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 The data format for the fan level feedback is defined as 1 bit. Separate objects are defined separately for each fan level. When the fan level is changed, the actuator updates and transmits only the object values that change.

  • Page 66: A/B1 - Automatic Operation

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Send object type after a change after request after change or request This parameter defines the object send type. 4.7.3 A/B1 - Automatic Operation Object value “automatic ON/OFF” switch on to automatic...

  • Page 67: A/B1 - Direct Mode

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Minimum dwell period in fan speed *0…65535 In s [0…65535] This parameter defines the dwell time for a fan speed of the fan until it switches to the next higher or lower fan speed.

  • Page 68: Function Chart

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 5 Function Chart The following schematic indicates the function sequence. The functions are processed. Communication object enter the left side. Same box meaning same priority. ©EAE Technology www.eaetechnology.com Page 67 / 80...

  • Page 69: General Object Description

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 6 Object Description 6.1 General Object Description Object name Name DTP Type Length Flags In operation General DPT 1.002 1 bit You use this object to report device still alive and contacted the KNX line. Telegram value is select ON/OFF.

  • Page 70: Input Object Description

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Rain alarm Frost alarm Active weather sensors can be monitored cyclically. The device expects a telegram from sensor within the cycle time. If the telegram doesn’t receive within the cycle time or the value 1 is received, the blinds are moved to parameterized position.
  • Page 71 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 An adjustment can be made as to whether a value telegram is to be sent as a reaction to a short and / or long button press action when a push button is pressed or released. Additionally, it is possible to configure whether the value associated with the long button press action is sent via a second object.

  • Page 72: Switch Object Description

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 An adjustment can be made as to whether a value telegram is to be sent as a reaction to a short and / or long button press action when a push button is pressed or released. Additionally, it is possible to configure whether the value associated with the long button press action is sent via a second object.
  • Page 73 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 This object is ; 0 = relay OFF position 1 = relay ON position Enable staircase function Output A1 DPT 1.003 1 bit This object is used to activation of the staircase function. This object is enabled, the staircase function is activated.

  • Page 74: Blind Object Description

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 The object is; 0 = do nothing 1 = trigger 6.4 Blind Object Description Move blind/shutter up-down Output A DPT 1.008 1 bit When the telegram is received from bus, blind is moved to the direction (the value 0 or 1) of movement of the set time.
  • Page 75 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 … = lower end position %100 Move slats 0…255 Output A DPT 5.001 1 byte If the device is received this communication object, the slats are moved to the desired position.
  • Page 76 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 0 = operation enable 1 = operation disable Forced operation 1 bit Output A DPT 1.003 1 bit CWTU If the telegram is received (value 1), the blind is moved to parameterized position and the blind is locked for the movement command.

  • Page 77: Valve Object Description

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 1 = the blind is in upper end position Status lower end position Output A DPT 1.011 1 bit The blind is reached the lower end position, the device sends information.

  • Page 78: Fan Object Description

    Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Trigger valve purge Valve HEATING DPT 1.017 1 bit Valve COOLING This object is use to triggered the valve purge. 0 : end of valve purge 1: start of valve purge...
  • Page 79 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 1 : fan ON Fan speed UP/DOWN DPT 1.007 1 bit This object is used to switched one fan speed further up or down via 1-bit telegram. 0 : fan speed DOWN...
  • Page 80 Product Manual RCXXYY EAE KNX Room Control Unit RCXXYY PM R3.0 Status automatic DPT 1.003 1 bit The object indicates the status of the automatic mode. 0 : inactive 1 : active ©EAE Technology www.eaetechnology.com Page 79 / 80...
