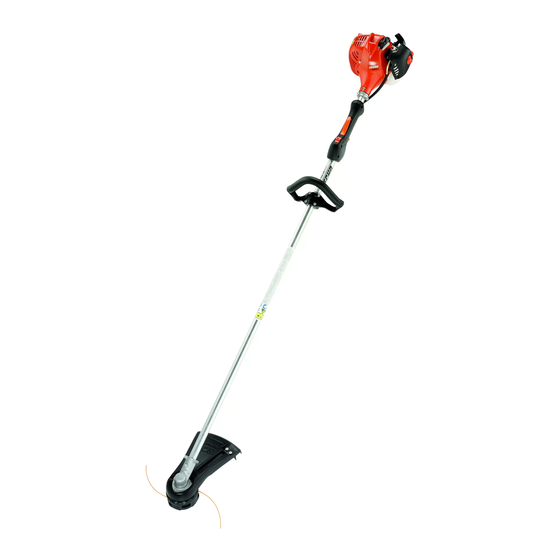

Echo SRM-225 - SERIAL NUMBER S04011001001-S04011999999 Parts Catalog

21.2cc s/n: s04011001001-s04011999999
Hide thumbs Also See for SRM-225 - SERIAL NUMBER S04011001001-S04011999999:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Parts Catalog
OPTIONAL ATTACHMENTS & ACCESSORIES
Accessories
99944200200
SRM Shoulder Harness Kit
99944200202
Heavy-Duty Brushcutter Harness
99944200435
U-Handle Kit
99944200445
U-Handle/Shield Kit
99944200455
Barrier Bar
SRAC-200
Tiller/Cultivator Attachment
Cutting Heads
21560031
SRM ECHOmatic Pro Head
21560050
SRM ECHOmatic Head
21560056
2-Line Rapid Loader Trimmer Head
21560060
SRM Manual Dual Line Head
99944200220
Heavy Duty Fixed Line Head
99944200900
U-Turn Head
Maintenance and Repair Kits
90074
RePower Tune-Up Kit
P021015980
Gasket Kit
2011 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved
PARTS CATALOG
SRM-225 Trimmer
REFERENCE
MODEL:SERIAL NUMBERS
SRM-225:
S/N: S04011001001 - S04011999999
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047 USA
WWW.ECHO-USA.COM
21.2cc
99922200776
REVISED 02/28/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRM-225 - SERIAL NUMBER S04011001001-S04011999999 and is the answer not in the manual?

Questions and answers

Related Manuals for Echo SRM-225 - SERIAL NUMBER S04011001001-S04011999999

Summary of Contents for Echo SRM-225 - SERIAL NUMBER S04011001001-S04011999999

  • Page 1 U-Turn Head Maintenance and Repair Kits 90074 RePower Tune-Up Kit P021015980 Gasket Kit ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, Illinois 60047 USA WWW.ECHO-USA.COM 99922200776 REVISED 02/28/11 2011 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved...

  • Page 2: Table Of Contents

    Table of Contents Part Number Index Table of Contents Click Any Diagram Description Below To View That Diagram. SRM-225 S/N: S04011001001 - S04011999999 Engine Cover, Starter..............................4 Fuel System..................................6 Intake....................................8 Carburetor -- RB-K93..............................10 Exhaust...................................12 Fan Case, Clutch................................14 Ignition....................................16 Engine, Short Block -- SB1096.............................18 U-Turn Head...................................20 Plastic Shield.................................22 Gear Case..................................24...
  • Page 3 This Page Intentionally Left Blank - 3 -...

  • Page 4: Engine Cover, Starter

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Engine Cover, Starter 99922200776 - 4 - REVISED 02/28/11...

  • Page 5: Spring, Damper

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Engine Cover, Starter ITEM PART NUMBER DESCRIPTION REMARKS V805000150 SCREW - 5X16 -- TORX V805000000 SCREW - 5X16 -- TAPPING V805000000 SCREW - 5X16 -- TAPPING V805000160 SCREW - 5X20 90060300005 WASHER 5.5X12X0.8 V804000060 BOLT - 4X16 -- TORX...

  • Page 6: Fuel System

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Fuel System 99922200776 - 6 - REVISED 02/28/11...

  • Page 7: Tank, Fuel

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Fuel System ITEM PART NUMBER DESCRIPTION REMARKS V805000160 SCREW - 5X20 90060300005 WASHER 5.5X12X0.8 A350000780 TANK, FUEL INCLUDES ITEM 4 V353000231 COLLAR V137000030 GROMMET 13201309820 RETAINER, PIPE A356000030 VENT ASY V471001210 PIPE - 3X5X90 13201256030 PIPE, RETURN - 3X6X80...

  • Page 8: Intake

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Intake 99922200776 - 8 - REVISED 02/28/11...

  • Page 9: Shield, Intake

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Intake ITEM PART NUMBER DESCRIPTION REMARKS V299000250 THUMBSCREW A232000480 COVER, AIR CLEANER A226001410 FILTER, AIR - DOUBLE LAYER 13031054130 FILTER, AIR - SINGLE LAYER V805000100 SCREW - 5X65 -- TORX 90050000005 12901152730 PLATE, PREVENT P021012870...
  • Page 10 Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Carburetor -- RB-K93 99922200776 - 10 - REVISED 02/28/11...

  • Page 11: Screw, Purge Base

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Carburetor -- RB-K93 ITEM PART NUMBER DESCRIPTION REMARKS A021001690 CARBURETOR -- RB-K93 12534413931 SCREW 12534452130 SCREW P005001240 SWIVEL P005000190 RING, RETAINING P005000100 SCREW, IDLE ADJUST P005002050 ROTOR COVER ASY P005000280 O-RING P005001270 CAP, LIMITER P005001260...

  • Page 12: Exhaust

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Exhaust 99922200776 - 12 - REVISED 02/28/11...

  • Page 13: Shield, Exhaust

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Exhaust ITEM PART NUMBER DESCRIPTION REMARKS V804000080 SCREW - 4X8 -- TORX A313000580 GUIDE, EXHAUST 14586642031 GASKET, EXHAUST 14586240630 SCREEN, SPARK ARRESTER V805000190 SCREW - 5X55 90060000005 WASHER 14580642030 MUFFLER ASY V104000850 SHIELD, EXHAUST V805000150...

  • Page 14: Fan Case, Clutch

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Fan Case, Clutch 99922200776 - 14 - REVISED 02/28/11...
  • Page 15 Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Fan Case, Clutch ITEM PART NUMBER DESCRIPTION REMARKS V805000160 SCREW - 5X20 61092227432 HOLDER, MAIN PIPE - UPPER 61092355230 HOLDER - LOWER 61091055230 CUSHION V804000060 BOLT - 4X16 -- TORX P021015560 FAN CASE ASY INCLUDES ITEMS 7-11 V622000020...

  • Page 16: Ignition

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Ignition 99922200776 - 16 - REVISED 02/28/11...

  • Page 17: Spark Plug -- Bpm-8Y

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Ignition ITEM PART NUMBER DESCRIPTION REMARKS V804000070 SCREW - 4X20 -- TORX A411000130 COIL, IGNITION V475004160 TUBE, INSULATOR A426000010 TERMINAL, SPARK PLUG CAP A427000013 CAP, SPARK PLUG 15901019830 SPARK PLUG -- BPM-8Y A425000000 SPARK PLUG -- BPMR-8Y V485001120...
  • Page 18 Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Engine, Short Block -- SB1096 99922200776 - 18 - REVISED 02/28/11...

  • Page 19: Seal, Oil

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Engine, Short Block -- SB1096 ITEM PART NUMBER DESCRIPTION REMARKS SB1096 SHORT BLOCK -- SB1096 INCLUDES ITEM 2-20 90016205022 SCREW - 5X22 A130000540 CYLINDER V100000160 GASKET, CYLINDER P021007712 PISTON KIT INCLUDES ITEMS 6-9 A101000090 RING, PISTON 10001311520...

  • Page 20: U-Turn Head

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE U-Turn Head 99922200776 - 20 - REVISED 02/28/11...

  • Page 21: Spool

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE U-Turn Head ITEM PART NUMBER DESCRIPTION REMARKS X047000410 U-TURN HEAD USE .095" DIAMETER TRIMMER LINE 215601 BOLT, SHAFT X470000160 HOUSING INCLUDES ITEM 3 X475000040 EYELET INCLUDES 2 PER PACKAGE V450000660 SPRING X471000040 DRIVE, OUTER X471000050...

  • Page 22: Plastic Shield

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Plastic Shield 99922200776 - 22 - REVISED 02/28/11...

  • Page 23: Shield, Debris - Plastic

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Plastic Shield ITEM PART NUMBER DESCRIPTION REMARKS P021015660 PLASTIC SHIELD KIT INCLUDES ITEMS 2-7 V805000150 SCREW - 5X16 -- TORX C552000110 PLATE, SHIELD V835000010 SCREW - 5X12 69901644330 CUTTER, LINE 90050000005 C550000031 SHIELD, DEBRIS - PLASTIC 99922200776...

  • Page 24: Gear Case

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Gear Case 99922200776 - 24 - REVISED 02/28/11...

  • Page 25: Washer

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Gear Case ITEM PART NUMBER DESCRIPTION REMARKS P021015610 GEAR CASE ASY INCLUDES ITEMS 2-19 V805000170 SCREW - 5X25 61023904130 WASHER, SHIM V805000130 SCREW - 5X10 90060500005 LOCKWASHER - 5 90060000005 WASHER 90070200022 RING, RETAINING - 22 90070600010...

  • Page 26: Main Pipe Assembly, Driveshaft

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Main Pipe Assembly, Driveshaft 99922200776 - 26 - REVISED 02/28/11...

  • Page 27: Stopper

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Main Pipe Assembly, Driveshaft ITEM PART NUMBER DESCRIPTION REMARKS C050001090 MAIN PIPE ASY INCLUDES ITEMS 2-6 61024644730 STOPPER 61021744730 LINER - FLEXIBLE X505002500 LABEL - CAUTION X505001930 LABEL - HANDLE LOCATION 89015204930 LABEL - ALIGNMENT 61001344730...

  • Page 28: Front Handle

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Front Handle 99922200776 - 28 - REVISED 02/28/11...
  • Page 29 Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Front Handle ITEM PART NUMBER DESCRIPTION REMARKS P021015630 FRONT HANDLE ASY INCLUDES ITEMS 2-8 V805000050 SCREW - 5X30 35123266230 BRACKET, HANDLE - UPPER C423000300 BRACKET, HANDLE - LOWER V805000010 SCREW - 5X20 -- TAPPING 90060000005 WASHER 35120566230...

  • Page 30: Control Handle, Control Cable Assembly

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Control Handle, Control Cable Assembly 99922200776 - 30 - REVISED 02/28/11...

  • Page 31: Spring, Lever Return

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Control Handle, Control Cable Assembly ITEM PART NUMBER DESCRIPTION REMARKS P021015640 CONTROL HANDLE ASY INCLUDES ITEMS 2-3 V804000020 SCREW - 4X20 -- TAPPING V805000160 SCREW - 5X20 V495000680 CLAMP C453000151 LOCKOUT, TRIGGER C460000050 LEVER, THROTTLE LOCKOUT V452000240...

  • Page 32: Labels

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Labels 99922200776 - 32 - REVISED 02/28/11...
  • Page 33 REMARKS X532000671 LABEL - SPARK PLUG -- BPM-8Y X532000720 LABEL - SPARK PLUG -- BPMR-8Y X505002310 LABEL - CAUTION -- HOT X502000330 LABEL - ECHO 89012152730 LABEL - CHOKE 89033252730 LABEL - CHOKE X547001300 LABEL - MODEL -- SRM-225 X547001530...

  • Page 34: Tools

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Tools 99922200776 - 34 - REVISED 02/28/11...

  • Page 35: Screwdriver - Cross -- 50Mm

    Table of Contents Part Number Index SRM-225 Trimmer REFERENCE Tools ITEM PART NUMBER DESCRIPTION REMARKS 89541010630 WRENCH, W/SCREWDRIVER 17X19mm X602000020 SOCKET WRENCH/SCREWDRIVER 17X19mm 89541039131 SOCKET WRENCH/SCREWDRIVER 10X19mm 89541006960 WRENCH, W/SCREWDRIVER 13X19mm X602000031 SOCKET WRENCH -- 17X14.5mm 17X14.5mm 89511200330 SPANNER 8X10 8X10mm 89512220960 OPEN END WRENCH...

  • Page 36: Part Number Index

    Table of Contents Part Number Index Part Number Index Click The Page Number After Any Part Number To View The Diagram Containing That Part. Part Number Page Part Number Page Part Number Page ------------------ ..... 9, 11, 19 90070600010 .... V104000850 ....

  • Page 37: Part Description Index

    LABEL - CAUTION -- HOT..33 ROPE, STARTER - 3X700..5 CUSHION..15 LABEL - CHOKE..33 ROTOR COVER ASY..11 CUTTER, LINE..23 LABEL - ECHO..33 CYLINDER..19 LABEL - HANDLE LOCATION..27 LABEL - MODEL -- SRM-225..33 LABEL - MODEL -- SRM-225i..33 SCREEN, SPARK ARRESTER..13 LABEL - MODEL -- SRM-225SB..33 SCREW..5, 11...
  • Page 38 Table of Contents Part Number Index Part Description Index (continued) SCREW, PURGE BASE..11 SCREW, PURGE BULB RETAINER..11 SCREWDRIVER - CROSS -- 50mm..35 SCREWDRIVER - SLOT -- 125mm..35 SEAL, OIL..19 SHIELD, DEBRIS - PLASTIC..23 SHIELD, EXHAUST..13, 19 SHIELD, INTAKE..9, 19 SHORT BLOCK -- SB1096..19 SOCKET WRENCH -- 17X14.5mm..35 SOCKET WRENCH/SCREWDRIVER..35 SPACER, PISTON PIN..19...
  • Page 39 NOTES 99922200776 - 39 - REVISED 02/28/11...
  • Page 40 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 USA WWW.ECHO-USA.COM...
