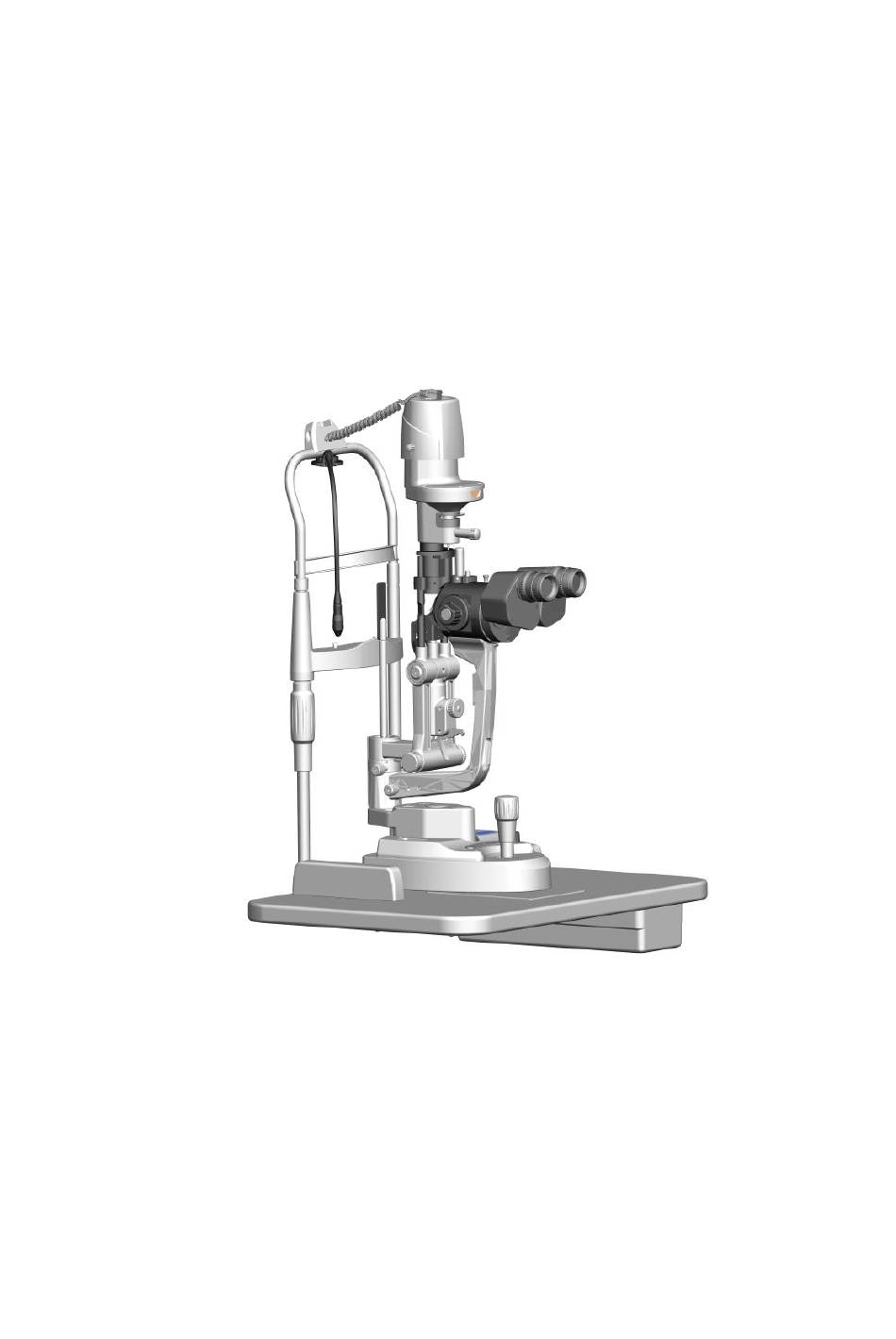

- Page 1 USER MANUAL Slit Lamp Microscope Model: S360/S360S/S390L...
- Page 2 Slit Lamp Microscope USER MANUAL Content Preface ............................1 General Description ........................1 EMC precautions: ........................5 1 Graphical description of each part of the slit lamp microscope ..........11 2 Installation ..........................14 2.1 Check List .......................... 14 2.2 Slit lamp microscope installation procedure ..............16 2.3 S390L digital module installation procedure ..............
- Page 3 Slit Lamp Microscope USER MANUAL Preface Thank you for purchasing MediWorks’ product - Slit Lamp Microscope. The following is the description and specification of our product: General Description This operation instruction is an integral part of the Slit Lamp Microscope.
- Page 4 Slit Lamp Microscope USER MANUAL (22.3mm), 6.3X (36.2mm) Slit Illumination Slit width: Continuously variable from 0 to 14mm (at 14mm, slit becomes a circle) Slit length: Continuously variable from 1mm to 14mm Lamp: 3V/3W LED module Slit angle: 0-180 (Adjustable both vertical and horizontal) Slit inclination 4 step:...
- Page 5 Slit Lamp Microscope USER MANUAL Air pressure: 860hpa～1060hpa Transportation Environment Temperature: -40℃～+55℃ Relative humidity: ≤90% Air pressure: 860hpa～1060hpa Attentions! Dear customers, we provide one-year free warranty service to receive the "Product Warranty Card" for confirmation. The warranty card is attached with this manual. Please fill in the "Product Warranty Card"...
- Page 6 Slit Lamp Microscope USER MANUAL 6 Before using the instrument, please check all the wires are correctly connected; if the wires are inappropriately connected it may cause the instrument to be short-circuited, which may cause the product is damaged and personal injury. 7 Users should pay attention when using the instrument, and be careful when moving the parts to avoid damage due to the moving of the base and tilting of the projection tube.
- Page 7 Slit Lamp Microscope USER MANUAL Catalogue number / part number Serial Number Located on the base, indicate outlet of the Output power Located on the base, indicate input of the Input power Located on the base, use with on and off USA Federal law restricts this device to sale by or on the order of a physician The mark of light dimmer...
- Page 8 Slit Lamp Microscope USER MANUAL this EN 60601-1-2:2007+AC:2010/IEC 60601-1-2 standard for both immunity and emissions. Nevertheless, special precautions need to be observed: The use of accessories and cable other than those specified, with the exception of accessories and ● cables sold of Slit Lamp Microscope as replacement parts for internal components, may result in increased EMISSIONS or decreased IMMUNITY or decreased LIFESPAN of the Slit Lamp Microscope Slit Lamp Microscope should not be used adjacent to or stacked with other equipment.
- Page 9 Slit Lamp Microscope USER MANUAL to earth Voltage dips, short <5% U <5% U Mains power quality should be that of a interruptions (>95% dip in U (>95% dip in typical commercial hospital voltage variations on For 0,5 cycle environment. If the user of Slit Lamp power supply input 40% U...
- Page 10 Slit Lamp Microscope USER MANUAL (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with following symbol: Recommended separation distances between portable and mobile RF communications equipment and the ME...
- Page 11 IEC 60601-1Standard. The following table lists the tips for your reference. Table two: Content Instructions Manufacturer/ supplier Shanghai MediWorks Precision Instruments Co., Ltd Figure /icon/ mark Detail in table one Connect to main power Detail in power specification Power frequency, Hz...
- Page 12 Slit Lamp Microscope USER MANUAL Please refer to "General Description" 2 Installation of the instrument and working condition Slit lamps are network powered medical instrument. Please check pert the checking list after opening the carton and install the instrument according to this user manual. Test and ensure the instrument operating well before putting to use.
- Page 13 Slit Lamp Microscope USER MANUAL 1 Graphical description of each part of the slit lamp microscope...
- Page 14 Slit Lamp Microscope USER MANUAL Slit Lamp Base Brightness Control knob The brightness can be adjusted continuously. Avoid working continuously at high setting, as the service life of the bulb will be shortened. Joystick Incline joystick to move the instrument slightly on the horizontal surface and rotate it to adjust the elevation of the microscope.
- Page 15 Slit Lamp Microscope USER MANUAL 10 The mark of relative angle between the microscope and illumination unit. 11 Magnification Changer Five different magnifications are provided. 12 Binocular tubes base Open it to both sides and adjust to the appropriate distance for easy observation.
- Page 16 Apply to S390L Mediview Image System. 2 Installation This section of the manual describes how to assemble the S360/S360S /S390L slit lamp. All parts should be taken out with great care from the packing case before assembling. 2.1 Check List Name Qty.
- Page 17 Slit Lamp Microscope USER MANUAL 2mm Wrench User Manual Packing List Digital Module Set (for S390L) Diagram 34 Table 1 Figures: Wooden tabletop Microscope part Metal plate Rail cover Chin-rest Gas shield Binocular tubes part...
- Page 18 Slit Lamp Microscope USER MANUAL Focusing test 2.2 Slit lamp microscope installation Connect two white connectors under 4． procedure tabletop, Turn on and press Up & Down switch to check whether the instrument 2.2.1 Instrument table installation table is normal.(Fig.2.2.3). Open the carton, take out the tools like screw driver and spanner.
- Page 19 Slit Lamp Microscope USER MANUAL connect with metal plate. 2．Take out the binocular tubes part, put the gas shield on the cylindrical surface of the binocular tubes, and then match the groove on the binocular tubes with the pin on the microscope body. Fasten the fixing screw on the body to the microscope Three screws (Fig.2.2.7).
- Page 20 Slit Lamp Microscope USER MANUAL splitter to the right to the position could lock microscope; power adapter splitter. Then put the gas shield on the connected to the “Input” on the base of cylindrical surface of the binocular tubes, and the slit lamp microscope.
- Page 21 Slit Lamp Microscope USER MANUAL 2.Power Plug Description Fig.2.2.11 USB3.0 host Power input interface Power output USB2.0 slave USB3.0 slave interface interface 3.Refer to Figure 2.2.12the 4-pin aviation plug of the bracket is connected to the “Output” on the base of the slit lamp; the power adapter is connected to the “Input” on the base of the slit lamp microscope.
- Page 22 Slit Lamp Microscope USER MANUAL AC100V-240V Fig.2.2.12 Host Computer Power Cable Computer USB Cable Light Source Cable Digital Module USB Cable...
- Page 23 Slit Lamp Microscope USER MANUAL 2.4 Checking Program 1．The power cord of this instrument is a three-core power cord. Please select a suitable power socket to match it. Fig2.4.3 2．Insert the focusing test rod and turn the slit width control knob (see Figure 2.4.1). The illumination spot should be observed Zoom knob on the black plane of the focusing test rod.
- Page 24 Slit Lamp Microscope USER MANUAL Adjust the other eyepiece in the same way; 3. Record the diopter value on each eyepiece for future reference. The flat faces the microscope Diopter adjustment Insert the test rod circle into the hole Figure3.1.3 Figure3.1.1 4.
- Page 25 Slit Lamp Microscope USER MANUAL position, turn the fixation rod up and down or left and right to obtain the desired fixation target position (see Figure Joystick 3.2.1). Clockwise to raise, counterclock Fig3.3.1 wise to lower Headrest Lock the base. After the microscope is adjusted, tighten the base locking screw Fixation light (see Figure 3.3.2) to fix the base so that it...
- Page 26 Slit Lamp Microscope USER MANUAL reading window (see Figure 3.4.2). Aperture and slit height and display Fig3.4.2 Reset knob window Filter selection lever Aperture and slit height control knob Figure3.4.4 5. Tilt the illumination light. When using a contact lens and using a slit section view 3.
- Page 27 Slit Lamp Microscope USER MANUAL Pull up the Filter selection pole lever Figure3.4.6 7. From left to right: white filter, heat absorbing filter, light reduction filter, Figure 3.5.2 red-free filter, cobalt blue filter. The white film is only used when the factory is calibrated, and the operator does not have to use it.
- Page 28 Slit Lamp Microscope USER MANUAL the surface should be damaged. operation and diagnosis. 2．During the use of the operator, the different scales and different indication marks corresponding to the various Objective knobs at different positions should be lens observed clearly, to prevent unnecessary misjudgments during observations.
- Page 29 Slit Lamp Microscope USER MANUAL the horizontal and vertical movement of moving base. However, recommend that you clean the above Pull upward parts with a clean soft cloth every 6 months better positioning positioning. 3．For chin-rest, plastic parts such as Fig.4.1.3 headrest straps: Cycle: It is recommended to do it once a...
- Page 30 Slit Lamp Microscope USER MANUAL 5.2.2 Illumination system tilt installed, the protective cover can be removed adjustment (see Figure 5.1.1). If the parts of illumination system are too loose, use a hex driver to tighten the screws on both sides (see 5.2.2). Protective cover Figure5.1.1 5.2 Maintenance...
- Page 31 Slit Lamp Microscope USER MANUAL 3 Move the rail cover in the direction of the arrow shown 4 If the mid cover area is detached , the disassembly is successful. 5 The false example one 6 The false example one...
- Page 32 Slit Lamp Microscope USER MANUAL 6 Trouble shooting In case there is any trouble, please check according to the following table for reference. If it still Error Possible Cause Solution The power cord is not properly Connect the power cord correctly. connected to the power outlet.
- Page 33 Slit Lamp Microscope USER MANUAL Service Life： 8 years Version: 1.5 20220805 Shanghai MediWorks Precision Instruments CO., Ltd. No.7, MingPu Phase II, No.3279 SanLu Road, MinHang District, Shanghai, China Tel: 0086-21-54260421; Fax: 0086-21-54260425 Email: international@mediworks.biz www.mediworks.biz Company Name: Share Info GmbH Company Address: Heerdter Lohweg 83, 40549 Düsseldorf.
