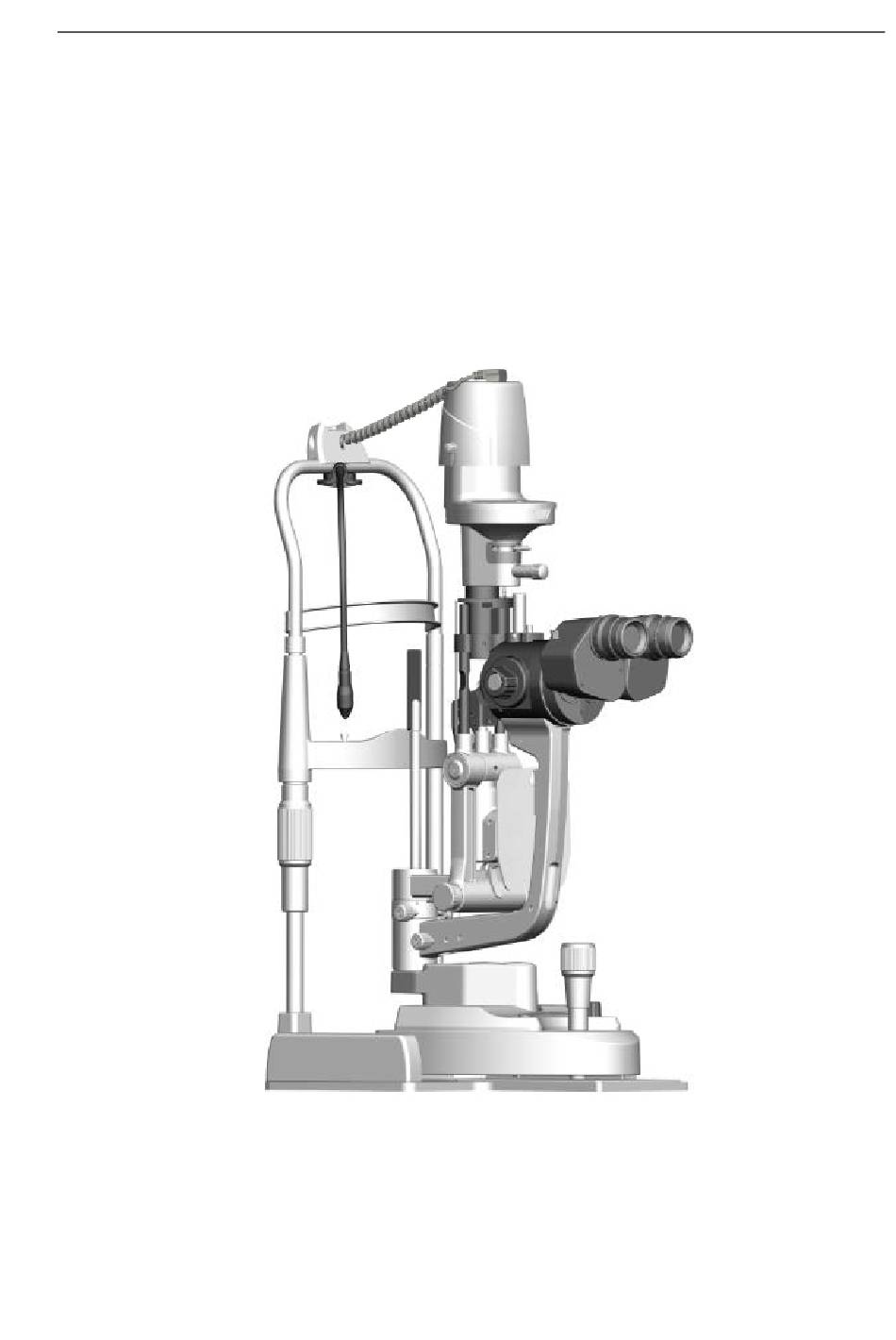

- Page 1 USER MANUAL Slit Lamp Microscope Model: S360/ S390L WDR...
-
Page 2: Preface
Slit Lamp Microscope USER MANUAL Preface Thank you for purchasing Slit Lamp Microscope. The following is the description and specification of our product: General Description This operation instruction is an integral part of the Slit Lamp Microscope. Product-related operation instructions and technical instructions are given in this manual. -
Page 3: Attentions
Slit Lamp Microscope USER MANUAL Build-in Yellow Filter 14mm, 10mm, 5mm, 3mm, 2mm, Aperture diameters: 1mm, 0.2mm 150klx Luminance: Base Longitudinal movement: 115mm Lateral movement: 110mm Fine base movement: 15mm Vertical movement: 30mm Chin-Rest Vertical movement 80mm Power Supply Box: Input: 100~240V, 50/60Hz Rated current:... - Page 4 Slit Lamp Microscope USER MANUAL General Requirements for Safety Dear customers, please read the instruction manual carefully before using our products to avoid accidental mechanical hazards and improper use of the user, resulting in unclear images and diagnostic errors. In particular, carefully read the following safety precautions to prevent the product is damaged, personal injury, and other hazards and accidents that may occur.
-
Page 5: Emc Precautions
Nonshielded 1 Set AC Power DC Power cable 1.36 m Nonshielded 1 Set DC Power DC Power cable for S360 /S390L WDR 0.7 m Nonshielded 1 Set DC Power USB cable for S360 /S390L WDR 0.3 m shielded 1 Set... - Page 6 EMISSIONS or decreased IMMUNITY or decreased LIFESPAN of the Slit Lamp Microscope S360/ S390L WDR. ● Slit Lamp Microscope S360/ S390L WDR should not be used adjacent to or stacked with other equipment. In case adjacent or stacked use is necessary, The Slit Lamp Microscope S360/ S390L WDR should be observed to verify normal operation in the configuration in which it will be used.
- Page 7 Table 3: Guidance and manufacturer’s declaration – electromagnetic immunity The S360/ S390L WDR is intended for use in the electromagnetic environment specified below. The customer or the user of the S360/ S390L WDR should assure that it is used in such an environment. Immunity test...
- Page 8 Recommended separation distances between portable and mobile RF communications equipment and the S360 /S390L WDR The S360/ S390L WDR is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the S360 /S390L WDR can help prevent...
- Page 9 Slit Lamp Microscope USER MANUAL Manufacturer/ supplier Shanghai MediWorks Precision Instruments Co., Ltd Figure /icon/ mark Detail in table one Connect to main power Detail in power specification Power frequency, Hz Detail in power specification Input power frequency Detail in power specification...
- Page 10 Slit Lamp Microscope USER MANUAL 3 Component list 3.1 Component list The following electronic components are used in this instrument. Table three: Component name 15V/4A DC power adaptor Control circuit board Brightness adjustment potentiometer Power switch with indicator Photo shooting button USB port 3 pin input aviation connector 4 pin output aviation connector...
-
Page 11: Table Of Contents
1 Graphical description of each part of the slit lamp microscope ..................11 2 Installation ..................................14 2.1 Check List ................................... 14 2.2 S360 installation procedure ............................15 2.3S390L Digital Module Set installation procedure ......................17 2.4 Checking Program ..............................20 3 Operation procedure .............................. -
Page 12: Graphical Description Of Each Part Of The Slit Lamp Microscope
Slit Lamp Microscope USER MANUAL 1 Graphical description of each part of the slit lamp microscope 11 / 29... - Page 13 Slit Lamp Microscope USER MANUAL Metal plate Brightness control knob The brightness can be adjusted continuously. Avoid working continuously at high setting, as the service life of the bulb will be shortened. Joystick Incline joystick to move the instrument slightly on the horizontal surface and rotate it to adjust the elevation of the microscope.
- Page 14 Slit Lamp Microscope USER MANUAL 11 Magnification changer Five different magnifications are provided 12 Binocular tubes base Open it to both sides and adjust to the appropriate distance for easy observation 13 12.5X Eyepieces 14 Yellow filter rod Pull up or press to switch the yellow filter 15 Slit movement platform Moving up and down to makes the slit opening and closing, and the lower scale shows the angle between the slit and the vertical direction.
-
Page 15: Installation
Apply to S390L Mediview Image System 2 Installation This section of the manual describes how to assemble the S360 /S390L WDR slit lamp. All parts should be taken out with great care from the packing case before assembling. 2.1 Check List Name Qty. -
Page 16: S360 Installation Procedure
Fig. 2.1.5 Fig.2.1.1 Fig.2.1.6 Fig.2.1.2 Fig.2.1.7 Fig.2.1.3 2.2 S360 installation procedure the three hole on head rest aim the screw hole of instrument table, re-tighten the Open the carton, take out the tools like 1． previously removed screw and make screw driver and spanner. - Page 17 Slit Lamp Microscope USER MANUAL Match here Three screws Fig.2.2.14 Take out the slit lamp part (Fig.2.1.1), put Fig.2.2.4 3． Place the gas shield directly on the gas it on the rails of the metal plate, check 5． shield screw (Fig.2.2.5) whether the wheels can move steadily on the rails.
-
Page 18: S390L Digital Module Set Installation Procedure
Slit Lamp Microscope USER MANUAL from 100V to 240V. The power switch (see Figure 2.2.7) can be turned on with one short-press, short-pressed again to hold, and long press for 3 seconds to turn off all power. Fig2.2.10 Power Switch Fig2.2.7 2.3S390L Digital... - Page 19 Slit Lamp Microscope USER MANUAL 2.Power Plug Description Fig.2.2.8 USB3.0 Host Power Input Interface Power Output USB2.0 Slave USB3.0 Slave Interface Interface 3.Refer to Figure 2.2.9, the 4-pin aviation plug of the bracket is connected to the ―Output‖ on the base of the slit lamp; the power adapter is connected to the ―Input‖ on the base of the slit lamp microscope.
- Page 20 Slit Lamp Microscope USER MANUAL 19 / 29...
-
Page 21: Checking Program
Slit Lamp Microscope USER MANUAL 2.4 Checking Program Fig2.4.2 1．The power cord of this instrument is a three-core power cord. Please select a suitable power socket to match it. Aperture and Slit Height and Display 2．Insert the focusing test rod (Fig. 2.1.7) Window and turn the slit width control knob (see Figure 2.4.1). -
Page 22: Operation Procedure
Slit Lamp Microscope USER MANUAL 3 Operation procedure Diopter compensation Pupillary distance adjustment Bright Dark 1. Use of focusing test rod Brightness The focusing test rod is provided as a adjustment knob standard accessory to determine the Figure3.1.2 correct adjustment of the microscope. Insert the focusing rod into the spindle 3. -
Page 23: Patient's Head Position And Use Of Fixation Target
Slit Lamp Microscope USER MANUAL are at the same height (see Figure 3.1.4). Headrest Tilt the Fixation light binocular tubes base on Chin-rest both sides Chin-rest Figure3.1.4 elevation adjustment Handle 3.2Patient's head position and use of fixation target 1. Place the patient's chin on the chin-rest, Figure3.2.1 with the forehead resting on the headrest 3.3 How to use moving base... -
Page 24: Operation Of Illumination System
Slit Lamp Microscope USER MANUAL length of the slit from 1 to 14 mm. The aperture data is displayed from the pupil reading window (see Figure 3.4.2). Joystick Clockwise to Aperture Slit lower, Height and Display counterclock Fig3.3.1 wise to raise Window Filter Selection Lock the base. -
Page 25: Digital Module Set Operation (S390L)
Slit Lamp Microscope USER MANUAL Filter Selection Reset Knob Lever Figure3.4.6 7. From left to right: white filter, heat Figure3.4.4 absorbing filter, light reduction filter, 5. Tilt the illumination light. When using a red-free filter, cobalt blue filter. The white contact lens and using a slit section view film is only used when the factory is fundus... -
Page 26: Operation Notes
Slit Lamp Microscope USER MANUAL 2． During the use of the operator, the different scales and different indication marks corresponding to the various Pull up the knobs at different positions should be pole observed clearly, to prevent unnecessary misjudgments during observations. 3．... -
Page 27: Cleaning Cycle
Slit Lamp Microscope USER MANUAL damaged. Pull upward Objective lens Figure4.1.3 Reflect Mirror 4.2 Cleaning cycle Figure 4.1.1 The slit lamp microscope should be used in a Cleaning the pad, rails, and shaft: If the 2． relatively clean environment, and the main pad, rails, and shaft are not clean, the parts that need to be cleaned are as specified horizontal and vertical movements will... -
Page 28: Protection And Maintenance
Slit Lamp Microscope USER MANUAL the horizontal and vertical movement of installed, the protective cover can be removed moving base. However, (see Figure 5.1.1). recommend that you clean the above Figure5.1.1 parts with a clean soft cloth every 6 Protective months better positioning and... -
Page 29: Rail Cover Removal Instructions
Slit Lamp Microscope USER MANUAL arrow shown loose, use a hex driver to tighten the screws on both sides (see 5.2.2). Screw 4 If the mid cover area is detached , the disassembly is successful. Fig5.2.2 5.2.3 Rail cover removal instructions 1 Place your hand on the rail cover 5 The false example one... -
Page 30: Trouble Shooting
The fixation lamp does The fixation lamp plug is loose. Tight fixed light plug. not work.. Version: 1.0 20200610 Shanghai MediWorks Precision Instruments Co., Ltd. No.7, MingPu Phase II, No.3279 SanLu Road, MinHang District, Shanghai, China Tel: 0086-21-54260421; Fax: 0086-21-54260425 Email: international@mediworks.biz www.mediworks.com.cn Company Name: Midwest Ophthalmic Services Company Address: Ballyloughane, Carrigkerry, Athea,Co.Limerick,Ireland.
