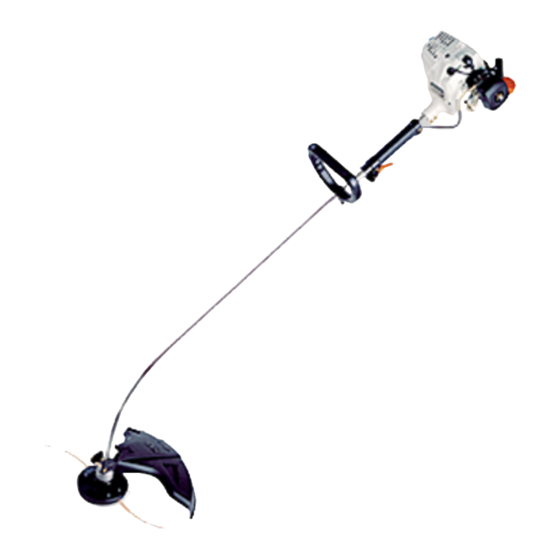

Grass Trimmer
Operator's Manual
MODEL
Read rules for safe operation and instructions carefully. ECHO provides an
Operator's Manual and a Safety Manual. Both must be read and understood for
proper and safe operation.
X7702277302
GT-200R
Serial Number 07003101 - 07999999
WARNING
DANGER
X770000702
11/03
Advertisement
Table of Contents
Related Manuals for Echo GT-200R - SERIAL NUMBER 07003101-07999999
Summary of Contents for Echo GT-200R - SERIAL NUMBER 07003101-07999999
- Page 1 MODEL GT-200R Serial Number 07003101 - 07999999 WARNING DANGER Read rules for safe operation and instructions carefully. ECHO provides an Operator's Manual and a Safety Manual. Both must be read and understood for proper and safe operation. X770000702 X7702277302 11/03...
-
Page 2: Table Of Contents
NTRODUCTION Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the- job-dependability. Read and understand this manual and the SAFETY MANUAL you found in the same package. You will find both easy to use and full of helpful operations tips and SAFETY messages. -
Page 3: Manual Safety Symbols And Important Information
If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific information. P/N 89016006361... -
Page 4: International Symbols
Shaft Decal P/N 89031744530 WARNING DANGER • This unit can be dangerous and cause serious injury if improperly used. To reduce injury risk to operator, helpers and bystanders, read and understand the Operator's and Safety manuals. • Blindness can occur from objects that are thrown or ricocheted even with shield in place. -
Page 5: Safety Instructions
Proper clothing and safety gear must be worn when operating a trimmer. Physical Condition Hearing Protection Your judgment and physical dexterity may not be good: ECHO recommends wearing hearing protection whenever • if you are tired or sick, unit is used. • if you are taking medication, •... -
Page 6: Equipment
Use only ECHO approved attachments. Serious injury may result from the use of a non approved attachment combi- nation. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and safety manual. -
Page 7: Emission Control
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. - Page 9 19. SAFETY VIDEO - (Not included with unit) P/N 99922202540 English version only is available at a cost of $5.00 from ECHO, INC. or any authorized ECHO dealer. The video overviews safety precautions and proper operating tech- niques and is supplemental to the Safety Manual. Read and understand the Safety Manual for complete information...
-
Page 10: Specifications
PECIFICATIONS MODEL ------------------------------------------ GT-200R Length -------------------------------------------- 1400 mm (55.1 in.) Width --------------------------------------------- 310 mm (12.2 in.) Height -------------------------------------------- 385 mm (15.2 in.) Weight (dry) w/Cutter Head ------------------- 4.1 kg (9.04 lb.) Engine Type ------------------------------------- Air cooled, two-stroke, single cylinder gasoline engine Bore ----------------------------------------------- 32.2 mm (1.27 in.) Stroke --------------------------------------------- 26.0 mm (1.02 in.) Displacement ------------------------------------ 21.2 cc (1.29 cu. -
Page 11: Assembly
RASS RIMMER PERATOR ANUAL SSEMBLY Tools Required: Locking Tools (2), Wrench 17 x 14.5 (9/16 in.) Parts Required: Rapid Loader Head, Large washer, Small washer, 3/8-24 Locknut, (2) Pre-cut Nylon Line 8 in. x .080 in., Plastic Shield Assembly WARNING DANGER Cut-off knife on debris shield has sharp edges. -
Page 12: Nylon Line Installation
NYLON LINE INSTALLATION 1. Shut engine off. Lay unit on the ground with head assembly up. 2. Remove old nylon line through center recess of head. 3. Thread new lines through outside holes (A) in housing until ends meet in center of recess. NOTE Insert cutting line ends to center of head recess to insure easy removal of used lines. -
Page 13: Pre-Operation
Echo premium Power Blend Universal 2-Stroke Oil may be mixed Storage - at 50:1 ratio for application in all Echo engines sold in the past Fuel storage laws vary by locality. Contact regardless of ratio specified in those manuals. your local government for the laws affecting your area. -
Page 14: Operation
PERATION STARTING COLD ENGINE WARNING DANGER The attachment will operate immediately when the engine starts and could result in loss of control and possible serious injury. Keep movable parts of the attachment off the ground and away from objects that could become entangled or thrown. 1. -
Page 15: Starting Warm Engine
The attachment should not move at idle, otherwise serious personal injury may result. NOTE If attachment moves, readjust carburetor according to “Carburetor Adjustment” instructions in this manual or see your ECHO Dealer. 1. Stop Switch Move stop switch (A) away from the STOP position 2. Primer Pump primer bulb (C) until fuel will be visible and flows freely in the clear fuel tank return line. -
Page 16: Maintenance
ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded. If the task is not listed see your Echo dealer for repairs. -
Page 17: Air Filter
RASS RIMMER PERATOR ANUAL AIR FILTER Level 1. Tools required: 25 or 50 mm (1 or 2 in.) Cleaning brush Parts required: 90008 REPOWER AIR & FUEL FILTER KIT. Close choke (Cold Start Position [ ]). This prevents dirt from entering the carburetor throat when the air filter is removed. -
Page 18: Spark Plug
SPARK PLUG Level 2. Tools Required: Spark Plug socket wrench and screw driver, feeler gauge, soft wire brush. Parts Required: Spark Plug, NGK BPMR-8Y P/N A425000000 Remove spark plug and check for fouling, worn and rounded center electrode. Clean the plug or replace with a new one. DO NOT sand blast to clean. -
Page 19: Exhaust System
RASS RIMMER PERATOR ANUAL IMPORTANT DO NOT use a metal scraper to remove dirt from the cylinder fins. Use the brush to remove dirt from the cylinder fins. Remove grass and leaves from the grid between the recoil starter and fuel tank. Assemble components in reverse order. -
Page 20: Carburetor Adjustment
The cylinder exhaust port must be inspected and cleaned of excess carbon every 3 months or 90 hours of operation in order to maintain this engine within the emissions durability period. ECHO strongly recommends that you return your unit to your ECHO dealer for this important maintenance service. CARBURETOR ADJUSTMENT... -
Page 21: Lubrication
RIMMER PERATOR ANUAL LUBRICATION Level 1. Tools Required: 8mm Open end wrench, screwdriver, clean rag. Parts Required: ECHO LUBE 8 oz. (P/N 91014) or Lithium Base ® Grease. Remove plastic shield. Loosen bearing housing locating screw (A), at the top of the housing, loosen mounting screw (B) and remove gear case from drive housing. -
Page 22: Troubleshooting
ROUBLESHOOTING r o t i a r i l l r o t r o t r e l i l y r o t r e l f f u r e l h t i r u t i l y r / n r i a... -
Page 23: Storage
RASS RIMMER PERATOR ANUAL TORAGE Long Term Storage (over 30 days) WARNING DANGER During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result. -
Page 24: Servicing Information
• Purchasing from your Echo Dealer. • Manuals are available by sending a written request stating the model number and serial number of your Echo unit, part number of the manual, your name and address, and mail to the address below.
