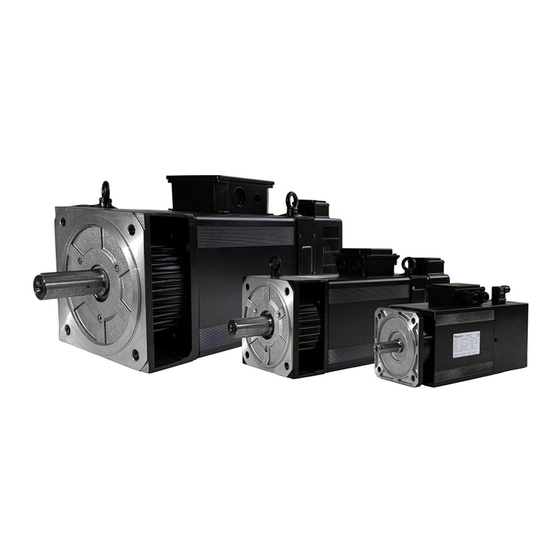

Installation, use and maintenance manual
vers. VT01.04.EN (09-2024)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT100 and is the answer not in the manual?

Questions and answers

Related Manuals for Brusatori VT100

Summary of Contents for Brusatori VT100

  • Page 1 Asynchronous motors for inverters vector controlled Installation, use and maintenance manual vers. VT01.04.EN (09-2024)
  • Page 2 User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 3 6.5 Overall dimensions – VT132 IP54 ......................... 32 6.6 Overall dimensions – VT132 IP23 ......................... 33 7. Electrical connections ..............................34 7.1 Safety Instructions ..............................34 7.2 Transducer (Encoder) ............................36 User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 4 EMC directive ..............................43 12.3 EU Declaration of Conformity .......................... 43 12.4 Quality management system ISO 9001: 2015 ....................43 12.5 UL/CSA Certificate of compliance (optional) ....................43 13. Contact ..................................43 User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 5 Read the entire manual carefully before carrying out any operation. This manual is available to the user and is valid for all Brusatori electric motors belonging to the VT series. Non-compliant behavior can cause serious damage to people or things.

  • Page 6: Symbols Used

    This document is intended for the machine manufacturer, not for the end user. The manufacturer of the machine in which the motor will be incorporated is responsible for providing the installation, use and maintenance manual to the end user. User’s manual - VT Series - vers. VT01.04.EN (09-2024)

  • Page 7: European Directives

    General rules 2.6 UL Certification On request OBJY2/8 Insulation system UL/CSA File E316823 On request NDMM* Insulation system UL/CSA File 247151 *Available for sizes 100 S/M/L/P and 132 S/M/L/P called VU User’s manual - VT Series - vers. VT01.04.EN (09-2024)

  • Page 8: Identification Plate

    The plate must always be visible on the motor and its removal is NOT permitted. Note: The appearance of the plates shown in this manual may differ from the real one. User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 9 Transducer type + transducer data Date Month / Year of production Ins. class Tipo trasduttore + dati trasduttore Rotor moment of inertia Reference standard Weight Motor weight Brake Type of brake (only if present) User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 10 2.9 Torque / Power Curve User’s manual - VT Series - vers. VT01.04.EN (09-2024)

  • Page 11: Technical Data

    The motor may only be used in the applications for which it was designed. The rated values and operating conditions are indicated on the motor plate, check before putting into service that the data correspond to those foreseen. User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 12 Radial force is applied to the center of the shaft for a bearing life of 20000 hours. The motors are mounted in IM B3 construction in a horizontal position. Warning: avoid axial shocks on the shaft during assembly. User’s manual - VT Series - vers. VT01.04.EN (09-2024)

  • Page 13: Ball Bearings

    Sinusoidal encoder 1Vpp – 1024 pul./turn Absolute single-turn encoder Multiturn absolute encoder Resolver 2 poles-7Vrms - rapp. Transformation 0.5 S: standard x: possible R: on request * Not available for motors with brake User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 14 540590 13201450 Prevalence 7080 8065 150150 350460 530670 Thermal overload Impedance Impedance Thermal Thermal Thermal protection Degree of fan IP20 IP20 IP54 IP44 IP44 IP55 protection Capacitor 1,5 µF 8 µF User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 15 Current consumption 0,132 0,77 0,090,11 0,380,48 Minimum distance for air inlet/outlet Flow 550640 14001500 Prevalence 375500 650850 Thermal overload Restart Impedance Thermal protection Degree of fan protection IP20 IP20 IP44 IP44 Capacitor User’s manual - VT Series - vers. VT01.04.EN (09-2024)

  • Page 16: Motor Holding Brake

    The vibration level is expressed in displacement and speed, using the suspension method and with no load applied. Axis height (mm) 71 < H ≤ 132 Vibration Shift Speed degree μm mm/s User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 17 The dimensions of the holes are according to the data shown in the table below: Motor Holes dimension VT 71 M20 x 1,5 VT 80 M20 x 1,5 VT 90 M20 x 1,5 VT 100 M32 x 1,5 VT 132 Ø40,5 + 2 x Ø20,5 User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 18 0,63 1,09 Nominal voltage 356* Current at rated power 2,16 3,75* 2,85 Torque at rated speed Maximum torque Maximum speed at constant power 4500 7000 5500 * Delta motor connection (Δ) User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 19 1,91 Nominal voltage 400* Current at rated power 2,79 5,22* 5,84 Torque at rated speed 7,79 Maximum torque Maximum speed at constant power 2600 4400 5000 * Delta motor connection (Δ) User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 20 4,74 Nominal voltage 400* Current at rated power 5,15 8,8* 10,3 Torque at rated speed 15,36 Maximum torque Maximum speed at constant power 2500 4350 5500 * Delta motor connection (Δ) User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 21 2820 Rated power Nominal voltage 400* Current at rated power 15,7* Torque at rated speed 28,7 Maximum torque Maximum speed at constant power 2700 4800 5400 * Delta motor connection (Δ) User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 22 13,0 16,4 18,5 20,7 Torque at rated speed 40,9 40,5 38,2 34,1 32,5 Maximum torque Maximum speed at constant power 1200 2250 3750 5400 6500 7000 * Delta motor connection (Δ) User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 23 Current at rated power 11,8 17,0 22,0 28,5 29,1 32,3 Torque at rated speed 72,1 68,3 62,9 59,7 53,4 49,2 Maximum torque Maximum speed at constant power 1450 2900 4850 6650 6700 6700 User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 24 2652 3150 Rated power Nominal voltage Current at rated power 26,3 35,2 46,2 57,8 67,9 Torque at rated speed Maximum torque Maximum speed at constant power 2800 3900 6400 6400 6400 User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 25 2653 3153 Rated power Nominal voltage Current at rated power 42,5 57,3 74,6 88,7 99,7 Torque at rated speed Maximum torque Maximum speed at constant power 2800 4200 5400 5400 5400 User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 26 2647 3146 Rated power Nominal voltage Current at rated power 37,7 52,1 62,9 77,0 92,1 Torque at rated speed Maximum torque Maximum speed at constant power 2300 4100 5400 6400 6400 User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 27 1585 2103 2658 3160 Rated power Nominal voltage Current at rated power 60,2 83,8 91,2 Torque at rated speed Maximum torque Maximum speed at constant power 2900 4800 5400 5400 5400 User’s manual - VT Series - vers. VT01.04.EN (09-2024)

  • Page 28: Overall Dimensions

    F (1) F (2) d (1) d (2) 51,5 270 312 14j6 19j6 30 21,5 M6 160 110j6 3,5 130 62,5 281 323 14j6 19j6 30 21,5 M6 105 70j6 2,5 85 M6 (1) Advised (2) On request User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 29 F (1) F (2) d (1) d (2) 285 325 19j6 24j6 40 21,5 M8 200 130j6 3,5 165 11 285 325 19j6 24j6 40 21,5 M8 120 80j6 2,5 100 M6 (1) Advised (2) On request User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 30 Type D (1) E (1) GA (1) F (1) d (1) B5/F165 200 130j6 3,5 165 11,5 (Standard) B5/F215 250 180j6 215 13,5 richiesta) 140 95j6 (1) Advised (2) On request User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 31 Type D (1) D (2) E (1) E (2) F (1) F (2) d (1) d (2) 38 k6 28 j6 80 M12 M10 250 180j6 (1) Advised (2) On request User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 32 6.5 Overall dimensions – VT132 IP54 Length Type Shaft Flange Type 42 k6 250 j6 48 k6 51,5 250 j6 38 k6 230 j6 (1) Advised (2) On request User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 33 6.6 Overall dimensions – VT132 IP23 Length Type Shaft Flange Type 42 k6 250 j6 48 k6 51,5 250 j6 38 k6 230 j6 (1) Advised (2) On request User’s manual - VT Series - vers. VT01.04.EN (09-2024)

  • Page 34: Electrical Connections

    Unused inlets must be closed and sealing elements must be screwed tight to ensure a dust- and water-tight seal. Terminal box seals must be properly inserted into their respective housings in order to ensure the correct IP class. User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 35 The required tightening torque according to the pin type is given below: Pin size Tightening torque [Nm] WARNING! Tighten the cables on the headstocks observing the tightening torques corresponding to the pin type. Tolerance +0% / -10% User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 36 7.2 Transducer (Encoder) Normally, a hollow-shaft transducer is used on VT series motors. The transducer body is attached to the rear cover of the motor and is made free to oscillate by means of a torque arm, which is responsible for absorbing any axial/radial misalignment. A 12-pin M23 male (panel or bulkhead feed-through) connector is used for the electrical connection.

  • Page 37: Thermal Protector

    All the motors manufactured by Brusatori leave the factory in optimal conditions after being inspected and tested. Upon arrival, check the motor carefully to ensure that it has not been damaged during transport.

  • Page 38: Installation

    The belt pull must not exceed the maximum applicable load under any circumstances. The axial load must not exceed 20 percent of the maximum radial load indicated at the rated speed of the motor. User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 39 Shut-off doors should always be installed before starting the motor. Air sucked in/blown out by the fan should always pass completely through the stator in the longitudinal direction and out the other side. User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 40 In such cases, it is recommended that suitable filters be inserted between the inverter and motor to reduce ���� surges, and the use of symmetrical shielded cables. WARNING! This list of verifications may be incomplete, so additional verifications may be necessary. User’s manual - VT Series - vers. VT01.04.EN (09-2024)

  • Page 41: Instructions On Maintenance

    Unless expressly authorized by the manufacturer, any repairs performed by the end user will void the manufacturer's responsibility for the conformity of the motor supplied. We recommend that maintenance work be performed in our service center. User’s manual - VT Series - vers. VT01.04.EN (09-2024)

  • Page 42: Troubleshooting

    Foreign bodies inside the motor, High noise level bodies inside the motor, check wrong inverter settings inverter settings Instructions not followed or Immediately contact our technical Other problems not listed here accidental fault office User’s manual - VT Series - vers. VT01.04.EN (09-2024)
  • Page 43 Quality management system ISO 9001: 2015 Most recent version of the document can be found on Brusatori website. 12.5 UL/CSA Certificate of compliance (optional) Most recent version of UL and CSA certificates of compliance can be found on Brusatori website. 13. Contact Name Brusatori Srl...
  • Page 44 Notes User’s manual - VT Series - vers. VT01.04.EN (09-2024)
