Summarization of Contents
Security Marks Note
Danger of high voltage
Indicates a hazard that may cause a fatal electric shock, other serious injury, or fire.
Warning of potential safety hazards
To avoid potential safety hazards (including equipment damage and personal injury), you must fully understand and follow the instructions.
Prohibited operation
Indicates that this operation is prohibited. The reader should stop the operation and proceed only with full care and understanding of the operation.

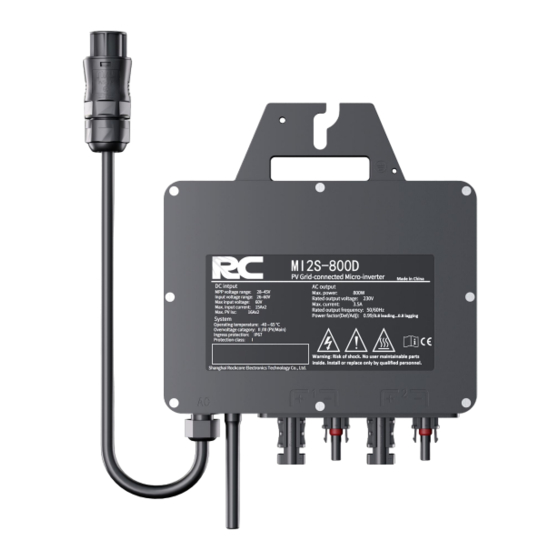

Product Feature
High Efficient DC/AC Conversion
Features high efficiency DC/AC topology and maximum continuous output power of 800W.
MPPT
2-channel independent monitoring, 1-channel MPPT tracking for maximum power output, increasing energy gain.
System Monitor
Based on Wi-Fi network, with APP provided for Android and iOS platforms.
High Reliability
More reliable than traditional systems, IP67 protection, wide operating temperature range.
High Flexible
Suitable for residential roofs and BIPV, easy to install, safe for personnel.
Terminal Introduction
AC Connector
Connects the micro-inverter to the AC trunk cable.
DC Connector
Connects the micro-inverter to the PV module.
Wi-Fi Wireless
Enables wireless communication for monitoring and system management.
Installation Preparation
Precautions before installation
Lists essential safety measures, including grounding, reading manual, compliance with standards, and avoiding specific environments.
Installation Procedure
Position and Space Required
Specifies optimal placement under PV modules and minimum clearance for ventilation and heat dissipation.
Micro Inverter Installation
Accessories
Lists essential accessories like AC Trunk Connector, AC Trunk Cable, and Disconnect Tool.
Complete the AC Connection
Connect PV Modules
Explains connecting PV module DC cables to the micro-inverter's DC terminals, ensuring correct polarity.
Fault Handling
Indicator light
Describes the status of the inverter during operation using Red, Green, and Yellow indicator lights.
Fault Clearing
Lists precautions and steps for clearing faults, including disconnecting power and contacting customer service.
