- Page 1 Hold-o-mat ® Bedienungsanleitung – Instructions de service – Operating instructions 323, 311, 411, 711 Vor Inbetriebnahme lesen! A lire avant la mise en service! Please read before use!
- Page 2 Veuillez étudier ces instructions de service avant la mise en marche de l’appareil, et observez les indications relatives à la sécurité. English: Page 43 Please study these instructions before using the unit and observe the safety notes. www.holdomat.com/videos www.hugentobler.com/downloads Hold-o-mat – Bedienungsanleitung ®...
-
Page 3: Congratulations
As with all electrical appliances special care must be taken to avoid inju- ries, burns or damage to the unit. People who have not read the operating instructions should not use the unit. Reto Hugentobler Owner Hugentobler Swiss Cooking Systems AG www.holdomat.com/videos www.hugentobler.com/downloads Hold-o-mat –... -
Page 4: Table Of Contents
Introduction These operating instructions can not take account of all possible applications. For further informa- tion, or if problems arise that are not sufficiently covered in these instructions, please consult your local specialist supplier or contact us directly. We will be pleased to help you. Contents Congratulations! Introduction... -
Page 5: Safety Precautions
Safety Precautions Anyone who is involved in the setting up, use and maintenance of the General safety Hold-o-mat warm holding cabinet must have read and understood all instruction the operating instructions, especially the “Safety precautions” section. This warm holding cabinet has been manufactured and tested in ac- cordance with the applicable standards. - Page 6 Electricity can be lethal! Improper operation of the unit can cause fire. Electrical supply, For your own safety and the safety of others, please follow the safety power cable precautions precisely as outlined in these instructions. Never touch live components. This could cause an electric shock which can lead to serious injury or even death.
-
Page 7: Package Contents

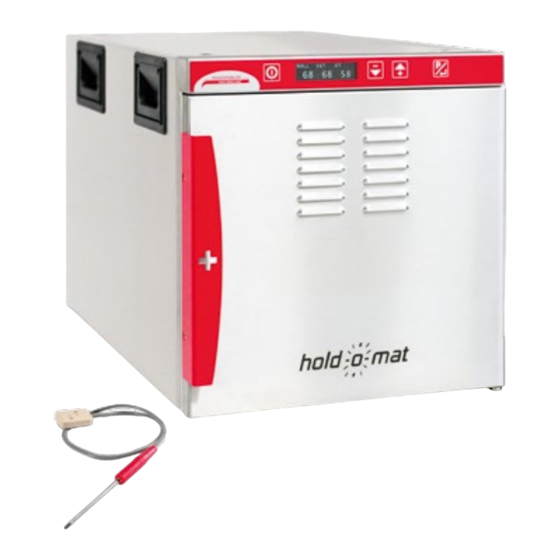

Package contents The package contains: 1 unit, 2 side rails, 1 set of operating instruc- Content tions, 2 power cables (1 x EU/1 x CH). Optional: 1 Core temperature probe. Check the package contents. If parts are missing, return immedi- ately to your supplier. -
Page 8: Setting Up
The door may only be rehinged by specialist personnel (qualified electrician, service fitter, Hugentobler AG authorised sales person), and only in accordance with the customer service instruction provided for this purpose. -
Page 9: Practical Tips
Refit the cover caps on the narrow side and the inside of the door. The door must not be fitted upside down, as in this case the dehumidifica- tion vent would no longer be in the optimum position. Therefore, the door handle must also be repositioned. - Page 10 Cooking stage: Set the temperature 30 °C higher than the desired core temperature. Hold stage: After reaching the desired core temperature, set the Hold- o-mat 5 °C higher than the core temperature. The meat can now be kept for hours at the optimum holding temperature The humidity level inside the unit can be regulated precisely and Dehumidifier ...
-
Page 11: Controls
Controls 5. Display Heat indicator REAL 1. Main switch – on/off 2. Down 3. Up 4. Program/Enter Operation Improper operation can cause fire! For your own and the safety of others, please follow the safety notices in these instructions precisely! Switching on Press the button. - Page 12 Switching off After use the button is used to switch the Hold-o-mat off. Please do not forget to clean the unit after use as outlined in the section on “Maintenance, Cleaning”, page 58. The optional (also retrofit) core temperature measuring sensor (CT) is Model 323, 311, 411: simply connected to the corresponding magnetic connector (on the in- “Hold with informative...
- Page 13 The following selections are possible: REAL REAL – Press button to find out the current core temperature during phase 1 (with time). – Press button to find out the overall programing when the pro- gram is running. Delta T REAL >...
-
Page 14: Settings
Time Temp Temp Temp 00:10 Settings Program 1 Phase 1 Phase 2 Phase 3 Time Temp Temp Temp Start the parameter mode = With the unit switched off, press , keep this button 00:10 pressed and simultaneously press the main switch. The following then appears in the display: P. -
Page 15: Interesting Additional Information
We leave it up to you and your expertise to use the Delta-T program. The Hold-o-mat 411 is the only unit in the world that allows this. Hugentobler master chefs recommend low-temperature cooking (Cook & Hold) with the programs 1 – 8. -
Page 16: Troubleshooting
Troubleshooting A few tips if the product does not turn out as desired: Problem Cause Possible solution The product over-cooks Desired temperature too high Set correct desired temperature and becomes dry. above core temperature. or allow meat that is too hot to cool outside the oven first. -
Page 17: List Of Faults
Problem Possible solution The heating indicator The overheating cut out has been triggered (the unit has been loaded lights but the actual tem- with cold or frozen food or the control system is defective). perature decreases or the unit remains cold. 1. -
Page 18: Maintenance
Error message Situation Possible solution Powerfail Power failure for longer than de- Not a fault, simply information. fined in the "Powerfail" parameter. If this occurs frequently, have your HACCP safety no longer guaran- house installations checked by an teed, thus the unit does not switch electrician. -
Page 19: Overhaul And Repair
6. After every thorough clean-up, heat the unit quickly to 120 °C. This 120 °C setting allows the unit to be sterilised and any micro-organisms are killed off. Please ensure that the dehumidifier on the door is closed, as high humidity makes the sterilisation more effective. 7. -
Page 20: Unit Information
Unit information Hold-o-mat 323 Hold-o-mat 311 Hold-o-mat 411 Hold-o-mat 711 Model Product no. CT sensor: KT-MAG CT sensor: KT-MAG CT sensor: KT-MAG 3 x 2/3-65 mm or 3 x 1/1-65 mm or 4 x 1/1-65 mm or 7 x 1/1-65 mm or... - Page 21 Anhang – Annexe – Annex Stromlaufplan – Schéma de câblage – Circuit diagram Netzanschluss 230 VAC Power supply 230 V Hold-o-mat ®...
- Page 22 Cook more efficiently, eat better. www.hugentobler.com CH | EU Hugentobler Schweizer Kochsysteme AG Gewerbestrasse 11, 3322 Schönbühl, Schweiz Tel. +41 (0)848 400 900 Hugentobler + Partner GmbH Deutschland Lise-Meitner-Strasse 4, 85716 Unterschleissheim Tel. + 49 (0) 89 85 15 77...
