ASSEMBLY INSTRUCTIONS - DPS KIT 20/85
Very important!
Please follow the instructions step by step. Before connecting "A" plug to the actuator, check that
the voltage is the same as the one specified on the label (carter). To convert a standard (on-off)
J4C electric actuator into a modulating function with positioner, proceed as follows:

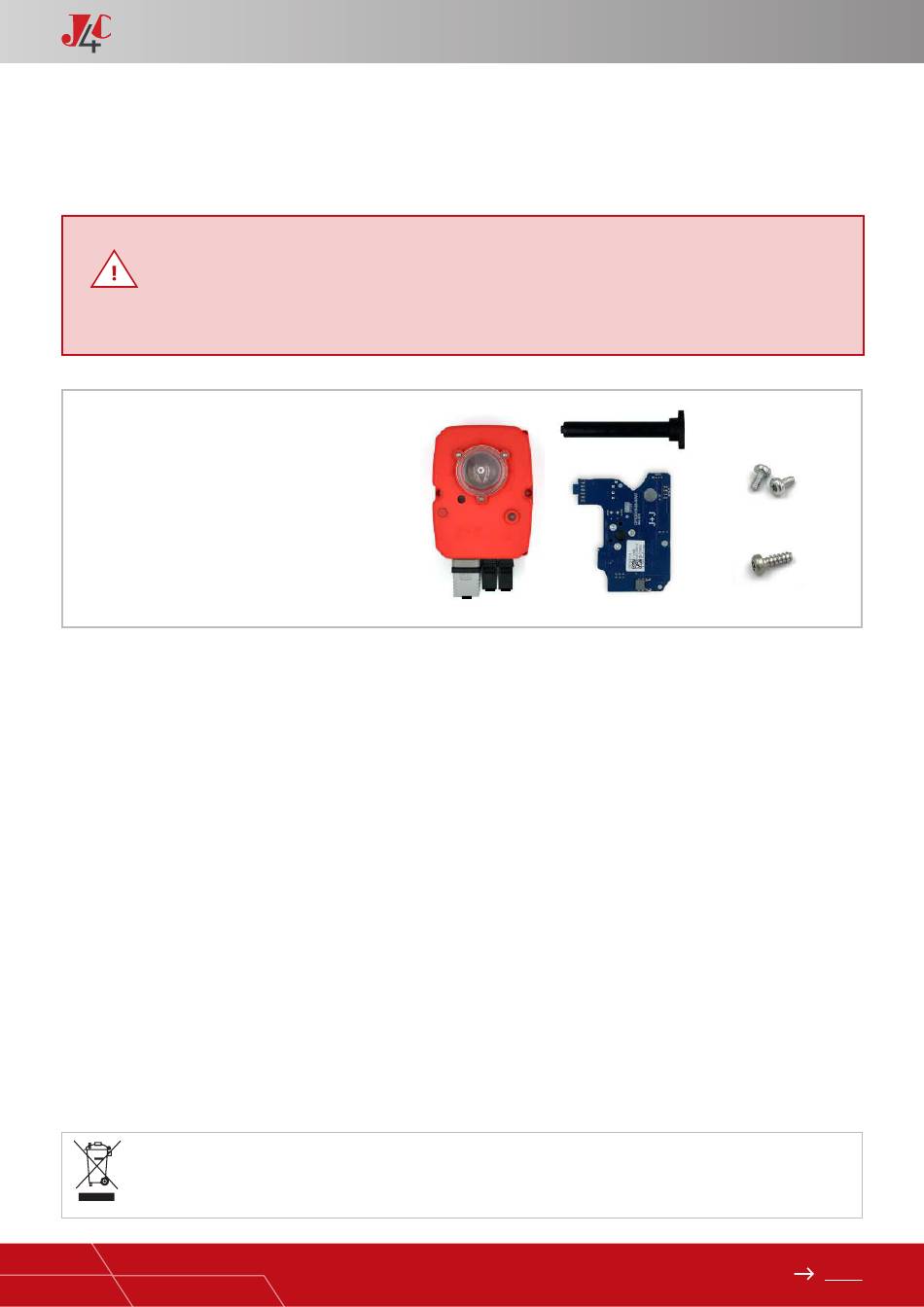

KIT COMPONENTS
Element A
- 1 Cover
Element B
- 1 Plastic column
Element C
- 1 DPS positioner PCB
Element D
- 2 Sheet metal Fixing screws
Element E
- 1 Plastic Fixing screws
* Fill in the document inside the kit, and send it to the fax number or e-mail, shown in the document. The unit is ready
to work.
