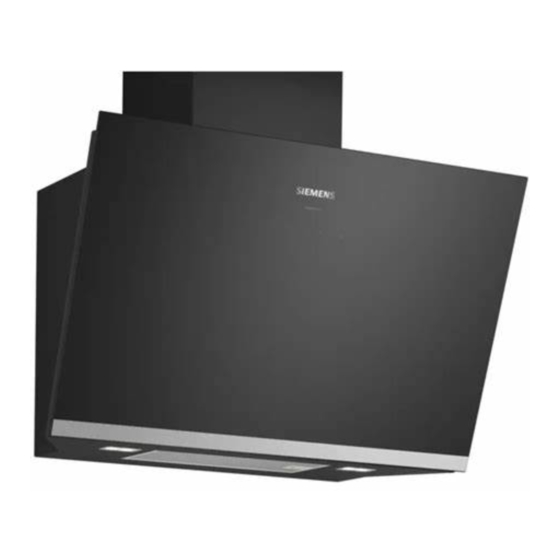

- Page 1 LC81KAN60, LC81KAN60M, LC81KAN20, LC81KAN65, LC81JAN60 Extractor hood EN User manual and installation instructions Register your appliance on My Siemens and discover exclusive services and offers. Siemens Home Appliances...
-
Page 2: Table Of Contents
en Safety Further information and explanations are available online: Table of contents ¡ Keep the instruction manual and the product information safe for future refer- ence or for the next owner. INFORMATION FOR USE ¡ Do not connect the appliance if it has been Safety .............. 2 damaged in transit. -
Page 3: Safety
Safety en Hot oil and fat ignites very quickly. WARNING ‒ Risk of poisoning! ▶ Always supervise hot oil and fat. Risk of poisoning from flue gases being ▶ Never extinguish burning oil or fat with wa- drawn back in. Room-air-dependent heat-pro- ter. Switch off the hotplate. Extinguish ducing appliances (e.g. -
Page 4: Avoiding Material Damage
en Avoiding material damage Using a gas cooking appliance leads to a WARNING ‒ Risk of electric shock! build-up of heat, moisture and combustion If the appliance or the power cord is dam- products in the room where the appliance is aged, this is dangerous. installed. -
Page 5: Environmental Protection And Saving En- Ergy
Environmental protection and saving energy en Do not use harsh or abrasive detergents. There is a risk of surface damage if you do not peel off ▶ Clean stainless steel surfaces in the direction of the the protective film. ▶ finish only. Remove the protective film from all parts of the ap- ▶... -
Page 6: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Overall view Glass plate You can find an overview of the parts of your appliance Control panel here. Appliance Front grease filter Lower grease filter 5.2 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operat- ing status. -
Page 7: Basic Operation
Basic operation en Basic operation 7 Basic operation 7.1 Switching on the appliance 7.5 Switching off intensive mode Press . Reset to the required fan setting. ▶ ▶ a The appliance starts at fan setting 2. 7.6 Setting the PowerBoost position 7.2 Switching off the appliance On the appliance, the glass front can be adjusted to an intermediate position. - Page 8 en Home Connect The Home Connect services are not available in every 9.4 Software update country. The availability of the Home Connect function Your appliance's software can be updated using the depends on the availability of Home Connect services software update function, e.g. for the purposes of op- in your country.
-
Page 9: Hob-Based Hood Control
Hob-based hood control en Hob-based hood control 10 Hob-based hood control You can connect your appliance to a suitable hob and, Notes in this way, control the functions of your appliance via ¡ Please note the safety precautions in the instruction the hob. -
Page 10: Troubleshooting
en Troubleshooting Observe the information regarding the cleaning Use special grease solvent for stubborn dirt. You agents. can obtain grease solvents from customer service → "Cleaning products", Page 9 or the online shop. Clean using a damp sponge cloth and hot soapy Use a brush to clean the grease filters. water. -
Page 11: Disposal
Disposal en 12.1 Malfunctions Fault Cause and troubleshooting The appliance is not The mains plug of the power cord is not plugged in. working. Connect the appliance to the power supply. ▶ The circuit breaker in the fuse box has tripped. Check the circuit breaker in the fuse box. ▶... -
Page 12: Accessories
A detailed Declaration of Conformity can be found on- A detailed RED Declaration of Conformity can be found line at siemens-home.bsh-group.com/uk/ among the online at siemens-home.bsh-group.com among the ad- additional documents on the product page for your ditional documents on the product page for your appli- appliance. -
Page 13: Information Regarding Free And Open
The manufacturer, BSH Hausgeräte GmbH deems that Products) Regulations 2023 can be found online at it has complied with www.siemens-home.bsh-group.com/uk/home among ¡ provision 5.1-1 of ETSI EN 303 645 v2.1.1 and, the additional documents on the product page for your where relevant, provision 5.1-2 of ETSI EN 303 645... - Page 14 en Installation instructions Installation instructions 19 Installation instructions 19.2 Included with the appliance After unpacking all parts, check for any damage in transit and completeness of the delivery. 19.1 Installation video If you scan this QR code with your smartphone, you can watch a video of the entire installation of the appli- ance.
-
Page 15: Installation Instructions
Installation instructions en 19.3 Dimensions You will find the dimensions of the appliance here 19.4 Safety clearances Comply with the safety clearances for the appliance. For Australia and New Zealand the minimum safety clearance above electrical cooktops must be 600 mm. 19.5 Secure installation Follow these safety instructions when in- stalling the appliance. - Page 16 en Installation instructions Risk of poisoning from flue gases being WARNING ‒ Risk of poisoning! drawn back in. Risk of poisoning from flue gases being ▶ If an extractor hood with an open-flued heat drawn back in. Room-air-dependent heat-pro- production source is installed, the power ducing appliances (e.g.
- Page 17 Installation instructions en The appliance may fall down if it has not been Improper repairs are dangerous. properly fastened in place. ▶ Repairs to the appliance should only be ▶ All fastening components must be fixed carried out by trained specialist staff. firmly and securely in place.
- Page 18 en Installation instructions Notes WARNING ‒ Risk of electric shock! ¡ If a one-way flap is not included with the appliance, It must always be possible to disconnect the appliance one can be ordered from a specialist retailer. from the electricity supply. The appliance must only be ¡...
- Page 19 Installation instructions en Installing the appliance bracket Hook the appliance into the appliance bracket from above so that it clicks firmly into place. Screw on the appliance bracket for the extractor hood hand-tight. Use a spirit level to align the appliance bracket hori- zontally and screw it firmly in place.
- Page 20 en Installation instructions Note: Do not knock the gas pressure dampers Clip the gas pressure dampers onto the left- and against the painted inner frame. right-hand side of the glass panel. Clip the gas pressure dampers in on the left- and right-hand side of the appliance. Insert the plug.
- Page 21 Installation instructions en Insert the grease filters. Put the lower flue duct over the upper flue duct. Connect the appliance to the power supply. Carefully remove the towels. Piping Removing the appliance Note: If you are using an aluminium pipe, smooth the Note: The design profiles are not hand grip elements.
- Page 24 EN Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom BSH Hausgeräte GmbH Carl-Wery-Straße 34...
