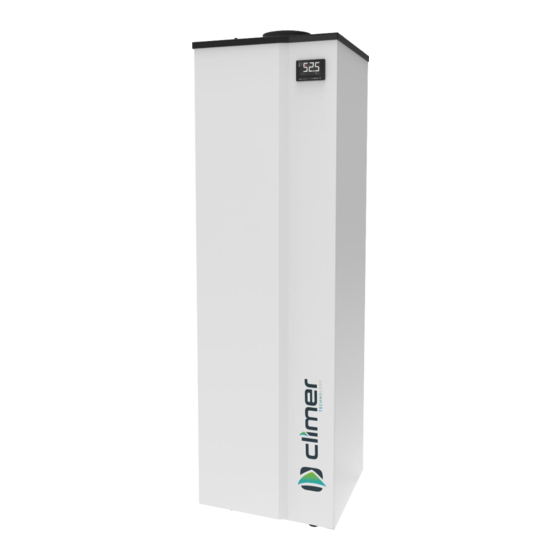

- Page 1 INSTALLATION AND USER MANUAL ECOHEAT PRO RF EH160 EH200 EH160 EH200 EH260 EH260 EH160...
- Page 2 Installation and user manual EH PRO RF 160 - 200 – 260 Equipment’s serial number (Filling by technical staff is recommended)
-
Page 3: Table Of Contents
Installation and user manual EH PRO RF 160 - 200 – 260 Contents Introduction ..................................... 5 General indications ..................................5 Safety notes ....................................5 Safety indications for refrigerant R290 ........................6 Installers’ qualifications................................8 Package contents ..................................8 Instructions for transportation and unpacking ......................9 Technical information ................................ - Page 4 Installation and user manual EH PRO RF 160 - 200 – 260...
-
Page 5: Introduction
EH PRO RF 160 - 200 – 260 Introduction You have just acquired a product manufactured by CLIMER TECHNOLOGY. At CLIMER, we appreciate the trust placed in our company. This product has been manufactured following the quality standards set by the European Union, incorporating top-quality materials, and its proper functioning has been tested before leaving our facilities. -
Page 6: Safety Indications For Refrigerant R290
Installation and user manual EH PRO RF 160 - 200 – 260 Safety indications for refrigerant R290 The refrigerant R290 in the heat pump circuit does not cause a risk to the environment; however, the product evaporates quickly and should not be discharged into the atmosphere or water network. - Page 7 Installation and user manual EH PRO RF 160 - 200 – 260 You must disconnect the equipment from the power source and ventilate the area, preferably mechanically, before handling the equipment. If possible, fully open doors and windows to ensure proper airflow. ...
-
Page 8: Installers' Qualifications
Installation and user manual EH PRO RF 160 - 200 – 260 Installers’ qualifications Maintenance should only be performed by specially qualified and authorized personnel with a valid refrigeration technician certification. All maintenance staff and other individuals working near the appliance must be instructed about the nature of the work to be carried out. -
Page 9: Instructions For Transportation And Unpacking
Installation and user manual EH PRO RF 160 - 200 – 260 Instructions for transportation and unpacking The unit is supplied packed into a wooden pallet properly secured to prevent damage during transport. The material used to the packing are recyclables, so dispose it in an appropriate container. Be careful when using knives or cutters to open the cardboard box so as not to damage the equipment. -
Page 10: Technical Information
Technical information All relevant technical information about the equipment is provided in this manual. However, according to regulations, CLIMER TECHNOLOGY is available to provide additional information about the equipment if required. The ECOHEAT PRO RF equipment has been designed and manufactured in compliance with all applicable current regulations. -
Page 11: Parts Of The Ecoheat Pro Rf Unit
Installation and user manual EH PRO RF 160 - 200 – 260 Parts of the ECOHEAT PRO RF unit Front cover EVCO touch control Plastic top cover Air filter Back cover Side covers Silent-Blocks Electric heater 1500 W DHW probe NTC1 PVC protective cover T&P valve Low pressure switch... -
Page 12: Dimension Drawings
Installation and user manual EH PRO RF 160 - 200 – 260 Dimension drawings Illustration 4: Side and up views. Dimensions (mm) EH160 PRO RF 1311 EH200 PRO RF 1540 EH260 PRO RF 1907 Illustration 5: Back (left), front (center) and top connections Condensate drain, 20 mm Hot water outlet, ¾“... -
Page 13: Technical Data
Installation and user manual EH PRO RF 160 - 200 – 260 Technical data EH160 EH200 EH260 Model PRO RF PRO RF PRO RF Cylinder Capacity (l) Maximum operating pressure (bar) Heat pump data Load profile Heating capacity range (W) 1005 - 1750 Power input range (W) 405-500... -
Page 14: Nameplate
Installation and user manual EH PRO RF 160 - 200 – 260 Nameplate The nameplate contains product details and important information: Type of product Date of production Serial number (also available in this manual) Power supply ... -
Page 15: Installation Steps
Installation and user manual EH PRO RF 160 - 200 – 260 Installation steps Before starting the installation, the installer must perform safety checks to minimise the risks entailed working with flammable refrigerants. Also, the availability of all the necessary components and tolls must be checked: ... -
Page 16: Placing Ecoheat Pro Rf
Installation and user manual EH PRO RF 160 - 200 – 260 Placing ECOHEAT The place where the system will be installed should allow an easy access in order to make maintenance work or inspection; in addition to abide by safety measures of refrigerant R290. It is recommended to meet the following minimum distances in the enclosure: Illustration 7: Minimum recommended distances at the equipment’s site (in mm) The equipment has been designed for indoor installation. -
Page 17: Hydraulic Connection
Installation and user manual EH PRO RF 160 - 200 – 260 Besides these factors, it is important to consider the following guidelines regarding the location: The surface where the unit will be installed must be capable of supporting its weight. Moreover, it should be flat or have a maximum inclination of 2º. - Page 18 Installation and user manual EH PRO RF 160 - 200 – 260 Illustration 8: Standard hydraulic connection Cold water inlet T&P valve Ball valves Expansion vessel Pressure reducing valve Y merger Non-return valve Tundish Lined filter strainer (Y-type) DHW outlet Drainage There are other possible connection options;...
-
Page 19: Condensate Drain
Installation and user manual EH PRO RF 160 - 200 – 260 Condensate drain The condensation in the evaporator could produce a constant water flow that has to be drained properly; also, to avoid unwanted odours of equipment in ambient air. The condensate drain is in the back or in the front of the system. - Page 20 Installation and user manual EH PRO RF 160 - 200 – 260 Illustration 10: Options for connecting air conduction to equipment and its measurements When ducting air connection, the tube which will be used for must be rigid PVC or a material with similar stability.
-
Page 21: Suction Filter
Installation and user manual EH PRO RF 160 - 200 – 260 Suction filter The system includes in the air inlet a filter for the protection of all the elements of the refrigeration circuit. If you notice that the system does not heat up, check the condition of the filter. A clogged filter affects the life-cycle performance and hot water production of the system. - Page 22 Installation and user manual EH PRO RF 160 - 200 – 260 Illustration 10: Wiring diagram Photovoltaic connection Solenoid valve Low pressure switch Electrical heater High pressure switch Compressor NTC1 Water temperature probe NTC2 Air temperature probe 230 VAC Power supply Display...
-
Page 23: Comissioning. Controller
Installation and user manual EH PRO RF 160 - 200 – 260 Comissioning. Controller Before starting the ECOHEAT, the tank must be filled with water prior to turning on the equipment. The electric heating element may be damaged if the equipment operates without water. - Page 24 Installation and user manual EH PRO RF 160 - 200 – 260 Meaning of the icons on the screen: Blinking Compressor Compressor switched protection in progress Compressor off Current setpoint setting Active defrost Fan is operating in high Fan is operating in low Fan off speed (V2)
-
Page 25: Use
Installation and user manual EH PRO RF 160 - 200 – 260 Switching on/off To turn on the equipment, press and hold the key for 2 seconds. The screen Will illuminate with all the icons. Plug the equipment into the electrical supply. To turn on the equipment, press and hold the for 2 seconds. - Page 26 Installation and user manual EH PRO RF 160 - 200 – 260 Displaying the operating mode At first power-on of the unit is set to Eco mode by default. By touching one time the key, the current operation mode Will be shown on the screen: Eco mode: Heating only by heat pump touch...
- Page 27 Installation and user manual EH PRO RF 160 - 200 – 260 Changing operating mode To change the operating mode, press the key once. The display will flash the selectable operating modes. Choose the mode with keys. To confirm your choice, press ;...
- Page 28 Installation and user manual EH PRO RF 160 - 200 – 260 Displaying/deleting compressor functioning hours Delete Display 1 click : Show : Delete compressor operating compressor opearting hours. hours. Select “ ”. If the equipment turns off again, it is necessary to check the status of the high-temperature safety thermostat or consult with a technician.
-
Page 29: Operating Modes
Installation and user manual EH PRO RF 160 - 200 – 260 Operating modes Eco mode Eco stands for economic, so maximum savings. The system heats water only by heat pump technology. This is the default mode. The water temperature setpoint in Eco mode can be changed with the “ ”... - Page 30 Installation and user manual EH PRO RF 160 - 200 – 260 Modo Auto It remains a steady temperature by the heat pump and only use the electrical heater if the temperature falls drastically. The water temperature setpoint in Auto mode can be changed with the “ ”...
- Page 31 Installation and user manual EH PRO RF 160 - 200 – 260 Overboost mode This mode achieves a fast heating by using simultaneously heat pump and electric heater. This mode works to get hot water quicker than using other operating modes. Once setpoint temperature has been reached, initial mode will get back: ...
- Page 32 Installation and user manual EH PRO RF 160 - 200 – 260 Parameter “ ” is used to select the minimum temperature at which the Overboost mode can operate: Press button once and select “ ” with 1 touch buttons. Press button to confirm.
- Page 33 Installation and user manual EH PRO RF 160 - 200 – 260 You can configure any of the 2 settings at any time: for example, put the " " configuration when the compressor is still running. The set configuration will start to work when the equipment is started that way.
- Page 34 Installation and user manual EH PRO RF 160 - 200 – 260 Photovoltaic input Working on this mode, the system automatically heats the water due to electric energy surplus or by off-peak rate. The parameters of this mode can only be configured from the installer menu. Contact the technician if you want to make any modifications.
-
Page 35: Manual Reset
Installation and user manual EH PRO RF 160 - 200 – 260 Manual reset In case of an electrical failure in the automatic reset of the ECOHEAT thermostat, it is possible to perform this task manually following instructions below: 1. Remove the front cover. 2. -
Page 36: Common Failures And Possible Solutions
Installation and user manual EH PRO RF 160 - 200 – 260 Common failures and possible solutions Failure Reason Solution The controller does not turn The unit is disconnected. Check if the product is on by pressing the power connected to the power button. -
Page 37: Maintenance
Installation and user manual EH PRO RF 160 - 200 – 260 Failure Reason Solution There’s water around the The condensate evacuation Check the condensate equipment. hose is partially or evacuation hose. completely blocked. The condensate discharge hose is bent and forms a depression. -
Page 38: End Of The Equipment's Life Cycle
Installation and user manual EH PRO RF 160 - 200 – 260 Unit’s part Maintenance duty Verify the proper functioning of the safety valve by manually activating it, at least once every 6 months. Check that there is no obstruction to the flow of water towards the safety valve. -
Page 39: List Of Spare Parts
Installation and user manual EH PRO RF 160 - 200 – 260 List of spare parts The components referenced in this table are in the Components of the Equipment chapter (page 11). Reference number Part Unit Reference code Front cover Consult manufacturer EVCO touch control R10269... -
Page 40: Warranty
To exceed the maximum accumulation temperature. The maximum accumulation temperature in all buffer tanks, unless otherwise indicated by CLIMER TECHNOLOGY, S.L.L., is 85 ºC. The most restrictive operating temperature range of those indicated in this document, data sheet, equipment manual and identification label will always prevail, contrary indication expressed by CLIMER TECHNOLOGY, S.L.L. - Page 41 Installation and user manual EH PRO RF 160 - 200 – 260 Stainless steel 2205 tank Stainless steel 444 tank > 800 mg/L total of chlorine derivatives > 250 mg/L total of chlorine derivatives chlorides chlorides Calcium carbonate (CaCO3) content > 200 Calcium carbonate (CaCO3) content >...
-
Page 42: After-Sales Service Sheet
Installation and user manual EH PRO RF 160 - 200 – 260 After-sales service sheet Date Technician Observations... - Page 43 Installation and user manual EH PRO RF 160 - 200 – 260...
- Page 44 Installation and user manual EH PRO RF 160 - 200 – 260 CLIMER TECHNOLOGY S.L.L. This company reserves the right to modify the information contained herein without prior notice. V1REV0ES0823...
