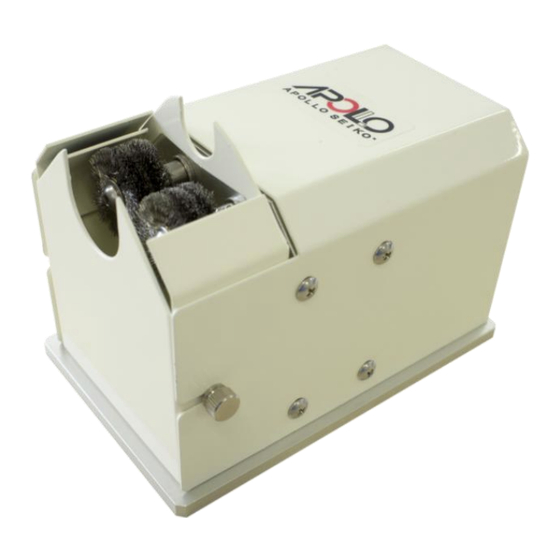

Brush Roller Cleaner
BRC-2000 / BRC-3000
Operation Manual
Thank you for purchasing the BRC.
Read these instructions thoroughly for proper use of this device.
Make sure to read "Safety Notes" before you use the device.
This information protects you from possible dangers during use.
Apollo Seiko Ltd.
Rev.2.50
Advertisement
Related Manuals for Apollo Seiko BRC-3000
Summary of Contents for Apollo Seiko BRC-3000
- Page 1 Brush Roller Cleaner BRC-2000 / BRC-3000 Operation Manual Thank you for purchasing the BRC. Read these instructions thoroughly for proper use of this device. Make sure to read "Safety Notes" before you use the device. This information protects you from possible dangers during use.
-
Page 2: Safety Notes
We do take NO responsibility on a loss caused by a wrong connection with other equipment. If for any reason the internal circuitry is tampered with altered or repaired without written consent of Apollo Seiko, the warranty is null and void. The customer is allowed to make necessary tooling adjustment, replace solder... -
Page 3: Table Of Contents
page 3 of 12 Index Safety Notes ........................2 Specifications ....................... 4 Descriptions ......................... 5 Dimensions ......................... 6 Wiring Diagram ......................8 How to Use ........................9 Maintenance ....................... 10 Spare Parts ........................ 11... -
Page 4: Specifications
4 of 12 1. Specifications Specifications BRC-2000 : 139mm(W) X80mm(D) X55mm(H) Dimensions BRC-3000 : 124mm(W) X80mm(D) X95mm(H) Weight Approx. 0.9kg Φ25 SUS Brush (The spare is not attached) Brush Remove carbide of iron tip Control Input DC24V 10mA Input Power Supply AC100~240V ・BRC-3000 Main unit : 1 set... -
Page 5: Descriptions
5 of 12 2. Descriptions BRC-3000 BRC-3000 is standard model to use silicone sheet to prevent solder spattering. Brush Tray Knob *This is BRC-3000-S type. BRC-2000 BRC-2000 is for compact robot use lower height model. Brush Tray Knob... -
Page 6: Dimensions
page 6 of 12 3. Dimensions BRC-3000 2×M3Countersink(Fitting hole) (Standard Type) Sludge Cup I/O connector DC24V Jack BRC-3000 (Solder Spatter Preventing Type *A silicone sheet is attached.) 2-M3 spot facing(Rear side) - Page 7 7 of 12 BRC-2000 2-M3 spot facing(Rear side)
-
Page 8: Wiring Diagram
8 of 12 4. Wiring Diagram A : SIG+ B : SIG- C : TEST I/O of Sequencer or Robot BRC-2000 / 3000 SIG+ DC24V SIG- ● TEST Set the driving current of the internal SSR of SIG+ and SIG- to 100mA or less. -
Page 9: How To Use
page 9 of 12 5. How to Use The followings are examples. (The following pictures were taken without a tray.) Please cut the silicone sheet according to the cleaning method. Cleaning Examples Silicone Sheet Cutting Examples Example 1) The iron cartridge is moved from a brush to the other brush. Example 2) The iron cartridge is inserted to the center of the brushes. -
Page 10: Maintenance
page 10 of 12 6. Maintenance Please turn off the power, when you work below. DO NOT touch the brushes, so that you are likely to get injured. 2. Remove the set screw. 1. Loosen the knob and remove the tray. 3. -
Page 11: Spare Parts
page 11 of 12 7. Spare Parts Descriptions Parts Number Remark Brush BRC-3106 2 pcs per 1 set Silicone sheet BRC-1100 3 pcs per 1 set... - Page 12 12 of 12 Apollo Seiko Ltd. 2271-7 Jinba, Gotenba-shi, Shizuoka, Japan TEL: +81-(0)550-88-2828 FAX: +81-(0)550-88-2830 E-mail: sales@apolloseiko.co.jp URL: http://www.apolloseiko.co.jp...
