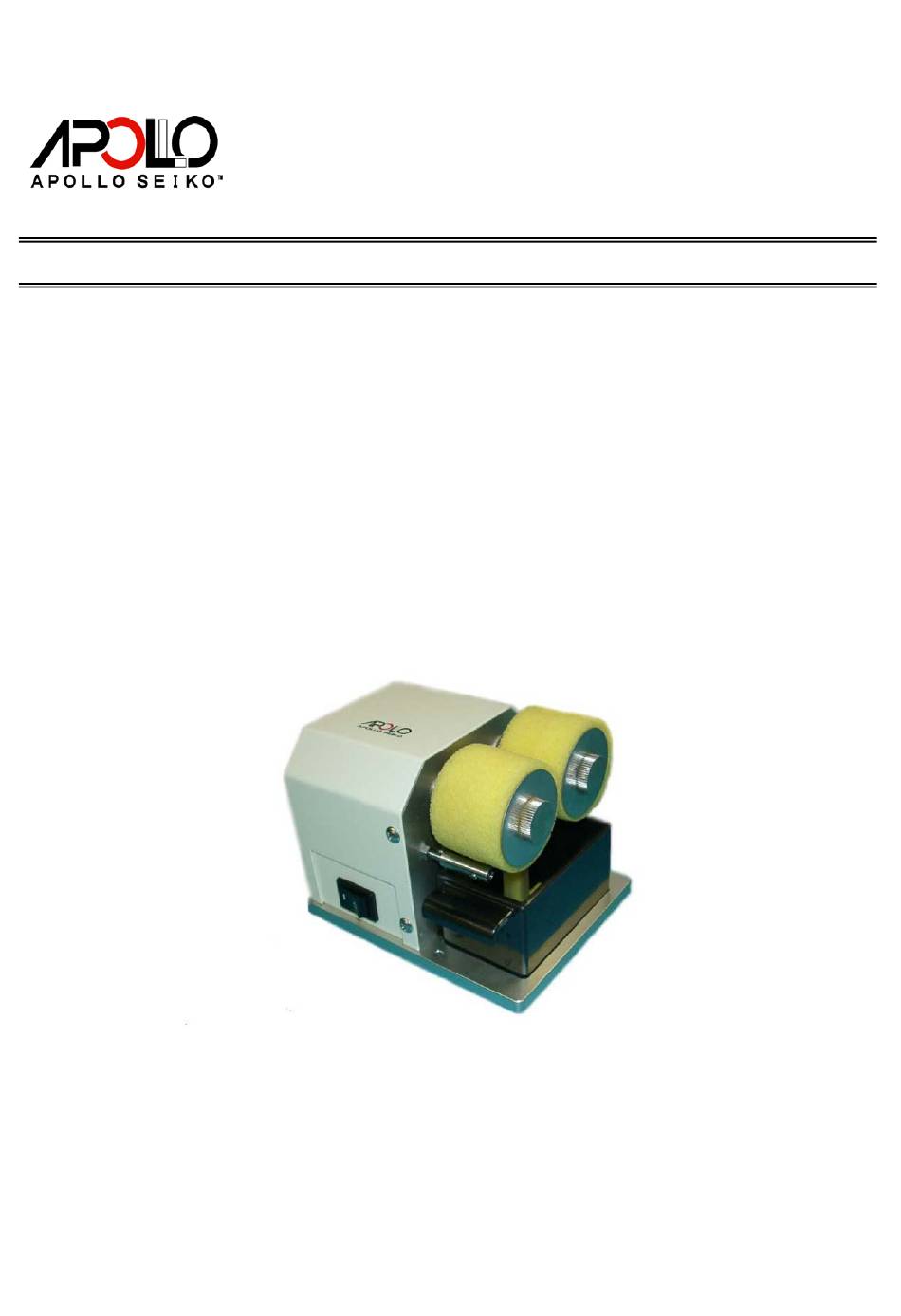

Sponge Roller Cleaner
SRC-3000
Operation Manual
Thank you for purchasing the SRC-3000.
Read these instructions thoroughly for proper use of this device.
Make sure to read "Safety Notes" before you use the device.
This information protects you from possible dangers during use.
Apollo Seiko Ltd.
Rev.1.00
1
Advertisement
Table of Contents
Related Manuals for Apollo Seiko SRC-3000
Summary of Contents for Apollo Seiko SRC-3000
- Page 1 Sponge Roller Cleaner SRC-3000 Operation Manual Thank you for purchasing the SRC-3000. Read these instructions thoroughly for proper use of this device. Make sure to read "Safety Notes" before you use the device. This information protects you from possible dangers during use.
- Page 2 We do take NO responsibility on a loss caused by a wrong connection with other equipment. If for any reason the internal circuitry is tampered with altered or repaired without written consent of Apollo Seiko, the warranty is null and void. The customer is allowed to make necessary tooling adjustment, replace solder...
- Page 3 Index Safety Notes ....................... 2 1. Description ........................4 2. Maintenance ........................5 3. Consumables ......................... 6 4. Specification ........................6 5. Dimension ........................6...
- Page 4 1. Description Cover (SRC-3001) Water reservoir (SRC-3002) Power switch (SRC-3007) Suction Sponge B (SRC-3005) (SRC-3003) Motor 100V / 200V Sponge (SRC-3008) (SRC-3006) Power cable (SRC-3009) Sponge screw cap (SRC-3004) Fuse 1A (SRC-3010)
- Page 5 2. Maintenance Please power OFF, when you work below. 2-1. Replacement of Sponge (SRC-3006) *Before removing, Remove the used sponges. *Please moisten the sponges before removing. After removing the two front Remove the two back sponges. Loosen the two nuts. sponges, take the Pin off.
- Page 6 Power supply (100V / 220V) AC-100V / AC220V Number of Sponge Rotation Approx. 30rpm Working Liquid Tap-water 5. Dimension Mounting screw hole (Φ3.5) 2 (Sponge interference dimension) Apollo Seiko Ltd. 2271-7 Jinba, Gotenba-shi, Shizuoka, Japan TEL: +81-(0)550-88-2828 FAX: +81-(0)550-88-2830 E-mail: sales@apolloseiko.co.jp URL: http://www.apolloseiko.co.jp...
