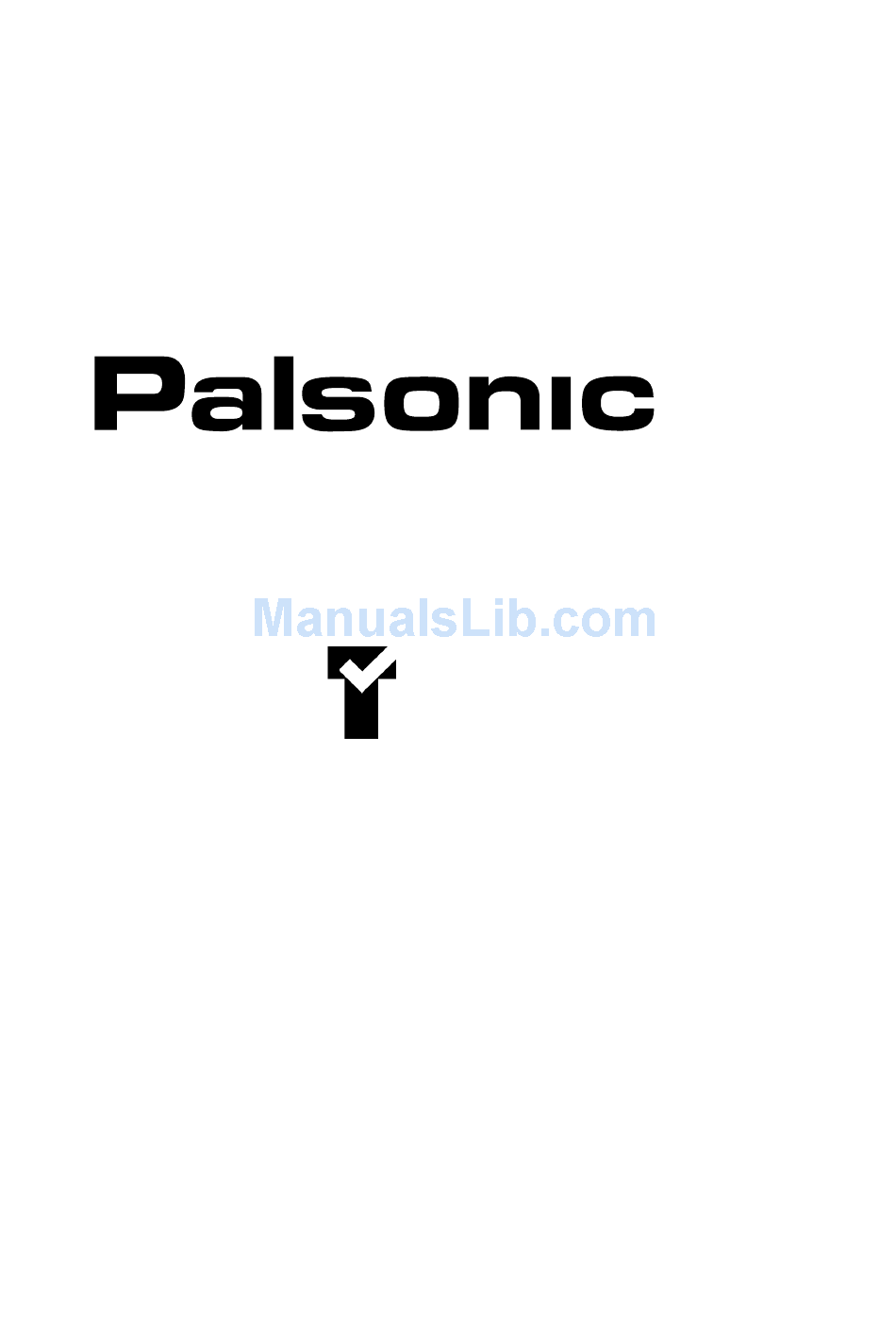

OWNER'S MANUAL
PURE FLAT HI-VISION STEREO TELEVISION
68CM CORDLESS REMOTE COLOUR TELEVISION
MODEL: 6810PF
Type Tested
Electrical
Safety
AS/NZS 3250 Lic 4166
Standards Australia
APP No: N15899
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL:(02)9313 7111
FAX:(02)9313 7555
www.palsonic.com.au
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA:1300 657 888

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MODEL 6810PF and is the answer not in the manual?

Questions and answers

Related Manuals for Palsonic MODEL 6810PF

Summary of Contents for Palsonic MODEL 6810PF

  • Page 1 68CM CORDLESS REMOTE COLOUR TELEVISION MODEL: 6810PF Type Tested Electrical Safety AS/NZS 3250 Lic 4166 Standards Australia APP No: N15899 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL:(02)9313 7111 FAX:(02)9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE...

  • Page 2: Table Of Contents

    Congratulations on your purchase of this colour PURE FLAT Hi-Vision Palsonic television receiver. We recommend that you thoroughly read this manual before use to fully enjoy the many functions and excellent effects of this receiver. Retain is manual in an easily accessible location for future reference.

  • Page 3: Main Features

    Main features 68cm Pure Flat picture tube PAL/NTSC/SECAM Multi - System Hyperband CHINESE/ENGLISH on-screen menu display Surround sound and wide-field dynamic sound system NICAM Digital Stereo/bilingual broadcasts receivable German Stereo (IGR) /bilingual broadcasts receivable Three groups of S-VIDEO/VIDEO/AUDIO input terminals and one group of MONITOR output terminals Auto/manual search OFF timer and ON timer, Auto-Power-Off &...

  • Page 4: Notes For Operation

    NOTES FOR OPERATION * Do not let the TV set be in standby condition for a long period of time. When it is not in use, please turn off the power supply and remove the power plug. When it is to be left for a prolonged period of time, it is recommended to disconnect the connection to the outdoor aerial, to avoid thunder strike.

  • Page 5: Installation And Appearance

    Installation and appearance Antenna connection To ensure a bright - coloured and clear picture, you should use an outdoor aerial or CATV cable. If the signals are strong enough, you may use an indoor aerial. Note: In case of using the Twin-lead aerial feeder (300 ) for UHF/VHF aerial, use a 300-75 ohm adaptor (not supplied)

  • Page 6: Apperance

    Appearance Front view POWER SWITCH (3) Video 3 input terminals {S-VIDEO, VIDEO, AUDIO L/MONO, R} Note: Functions of MENU, AV, SYS, CH , VOL+/- are also provided to the remote controller. Back view CHANNEL DOWN CHANNEL UP MENU TV/AV SYSTEM MONITOR output terminals Antenna input {VIDEO, AUDIO L/MONO, R}...

  • Page 7: The Remote Controller

    The Remote Controller...

  • Page 8: Operation

    Operation Switching on/off Push the main power switch on, if the set is in Standby mode, the power indicator is red; If there are pictures appearing on the screen, the indicator is yellow. If no picture appears on the screen, push the power button on the remote controller to turn the set on, the indicator turns to yellow.

  • Page 9: Preseting Channels

    Presetting the channels Press the MENU button to display the main menu There are two ways to preset channels: to preset channels automatically and to preset channels manually. MENU Below we will describe how to preset the channels by making use of the menu. 1.
  • Page 10 Press the or button 3. MANUAL SEARCH to select MANUAL If AUTO-SEARCH cannot preset the desired channels, SEARCH or you want to preset the desired channels one by one with the preferred channel numbers - please make SEARCH use of MANUAL SEARCH. MANUAL SEARCH Press the menu item select button to select...
  • Page 11 When you want to store and memorise another channel MANUAL SEARCH with another position, repeat steps 3.3, 3,4. POSITION 14 4. Skip unwanted program numbers After presetting the channels, you can skip unwanted Press the button to program numbers to select your desired channels. select SKIP Repeat steps 3.1 to 3.3 to select the unwanted program position of the unwanted channels .

  • Page 12: Channel Selection

    Press the SYS button 6. The setting of colour and sound system Press the SYS button, the screen will display colour and SYSTEM sound system. COLOR AUTO If the displaying colour is abnormal, press the button to select COLOUR, then press the button to select the right colour system.

  • Page 13: Sound Mode Selection

    Sound mode selection If the broadcasting TV station is transmitting high quality two-channel digital sound (NICAM) to be added to the already existing FM sound, or transmitting a second FM sound with an identification signal to be added to the already existing first FM sound (IGR), in the upper right corner of the screen will display an indication for several seconds which is listed in the following table.

  • Page 14: Picture And Sound Adjustment

    Picture and sound adjustment Press the button, you can quickly select two modes of picture and sound quality standard: STANDARD One is standard mode ( on the screen displays (STANDARD); The other is personal select mode (on the screen Press the button displays "MEMORY").
  • Page 15 Press the MENU button 2. Sound adjustment button Complete the following steps and you will adjust the sound quality. MENU PICTURE Press the MENU button to display the main SOUND menu. Press the button to select SOUND , then press the button to enter into the sub-menu of SOUND.
  • Page 16 3. SURROUND SOUND SURROUND OFF Making use of surround sound, you can enjoy the dynamic sound effect that is like being in a music hall. To make use of surround sound, complete steps 2.1, 2.2 to Press the button to select SURROUND ON, and press the to select SURROUND ON button to select SURROUND then press...

  • Page 17: Other Functions

    Other functions 1. ON Timer/OFF Timer With the timer, you can set the TV to turn on/off automatically at a preset time. In the menu of TIMER you can set: CLOCK, menu of TIMER ON TIME, OFF TIME. TIMER 1.1 OFF TIME OFF TIME OFF With the OFF timer, the TV will automatically switch to standby mode at a preset time.
  • Page 18 1.2.3. Pressing the button set the TV into standby mode. At the preset time the TV will automatically turn on to preset channel. To cancel ON TIME, set ON TIME OFF. 1.3 CLOCK The built-in clock employs the 24-hour system. 1.3.1 Do step 1.1.1 to enter into the sub-menu of TIMER.

  • Page 19: External Equipment Connections

    External Equipment Connections The following describes how to use and connect the TV with other equipment. Refer to the owner's manual of the other equipment to be connected as well. 1. To Connect to AV input You can video equipments such as a VTR and video camera to this TV and enjoy the high quality picture and sound.
  • Page 20 To select the input press the VIDEO button on the TV set or the AV button on the remote controller repeatedly until you see the corresponding input indication on the screen. To return to aerial input, press the AV button until it displays programme number, or press direct channel select button or the CH button.

  • Page 21: Troubleshooting

    Troubleshooting Symptoms Check the following items No power, red indicator Be sure the power cord is plugged in is not lit up Contrast, colour, tint are not correctly adjusted Poor colour, poor tint Possible interferences of automobiles, motorcycle, Spots appear on the trolley bus, neon lamps, etc.

  • Page 22: Specifications

    Specifications ~ 240V, 50Hz Power supply: 200W (When the rated voltage is at AC ~ 240V, 50Hz) Power consumption: 740(W) x 575(H) x 550(D) Dimension(mm): 55kg Weight: 68cm pure flat picture tube CRT: TV system & channel range System CATV PAL-D/K 1-12 13-57...
  • Page 23 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL:(02)9313 7111 FAX:(02)9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888 604-34F83-00...
