BEFCO TILL-RITE T40-158 Operator's Manual

Side-shift rotary tiller
Hide thumbs

Advertisement

Quick Links

Download this manual

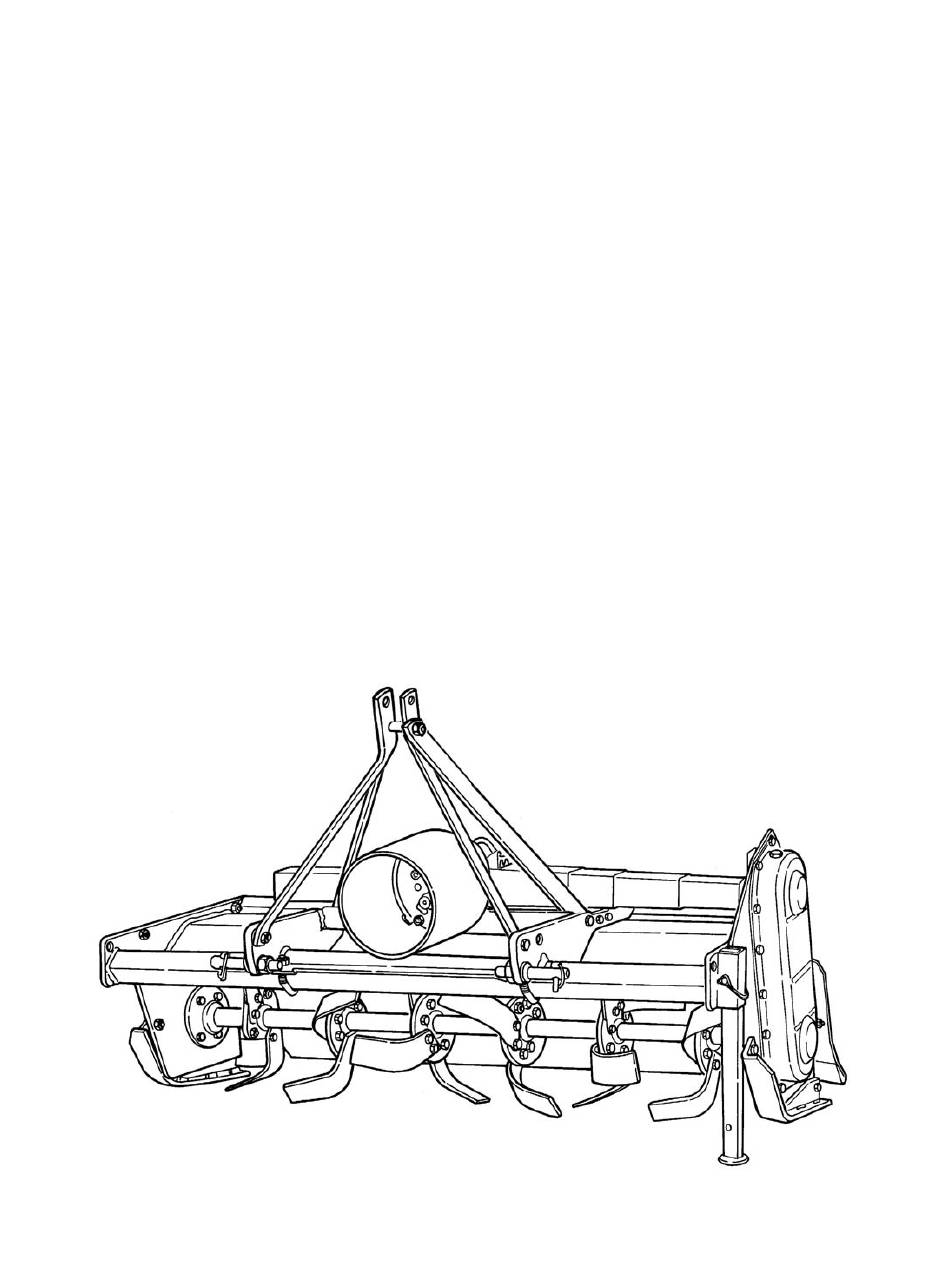

BEFCO
®
Operator's Manual
TILL-RITE
Side-Shift Rotary Tiller
T40-142 & 242, T40-150 & 250, T40-158 & 258,
T40-166 & 266
The operator's manual is a technical service guide and must always accompany the machine.
Manual 971-101B
December 2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the TILL-RITE T40-158 and is the answer not in the manual?

Questions and answers

Related Manuals for BEFCO TILL-RITE T40-158

Summary of Contents for BEFCO TILL-RITE T40-158

  • Page 1 BEFCO ® Operator’s Manual TILL-RITE Side-Shift Rotary Tiller T40-142 & 242, T40-150 & 250, T40-158 & 258, T40-166 & 266 The operator’s manual is a technical service guide and must always accompany the machine. Manual 971-101B December 2020...
  • Page 2 SAFETY Take note! This safety alert symbol found throughout this manual is used to call your attention to instructions involving your personal safety and the safety of others. Failure to follow these instructions can result in injury or death. This symbol means: ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
  • Page 3 4.06 - Safety Slip Clutch 5 - REPAIR PROCEDURES 5.01 - Gearbox 5.02 - Chain Case 5.03 - Rotor 5.04 - Suggested Spare Parts 5.05 - Storage 6 - TROUBLESHOOTING 7 - PRE-DELIVERY CHECKLIST 8 - WARRANTY PARTS MANUAL BEFCO NDEX...
  • Page 4 It is in your best interest to insure that this has been done. Warranty does not cover the following: 1. Cleaning, transporting, mailing and service call charges. See Chapter 8 - Warranty. BEFCO ENERAL NFORMATION...
  • Page 5 Attached to the frame is an ID plate showing the model and the serial number. Record your implement model and serial number in the space provided below. Your local dealer needs this information to give you prompt, efficient service when you order parts. BEFCO ENERAL NFORMATION...
  • Page 6 8. Ensure that all safety shielding and safety signs are properly installed and in good condition. 9. Consult local utility companies to make certain there are no buried gas lines, electrical cables, etc., in the work area before beginning operation. BEFCO AFETY RECAUTIONS...
  • Page 7 6. Allow no riders on tractor or tiller. 7. Allow moving parts to stop before repair. 8. Securely support tiller before working underneath. Additional warning and operating decals are available at no extra charge. Please specify model and serial number when ordering. BEFCO AFETY RECAUTIONS...
  • Page 8 ’ PERATOR ANUAL Fig. 2 - Safety decals - implement; replace immediately if damaged. right side left side BEFCO AFETY RECAUTIONS...
  • Page 9 ’ PERATOR ANUAL Safety decals - driveline; replace immediately if damaged. placed on outer shield placed on outer tube BEFCO AFETY RECAUTIONS...
  • Page 10 (which is designed to reduce the possibility of thrown objects) must be installed. 6. The majority of accidents involve entanglements on the driveline, injury of bystanders by objects thrown by the rotating blades, and operators being knocked BEFCO PERATION...
  • Page 11 When attaining a minimum 20% of tractor and equipment weight on the front wheels, you must not exceed the ROPS weight certification. Weigh the tractor and equipment. Do not guess or estimate! See Table 3, page 31. BEFCO PERATION...
  • Page 12 CAUTION: Stand clear of bands when cutting as they could be under sufficient tension to cause them to fly loose. Take care in removing bands and wire, they often have extremely sharp edges and cut very easily. See Chapter 4 - Maintenance. See Chapter 7 - Pre-Delivery Checklist. BEFCO PERATION...
  • Page 13 4). Check the gearbox oil level (see #1, fig. 5). It should be approximately half full. If needed add SAE 90W gear oil. Fig. 5 1. gearbox 2. locking clamps 3. sliding frame 4. side plate shield bolt 5. telescopic shield BEFCO PERATION...
  • Page 14 (see #4, fig. 7). Ensure it is tightened properly. The chain hitch also works as a stop for the sliding frame to limit its travel. See Table 2, page 31 for proper torque specification. See Section 3.03 - Side-Shift. BEFCO PERATION...
  • Page 15 Do not remove the nuts. 2. Push the sliding frame (#2, fig. 8) towards the left to its new desired position. This can be done without levers or turnbuckles. Do not shift it right of center. 3. Re-tighten the 8 nuts. BEFCO PERATION...
  • Page 16 ’ PERATOR ANUAL Fig. 9 The three point linkage can be shifted from the center mount position (a) to the left (b) into the desired position (c). BEFCO PERATION...
  • Page 17 Lowering the skids, raises the tiller from the ground and lowers its working depth. Fig. 10 1. locking nut 2. adjustment arm 3. side skid 4. chain case BEFCO PERATION...
  • Page 18 11. When working, make sure the tractor hitch is in the “float” position, in order to allow the tiller to rest on the skids and therefore to follow the contour of the ground. See Table 2, page 31. BEFCO PERATION...
  • Page 19 CAUTION: Check the tractor PTO rpm to ensure it is set at 540 and turns clockwise. Always ensure that the tractor tire pressure is correct according to the tractor operator’s manual. Fig. 12 1. sliding frame 2. telescopic shield 3. hitch pin See Table 3, page 31. BEFCO PERATION...
  • Page 20 DANGER: Tractor-implement combinations can create unstable unions with a chance of roll-over. If necessary, front weights need to be added to the tractor in order to maintain balance. Always ensure that the tractor tire pressure is correct according to the tractor operator’s manual. BEFCO PERATION...
  • Page 21 Before beginning work always remember that the operator is responsible for: 1. Safe and correct operation of the tractor and tiller. 2. Learning and following precise, safe operating procedures for both the tractor and the tiller. 3. Ensuring all maintenance and lubrication has been performed on the tiller. BEFCO PERATION...
  • Page 22 Assure PTO, that the machine is properly adjusted and functioning properly. After the first five minutes of operation, stop and feel the gearbox. It should be warm to the touch but not hot. BEFCO PERATION...
  • Page 23 Under these extreme conditions it may be wise not to use the tiller as the primary tillage tool and therefore it is advised to run over the ground with a disc or plow prior to tilling. See Section 3.06 - Pre-Operational Check. BEFCO PERATION...
  • Page 24 (see fig. 14). CAUTION: All transport operations are to be done without the tiller working, and respecting all local traffic rules and regulations. Fig. 14 Raise the machine 14" to 16" from the ground during transport. 14" - 16" BEFCO PERATION...
  • Page 25 The company will not claim responsibility for use of unapproved parts and/or accessories and other damages as a result of their use. Refer to Table 2 - Torque Specifications, for head identification marking, page 31. BEFCO AINTENANCE...
  • Page 26 GP grease (approximately 2.2 lbs). 4.03 - Blade Maintenance WARNING: To avoid possible injury, wear proper eye and hand protection when servicing tiller blades. Fig. 15 BEFCO AINTENANCE...
  • Page 27 Carefully read and file away the driveline operator’s manual supplied by the manufacturer. The following does not substitute the information found in the driveline manual. IMPORTANT: Always check driveline length during initial setup and when connecting to a different tractor. BEFCO AINTENANCE...
  • Page 28 The second one should be hooked in a hole on the inner driveline yoke shield and to the implement to restrict inner shield rotation. If determined that the driveline is too short for your tractor, contact your local dealer. BEFCO AINTENANCE...
  • Page 29 If the clutch slips frequently while the unit is working, it may be necessary to tighten the spring nuts (see fig. 19) on the slip clutch. Tighten the spring nuts in ½ turn increments, then test run the unit for 600 to 800 ft. Repeat the operation if necessary. The discs on BEFCO AINTENANCE...
  • Page 30 Follow the instructions in reverse, if while working under normal conditions the clutch does not slip at all. Fig. 19 spring nut BEFCO AINTENANCE...
  • Page 31 66” 72” 56” 11-14 7.2” T40-242 20-40 42” 47” 32” 11-14 7.2” T40-250 25-40 50” 55” 40” 11-14 7.2” ASAE cat. 3 slip clutch T40-258 30-40 58” 63” 48” 11-14 7.2” T40-266 32-40 66” 72” 56” 11-14 7.2” BEFCO AINTENANCE...
  • Page 32 Additional rotor speeds are possible by replacing the standard chain sprockets inside the chain case. Sprocket combinations are as follows: Chain sprockets Tractor input speed Rotor speed Standard/Option Top sprocket Bottom sprocket Standard Standard (swap top and bottom sprockets) Option Option BEFCO AINTENANCE...
  • Page 33 1. Remove the chain and chain sprockets. 2. Unbolt the bolts holding the left rotor support. 3. Unbolt the bolts holding the left side panel. 4. Unbolt the bolts holding the right side panel and slip the rotor out of the rotor supports. BEFCO EPAIR ROCEDURES...
  • Page 34 Part # 7300007 Primer, gray - aerosol spray can 7300008 Paint, Befco orange - aerosol spray can 7300010 Paint, Befco black - aerosol spray can WARNING: Be sure to store the implement on a hard level surface and away from people especially children.
  • Page 35 Slip clutch slipping. Check slip clutch. Gearbox oil low. Check oil level in gearbox and lubricant on chain. Oil leak from gearbox. Oil seal or grease fitting Replace oil seal or grease fitting. damaged. Gearbox overfilled. Remove excess oil. BEFCO ROUBLESHOOTING...
  • Page 36  Give customer the Operator’s Manual and encourage the customer to read the manual carefully. IMPORTANT: Warranty is not valid unless Pre-Delivery Checklist and Warranty Registration form in Operator’s Manual is completed in detail and mailed to the Company. Model Number: Serial Number: Delivery Date: Dealer’s Signature: BEFCO ELIVERY HECKLIST...
  • Page 37 1. LIMITED WARRANTY BEFCO, Inc. herein referred to as the Company, warrants its machines and related accessories, hereafter referred to as the Machine, to be free from defects in material and workmanship, for a period of twelve (12) months from the date of invoice to the first registered owner;...
  • Page 38 6. WARRANTY SERVICE Warranty Service must be performed by a dealer authorized by BEFCO. If the warranty service requested is approved, the owner shall pay only for labor beyond the rate allowed, for overtime labor, and for any mileage charge for transporting the equipment to and from the dealer’s shop.
  • Page 39 Operator’s Manual and literature published by the Company. Inspected by: Date: Date: Dealer’s Signature: Customer’s Signature: This registration along with a copy of the invoice must be sent to BEFCO, Inc. within 14 days of date of purchase.
  • Page 40 Place stamp here BEFCO, Inc. Warranty Department P.O. Box 6036 Rocky Mount, NC 27802-6036...
  • Page 41 Parts Manual TILL-RITE Side-Shift Rotary Tiller T40-142 & 242, T40-150 & 250, T40-158 & 258, T40-166 & 266 BEFCO T40-X42, X50, X58, X66 (US).lwp Parts Manual 1220 December 8, 2020 T40-142, 242, 150, 250, 158, 258, 166, 266 Ver. C...
  • Page 42 ’ RAME PERATOR ANUAL T40-142, 242, 150, 250, 158, 258, 166, 266 BEFCO ARTS ANUAL 1220...
  • Page 43 Oil seal 40.56.8; T40-X66 003-0094 Bearing 6306 003-0095 Locking ring ES GUK M30-1.50 000-1061 Bearing 6307 003-0091 Outer cover, right 000-1065 Grease fitting M10-1.00 003-4122 Outer cover, left Blades must be purchased in pairs (right & left blade). BEFCO ARTS ANUAL 1220...
  • Page 44 ’ RAME PERATOR ANUAL T40-142, 242, 150, 250, 158, 258, 166, 266 BEFCO ARTS ANUAL 1220...
  • Page 45 Washer lock Ø10 Z 000-1279 Nut HH M10-1.50 C6 Z TK 000-6349 Bolt HH M10-1.50x20 C8.8 Z F 009-0150 Nut HH M10-1.50 C6 Z MD 003-0331 Bolt HH M10-1.50x50 C8.8 Z F 000-1278 Bolt HH M10-1.50x30 C8.8 Z F BEFCO ARTS ANUAL 1220...
  • Page 46 ’ RAME PERATOR ANUAL T40-142, 242, 150, 250, 158, 258, 166, 266 BEFCO ARTS ANUAL 1220...
  • Page 47 Nut HH M20-2.50 C6 Z TK; #374703 & above 003-4098 Oil seal 40.60.10 TC 003-0092 Inner cover 001-0073 Cover 003-4121 Disk with holes 001-1278 Hitch block extension (option); #374702 & below 000-5507 Nut PT M20-2.50 C6 Z TK BEFCO ARTS ANUAL 1220...
  • Page 48 ’ EARBOX PERATOR ANUAL T40-142, 242, 150, 250, 158, 258, 166, 266 BEFCO ARTS ANUAL 0112...
  • Page 49 009-1281 Bolt HH M10-1.50x35 C8.8 Z F 000-1278 Bolt HH M10-1.50x30 C8.8 Z F 003-0157 Washer fender Ø10 Z 000-1106 Nut HH M12-1.75 C6 Z MD 001-1201 Support, protection 000-6691 Gasket 050-0606 Gearbox 540 rpm, complete BEFCO ARTS ANUAL 0112...
  • Page 50 Decal “DANGER - Guard missing, do not operate” outer tube 000-508E Shear bolt HH M08-1.25x45 C8.8 & nut PT M08-1.25 050-0401 Driveline w/shear bolt, complete Complete shielding is interchangeable with part #96SS4043C. Single shield components are not interchangeable. BEFCO ARTS ANUAL 0210...
  • Page 51 Shear bolt HH M08-1.25x45 C8.8 N P & nut PT M08-1.25 96SS4043C Shield, complete 950-463B Decal “DANGER - Rotating driveline, keep away” outer shield 950-464B Decal “DANGER - Guard missing, do not operate” outer tube 050-0401 Driveline w/shear bolt, complete BEFCO ARTS ANUAL 0210...
  • Page 52 ’ RIVELINE LIP CLUTCH PERATOR ANUAL T40-242, 250, 258, 266 - S #280017 & ERIAL BELOW BEFCO ARTS ANUAL 1109...
  • Page 53 Decal “DANGER - Rotating driveline, keep away” outer shield 950-464B Decal “DANGER - Guard missing, do not operate” outer tube 050-0408 Driveline w/slip clutch, complete Complete shielding is interchangeable with part #96SE4041C. Single shield components are not interchangeable. BEFCO ARTS ANUAL 1109...
  • Page 54 ’ RIVELINE LIP CLUTCH PERATOR ANUAL T40-242, 250, 258, 266 - S #280018 & ERIAL ABOVE BEFCO ARTS ANUAL 1109...
  • Page 55 Extra short cone; #280018 & above 1784711C Locking ring, inner tube; #280018 & above 950-463B Decal “DANGER - Rotating driveline, keep away” outer shield 950-464B Decal “DANGER - Guard missing, do not operate” outer tube 050-0408 Driveline w/slip clutch, complete BEFCO ARTS ANUAL 1109...
  • Page 56 ’ ECALS PERATOR ANUAL T40-142, 242, 150, 250, 158, 258, 166, 266 BEFCO ARTS ANUAL 1220...
  • Page 57 950-209B Decal “DANGER - Rotating blades hazard” 950-486B Decal “DANGER - Moving parts hazard” 950-417B Decal “CAUTION - Read operator’s manual” 937-0160 Decal “Side-shift” 950-107B Decal “BEFCO” 950-226B Decal “B” logo 950-231B Decal “T40” 950-236B Decal “142” 950-237B Decal “150”...
  • Page 59 Use only original spare parts All rights reserved. It is unlawful to copy, reprint or use any of the information or details in this manual without the expressed written permission of the Company. Technical information provided in this manual is approximate, the Company reserves the right to modify or improve the models shown for technical or commercial purposes.
  • Page 60 ® P.O. Box 6036 Rocky Mount, NC 27802-6036 Tel.: 252.977.9920 - Fax: 252.977.9718 www.befco.com ®...
