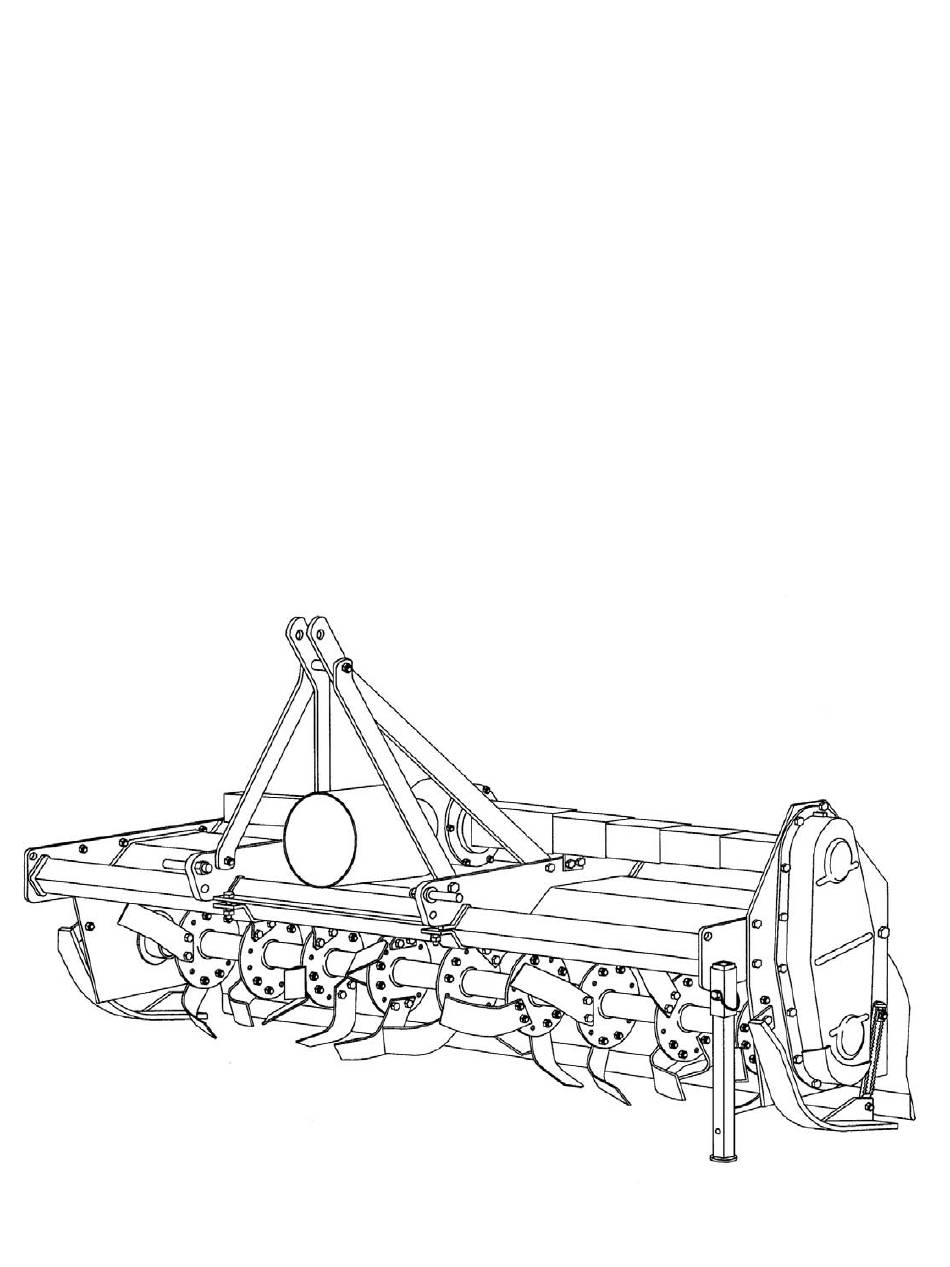

BEFCO ® Operator’s Manual TILL-RITE Side-Shift Rotary Tiller T60-266, 366 T60-274, 374 The operator’s manual is a technical service guide and must always accompany the machine. Manual 971-103B January 2014...
Page 2
SAFETY Take note! This safety alert symbol found throughout this manual is used to call your attention to instructions involving your personal safety and the safety of others. Failure to follow these instructions can result in injury or death. This symbol means: ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Page 4
It is in your best interest to insure that this has been done. Warranty does not cover the following: 1. Cleaning, transporting, mailing and service call charges. See Chapter 8 - Warranty. BEFCO ENERAL NFORMATION...
Page 5
Attached to the frame is an ID plate showing the model and the serial number. Record your implement model and serial number in the space provided below. Your local dealer needs this information to give you prompt, efficient service when you order parts. BEFCO ENERAL NFORMATION...
Page 6
8. Ensure that all safety shielding and safety signs are properly installed and in good condition. 9. Consult local utility companies to make certain there are no buried gas lines, electrical cables, etc., in the work area before beginning operation. BEFCO AFETY RECAUTIONS...
Page 7
6. Allow no riders on tractor or tiller. 7. Allow moving parts to stop before repair. 8. Securely support tiller before working underneath. Additional warning and operating decals are available at no extra charge. Please specify model and serial number when ordering. BEFCO AFETY RECAUTIONS...
Page 8
’ PERATOR ANUAL Fig. 2 - Safety decals - implement; replace immediately if damaged. right side left side BEFCO AFETY RECAUTIONS...
Page 9
’ PERATOR ANUAL Safety decals - driveline; replace immediately if damaged. placed on outer shield placed on outer tube BEFCO AFETY RECAUTIONS...
Page 10
(which is designed to reduce the possibility of thrown objects) must be installed. 6. The majority of accidents involve entanglements on the driveline, injury of bystanders by objects thrown by the rotating blades, and operators being knocked BEFCO PERATION...
Page 11
When attaining a minimum 20% of tractor and equipment weight on the front wheels, you must not exceed the ROPS weight certification. Weigh the tractor and equipment. Do not guess or estimate! See Table 3, page 30. BEFCO PERATION...
Page 12
CAUTION: Stand clear of bands when cutting as they could be under sufficient tension to cause them to fly loose. Take care in removing bands and wire, they often have extremely sharp edges and cut very easily. See Chapter 4 - Maintenance. See Chapter 7 - Pre-Delivery Checklist. BEFCO PERATION...
Page 13
4). Check the gearbox oil level (see #1, fig. 5). It should be between ½ and full. Use SAE 90 wt. gear oil. Fig. 5 1. gearbox 2. locking clamps 3. sliding frame 4. side plate shield bolt 5. telescopic shield BEFCO PERATION...
Page 14
(see #4, fig. 7). Ensure it is tightened properly. The chain hitch also works as a stop for the sliding frame to limit its travel. See Table 2, page 30 for proper torque specification. See Section 3.03 - Side-Shift. BEFCO PERATION...
Page 15
Do not remove the nuts. 2. Push the sliding frame (#2, fig. 8) towards the left to its new desired position. This can be done without levers or turnbuckles. Do not shift it right of center. 3. Re-tighten the 8 nuts. BEFCO PERATION...
Page 16
’ PERATOR ANUAL Fig. 9 The three point linkage can be shifted from the center mount position (a) to the left (b) into the desired position (c). BEFCO PERATION...
Page 17
Lowering the skids, raises the tiller from the ground and lowers its working depth. Fig. 10 1. locking nut 2. adjustment arm 3. side skid 4. chain case BEFCO PERATION...
Page 18
11. When working, make sure the tractor hitch is in the “float” position, in order to allow the tiller to rest on the skids and therefore to follow the contour of the ground. See Table 2, page 30. BEFCO PERATION...
Page 19
540 and turns clockwise. Always ensure that the tractor tire pressure is correct according to the tractor operator’s manual. Fig. 12 1. sliding frame 2. telescopic shield 3. hitch pin See Table 3, page 30. BEFCO PERATION...
Page 20
Allow enough slack for the sliding plastic shielding to slide in and out. IMPORTANT: See Section 4.04 - Driveline, to ensure the driveline is the proper length. Fig. 13 - Correct work position of the tiller. A 1 to 2 degree rearward tilt is acceptable. BEFCO PERATION...
Page 21
9. Checking to see if front weights need to be added to the tractor in order to maintain balance. 10. Checking the tractor tires for the proper pressure in accordance to the tractor operator’s manual. 11. Checking that all shields are on the machine and securely in place. BEFCO PERATION...
Page 22
2” to 3”. Greater depth may require a second pass. NOTE: Excessive vibration or jumping of the machine is an indication that the machine is working too deep for conditions, such as in hard, parched or compacted soil and should be adjusted accordingly. BEFCO PERATION...
Page 23
3.15 - Uneven Terrain DANGER: Be careful when operating tractor and machine over uneven ground to avoid roll-over. See Section 3.06 - Pre-Operational Check. BEFCO PERATION...
Page 24
(see fig. 14). CAUTION: All transport operations are to be done without the tiller working, and respecting all local traffic rules and regulations. Fig. 14 Raise the machine 14" to 16" from the ground during transport. 14" - 16" BEFCO PERATION...
Page 25
The company will not claim responsibility for use of unapproved parts and/or accessories and other damages as a result of their use. Refer to Table 2 - Torque Specifications, for head identification marking, page 30. BEFCO AINTENANCE...
Page 26
When replacing blades, it is best to replace them one at a time to maintain the original scroll pattern. If, however, it becomes necessary to remove them all, it is essential to maintain the scroll pattern of the blades (see fig. 15). To do BEFCO AINTENANCE...
Page 27
In the collapsed position the driveline should be approximately 2” from bottoming out to prevent possible damage to the tractor or implement. When the driveline is in the maximum extended position, the ideal minimum overlap of the two halves should be approximately 6” (see fig. 17). BEFCO AINTENANCE...
Page 28
6" Max. min. 2" Min. CAUTION: Always work with the driveline as straight as possible. This will prolong its life and that of its components. It is advised not to work at an angle greater than 15 degrees. BEFCO AINTENANCE...
Page 29
Follow the instructions in reverse, if while working under normal conditions the clutch does not slip at all. Fig. 18 spring nut BEFCO AINTENANCE...
Page 31
(one right and one left). The center rotor is attached to the two side support flanges with special bolts. To remove the center rotor, simply remove these bolts and slip the center rotor out from the two support flanges. BEFCO EPAIR ROCEDURES...
Page 32
5. Cover the tiller from the elements in order to have it in perfect condition for the start of the next season. 6. Store driveline in dry area. A slip clutch can become inoperative if the discs stick together. Be sure to check the clutch before using the tiller after prolonged storage. BEFCO EPAIR ROCEDURES...
Page 33
Slip clutch slipping. Check slip clutch. Gearbox oil low. Check oil level in gearbox and lubricant on chain. Oil leak from gearbox. Oil seal or grease fitting Replace oil seal or grease fitting. damaged. Gearbox overfilled. Remove excess oil. BEFCO ROUBLESHOOTING...
Page 34
Give customer the Operator’s Manual and encourage the customer to read the manual carefully. IMPORTANT: Warranty is not valid unless Pre-Delivery Checklist and Warranty Registration form in Operator’s Manual is completed in detail and mailed to the Company. Model Number: Serial Number: Delivery Date: Dealer’s Signature: BEFCO ELIVERY HECKLIST...
Page 35
1. LIMITED WARRANTY BEFCO, Inc. herein referred to as the Company, warrants its machines and related accessories, hereafter referred to as the Machine, to be free from defects in material and workmanship, for a period of twelve (12) months from the date of invoice to the first registered owner;...
Page 36
6. WARRANTY SERVICE Warranty Service must be performed by a dealer authorized by BEFCO. If the warranty service requested is approved, the owner shall pay only for labor beyond the rate allowed, for overtime labor, and for any mileage charge for transporting the equipment to and from the dealer’s shop.
Page 37
Operator’s Manual and literature published by the Company. Inspected by: Date: Date: Dealer’s Signature: Customer’s Signature: This registration along with a copy of the invoice must be sent to BEFCO, Inc. within 14 days of date of purchase.
Page 38
Place stamp here BEFCO, Inc. Warranty Department P.O. Box 6036 Rocky Mount, NC 27802-6036...
Page 39
BEFCO ® Parts Manual TILL-RITE Side-Shift Rotary Tiller T60-266, 366 T60-274, 374 Parts Manual 01/2014 BEFCO T60-X66, X74 (US).lwp T60-266, 274 Ver. A December 16, 2013 T60-366, 374...
Page 43
Bolt HH M14-2.00x120 C8.8 Z P 003-7386 Bolt HH M18-2.50x80 C8.8 Z F 000-3366 Washer lock Ø18 Z 003-8370 Nut HH M18-2.50 C6 Z MD 003-0156 Nut PT M10-1.50 C6 Z TK Replaces part #038-0335. Replaces part #048-0335. BEFCO ARTS ANUAL 01/2014...
Page 49
Shield, inner tube 1785702C Extra short cone 1786711C Locking ring, inner tube 950-463B Decal “DANGER - Rotating driveline, keep away” outer shield 950-464B Decal “DANGER - Guard missing, do not operate” outer tube 050-0427 Driveline w/slip clutch, complete BEFCO ARTS ANUAL 04/2009...
Page 51
Use only original spare parts All rights reserved. It is unlawful to copy, reprint or use any of the information or details in this manual without the expressed written permission of the Company. Technical information provided in this manual is approximate, the Company reserves the right to modify or improve the models shown for technical or commercial purposes.
