PhotoMOS
HE
1 Form A

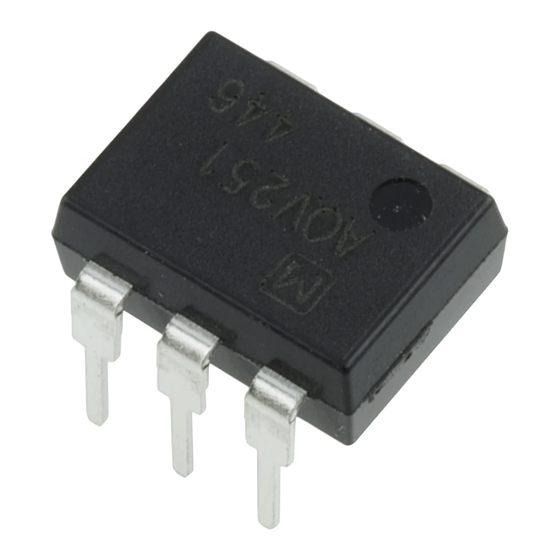

DIP6-pin type with low on-resistance and high insulation
8.8
6.4
1
2
3
TYPES
I/O isolation
Category
Load
voltage
voltage
40 V
60 V
100 V
200 V
1,500 Vrms
250 V
AC/DC
400 V
dual use
1,000 V
1,500 V
250 V
5,000 Vrms
400 V
(High insulation)
600 V
Note: The surface mount terminal shape indicator "A" and the packing style indicator "X" are not marked on the device.
(Ex. the label for product number AQV251AX is AQV251.)
*1.Indicate the peak AC and DC values.
*2.Tape and reel packing style X: picked from the 1/2/3-pin side. For part numbers with picked from the 4/5/6-pin side, change the "X" at the end to "Z" when ordering.
2022.01
industrial.panasonic.com/ac/e/
6.4
8.8
3.6
3.9
(Height includes standoff )
6
5
4
(Unit: mm)
Output rating*
1
Through hole
terminal
Load
current
Tube packing
style
500 mA AQV251
400 mA AQV252
350 mA AQV255
250 mA AQV257
200 mA AQV253
150 mA AQV254
30 mA AQV259
20 mA AQV258
200 mA AQV253H
150 mA AQV254H
130 mA AQV256H
FEATURES
Wide variation of 40V, 60V, 100V, 200V, 250V, 400V,
600V, 1,000V and 1,500V load voltage
Low on-resistance of Typ. 0.6Ω (AQV251)
High I/O isolation voltage of 5,000 V available
TYPICAL APPLICATIONS
Measuring instruments
Data communication equipment
Telephone equipment
Automatic meter reading device
Note: Please contact our sales representative for automotive applications of PhotoMOS.
Part No.
Surface mount terminal
Tube packing Tape and reel
style packing style X*
AQV251A AQV251AX
AQV252A AQV252AX
AQV255A AQV255AX
AQV257A AQV257AX
AQV253A AQV253AX
AQV254A AQV254AX
AQV259A AQV259AX
AQV258A AQV258AX
AQV253HA AQV253HAX
AQV254HA AQV254HAX
AQV256HA AQV256HAX
ー 1 ー
Panasonic Corporation 2022
Packing quantity
Tube Tape and reel
2
1-tube: 50 pcs. 1-reel: 1,000 pcs.
Outer carton: 500 pcs. Outer carton: 1,000 pcs.
ASCTB143E 202201
