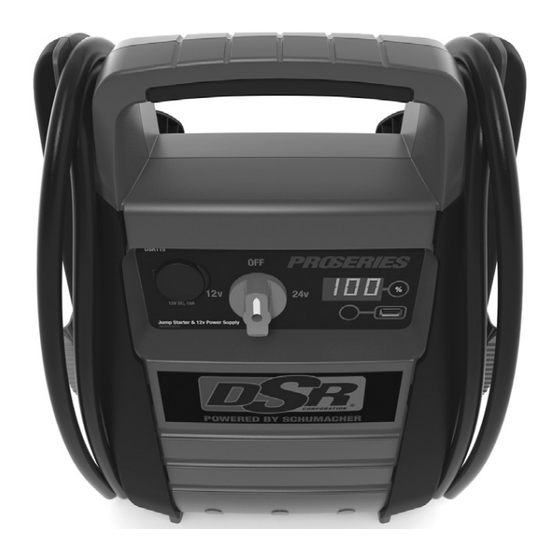

MODELS
DSR114, DSR115
Jump Starter and DC Power Source
OWNERS MANUAL
DSR114
DSR115
PLEASE SAVE THIS OWNER'S MANUAL AND READ BEFORE EACH USE.
This manual will explain how to use your jump starter safely and effectively. Please
read and follow these instructions and precautions carefully.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSR Corporation Pro Series DSR115 and is the answer not in the manual?

Questions and answers

Related Manuals for Schumacher DSR Corporation Pro Series DSR115

Summary of Contents for Schumacher DSR Corporation Pro Series DSR115

  • Page 1 MODELS DSR114, DSR115 Jump Starter and DC Power Source OWNERS MANUAL DSR114 DSR115 PLEASE SAVE THIS OWNER’S MANUAL AND READ BEFORE EACH USE. This manual will explain how to use your jump starter safely and effectively. Please read and follow these instructions and precautions carefully.
  • Page 2 CONTAINS SEALED, NON-SPILLABLE LEAD-ACID BATTERY. MUST BE DISPOSED OF PROPERLY. WARNING: Possible explosion hazard. Contact with battery acid may cause severe burns and blindness. Keep out of reach of children.

  • Page 3: Important Safety Instructions

    1. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. WARNING – RISK OF EXPLOSIVE GASES WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. IT IS IMPORTANT THAT YOU FOLLOW THESE INSTRUCTIONS EACH TIME YOU USE THE UNIT.

  • Page 4: Connecting The Jump Starter

    protective clothing. Avoid touching your 2.14 Add distilled water to each cell until the eyes while working near the battery. battery acid reaches the level specified by the battery manufacturer. Do not 2.11 If battery acid contacts your skin or overfill.
  • Page 5 4. FEATURES Jump Starter 1. Heavy-duty battery clamps 2. 12V DC socket 3. Jump starter ON/OFF switch 4. Digital display 5. Display button 6. USB port 7. USB button Charger 1. Charging status LED 2. Bad Battery LED 3. Power LED 4.1 Digital Display DSR115).

  • Page 6: Charging The Internal Battery Of The Jump Starter

    5. CHARGING THE INTERNAL BATTERY OF THE JUMP STARTER IMPORTANT! 5.2 Charging the Jump Starter CHARGE IMMEDIATELY AFTER with included Charger PURCHASE, AFTER EACH USE AND 1. Make sure the charger and jump starter EVERY 30 DAYS, TO KEEP THE UNIT’S are placed on a dry, nonflammable INTERNAL BATTERY FULLY CHARGED surface.
  • Page 7 Maintain Mode (Float Mode Monitoring) CAUSING PROPERTY DAMAGE OR When the internal battery is fully charged PERSONAL INJURY. and the jump starter display shows “100”, 1. Make sure the car is running. the charger has started maintain mode. In 2. Insert one end of the accessory cable this mode, the charger keeps the battery into the 12V DC power outlet.

  • Page 8: Maintenance Instructions

    circuit breaker of the jump starter Electric tool 24 watts 11 hrs. 22 hrs. will trip and disconnect the power to Electric cooler 48 watts 5.5 hrs. 11 hrs. the device. Disconnect the 12V DC Car vacuum, 80 watts 3.3 hrs. 6.6 hrs.

  • Page 9: Troubleshooting

    9. TROUBLESHOOTING Jump Starter PROBLEM POSSIBLE CAUSE SOLUTION The jump starter won’t Clamps are not making a good Check for poor connection to jump start my car. connection to the battery. battery and frame. Make sure connection points are clean. The jump starter’s battery is not Check the battery charge status charged.
  • Page 10 Charger PROBLEM REASON SOLUTION AC outlet is dead. Check for open fuse or circuit The green POWER breaker supplying AC outlet. LED does not light when charger is properly Poor electrical connection. Check power cord and extension connected. cord for a loose fitting plug. The battery is sulfated.

  • Page 11: Specifications

    Output voltage......................12V DC Output current rating ....................... 2A 11. REPLACEMENT PARTS/ACCESSORIES Male-to-male accessory cable ................94500109 DSR2 Charger ................... 2299003063CZ Replacement battery (DSR115 uses 2) ............5799000010Z Feel the difference with Schumacher. Learn more about automotive tools and trim we have.
