Summary of Contents for Peachtree Carina 300

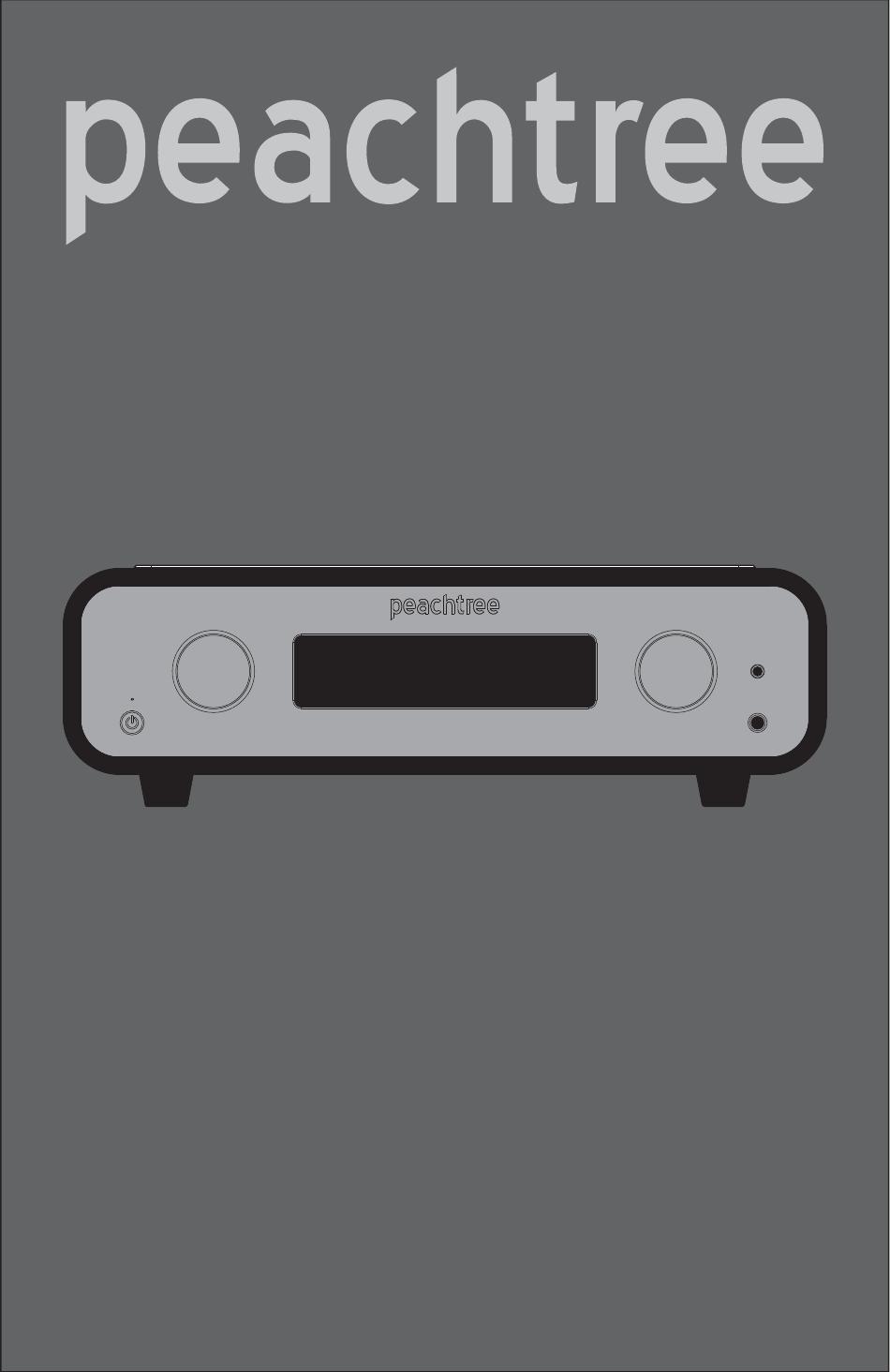

- Page 1 Carina 150 Carina 300 Carina GaN...
- Page 2 safety If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus...
- Page 3 The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to presence of on-insulated hazard voltage within product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. No naked flame sources, such as lighted candles, should be placed on the apparatus. direct sunlight or excessive heat such as a fire.
- Page 5 Carina Introduction Back Panel Front Panel Remote Control Menu Using Carina as a Power Amplifier Warranty and Repair Specifications...
- Page 6 The Carina 300 will drive almost any speaker available today with ease and authority and if your speakers have relatively high sensitivity (~88dB or above) the Carina 150 could be a better fit. All Ω...
- Page 7 See the SPECIFICATIONS section for the specific fuse values required. Caution: using an improper fuse value may cause damage to the unit. Peachtree Audio does accept responsibility for any damage caused by the use of an improper fuse value. ANTENNA Connector Provides an external antenna connection to maximize the reception range from Bluetooth enabled devices.
-
Page 8: Preamp Output
USB-C INPUT Accepts digital audio input up to 32-bit/762KHz PCM & octuple DSD (aka DSD512). Windows users note: to enable ASIO, WASAPI, or DSD playback, along with “exclusive mode”, Please visit http://www.peachtreeaudio.com/usb- drivers-and-firmware and download the latest version. OPTICAL INPUT Accepts S/PDIF digital audio input from an optical (Toslink style) output up to 24-bit/192kHz PCM. - Page 9 Diagram of a speaker binding post and how the most common types of speaker cable terminations can be connected.
- Page 10 Toggles the unit between on mode (green LED) and standby mode (red LED). Note: AC power cord must be connected and rear panel POWER switch set to for this button to function. Left knob Rotate in either direction to select the desired input. Push and hold for ~3 seconds to enter the MENU .
- Page 11 On/Standby Button Toggles the unit between on mode and standby mode. Mute Button Toggles the mute function on and off. Volume Up & Down Buttons DISPLAY NODE Increase and decrease the volume / output level. Display Brightness Button Steps the brightness of the front panel display through the available settings.
- Page 12 MENU PCM filter L-FAST is a inear phase FAST roll-off filter. It is the most common type of digital filter and is the most accurate and neutral acoustically. H-FAST is a Hybrid FAST roll-off filter. The length of the pre-ringing is shorter and more consistent than the length of the post-ringing which is more like musical instruments.
- Page 13 TRIGGER SEL INPUT & LAST The 12V INPUT TRIGGER can be set to select one of the specific INPUT(S) or to select the LAST input used when the unit was put into standby. SET [INPUT] VOL Sets the starting point volume / output level for each input independently.
- Page 14 If this feature is NOT setup and used properly, significant damage to the system may occur. Peachtree Audio does NOT accept responsibility for any damage caused by the misuse of this feature.
- Page 15 Peachtree Audio warrants this product for two (2) years, parts and labor, from the original date of purchase from an authorized source. If you register your product online at http://www.peachtreeaudio.com/pages/product-registration the warranty is extended to three (3) years, parts and labor.
- Page 16 www peachtreeaudio com collections integrated amplifiers products Carina-gan To be continued...
- Page 17 Continued 1200W...
- Page 18 Model: 110V GROUND PHONO USB-C COAX-2 INPUT OUTPUT INPUT Carina 150 Carina 300 Carina GaN...
